COLO 6-Axis Powder Coating Robot

Powder coating systems combines with robots attain the highest levels of productivity and the best possible, operator-independent, endless repeatable coating quality
  • COLO-robot

  • COLO

Availability:
Quantity:

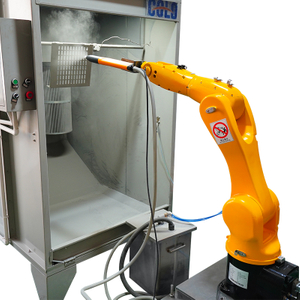

COLO 6-Axis Powder Coating Robot


COLO 6-Axis robot is the initial choice for maximum flexibility and perfect coating quality, which is developed specially for the coating industry with modern powder application or liquid painting technology, along with huge savings in powder, energy and manual interventions

Powder Coating Robot



COLO Powder Coating Robot Features

1. It is a six-axis joint structure, with six servo motors driving the rotation of the six joint axises.

2. Robot joints are made of high-intensity aluminum, ensuring the precision and reliability in high-strength and high-speed working.
3. Constructed by servo motor and harmonic reducer, features small dimension, wide working range, high speed and accurate.

4. Designed fully sealed that is dustproof, waterproof and explosion-proof, with an IP grade of 67.

5. Palm-type conversational operation control system easy to learn, very suitable for production use.

6. Highly flexibille robot can realize spraying on the outer surface and inner surface that saves painting materials.

7. Robot body is internal wiring that is safe and environmental-friendly.

6-aixs coating robot


COLO 6-Axis Powder Coating Robot Specifications

Item
Content
Data
Specifications
Max. Running Radius
1500mm
Max. Loading
10kgs
Repeated Posisioning Accuracy
±0.08mm
Protection Grade
IP67
Total Weight
140kgs
Range of Motion
J1
-180° ~ +180°
J2
-90° ~ +90°
J3
-75° ~ +255°
J4
-180° ~+180°
J5
-120° ~ +120°
J6
-360° ~ +360°
Max. Speed
J1
150°/s
J2
150°/s
J3
250°/s
J4
450°/s
J5
650°/s
J6
450°/s


Benefits of Powder Coating with Robots

  • Precise movement and 100% repeatability for greater process control

  • Fast robot movement for high production rate

  • Perfect and efficient for coating products of complex shapes

  • Flexible, highly targeted, up-close application

  • Achieve uniform and reproducible coating results,

  • Optimize the labor cost and material cost.
