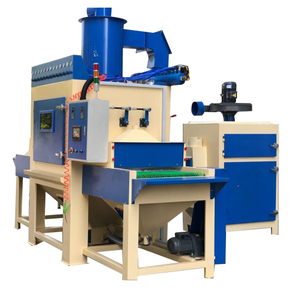

KF-3810-12A
Kafan
| Quantity: | |
|---|---|
Designed for continuous sandblasting applications of parts in flat shape parts, such as stainless steel plate, aluminum plate, profiles, glass plate, stone, mobile shell, notebook mainboard, decorative pieces, etc. Automatic sandblasting system speeds up production time and increases throughput, ensures consistent quality and predictable results
A batch of workparts are manually placed or fixed on the belt conveyer, then transported into a blasting station where the blast gun automatically swinging and blasting to process, after which they will enter into a clean room for removing the abrasives and dust. All workparts are finally discharged by manual when comes out from the other end of the conveyor.
2. Swinging angle and blasting distance of the automatic guns can be adjusted to optimize results
3. Depending on the parts'shapes and dimensions, the blasting area can be equipped with fixed guns or oscillating guns on a vertical/horizontal axis,
4. Cyclone and cartridge filter dust collecting system ensures clean working environment
5. Each system can be tailored to the customer's specifications to address all process constraints and for optimal results and productivity.
Flexibile Belt and Blast Guns
PLC Control with Touch Screen
Filter Cartridge Dust Collector
| Model | KF-3810-12A |
| Overall Size | 3500*1400*2500mm |
| Working Chamber Size | 3800*1400*2139mm |
| Pass Through Size | 1000*350mm |
| Dust Collector Motor | 7.5kw |
| Loading of Conveyor | 300kgs |
| Total Machine Weight | 1400kgs |
| Drive of Conveyor | 0.4kw speed adjustable |
| Blasting Gun | 12 pcs, with boron carbide nozzle, each gun is individually controlled |
| Gun Clamp Power | 400w |
| Air Compressor | 75kw |
| Conveyor Speed | 0-5m/min speed adjustable |
