Home » Products » Powder Spray Booth » Manual Spray Booth » Small Batch Powder Coating Booth COLO-S-0711

PRODUCT DETAIL

Share to:

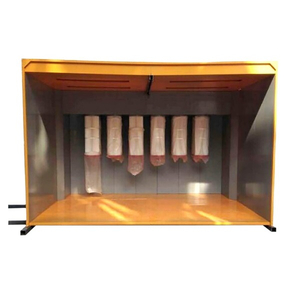

Small Batch Powder Coating Booth COLO-S-0711

COLO-S-0711 Powder coating booth is a classic and affordable model suitable for small batch applications. Extremely quiet and environmentally friendly, this booth with a compact design applies to a variety of industrial finishings.

Quantity:
  • COLO-S-0711

Small Batch Powder Coating Booth COLO-S-0711

COLO-S-0711 Powder coating booth is a classic and affordable model suitable for small batch applications. Extremely quiet and environmentally friendly, this booth with a compact design applies to a variety of industrial finishings.


Air flow is drawn in through the open front, across the coater and parts being treated, and then exhausted through the filter stage in the back wall of the booth. Filtered powders are then discharged into a collecting hopper beneath the unit which can be moved away for emptying.


Small Batch Powder Coating Booth Features

1. Booth body constructed with powder-coated steel is durable and corrosion resistant.

2. Quick-release type cartridge filters supports simple replacement for color change demands.

3. Automatic filter cleaning through pulse-jetting controlled by soleniod valve, easy to maintenance.

4. A space-saving and compact powder spray booth occupies a small workshop area.

5. Only simple electric and pneumatic connections are required to start your business.


Small Batch Powder Coating Booth Specifications:

ModelCOLO-S-1115
Operating Dimensions Width700*Depth800*Heght1000mm
Overall dimensions Width1000*Depth1600*Heght1900mm
Weight
150kg
Power Supply
220V/380V, 3Phase, 50-60HZ
Fan Power
1.5kw
Filter Count
1 pcs, Quick-release Type
Filter Material
Polyester
Filter Cleaning
Pneumatic


COLO powder coating booths served as the industry standard for a decade, offer solutions for a wide range of applications. A diverse configurations to meet manual or automatic production needs, such as filter recovery type, cyclone recovery type. We are always devoted to improve productivity and provide flexibility to maximize customer's profit.
