COLO-3145

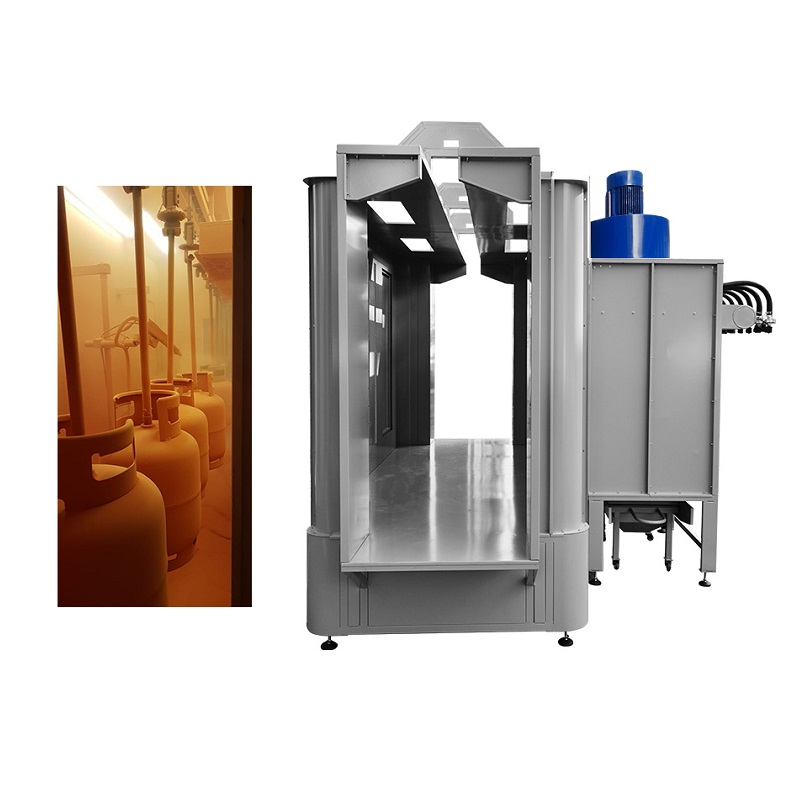

This automatic spray booth is ideal for powder coating LPG tanks, fire extinguishers or other cylinder shaped parts, working with special conveying system allows the cylinders rotating and passing automatically, creating an overall and uniform powder coating coverage, whose powder reclaim acts by a group of high precision cartridge filters.
Our powder spray booth can be made cold-rolled steel or stainess steel for exceptionally stability and durability, all components with premium quality and performance to get an ideal cleaning and powder recovery.
Cartridge FIlters
A group of cartridge filters effectively capture oversprayed powder, 0.1micron high precision filters ensures only particle-free air discharged outside.
Pulse Filter Cleaning
The filters retain their capacity through self-cleaning system. A load-triggered puls-jetting system intermittently release the attached powder overspray for a longer life span.
PLC Control
A user-friendly PLC panel integrates all functions you need, like turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop, etc.
Powder Collector
A portable hopper beneath the filter stage for collecting released powders from filter, can be manually taken away or connected with automatic recycling system.
| Model | COLO-S-3145 |
| Operating Dimensions | Width880 * Height1550 * Depth3000mm |
| Overall dimensions | Width1400 * Height2484 * Depth3000mm |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 5.5kw |
| Filter Count | 4 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
The automatic powder coating booth designed with one manual powder coating door and an automatic reciprocating station. allow 2-12pcs powder guns moving up and down, and 2pcs on the bottom to spraying the bottom of the cylinders, and 2pcs fixed top to powder coating the top of the cylinders.
