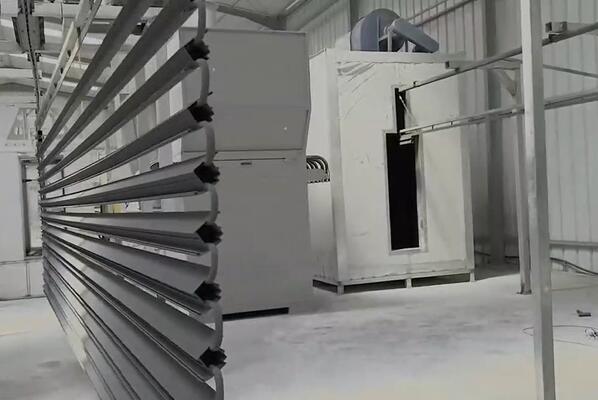

Automatic Powder Coating Line for 6m Aluminium Profiles (in Morocco)

This fully-customized automatic powder coating line is specially designed for our Morocco customer for the application of aluminium profiles. The system mainly includes pp plastic powder coating cyclone booth, conveyor system automatic powder guns, reciprocator, powder feed center, curing tunnel

This automatic powder coating line realizes high production capacity, fast color change demands, requires minimum labor and downtime, suitable for customer who has sufficient factory space and budget.

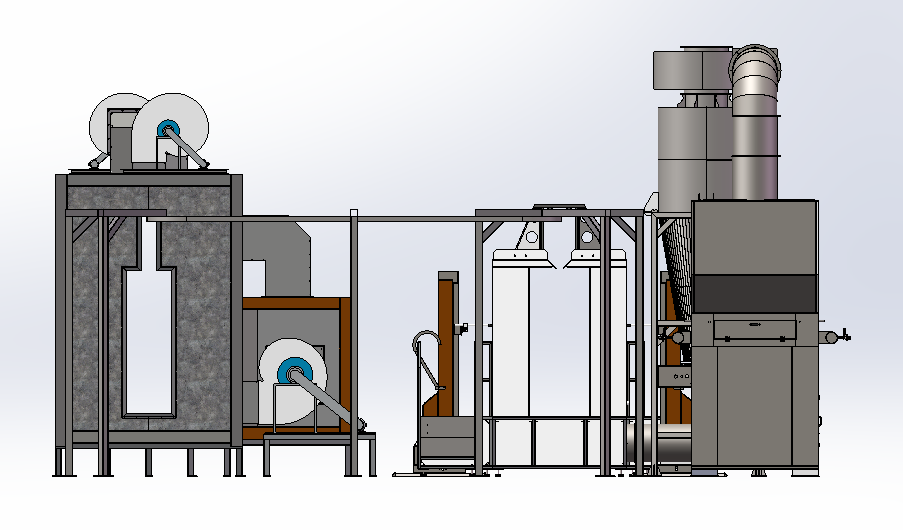

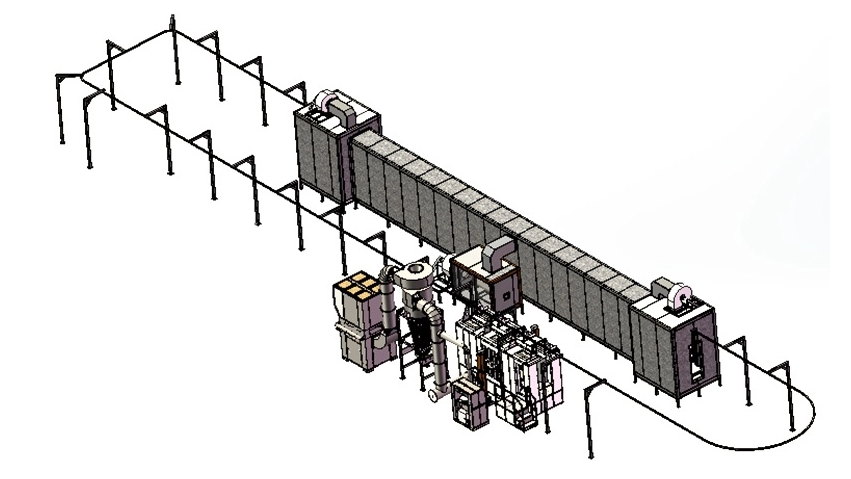

Automatic Powder Coating Line Working Process

Workparts movement is driven through the overhead conveying system. When passing through an automatic spray booth, the workparts get powder spraying by automatic equipment ensures uniform powder film thickness. Afer spraying, the workparts will be automatically transported into a curing tunnel for continuously production. Overspray powders will be transferred from spray booth to the powder feed center for sieving and recycling back to the spray guns.

Details of Powder Coating Line Configurations

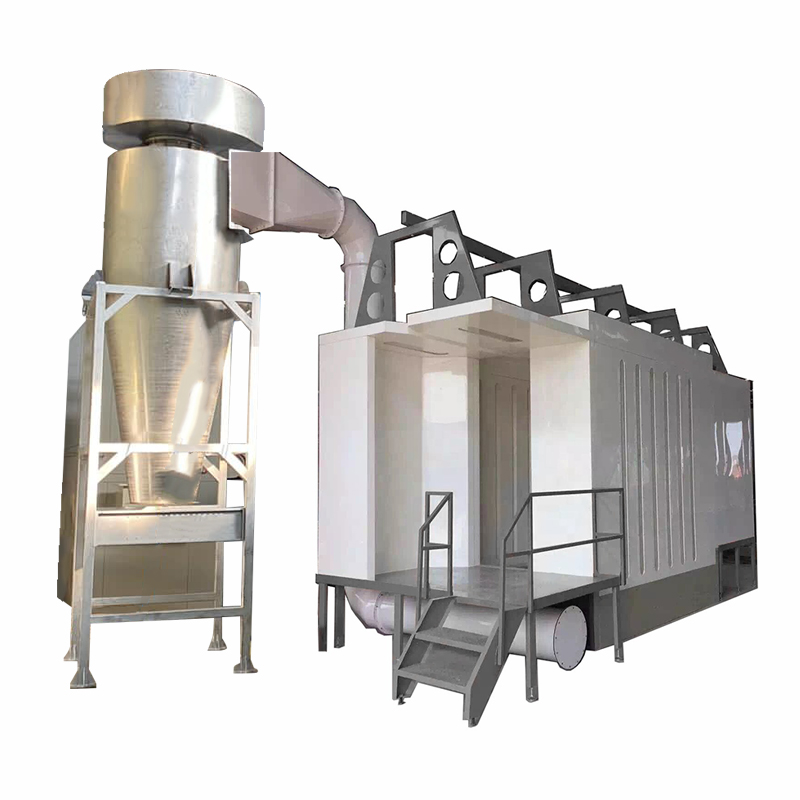

Automatic Powder Coating Booth

1. Type: Automatic pass through type, workparts are transpored to the booth by overhead conveyor and get spraying from both sides.

2. Pass throughsize:W800*H2000mm,  Internal size:W1600*H2000*L5000mm；

3. Booth Body Material: 10mm PP Plastic, Features Anti-static, Non-stick of Powders

4. Booth Floor: Air Knife Cleaning System, prevents powder accumulation.

5. Working station: automatic coating station & manual coating station

6. First Stage Powder Recovery: 304 Stainless steel cyclone, diameter 1.3m.

7. Second Stage Powder Collection: 2x16pcs filter cartridge with rotary wing, Size: 325x600mm, 100% polyester

8. Fan motor: 22kw

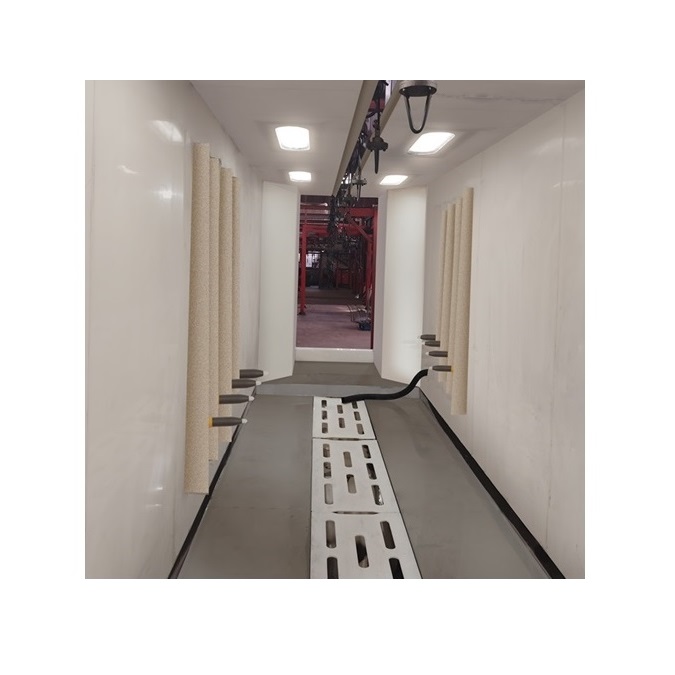

Self-cleaning Floor

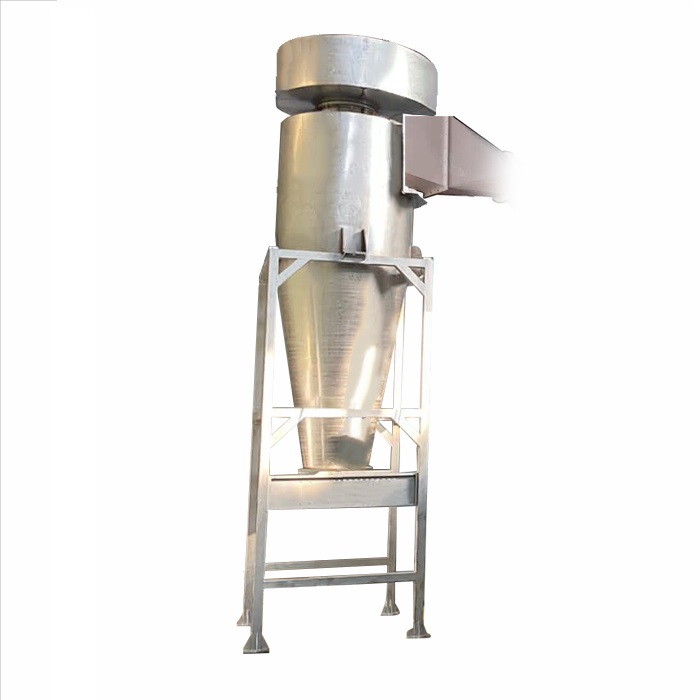

Cyclone

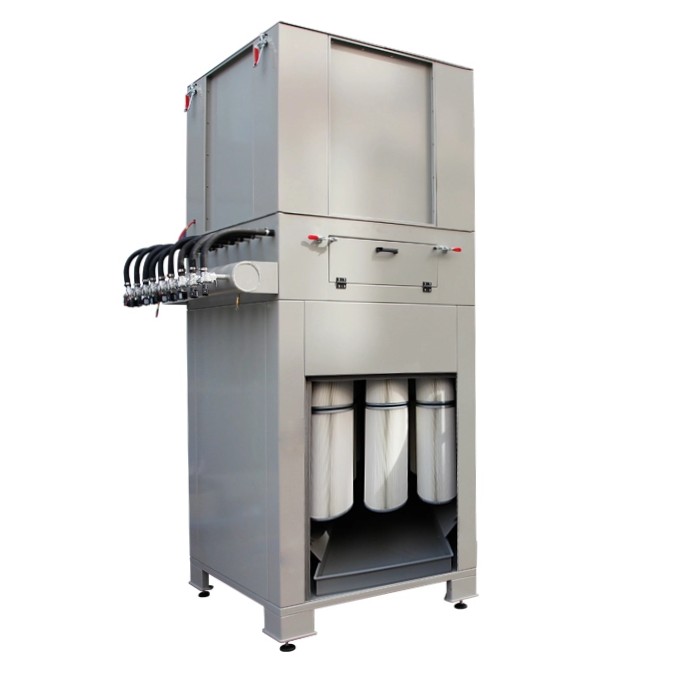

Filter Cartridge

Automatic Powder Coating Equipment

1. Including: 2 sets COLO-2000D reciprocator, 8 sets COLO-191S automatic guns & 1 set central controlled cabinet

2. It is the ideal entry into automatic series production offering quality finishes and great powder savings.

3. Multi controllers of automatic powder coating gun installed on a central cabinet, with compact design and simple operation. All units can be integrated controlled through a host unit.

4. COLO-191S automatic powder coating machine is one of the most suitable solution for coating line, effective, reliable, cost-saving.

5. The PLC controlled painting reciprocator driven by frequency motor, giving more smooth and precise motion, increase powder coating uniformity and reduce powder waster

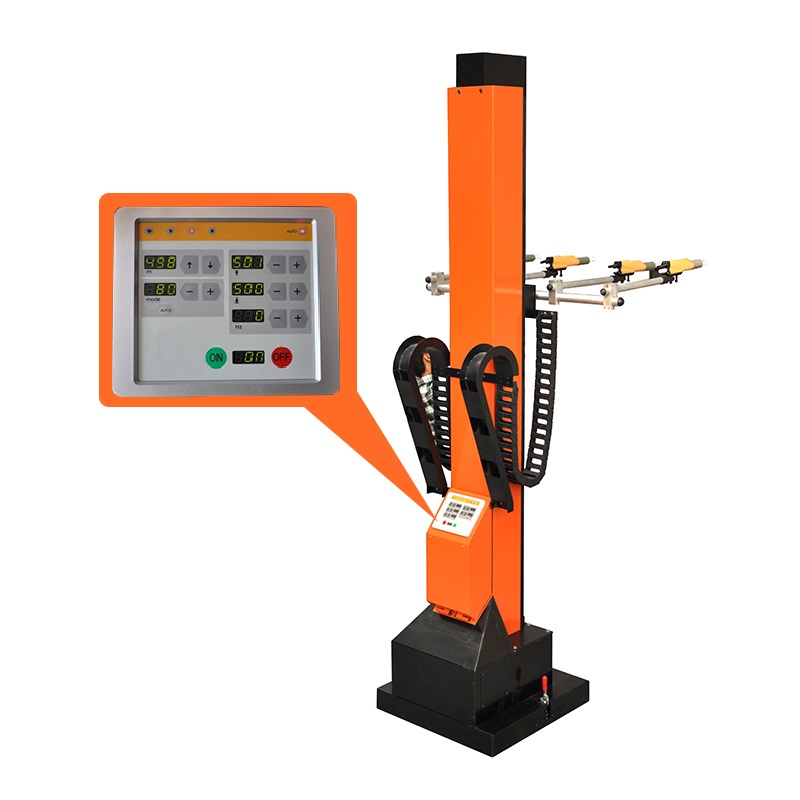

Reciprocator

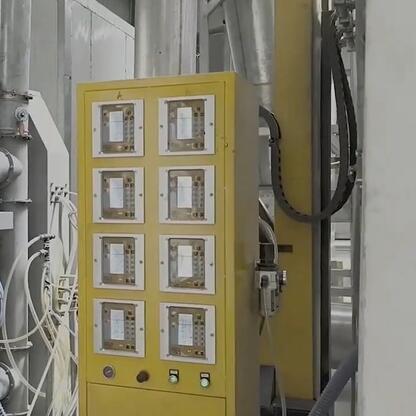

Central Cabinet

Automatic Gun

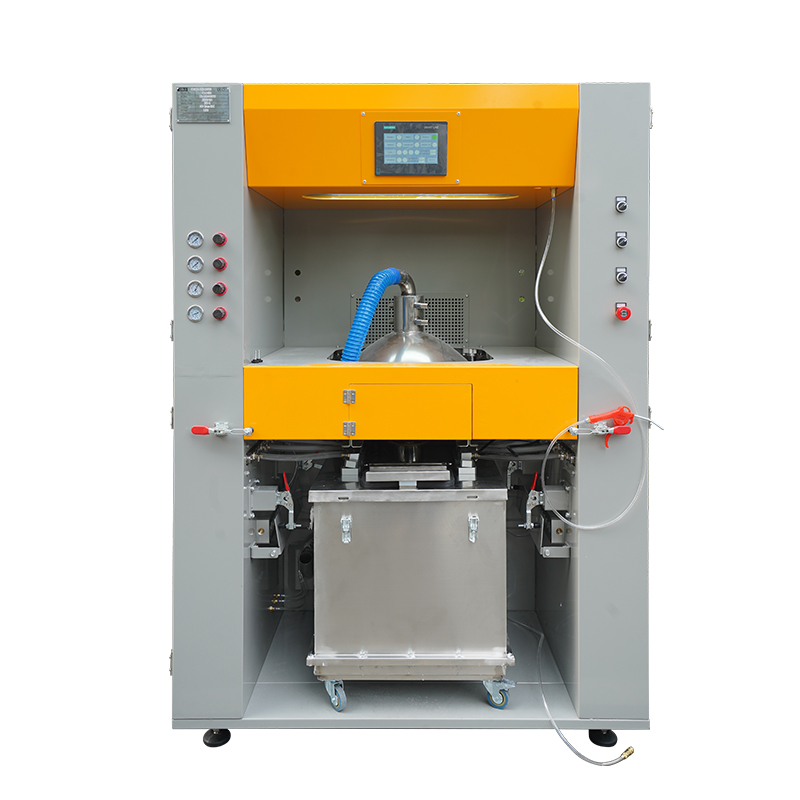

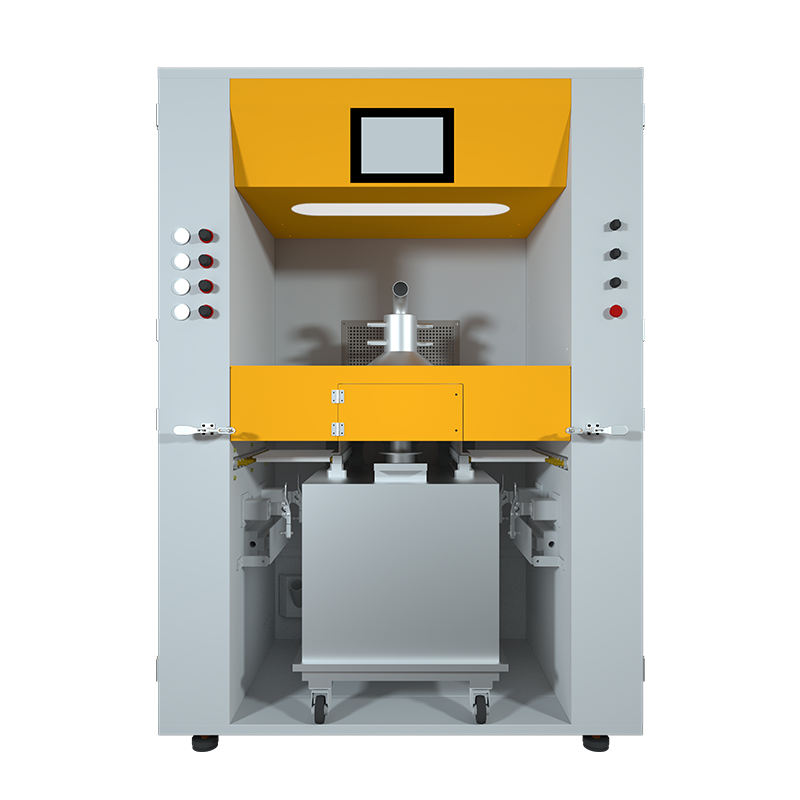

COLO-6600 Powder Feeding Center

The newly-developed powder management center is an efficient and space-saving solution for automatic powder coating line, has the following highlights:

- Automatic sieving of recovery powders, dissolving and loosening of powder accumulations, ensure purity and uniformity.

- A big hopper allows containing high volume of powders for daily countinuous production with optimal fluidization condition for smooth powder flow and quality coating results

- Automatic cleaning of hopper, suction tube, injectors, pump, hoses and spray guns, maximize efficiency during color change.

- Closed powder circuit prevents overflow to ensures a clean working environment as well as save powders.

PLC touching control

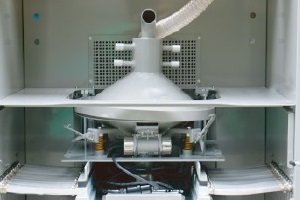

automatic sieving section

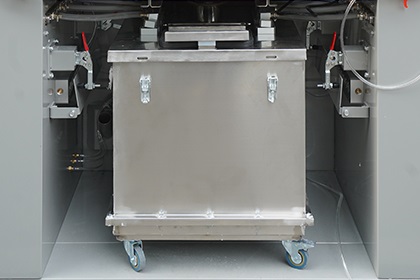

powder container

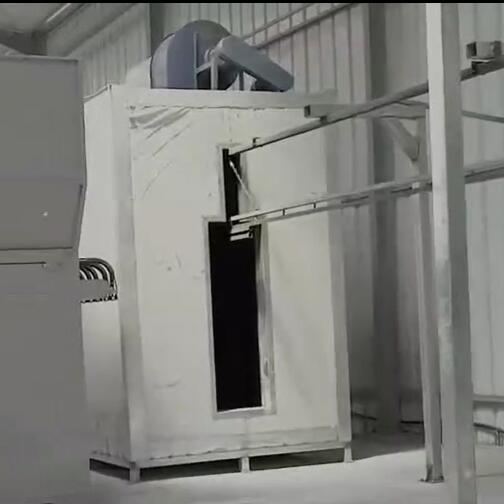

Tunnel Curing Oven

1 Tunnel type, designed for continuous operations in automatic coating line. Maximum efficiency is obtained with high capacities by means of this system

2 Pass through size: W600*H1900mm  Internal size: W880*H2785*L20000mm;

3 Heating source: natural gas; Burner: 400,000kcal Riello burner

4 Heating Time & Temperature: Warm-up time: 15-30 min. (180° C), Max.250° C

5  Circulation Fan: 5.5kw, 2sets, creates uniform hot airflow in inner chamber ensure high quality curing results.

6 Construced with 100mm thickness rock wool board, ensures minium temperature dropping, as well as 1.5mm thick galvanized plate innter wall

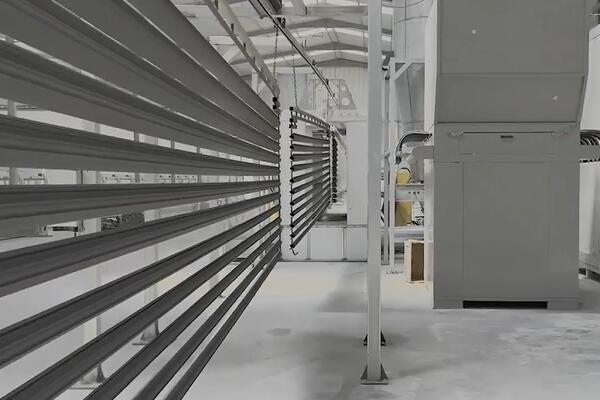

Overhead Conveyor System

1 Total Length: 105m

2 Conveyor Chain Type: UH-5075-S,single point bearing weight ≤35kg；

3. Components: 1 pc tensioning device;  1pcs driving device; 2 pcs emergency top devices, hangers, etc

4. Drive power: 2.2kw;

5. Conveyor speed: 1m/min (adjustable)

6. Support frame: 10# square tube
