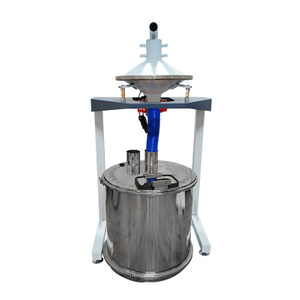

COLO-3000-S
COLO

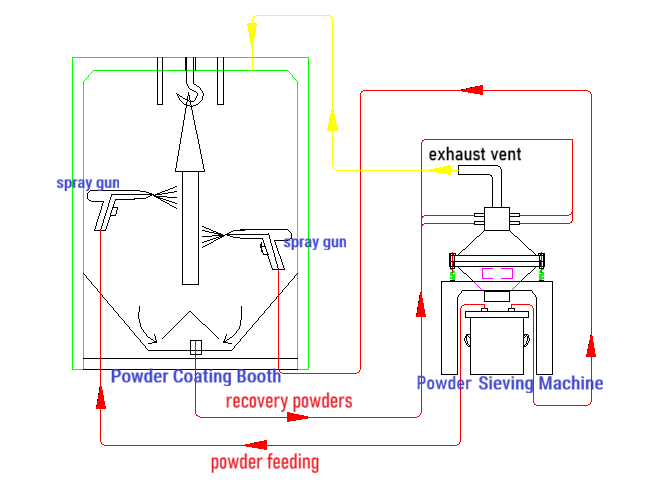

The powder sieving machine automatically sieves large quantities of recovered powder from spray booth without disturbing your online coating process, at the same time mixing with fresh powders for continuouse feeding to spraying system.
The powder sieving system breaks accumulation, separates foreign materials and oversized particles, which improves the purity of powder, substantially reduces labour cost & eliminate waste, increases powder recycling rate.
1. Built with superior motor and components ensures long services life and less maintenance.
2. The fully enclosed system installed with hoop and sealing strip at the sieving section, eliminates noise and prevents leakage.
3. Durable stainless steel sieving mesh has a variety of sizes for sieving the different powder particles.
4. Mounted with big capacity powder hopper supports continuous production, allows to install a variety of pumps for powder feeding.
5. Can be easily cleaned without tools and the mesh can be replaced in a few minutes.
6. The machine body is made of 2.5mm coated iron, sturdy and durable. Compact structure occupies smaller area and is easy to move everywhere.
| Model | COLO-3000-S |
| Weight | 22 kg |
| Voltage | 220V / 110V |
| Power | 50 W |
| Operating Frequency | 50 Hz |
| Motor Rotation | positive and reverse can be |
| Powder Tank | 55*55 cm or 68*68cm |
