This automatic powder painting line is specially designed for our Mexico customer for the application of fan motor cover in high output (300 pcs per day).
As the customer mainly has 2 colors for application, we designed with 2 spray booths with powder coating equipment, one system works for one color. Thus the powder painting line has no need for cleaning during color change, greatly reduce downtime and increase working efficiency.
![Automatic Powder Coating Line]()
![]()
Automatic Powder Coating LIne Working Process:
Workparts movement is driven through the automatic conveying system. When passing through an automatic spray booth, the workparts get powder spraying by automatic reciprocating guns, which ensures uniform powder film thickness. After spraying, the workparts will be automatically transported into a curing tunnel for continuously production.
Overview of Automatic Powder Coating Plant
Key Data
Factory Size: L21m x W13m
Working Process: Fully Automatic
Production Capacity: 300pcs/day (8 hours)
Scope of Main Components
1. Automatic Powder Booth with Filter Recovery, 2sets
2. Automatic Powder Coating Reciprocator. 4sets
3. Automatic Powder Coating Guns, 16pcs
4. Powder Seiving Machine, 2sets
5. Manual Powder Coating Gun, 4sets
6. Tunnel Curing Oven, 1 unit
7. Overhead Conveying System, 1 unit
Automatic Powder Coating Line Configurations
Automatic Powder Coating Booth
![Automatic Powder Coating Booth]()
1. Type: Pass through type, workparts are transpored to the booth by overhead conveyor and get spraying from both sides.
2. Working size: W1120*H2000*L4000mm, Opening: W800xH2000mm (standard model COLO-0825)
3. Working station: automatic coating station & manual coating station
4. Powder recovery: 2 filter cartridge recovery stages (12pcs) for each spray booth, Size: 325x900mm, 100% polyester
5. Fan motor: 5.5kw, 2 sets (for each booth)
6. Air flow 7000m³/h
5. Booth material: durable powder coated steel.

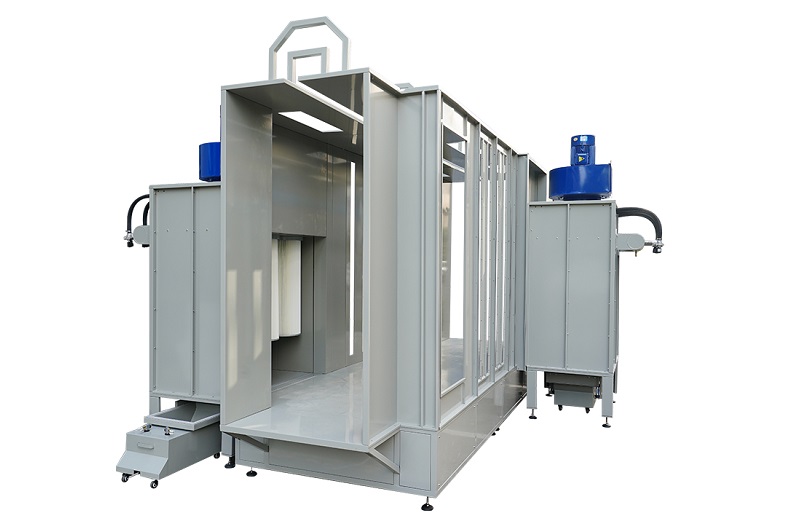

![3]()
2 Stages of Cartridge Filter for Efficient Powder Reclaim

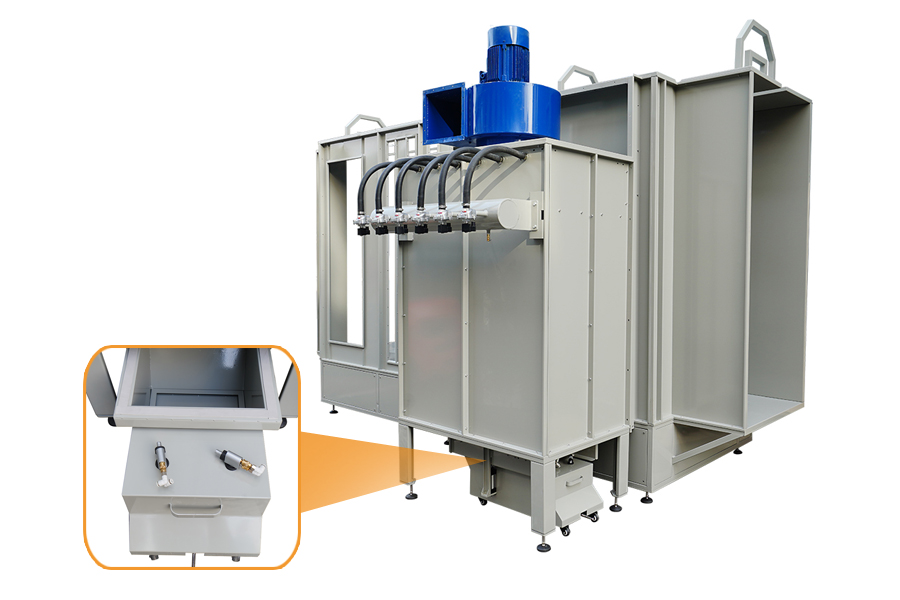

![0825]()
The Bottom Container Connected with Sieving Machine for Powder Recyling
Automatic Powder Coating Equipment
![automatic powder coating equipment]()
1. Including: COLO-2000D reciprocator, COLO-191S automatic guns & central controlled cabinet
2. It is the ideal entry into automatic series production offering quality finishes and great powder savings.
3. Multi controllers of automatic powder coating gun installed on a central cabinet, with compact design and simple operation.
4. COLO-191S automatic powder coating machine is one of the most suitable solution for coating line, effective, reliable, cost-saving.
5. The 2m stroke reciprocator driven by frequency motor, speed and stroke adjustable.
![powder coating reciprocator]()
Powder Coating Reciprocator
![automatic powder coating equipment]()
Central Cabinet

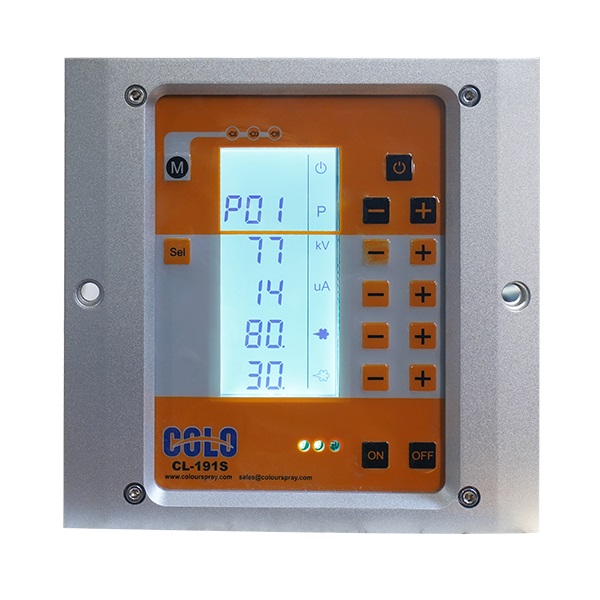

![powder coating gun control]()
Automatic Powder Gun Control

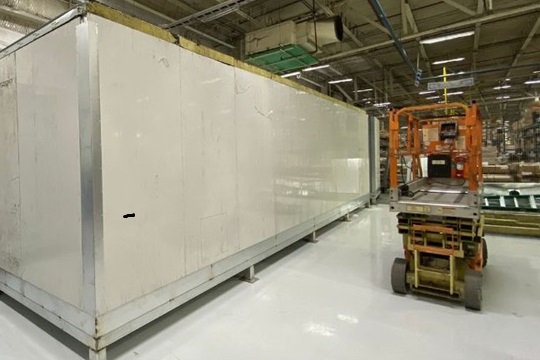

Powder Curing Tunnel Oven
![QQ图片20231107110013]()
1. Type: Tunnel type ovens are designed for continuous operations in automatic coating line.
2.Main Size: L8800 X W4300 x H2430 mm
3.Heating source: electric
4.Heating power: 3kw electric tubes of 180pcs
3. Heating Time & Temperature: Warm-up time: 15-30 min. (180° C), Max.250° C
4. Circulation Fan: 5.5kw, 2sets, creates uniform hot airflow in inner chamber ensure high quality curing results.
5. Construced with 100mm thickness rock wool board, ensures minium temperature dropping.
Powder Coating Conveyor System
![Powder Coating Conveyor System]()
1. Type: Overhead conveyor system for automatic powder coating line.
2. Total Length 74m
3. Hanging 2 point hanging
4. Chain Type: UH-5075-S.
5. Single Point Loading Capacity: 35kgs
6. Speed: 1.5m/min, adjustable
7. Other Components: Drive unit 1set, tension system 1set, urgent stop unit 4set.
We provide conveyor systems based on your specific products, designs varies from product weight, size and even the shape.
