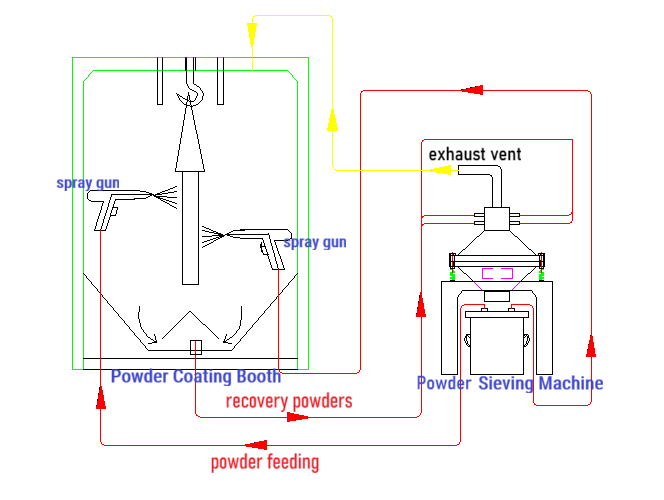

![powder sieving machine drawing]()

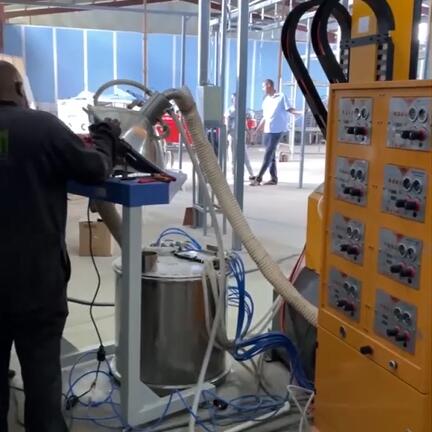

Automatic Powder Coating Sieving Machine COLO-3000-R

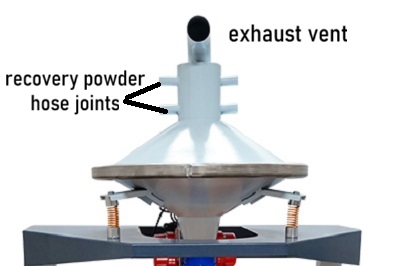

This automatic powder sieving machine is connected with the powder coating booth for continuously powde recovery and powde feeding., whose full automatic operations greatly increase working efficiency.
During spraying process, the recovered powders will be transferred to the sieving section for automatic sieving, and mixed with fresh powders back to spray gun which greatly reduce powder waste while not sacrifice coating quality.
Powders through sieveing would break accumulation, separate foreign materials and oversized particles in raw powder, which is an important process to improve purity of powder and abtain high quality powder coating film.

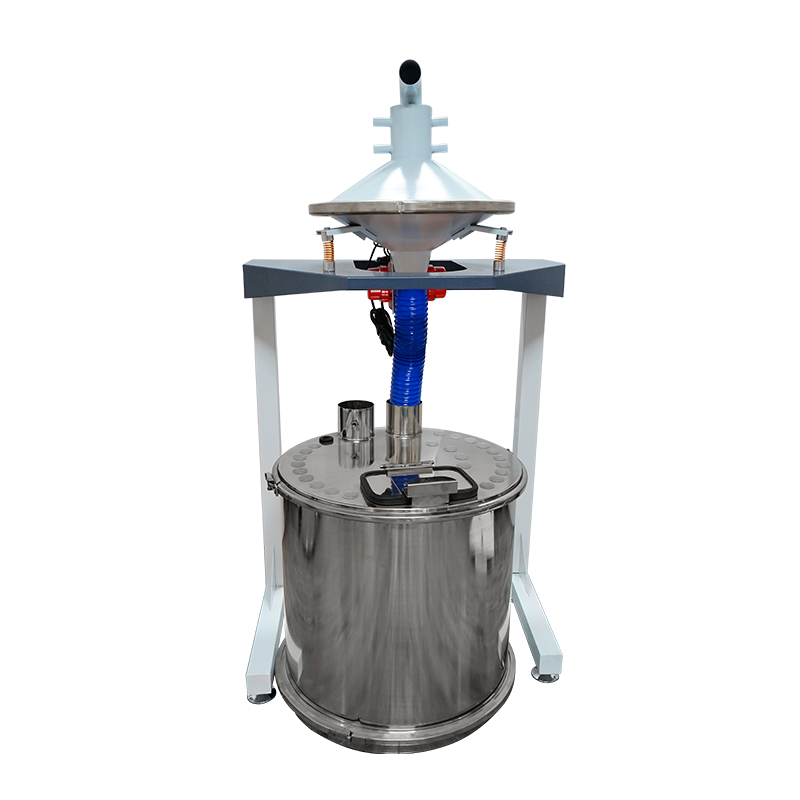

![powder coating sieving machine]()
1. Built with superior motor and components ensures long services life and less maintenance.

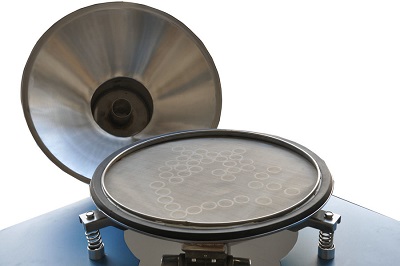

2. The fully enclosed system installed with hoop and sealing strip at the sieving section, eliminates noise and prevents leakage.
3. Durable stainless steel sieving mesh has a variety of sizes for sieving the different powder particles.

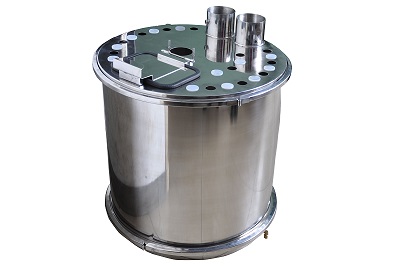

4. Mounted with big capacity powder hopper supports continuous production, allows to install a variety of pumps for powder feeding.
5 Can be easily cleaned without tools and the mesh can be replaced in a few minutes.
6. The machine body is made of 2.5mm coated iron, sturdy and durable. Compact structure occupies smaller area and is easy to move everywhere.
