This powder coating oven is designed for curing longer or large workparts in batches. Long length powder coating oven heats faster by using gas as fuels, and fearures more economical with less energy expense comparing with electric heated oven. Our curing oven is built with durable and high-quality components that never compromise quality and performance.

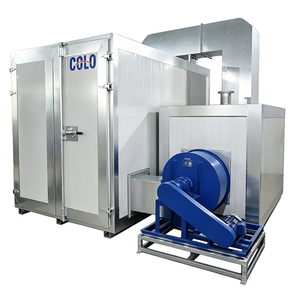

![gas powder coating oven]()

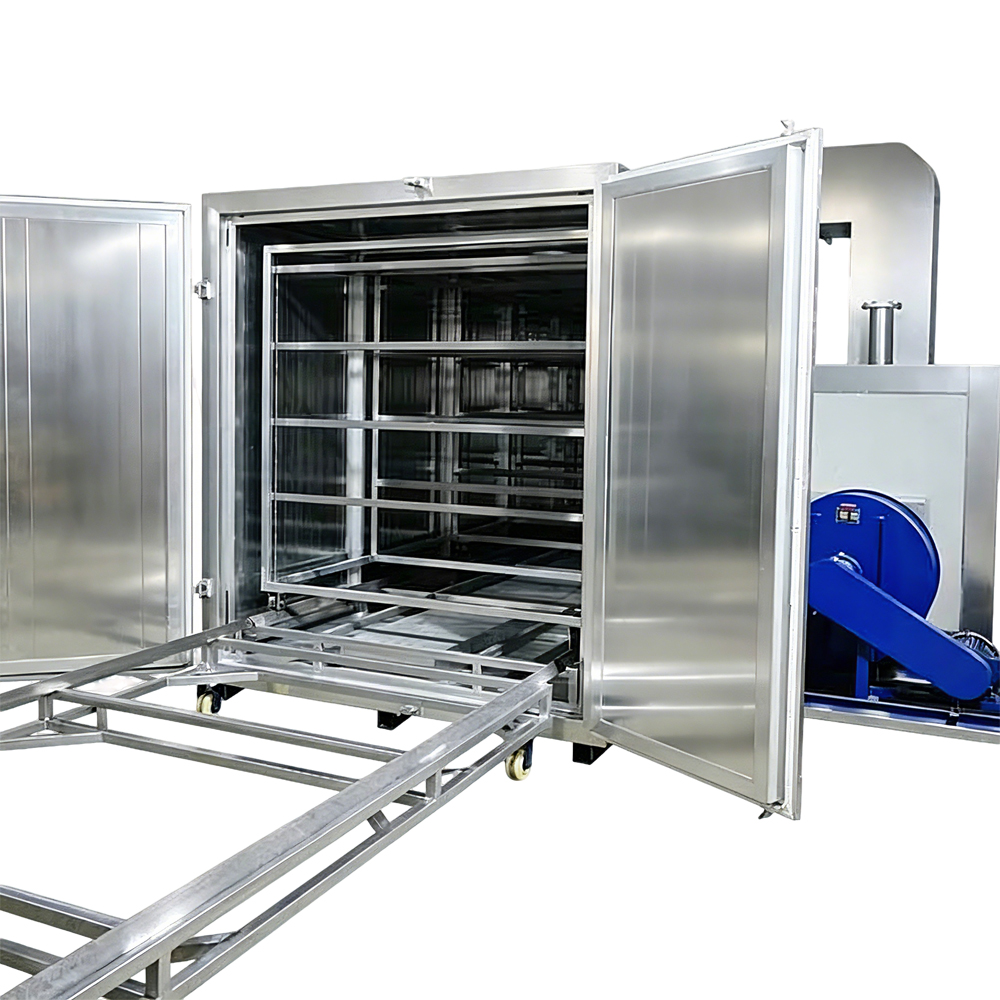

Big Batch Powder Coating Oven Cart System
Standardly equipped with a pair of carts: internal one and external one.
Internal cart designed in the form of a frame to loading workparts participating in curing process inside the oven. External cart is used to carry the internal cart for outside operation and transportation.
It is a superior solution that allows loading batch of workparts taking full utilizing of oven space, as well as carrying heavy elements using a small amount of force.
Internal cart moving across the external cart that does not contaminate the inside of the oven, which ensures high purity painted elements. Powder coating oven cart design can be customized for your production needs and convenient.
COLO professional powder coating ovens are built with premium quality and performance components, creating optimal airflow throughout the curing oven enclosure, resulting an even, constant cure for your parts.
![powder coating oven control]()
PLC Control
This PLC controller offers a precise, safe and reliable heating process. The keyboard and clear display allows you easily setting and reading temperature, duration required. It will automatically stop heating Once time arrives.
![//5mrorwxhrolmiij.ldycdn.com/cloud/jiBppKioRikSmlmipqlik/1-fuben.jpg]()
Circulation Fan
Powerful fan speeds up the flow of hot air, creates uniformly heated oven interior, which minimizes temperature difference. It guarantees quality cured results with consistent color and thickness.
![powder coating oven 3]()
Materials
COLO cure oven utilizes a sandwich panel design. Applies the 100mm thick rockwool board as the interlayer, which inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
![electric heating tubes - 副本]()
Burner
Sstandardly configured an Italy imported RIELLO gas burner. The high performance burner fully burns of fuels, reaching the temperature faster. Quick heat-up rates helps to achieve higher production output.
COLO-5219 Powder Coating Oven Specifications
Model
| COLO-5219
|
Worksize Dimensions
| Width1800 * Height1800 * Depth5000 mm
|
Overall Dimensions
| Width2100 * Height2200 * Depth5200 mm
|
Power Supply
| LPG / Gas / Diesel |
| Voltage/Frequency | 380V/220V (50-60Hz) |
| Warm-up Time | 15-30 min. (180° C) |
| Temperature Stability | < ± 3.0-6°C |
| Temperature | Max. 250° C |
Transport System
| Two trolleys |
| Burner | Italy Riello, 20,0000kcal |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Ventilation Performance | 8288-16576m3/h |
| Motor Power | 5.5kW
|
| Warranty | 12 months |
Why Choose COLO Powder Coating Ovens?
Excellent cured quality, consistent colors & thickness
Full-area hot air circulation within the oven interior ensures minimal temperature difference (less than 3 degree), resulting in uniform thicknesses and preventing color variations, ensuring stable and high-quality finishes for various powder coatings.
Energy- savings, long-term cost reduction
Well-sealed oven chamber with thickened high-temperature resistant insulation layer and high performance burner, resulting in lower energy consumption, significantly reduce fuel costs in long-term productions.
Intelligent operation, labor-saving:
PLC system provides intelligent operations which can create and store multiple process programs, allowing for one-button switching. Over-temperature alarm protection eliminates the need for constant human supervision
Customizable to meet diverse needs
Box-type batch oven and tunnel-type continuous oven are both customizable; multiple heating methods including electric natural gas, LPG, diesel are available; complete powder coating systems and lines are provided.
One-stop delivery, worry-free after-sales service
Most curing ovens are shipped assembled, oversized items are shipped disassembled but supplied with instructions and 3D assembly video, provide on-site installation and commissioning. Long-term spare parts supply, fast after-sales response, 1 year warranty time.
