COLO-1645
COLO

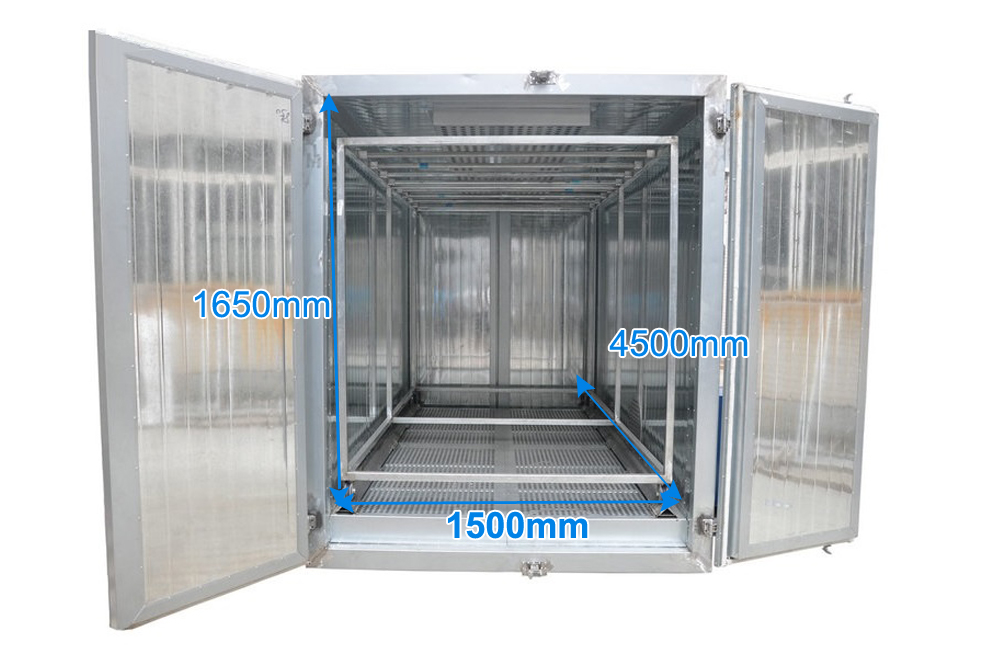

Width1500 * Height1650 * Depth4500 mm
| Quantity: | |
|---|---|

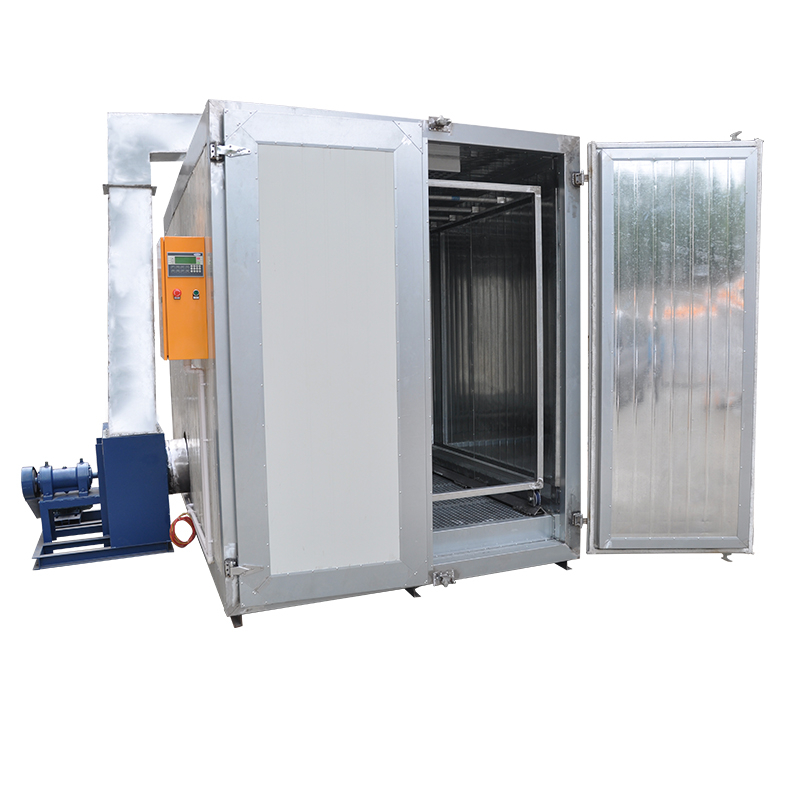

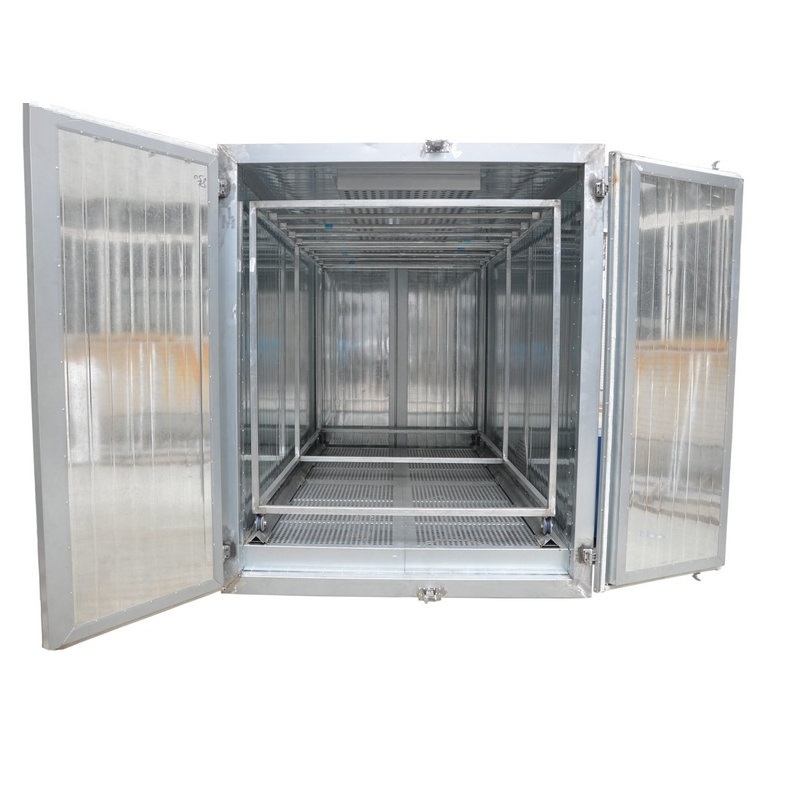

The 4.5 meter length curing oven is designed for powder coating bulky parts or a big batch of small-sized parts. Electric heating style reduces the task of operation and maintenance as well as creates a more clean environment. COLO powder coating ovens are constructed from high quality components that ensures quick and uniform heating.

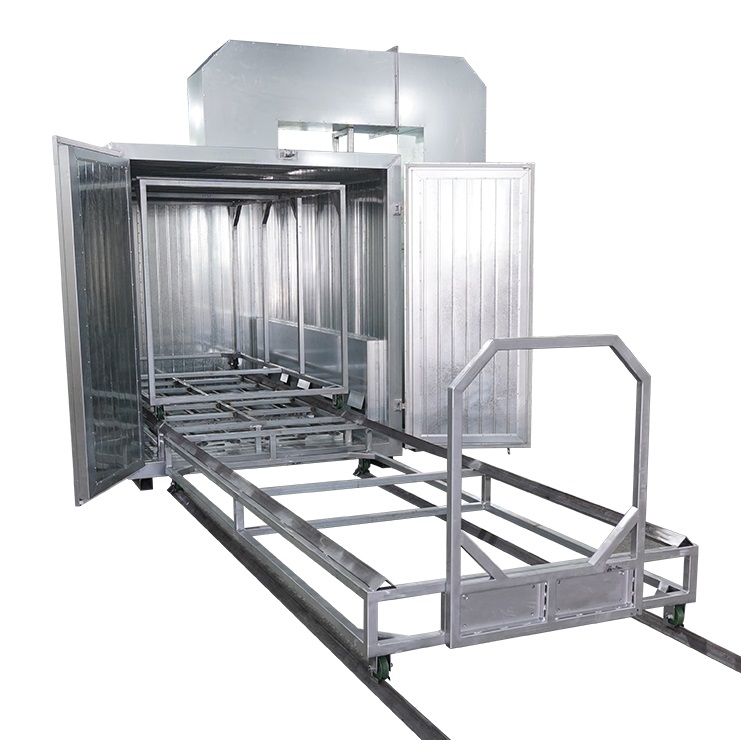

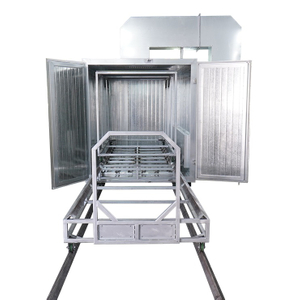

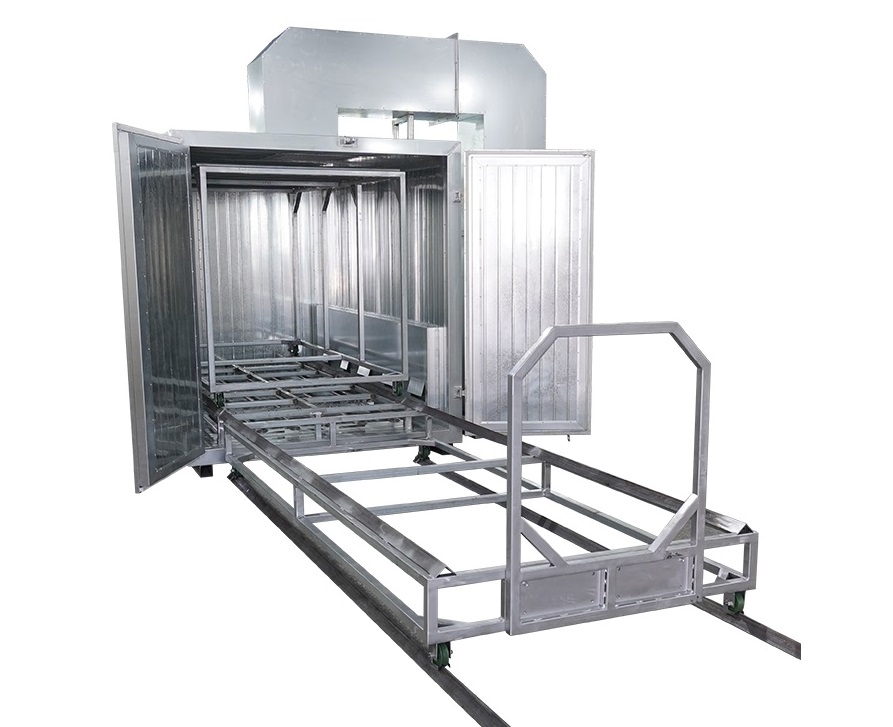

Our powder paint ovens are standard equipped with two carts, including an internal one and an external one. The internal one is designed as a frame to load a batch of workparts, the external one has a handrail to help transport the internal system
By using two carts, it will not contaminate the inside of the oven, which provides high purity of painted elements.
What;s more, this cart system with high temperature bearing allows carrying heavy elements using a small amount of force, and optimizing the use of the entire space of the curing oven.
COLO also provides custom-design service for the cart system, in order to suits your production demands.
COLO professional powder coating ovens are built to create optimal airflow throughout the powder coating oven enclosure, creating an even, constant cure for your parts.
Circulation fan
Powerful fan speeds up the flow of hot air leading to quality cured finishes and optimum cure cycles.The control system adjust the temperature uniform inside the oven by fine-tuning the performance of the exhaust fan.
The circulation fan for small sized powder coating oven is installed on the roof to save space. Power: 0.75kw.
PLC Control
All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan.
The controller also equipped with audible and visual alarms keys ensures safety operating environment.
100mm Thick Rockwool Wall
COLO powder coating oven utilizes a sandwich panel design. The durable materials maximize the its lifespan.
Applies the 100mm thick rockwool board, density 120kgs/cbm insulation material as the interlayer, which inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
| Worksize dimensions | Width1500 x Height1650 x Depth4500 mm |
| Overall dimensions | Width1800 x Height2050 x Depth4800 mm |
| Voltage | 380V/220v |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 1131-2565m3/h |
| Motor power | 3kw |
| Circulation/ Air flow Vertical | Variable through holes on the walls |
| Warranty | 12 months |
