COLO-S-1517
COLO
Width1500 * Depth1000 * Heght1700 mm

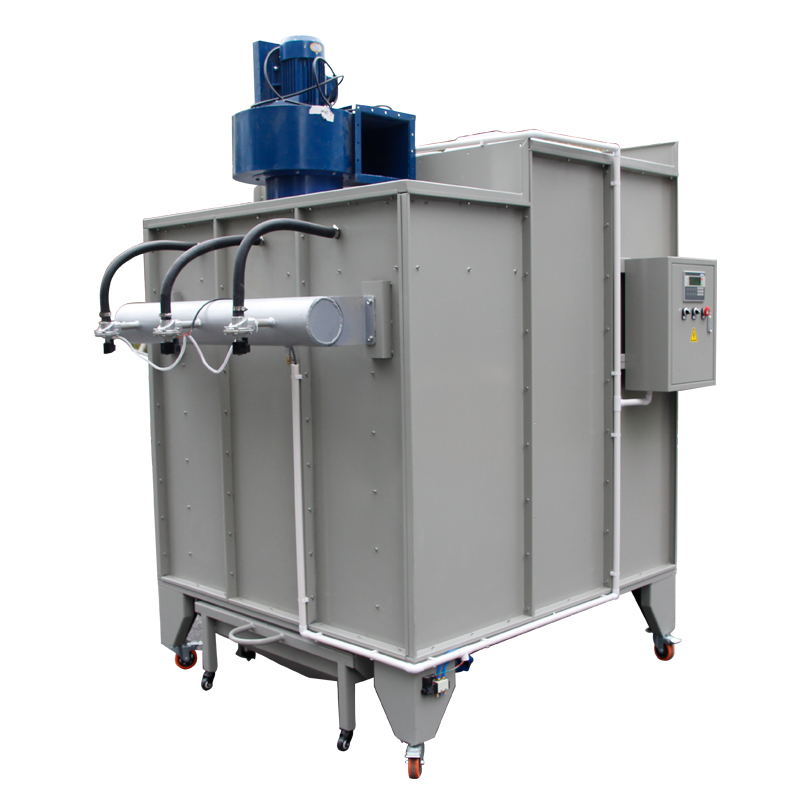

COLO-S-1517 Powder coating booth provides a bright and clean environment for spraying process. An integrated and innovative powder collection module includes 3pcs cartrdge filters is designed for effectively capturing oversprayed powder.
Powder-coated steel constructed booth is corrosion resistant for longer service life. This Space-saving manual spray booth features easy and economical for powder application of small and medium-sized workpieces.
Cartridge Filters
0.1 Micron high-precision filters ensures only particle-free air discharged to workshop and increase powder recovery rate.
Recovery Hopper
A powder hopper beneath the cartrige filter stage is designed removable, which simplifies the utilization of recovery powders.
PLC Control
A user-friendly PLC panel integrates all functions, like turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop.
Filter Cleaning Valves
The filters are intervally cleaned by releasing accumulated powders controlled via solenoid valve, which extends the filters' lifespans.
| Model | COLO-S-1517 |
| Operating Dimensions | Width1500 * Depth1000 * Heght1700mm |
| Overall dimensions | Width1600 * Depth2000 * Heght2250mm |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 2.2kw |
| Filter Count | 3 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
| Air Consumption | 4000m^3/h |
The efficient cartridge powder coating booth works with professional powder coating gun, electric curing oven, a good option for batch coating of small to medium sized workpieces, such as motorcycle parts, bike frames, alloy wheels, fire hydrants, etc.
