Compact Manual Powder Coating Plant

- Specially designed for manual powder coating of big and heavy workparts
- With the assists of overhead track system, reduces operator efforts and saves factory space.
- Suitable for limited factory space and batch production requirements
  • COLO

Availability:
Compact Manual Powder Coating Plant
Compact Manual Powder Coating Plant
Compact Manual Powder Coating Plant
Compact Manual Powder Coating Plant

Manual Powder Coating Plant for Heavy Workparts

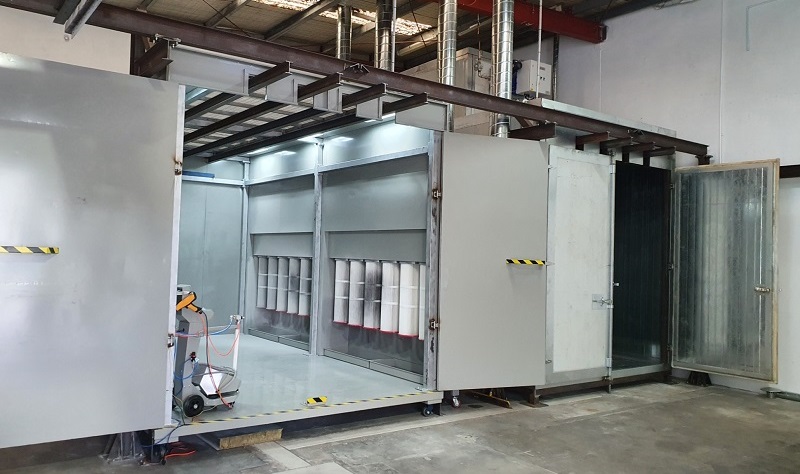

This powder coating plant is specially designed for limited factory space, includes a set of manual powder coating equipment,  a walk-in powder booth with filter recovery,  a gas type curing oven with top tracks, and a transport loading system, ideal for powder coating large and heavy workparts or big batch small parts.

Manual Powder Coating Plant  Manual Powder Coating Equipment

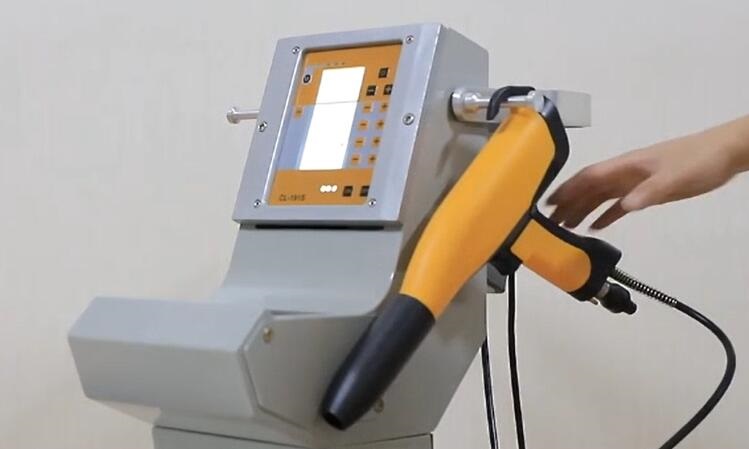

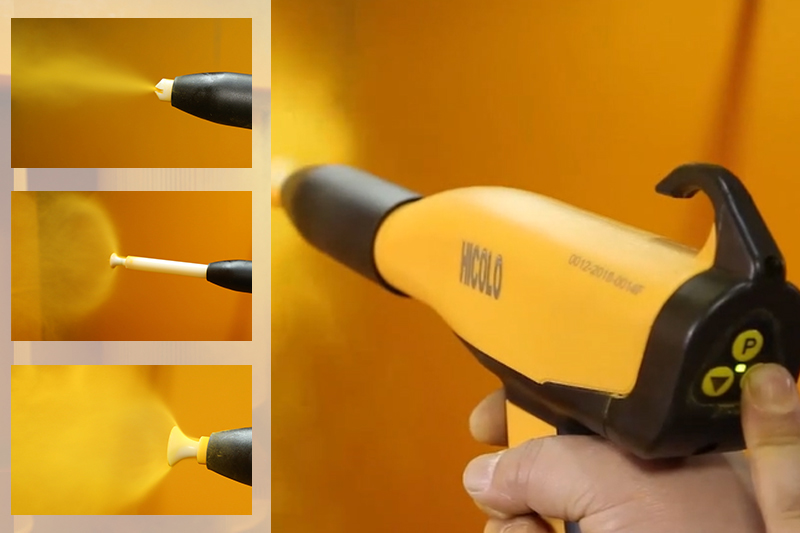

COLO-191S Powder Coating Spray Gun

COLO-191S manual powder coating gun is developed for easy and efficient job, suits for both beginners and specialists. Based on COLO advanced technology, complex parts with deep corner can be perfectly coated with this model.

manual powder coating system

Configurations & Features

1. Unprecedented precision control of current and voltage ensuring maximum efficiency. Accurate and repeatable settings of the powder output for stable coating results

2. Combined 100kv spray gun with nozzle assembly is easy to penetrate deep corner with least powder waste.

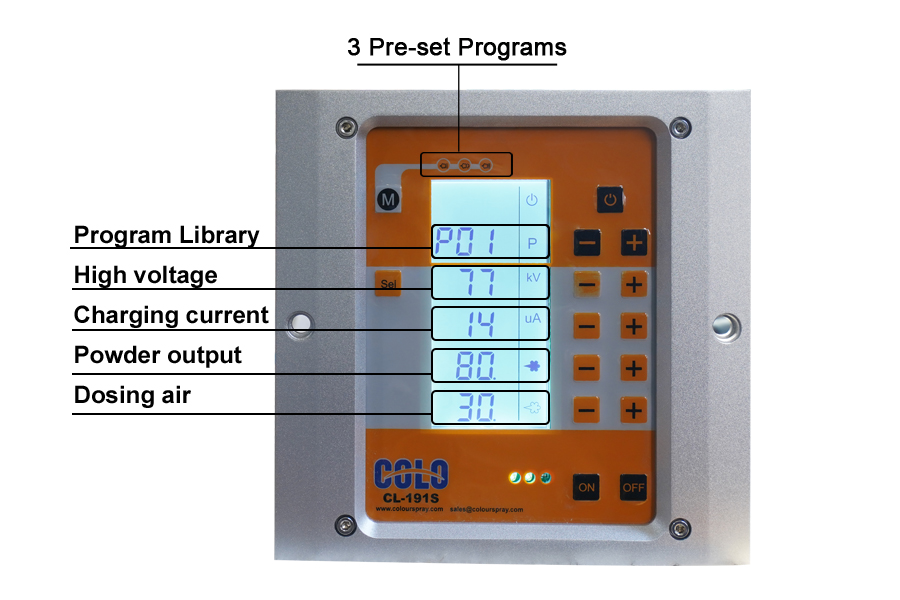

2. The powder coating machine offers beginners 3 pre-set modes for flat work, complex profiles and re-coat operation, as well as allows to create and save 20 personalized programs optimized for different parts or powders.

4. Box feed type directly conveying powders from original powder carton, suitable for fast color change.

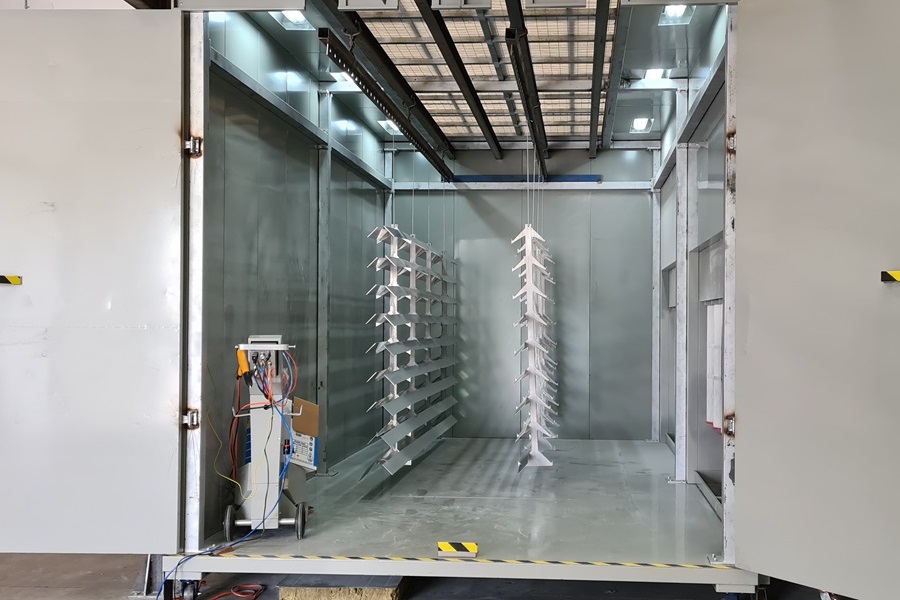

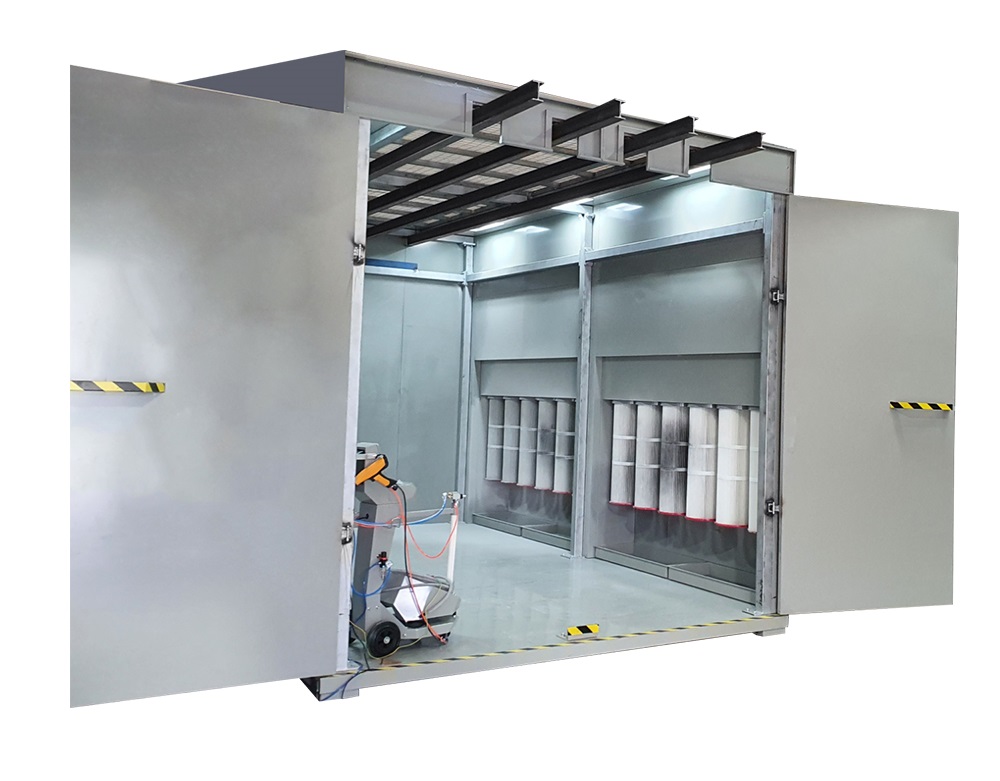

Walk-in Powder Coating Booth

This powder coating room allows operators walking in for the coating of large workparts. There are serveral filter stages integrated in the booth wall for powder capture and recovery.

walk in powder coating boooth

Configurations & Features

1. The recovery module combines a group high-precision filters made of 100% polyester that maximize separating efficiency

2. Pulse jet device provides interval filters cleaning, effectively eliminates powder accumulation and prolongs filters' useful life.
3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

4.Parts are transported by conveying system with less manual efforts.

5. Simple installation - only electrical and air connections are required to start production.

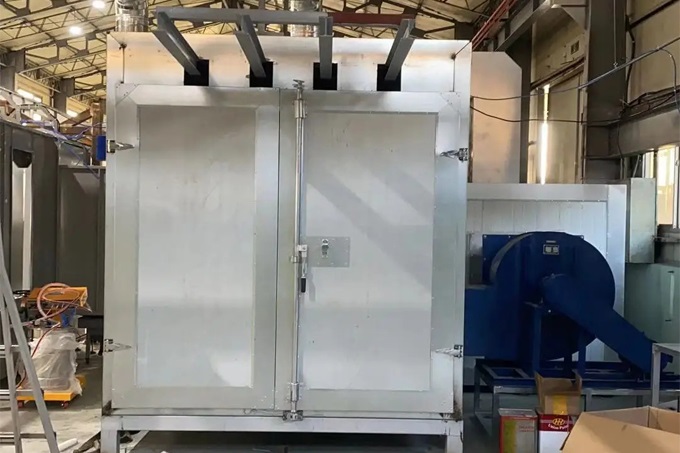

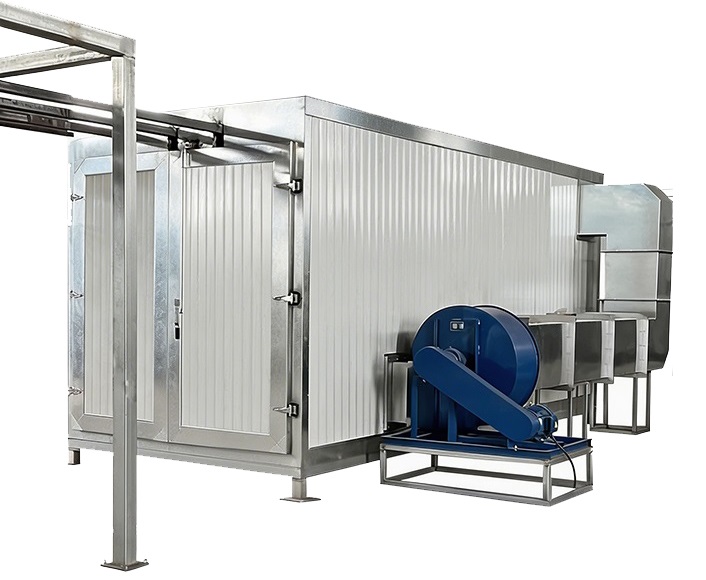

Track Powder Coating Gas Oven

This powder coating oven installed with track system which is easily to transport heavy materials into the oven. Our powder coating ovens features environmental friendly, reducing operating cost and curing more parts everyday.

batch powder coating oven

Configurations & Features

1. Made of 100 mm thickness rockwool board inserted between durable galvanized wall and steel skin, always keeps the chamber a consistent high temperature with minimum heat loss.

1. PLC system provides a precise and reliable heating process with easy setting of temperature and time.

2. Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.

3. Circulation fans causes uniform temperature in the entire inner space that results in quality cured finishes.

5.  It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.

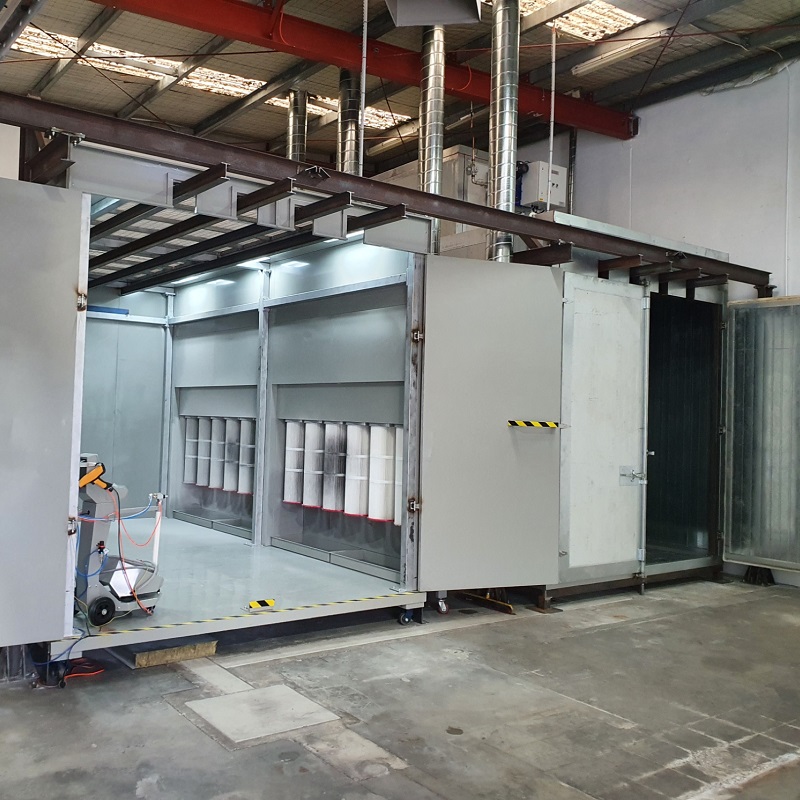

Manual compect powder coating line - Customer Case in Australia

This compact powder coating line is specially designed for our Australia customer, an excellent solution for versatile applications(site photos provided by customer).  Now it is popular with a big mount of requests from global users.

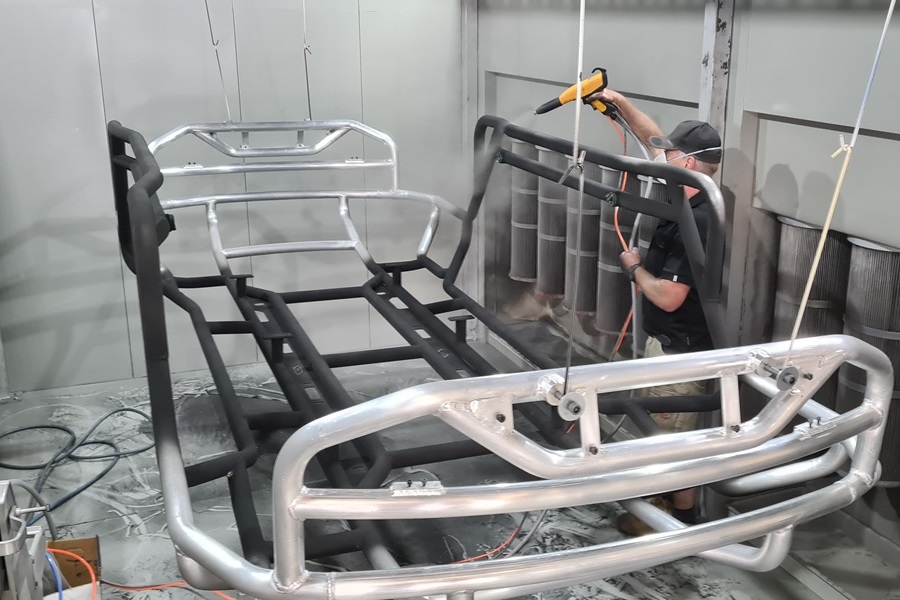

Walk in booth have enough space to precisely painting big and complex workparts, with the assist of our COLO-191s professional powder coating gun. The overhead track system is a great help of transporting the heavy parts through booth to curing oven, thus increases the production efficiency.

powder coating workparts 1000x600 (3)
big and complex parts
powder coating workparts 1000x600 (1)
high volume production
powder coating heavy parts
big and heavy parts
powder coating workparts 1000x600 (2)
complex parts with concaves
