Fully Automatic Powder Coating Line with Pretreatment (in Argentina)

This fully automatic powder coating line is specially designed for our Argentina customer for the application of small trolleys and other industrial products. The system is in high automation that involves spraying washing pretreament, as well as water drying tunnel,  powder coating cyclone booth, conveyor system,  automatic powder guns, reciprocator, powder feed center, curing tunnel.

This automatic powder coating line realizes high production capacity, superior finishing quality,  fast color change demands, requires minimum labor and downtime, suitable for customer who has sufficient factory space and budget.

Automatic Powder Coating Line for Small Trolleys - Application Video

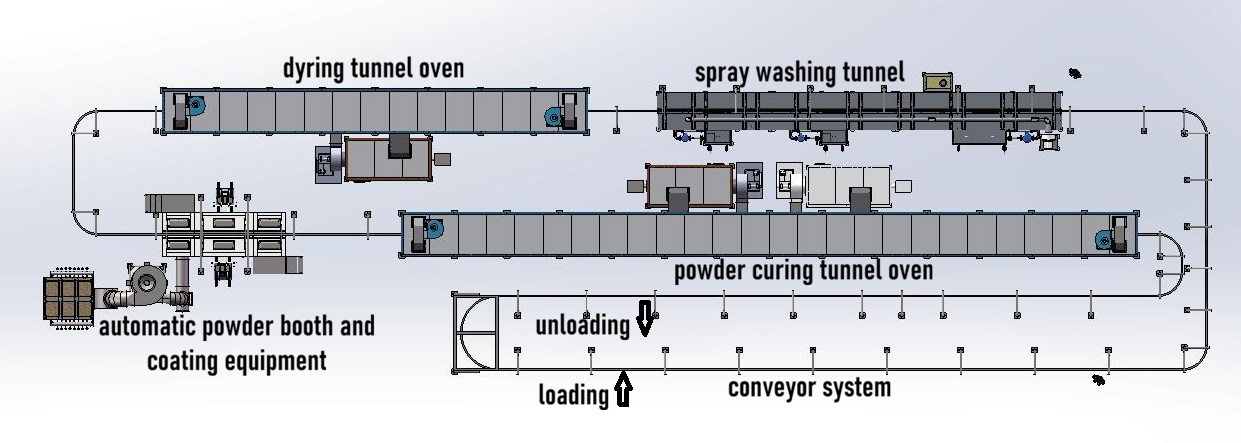

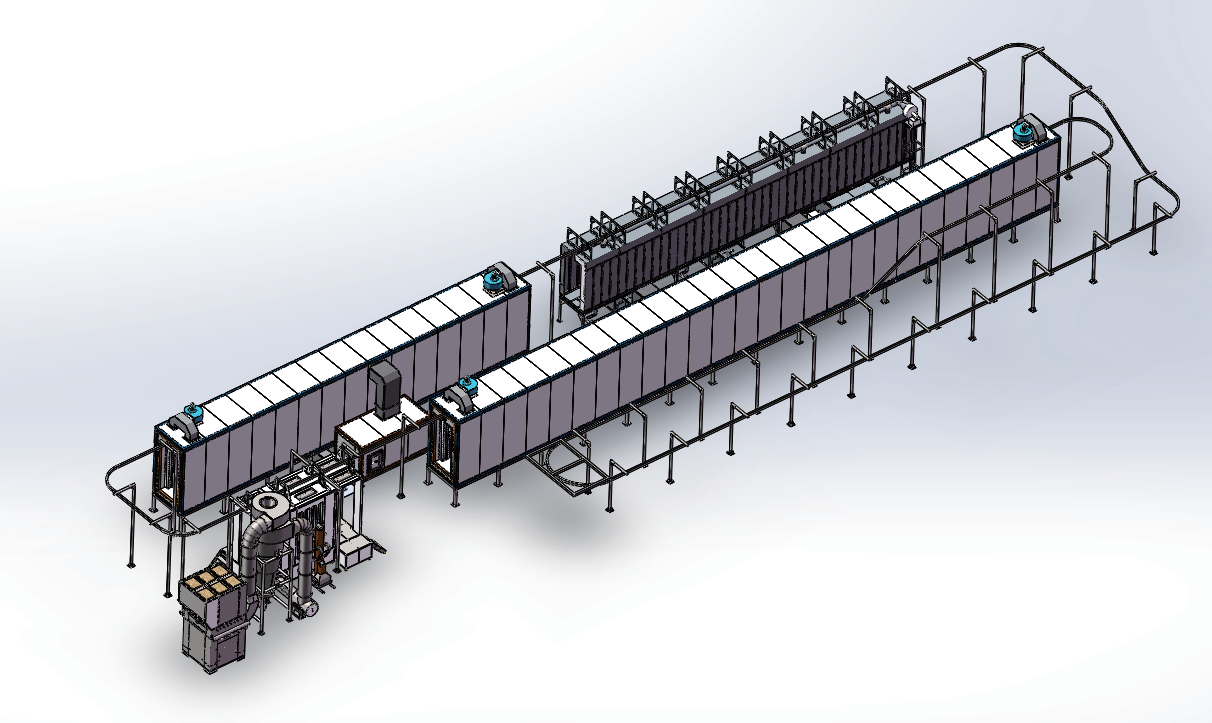

Automatic Powder Coating Line Working Process

Workparts movement is driven through the overhead conveying system, firstly will be transported into the pretreatment spray tunnel for chemical washing and water washing, then enters into the drying tunnel for a dry, clean, adhesive surface.  When passing through an automatic spray booth, the workparts get powder spraying by automatic equipment with uniform powder coating film. Afer powder spraying, the workparts will be automatically transported into a curing tunnel for continuously production. Overspray powders will be transferred from spray booth floor to the powder feed center for sieving and recycling back to the spray guns.

Automatic Powder Coating Line Configurations

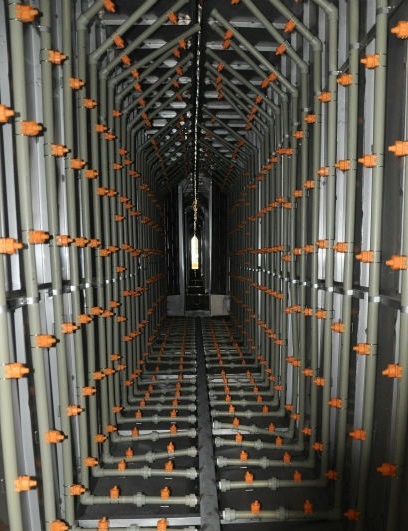

Pretreatment- Spraying Wash Tunnel

1. This spraying pretreatment system includes 3 tunnel stages, by using spraying nozzles and circulation pump to spray chemicals onto the processed objects to prepare clean, adhesive surfaces

2. Inner size: L14.5m x W1.4m xH2.4m

3. Spraying Process and Time:  Step 1) Pharmacy: 180s / Step 2) Water wash: 90s / Step 3) Water wash: 60s

4. Configures 2 pharmaceutical tanks & 1 water tank,  Materials: Stainless Steel, t=1.5mm

5. Spraying Fan Nozzles: 1inch, 342pcs

6. Configures 3 sets of water pumps and 3 pipeline systems

7 Configuras 1 set of ventilation and exhaust device

Drying Tunnel Oven

1 Drying the workparts after spraying wash tunnel,  designed for continuous operations in automatic coating line.

2 Internal size: L12000*W1500*H3000mm, Pass through Opening size: W1100*H2400mm

3 Heating source: natural gas; Burner: 500,000kcal Riello burner

4 Heating Time & Temperature: Warm-up time: 15-30 min. (180° C), Max.250° C

5  Circulation Fan: 7.5kw, 1 set, creates uniform hot airflow in inner chamber

6 Construced with 100mm thickness rock wool board, ensures minium temperature dropping, as well as 1.5mm thick SGCC wall

7 Configures air curtains at both ends,  5.5kw fan motor, 2sets

Automatic Powder Coating Booth

1. Type: Automatic pass through type, workparts are transpored to the booth by overhead conveyor and get spraying from double sides.

2.  Internal size: L5000mm*W1600*H2800; Pass through opening size:W1100*H2400mm,

3. Booth Body Material: PP Plastic, Features Anti-static, Non-stick of Powders

4. Booth Floor: Air Knife Cleaning System, prevents powder accumulation.

5. Working station: automatic coating station & manual coating station

6. First Stage Powder Recovery: 304 Stainless steel cyclone, diameter 1.3m.

7. Second Stage Powder Collection: 32pcs filter cartridge with rotary wing, Size: 325x600mm, 100% polyester

8. Fan motor: 22kw

Self-cleaning Floor

Cyclone

Filter Cartridge

Automatic Powder Coating Equipment

1. Including: 2 sets COLO-2000D reciprocator, 8 sets COLO-191S automatic guns & 1 set central controlled cabinet

2. It is the ideal entry into automatic series production offering quality finishes and great powder savings.

3. Multi controllers of automatic powder coating gun installed on a central cabinet, with compact design and simple operation. All units can be integrated controlled through a host unit.

4. COLO-191S automatic powder coating machine with precise control, is pefert for coating even most complex shapes, saves powders, improve coating thickness consistency.

5. The digital controlled painting reciprocator driven by frequency motor, giving more smooth and precise motion, increase powder coating uniformity and reduce powder waster

COLO-2000D Reciprocator

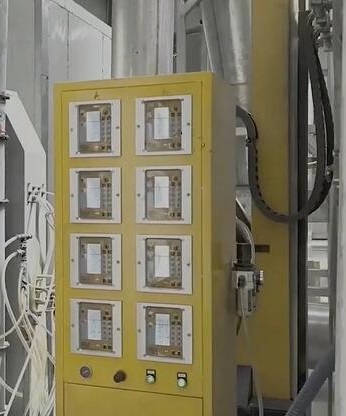

Central Cabinet

COLO-191S Automatic Gun

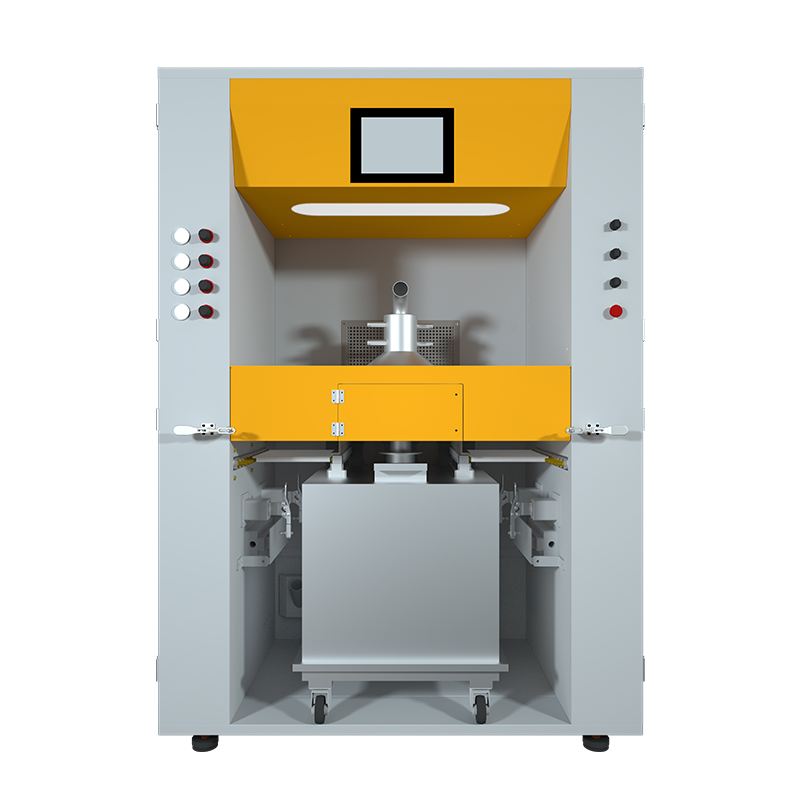

COLO-6600 Powder Feeding Center

The newly-developed powder management center is an efficient and space-saving solution for automatic powder coating line, has the following highlights:

- Automatic sieving of recovery powders, dissolving and loosening of powder accumulations, ensure purity and uniformity.

- A big hopper allows containing high volume of powders for daily countinuous production with optimal fluidization condition for smooth powder flow and quality coating results

- Automatic cleaning of hopper, suction tube, injectors, pump, hoses and spray guns, maximize efficiency during color change.

- Closed powder circuit prevents overflow to ensures a clean working environment as well as save powders.

PLC touching control

automatic sieving section

powder container

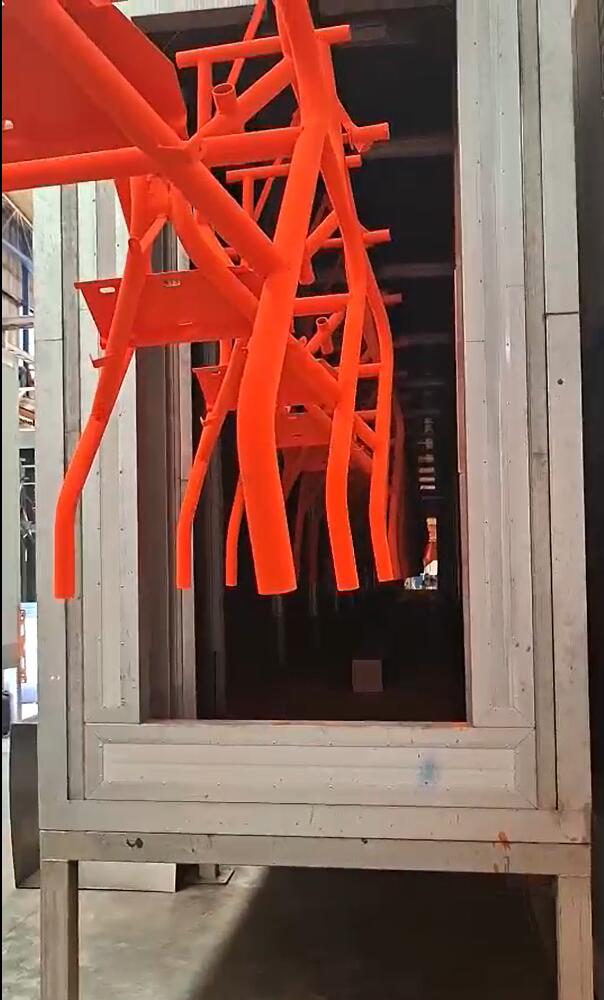

Powder Coating Curing Tunnel

1 Tunnel type, designed for continuous operations in automatic coating line. Maximum efficiency is obtained with high capacities by means of this system

2 Internal size: L24000mm*W1500*H3000, Pass through Opening size: W1100*H2400mm

3 Heating source: natural gas; Burner: 1000,000kcal Riello burner

4 Heating Time & Temperature: Warm-up time: 15-30 min. (180° C), Max.250° C

5  Circulation Fan: 15kw, 2 set, creates uniform hot airflow in inner chamber ensure high quality curing results.

6 Construced with 100mm thickness rock wool board, ensures minium temperature dropping, as well as 1.5mm thick SGCC wall

7. Configures air curtains at both ends,  5.5kw fan motor, 2sets

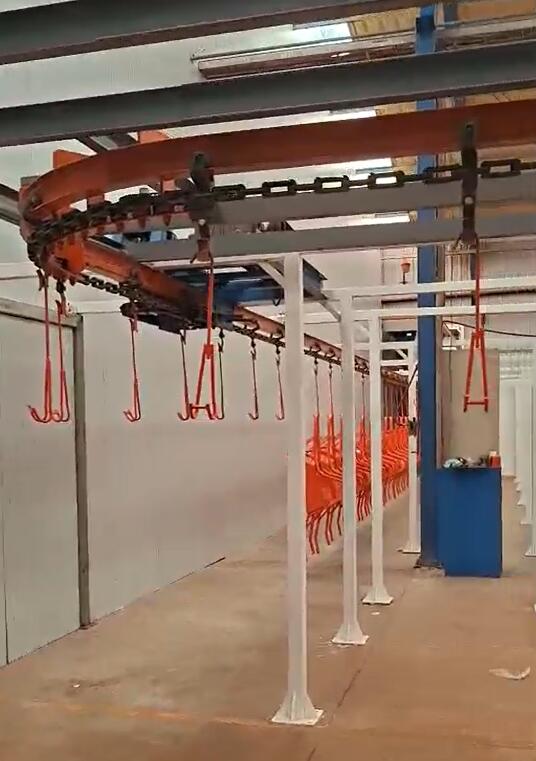

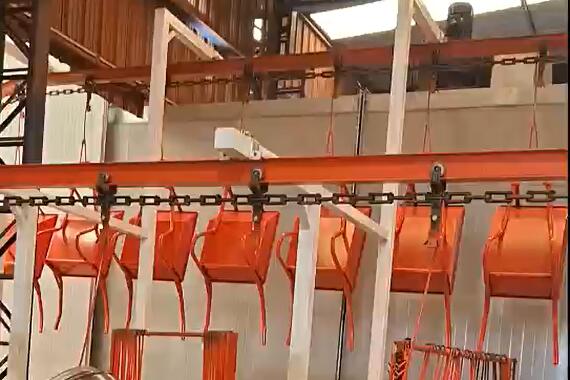

Overhead Conveyor System

COLO conveyor system is durable to work on long-distance transportion with low noise, and can endure the harsh chemicals during the pretreament washing. and withstand high temperature during curing process.

1 Total Length: 178m

2 Conveyor Chain Type: QXG300A, single point bearing weight ≤100kg；

3. Components: 1 pc tensioning device;  1pc driving device; 2 pcs emergency top devices.

4. Drive power: 2.2kw;

5. Conveyor speed: 1m/min (frequency adjustable)

If you need Detailed Drawing & Quotation or a Customized Solution Specially for you, pls contact us freely. COLO is professional in designing powder coating line as per your precise requirement.
