300℃/500℃ High Temperature Curing Oven Powder Coating Oven

PTFE Teflon Coating Oven, High Temperature Powder Curing Oven

500℃ High Temperature Coating Oven

The max. temperature can be reached up to 500℃, suitable for PTFE teflon coating job, or other industrial applications. Heating by electricity, size can be customized as requests.

Model:
COLO-1818
Brand:
COLO
Size:
Width1800 * Height1800 * Depth1800 mm

Availability:



Inquire Add to Basket

Product Description

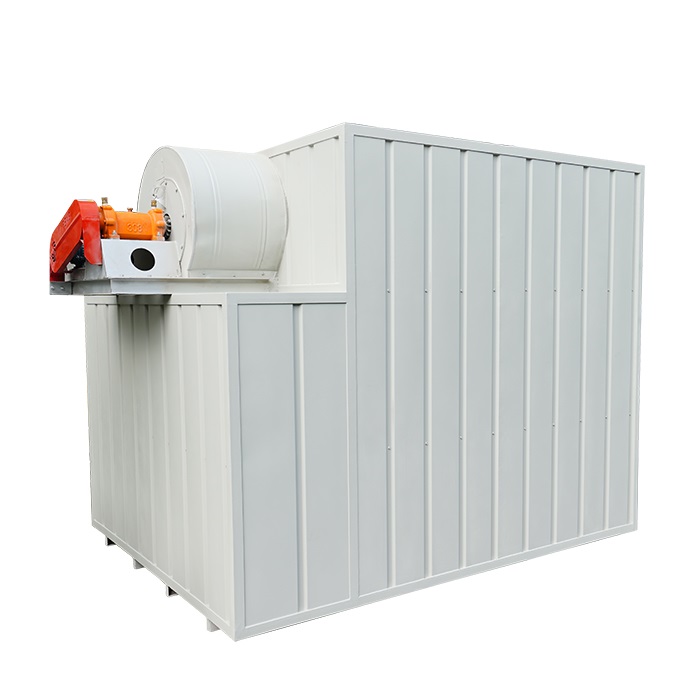

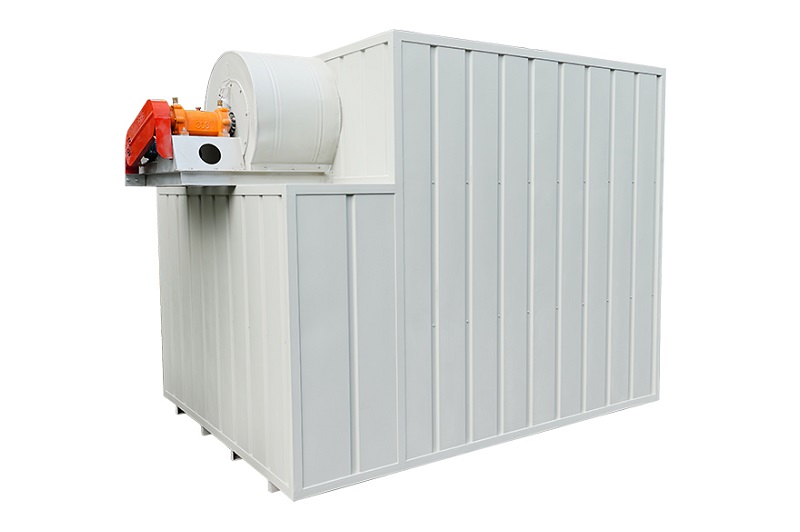

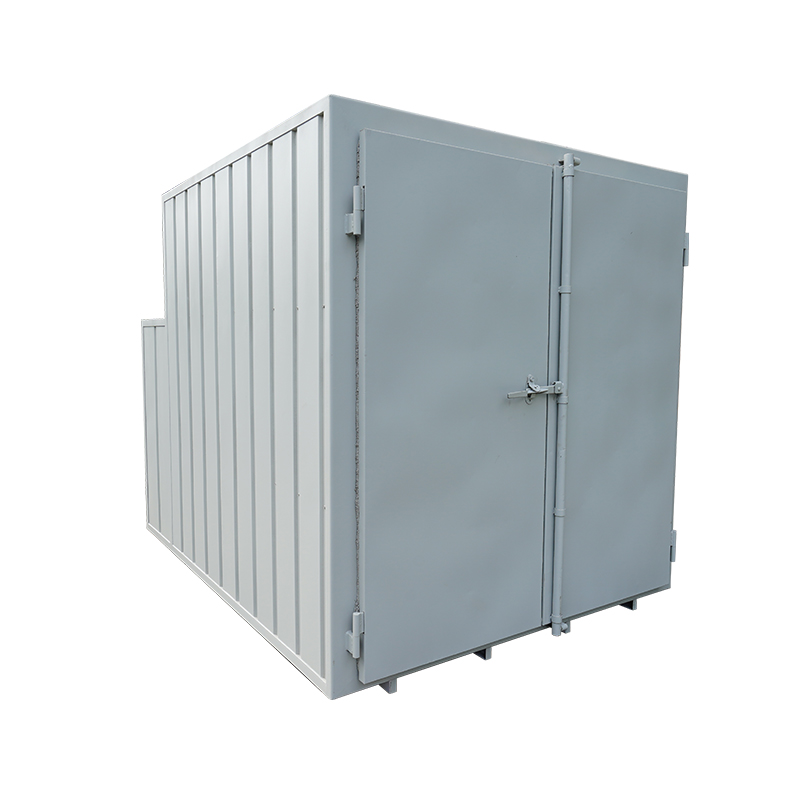

500℃ High Temperature Powder Coating Curing Oven

500℃ high temperature curing ovens are designed for curing special powder coatings, such as teflon coating application. Uses electricity as heating source, these ovens feature easy-operating and environmental-friendly. Our curing oven is built with durable and high-quality components that never compromise quality and performance.

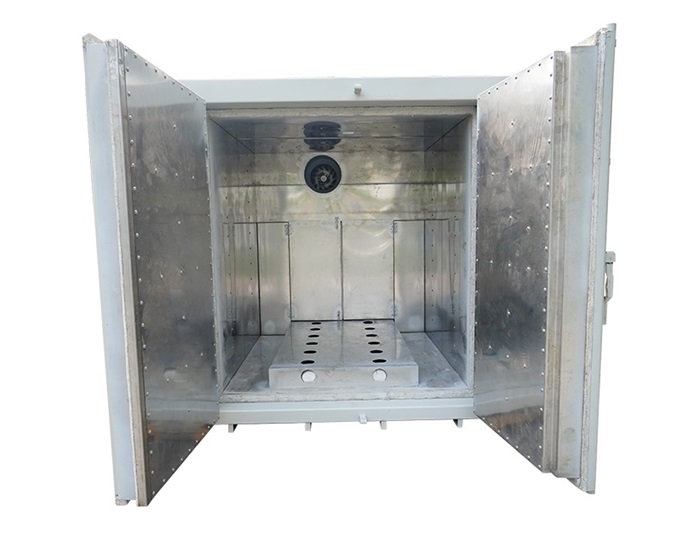

teflon coating oven

powder coating oven

High Temperature Powder Coating Oven Features:

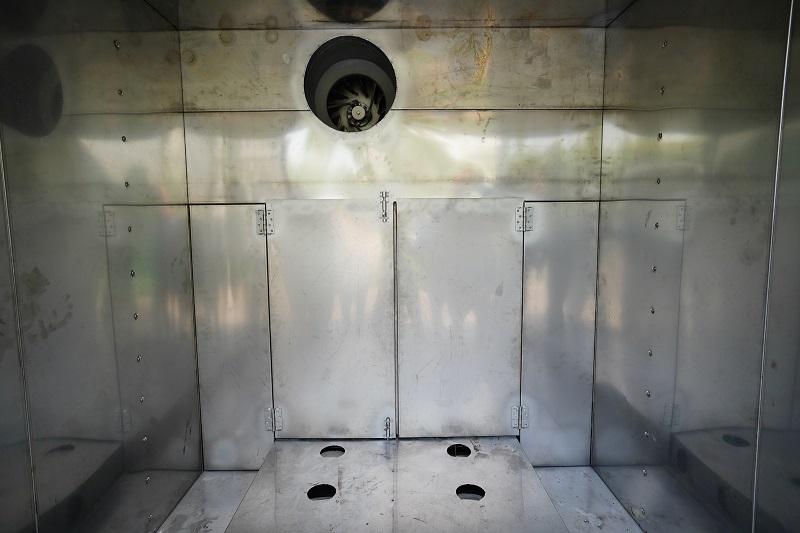

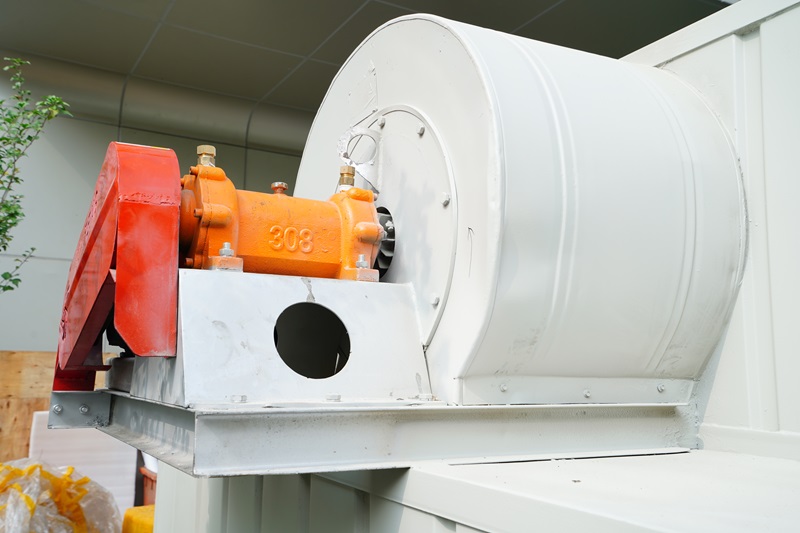

Air Circulation Fan

Circulation fan circles the hot air to warm the powder coating oven interior, minimizes temperature difference and guarantee uniform-heated chamber. It creates optimal airflow and prevents hot spots and providing an even, constant cure for your parts.

Precise PLC Control

This PLC controller offers all the features you need. the keyboard and clear display allows you to set and read precise temperature as well as duration required. The electric control also includes fan starting, alarm lights and emergency stop buttons, ensuring safe and reliable heating process.

200mm Thick Rockwool Wall

COLO powder coating oven is made of high quality durable material, interlayer is rockwool insulation board (200mm thickness), inserted between heat-resistent stainless steel innerwall and durable galvanized outerwall which forms a sandwich structure and features anti-flame and heat-insulation.

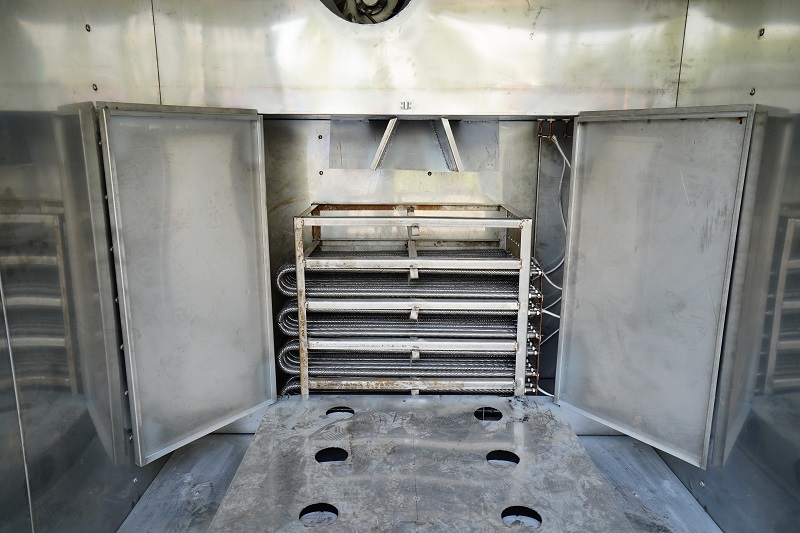

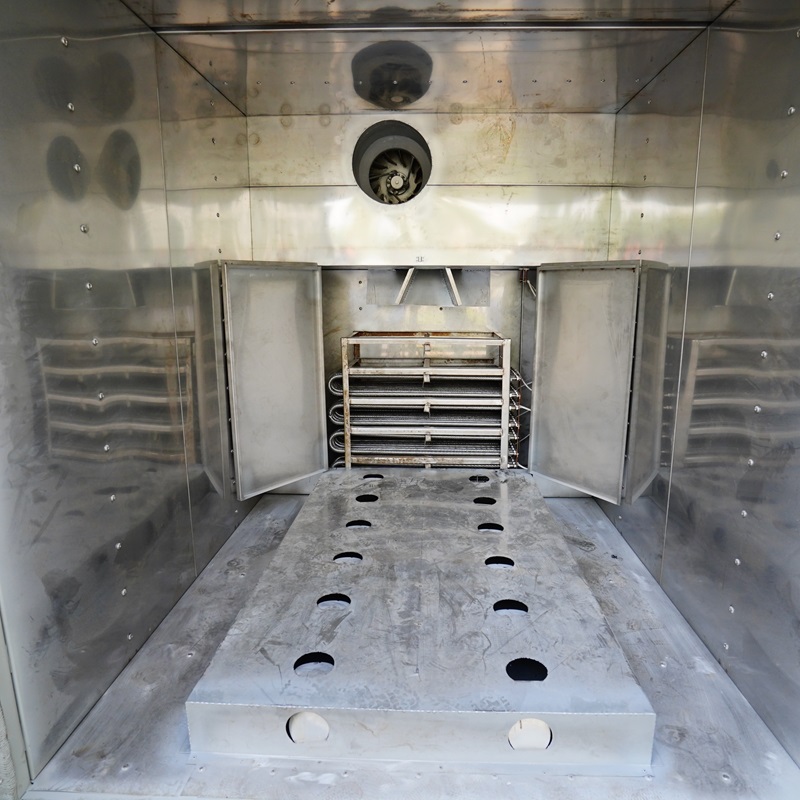

Electric Heating Room

An independent heating room with highly efficient electric heating elements that makes the oven chamber reach to required temperature faster and always keep it hot. Electric heating features environmetal-friendly and easy maintenance.

COLO-1818 High Temperature Powder Coating Oven Specifications

Model	COLO-1818
Working Dimension	width1800 * height1800 *depth1800 mm
Power Supply	electric
Voltage	220V/380V/415V, 3 phase
Frequency	50-60hz
Insulation	200mm thickness
Inner Wall	Stainless Steel 1.5mm
Outer Wall	Coated Galvanized

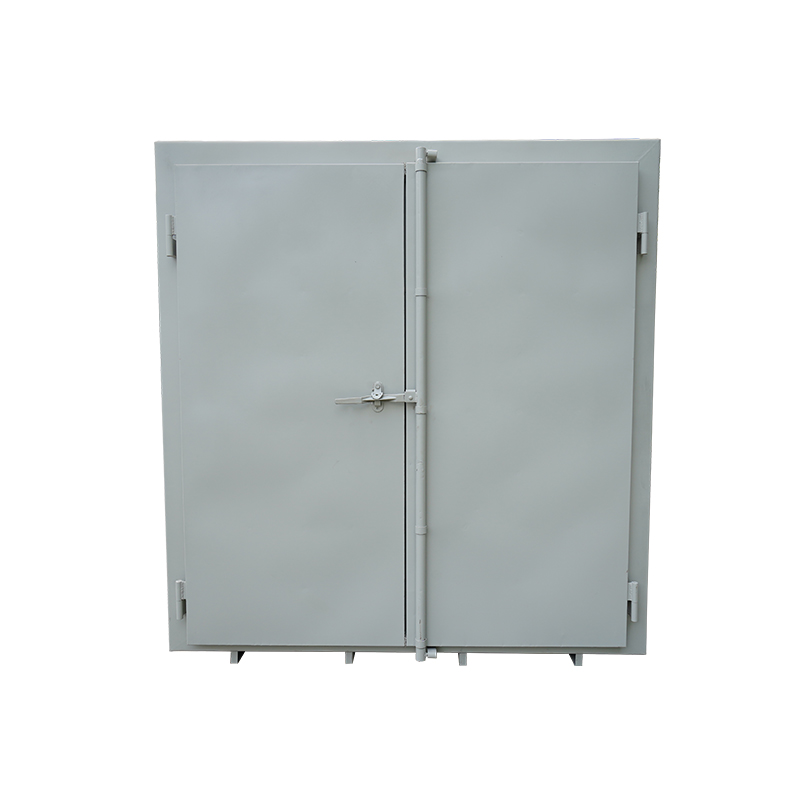

Door Type	double, in one side
Warm-up Time	30-40min
Temperature Stability	< ± 1°C
Max. Temperature	500℃
Parts Transportation	Top
Air Circulation	Forced

Why Choose COLO powder coating ovens?

COLO has 15 years experience in the design, manufacture, installation, commissioning and ongoing support of the powder coating ovens for industrial use. Our curing ovens range can be supplied from existing standard sizes or produced as your precise requirements. Selection from our electric and gas/diesel curing ovens, batch or conveyorised ovens, you will get excellent experience from the efficiency, performance and reliablity.
