How to Reduce Powder Waste in Electrostatic Powder Coating?

In modern surface coating industry, electrostatic powder coating application offers durability, efficiency and environmental benefits.  But the waste of a lot amount of powder is an inevitable problem. As we known powder waste means the loss of powder coating material adhering to the workpiece during the spraying process(which also means overspray), what's more they are not even recycled back to the system.

Why You Should Attach Importance to Powder Waste in Powder Coating?

 Because high powder waste rate will lead to:

- Increased raw material costs

- Lower production efficiency

- More frequent maintenance and downtime

- Environmental and disposal concerns

Now, lets's analyse, What causes powder waste? What can we do to minimize powder waste in powder coating application?

They are mainly 2 factors that contribute to powder waste,

- Low transfer efficiency - the powder spray equipment causes too much overspray that not adherred onto the metal surface

- Poor recycling performance - the powder spray booth fail to capture and recycle those overspray as much as possible.

Understanding the causes of powder loss will help us implement targeted solutions that can significantly improve performance and reduce waste.

First Let's Analyse Low Transfer Efficiency - Often Caused by Powder Coating Equipment

In powder coating, transfer efficiency refers to the percentage of powder spray that actually adheres to the target workpiece, compared to the total amount of powder that leaves the spray gun.

In simple terms:

Transfer Efficiency = (Powder deposited on part ÷ Total powder sprayed) × 100%

Low-performance electrostatic powder coating equipment generates weak electric field strength (can not reach to 100kv, even 80kv), It's like having a high voltage but lacking the "force", thus the powder becomes "insufficiently charged" thus less powders adhesion to metal surfaces.

What's more, those gun often has poor atomization: the powder and air cannot be fully mixed into a uniform cloud. The powder exits the nozzle in "clumps," preventing it from being evenly charged and resulting in an uneven coating thickness.

Moreover, they lack the capability that can not flexibly adjust voltage and current to counteract the "back ionization" and "Faraday cage" effects. when parameters are poorly set or the workpiece has a complex shape, efficiency drops sharply.

In a common powder coating system, transfer efficiency (TE) can range from 30% –80%. Every 10% increase in TE directly reduces powder waste by approximately 8–12%.

Solution: Choose a High Performance Electrostatic Powder Coating Equipment to Increase Transfer Efficiency

Choosing an high performance powder coating equipment is the top priority, it must configures an 100kv spray gun with optimized nozzle, an intelligent and digital controller with precise setting of all parameters.

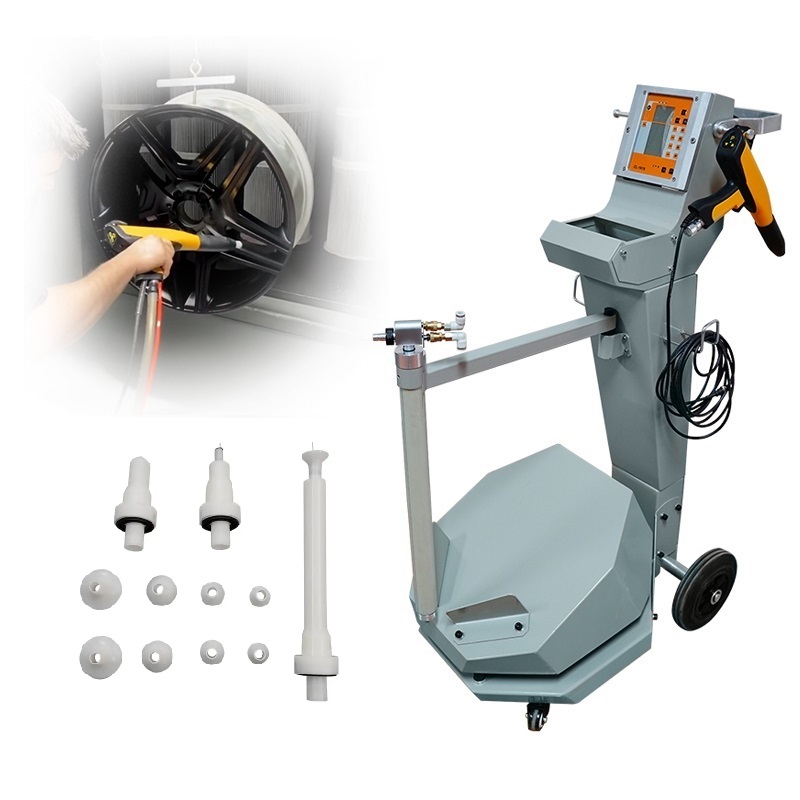

The modern model COLO-191S Powder Coating Equipment,  has been proved by worldwide customers, aiming to maximize the powder transfer efficiency.

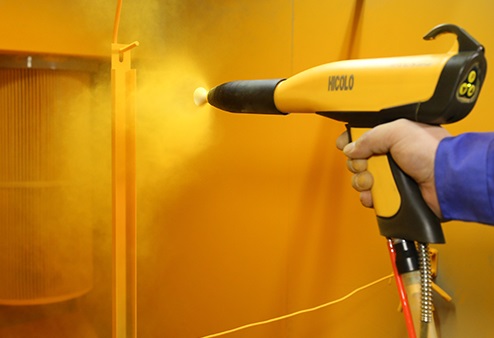

The configured 100kV electrostatic spray gun of COLO-191S has ability to generate a 100 kilovolt electrostatic charge, which maximize the amount of powder that sticks to the target rather than being wasted as overspray.

The regular round and flat nozzles are designed to optimize the atomization and nozzle with an extension nozzle makes it easier to penetrate to deep corners.

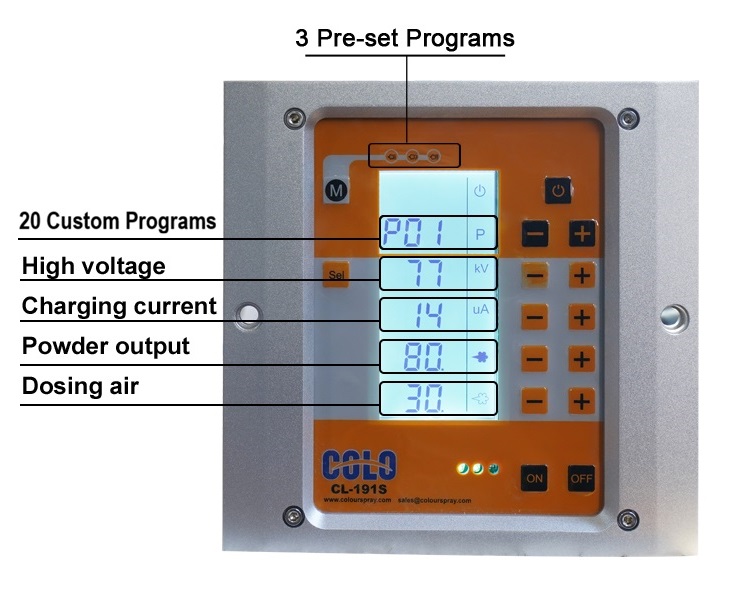

Moreover,  Our COLO-191S applies world's latest digital technology offering  precise, flexible adjustment for high voltage, charging current in the full digital display by keyboards, which  is of a great help in coating deep corner and complex shapes where Faraday Cage effect often generates

Thanks to the advanced technology, even the compressed air flow is controlled by digital valves, thus powder output and automization air regulations are extremely precise and reproducible. It is easy for every powder coater to find the right powder amount to different objects consequently in very significant powder savings.

 Precise powder output application also leads to repeatable application performances and improve the film thickness consistency. A high quality coating film will also save your operation cost and material usage.

Then Let's Analyse Poor Recycling Performance - Caused by Powder Spray Booth

A basic powder coatig booth is mainly composed of a booth chamber, several pieces of cartridges filter, a set of centrifugal fan, filter cleaning system, electric control system, lighting system, etc

Briefly, the working principe is by means of a fan drawing clean air into the booth and passing accross filters that creates a negative pressure in the chamber, thus oversprayed powders in the air flow will gather in the filters or cyclone system for collection and re-using, and the air is free-particles.

Thus Inadequate airflow design, or low precision filters can fail to capture and recycle overspray effectively. Suboptimal powder recovery system (Cyclone separators or filter systems)that are not optimized can lead to powder loss or contamination, making reclaimed powder unusable.

Solution: Choose a Professional-designed Powder Relaim Booth to Increase Powder Recovery Rate

A high-efficiency powder recovery spray booth is a precisely engineered system. Its goal, in technical terms, is to achieve an extremely high powder recovery rate (typically > 95%, with some excellent designs reaching over 99%), while also delivering low energy consumption, easy cleaning, fast color changeover, and the ability to effectively reuse recovered powder in production.

Manual spray booth should configures high precision cartridge filters and optimized airflow design to capture fine powder particles efficiently, reducing material loss and ensuring a cleaner working environment.

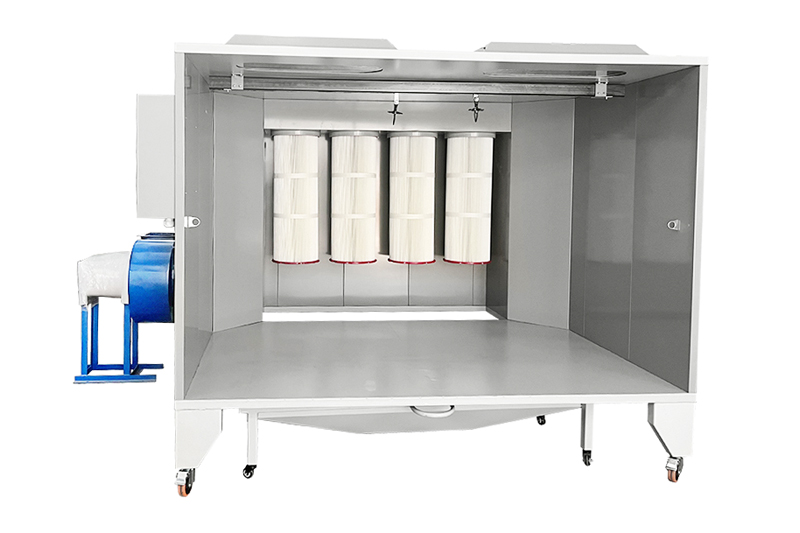

 COLO Manual Powder Spray Booth applies 100% polyester cartridge filters could filter even 0.1 miron powder particlates,  the internal airflow direction and velocity are carefully calculated.

A well-designed bottom powder collection trough and guide slopes effectively collect powder falling by gravity, while low-cost booth without this design requires operation to sweep the overspray that makes the powder contaminated.

For Automatic Spray Booth with color change demands, a high-efficiency cyclone separator for first-stage recovery is necessory,  they can recover up to 98% of overspray powder, allowing it to be reused without compromising coating quality.

It also requires secondary recovery system - filter cartridge group, these filters are installed after the cyclones. They use self cleaning cartridges and reach over 99.99% separation efficiency.

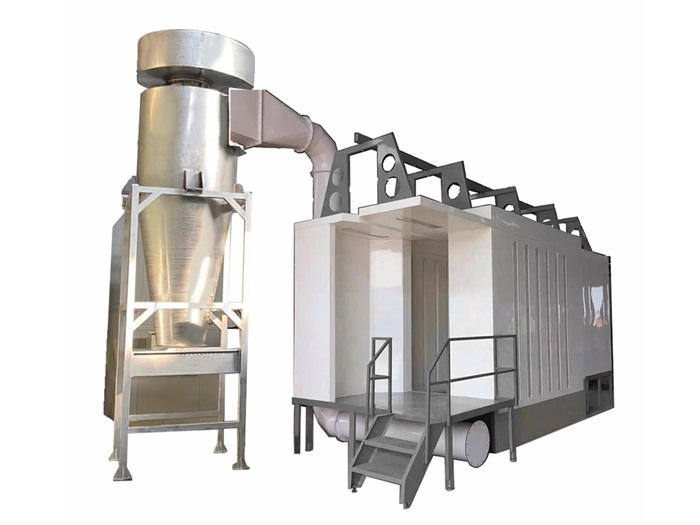

COLO's automatic cylone powder coating booth not only designed with high performance cyclone separator and precise filteration group, but use anti-static PP plastic materials as booth wall and air-knife seff-cleaning system at booth floor, which minimize the powder overspray accumulated at the the booth, thus more powders are rapidly transfered to the recovery system, which greatly reduce powder waste and maximize cleaning efficiency during color change.

Other factors such as unproper preparation works are also factors of powder waste they are but manually controllable

Improper pneumatic(air pressure) and electrostatic(kV/µA) settings, poor grounding, insufficient pretreatment cleaning, or incorrect spray distance, all can reduce the amount of powder that adheres to the workpiece.

Check your grounding, and pretreatment cleaning, set the right parameters refering o the below form

If you need professional powder coating systems or valuable advices to reduce powder waste, improve application quality and increase business profits, contact with COLO experts, we have 17 years experience of powder coating solution designing, and powder coating equipment manufacturing, assembling, commissioning.
