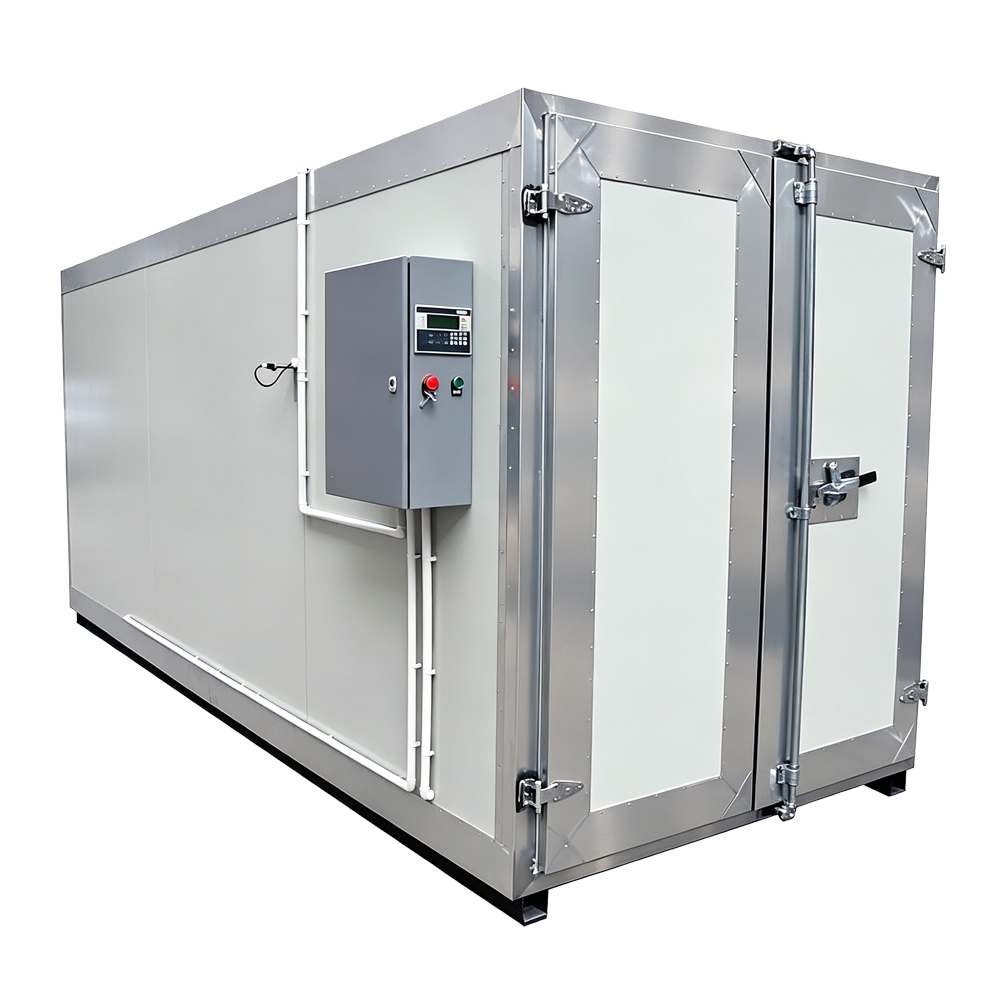

COLO-1732
COLO
Width1650 * Height1700 * Depth3200 mm
The 3 meter length curing oven is designed for powder coating paint bigger bulky parts or a batch production of small-sized parts. Electric heating style reduces the task of operation and maintenance as well as creates a more clean environment. It also can be designed for gas or diesel heating.

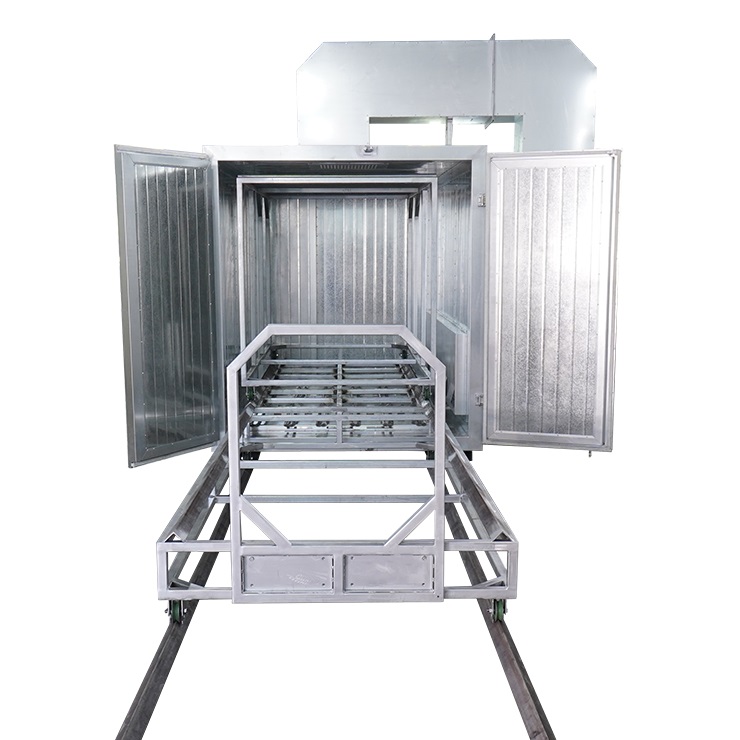

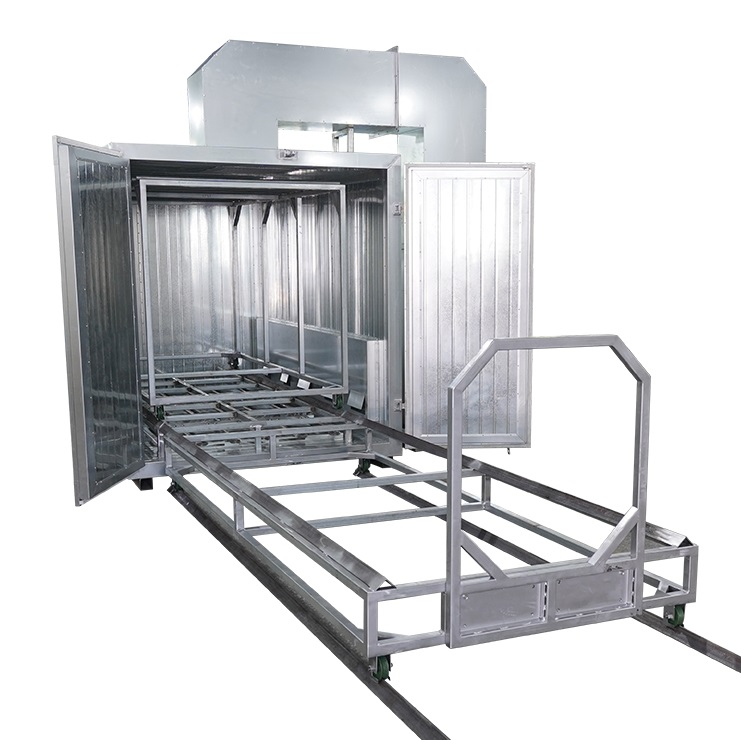

Our powder coating ovens are standardly equipped with two trolleys: Internal trolley supplied in the form of a frame to load workparts participating in curing process inside the oven. External trolley like a carridge is used to carry the internal one for outside operation and transportation.
By using two trolleys, there is no contamination inside of the oven, which provides high purity painted elements.
This is an excellent transporting system which allows carrying heavy elements using a small amount of force, and optimize the use of the entire surface with high temperature bearing, and it also can be customized as you want.
COLO professional powder coating ovens are built with premium quality and performance components, creating optimal airflow throughout the curing oven enclosure, resulting an even, constant cure for your parts.

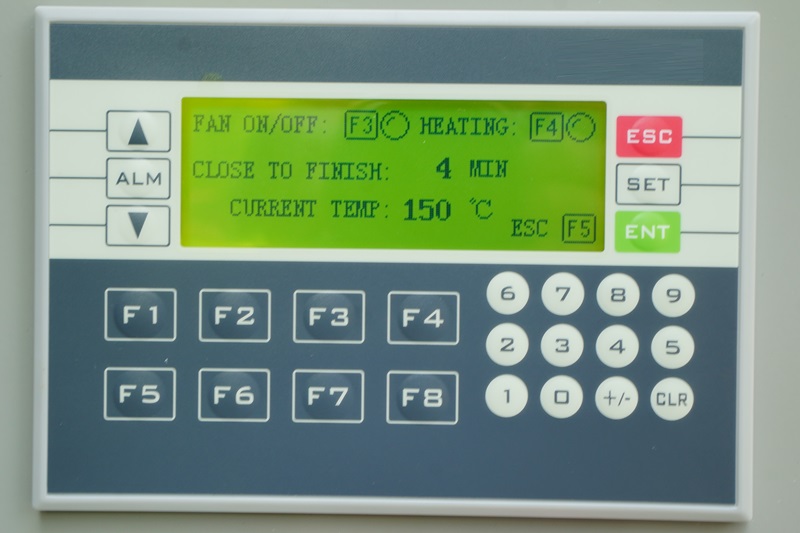

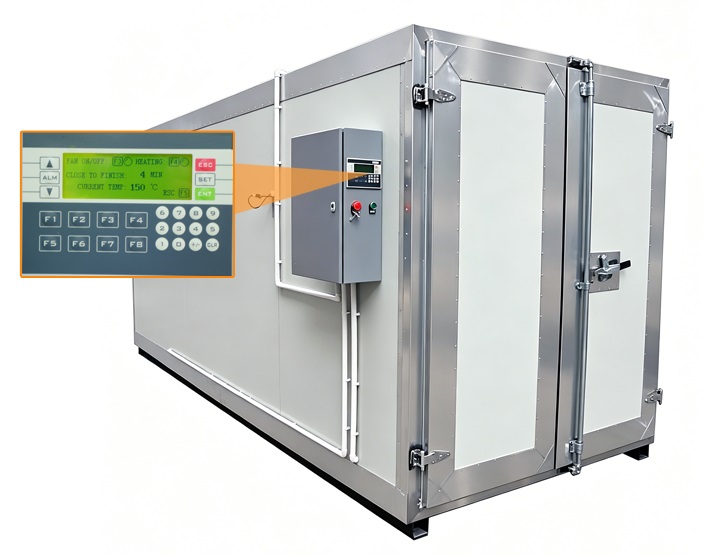

PLC Control
All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan.
The controller also equipped with audible and visual alarms keys ensures safety operating environment.

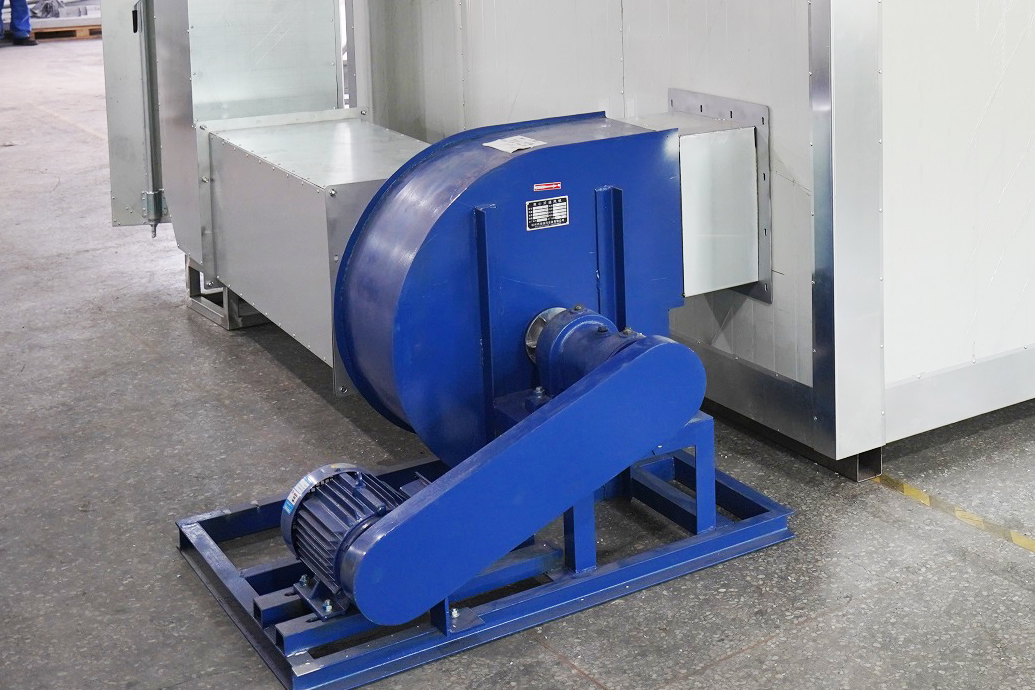

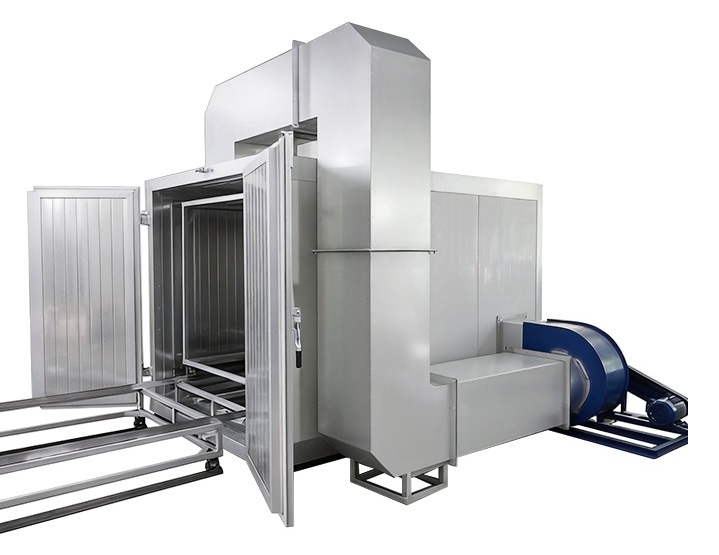

Circulation Fan
Powerful fan speeds up the flow of hot air through oven interior, which minimizes temperature difference and guarantees uniform-heated chamber.
The control system adjust the temperature uniform inside the oven by fine-tuning the performance of the exhaust fan.
Materials
COLO powder coating oven utilizes a sandwich panel design.
Applies the 100mm thick rockwool board, density 120kgs/cbm insulation material as the interlayer, which inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
Heating Element
Our electric heating element uses a certain quantity of 1.5kw U shape heating tubes, uniformly distributed at the bottom of oven, ensures heating efficiency.
Covered with mesh plate, those heating tubes are easy for maintenance.
| Worksize dimensions | Width1650 x Height1700 x Depth3200 mm |
| Overall dimensions | Width1950 x Height2100 x Depth3600 mm |
| Power supply Electric | 30kw |
| Voltage | 380V/220v |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 1131-2565m3/h |
| Motor power | 1.5kw |
| Circulation/ Air flow Vertical | Variable through holes on the walls |
| Warranty | 12 months |
COLO-1732 Electric powder coating oven is ideal for loading batch of metal parts. such as alloy wheels, auto parts, metal shelves, furniture products. Our curing oven tends to cure more parts and save your time everyday.
