Manual Batch Powder Coating Plant

- This manual system is recommended for batch production of both small and big sized parts
-  Manual pass thru booth and trolley oven save your factory space without sacrificing prductivity.
- Sizes and specially configurations can be customized as your productions.
  • COLO-L-M04

  • COLO

Availability:
Manual Batch Powder Coating Plant
Manual Batch Powder Coating Plant
Manual Batch Powder Coating Plant
Manual Batch Powder Coating Plant

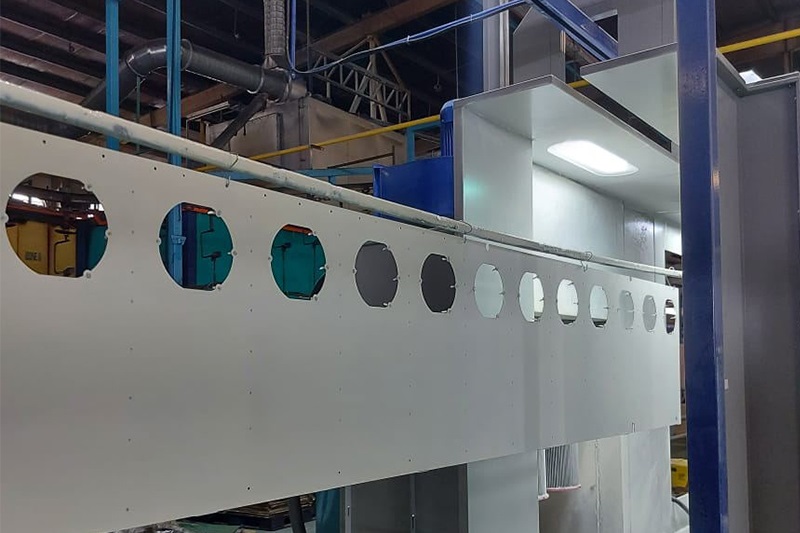

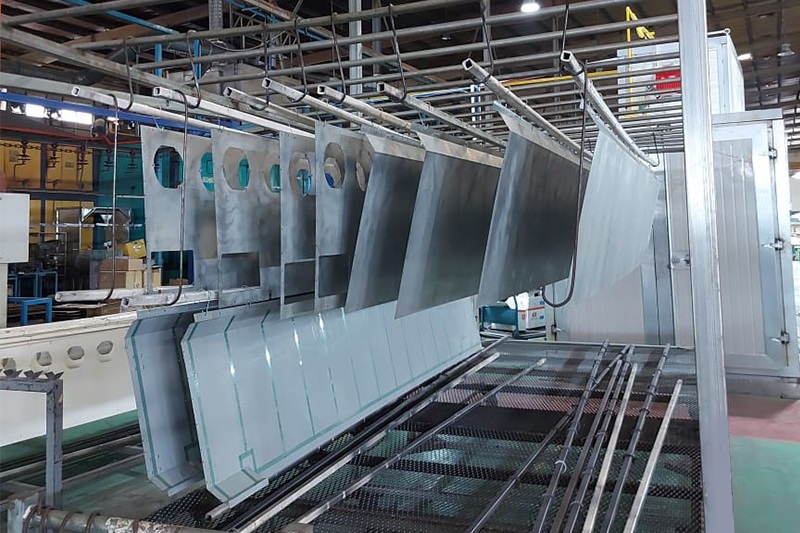

Manual Batch Powder Coating Plant for Metal Plates & Frames

This powder coating plant is ideal for continuous batch production of long length workparts, based on manual operation. the system includes pass thru powder coating booth, batch curing ovens and manual powder painting machines.

Manual Powder Coating Plant Powder Coating Plant

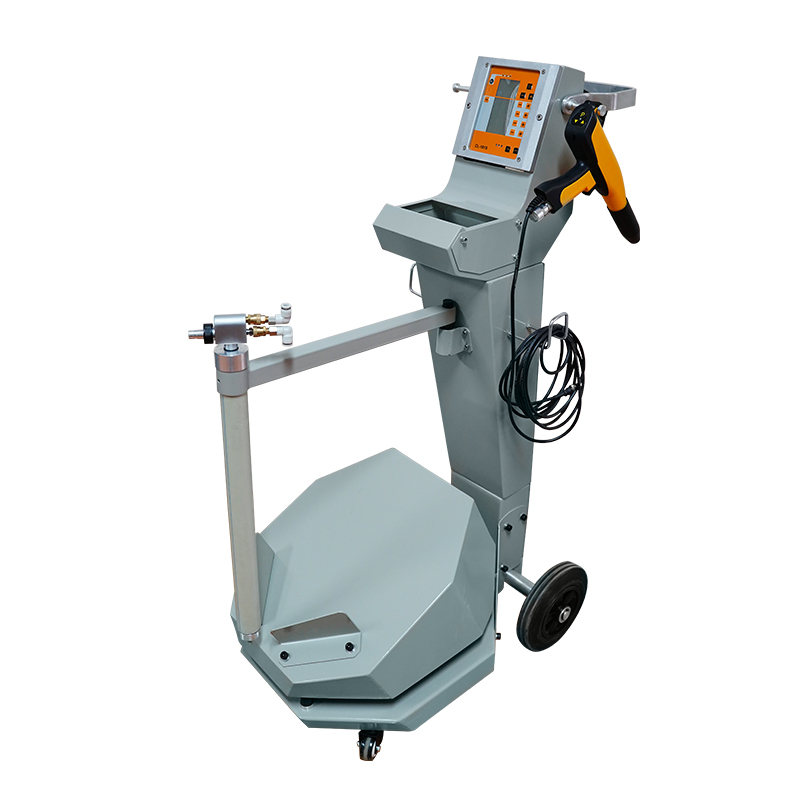

COLO-191S Powder Coating Spray Gun

COLO-191S manual powder coating gun is developed for easy and efficient job, suits for both beginners and specialists. Based on COLO advanced technology, especially complex parts can be perfectly coated with this model.

manual powder coating equipment

Configurations and Features

1.Digital controller allow allows precise control of current and voltage ensuring maximum efficiency. Accurate and repeatable settings of the powder output for stable coating results.

2. The powder coating machine offers beginners 3 pre-set programs for application of flat parts, complex profiles and re-coat operations.

3. For advanced coating jobs, it allows create and save 20 personalized programs optimized for different parts or powders.

4. 100kv manual spray guns delivers high transfer efficiency for saving time and powder. Nozzles with different spraying patterns help easily coat different shapes.

powder gun control
Intelligent Digital Control
powder spray gun
100kv Spray Gun with Remote Control
powder spray nozzles
Flat, Round, Extension Nozzles

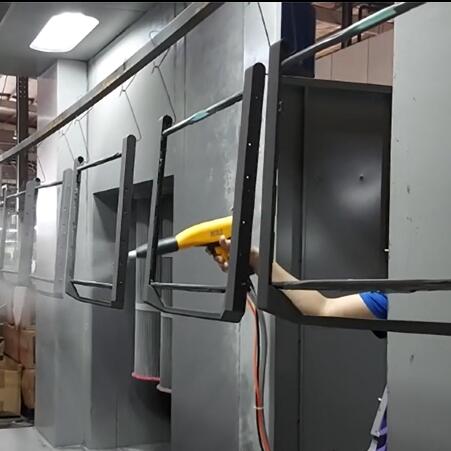

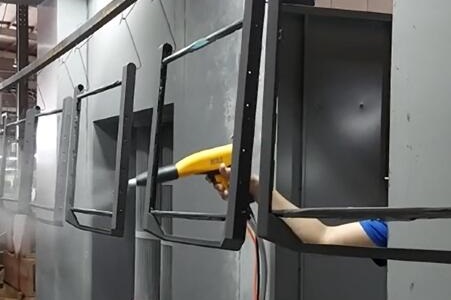

Manual Pass Thru Powder Spray Booth

This manaul powder coating booth has 2 working station allows parts recieving coating from both sides, parts enter the booth from one entrance and exit from the other through overhead tracks, continuous coating increases efficiency and ensures application quality.

manual powder coating booth

Configurations & Features

1. The recovery module combines a group high-precision filters made of 100% polyester that maximize separating efficiency

2. Automatic filter cleaning is acted by pulse jet system, which are programmed at PLC control, it provides interval filter cleaning, effectively eliminates powder accumulation and prolongs filters' useful life.

3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

4. Parts are transported by overhead track system with less manual efforts.

5. Simple installation - only electrical and air connections are required to start production.

Cartridge Filters
Cartridge Filters
Removable Hopper for Easy Recovery
Removable Hopper for Easy Recovery
Powder Coating Booth PLC Control
Precise PLC Control

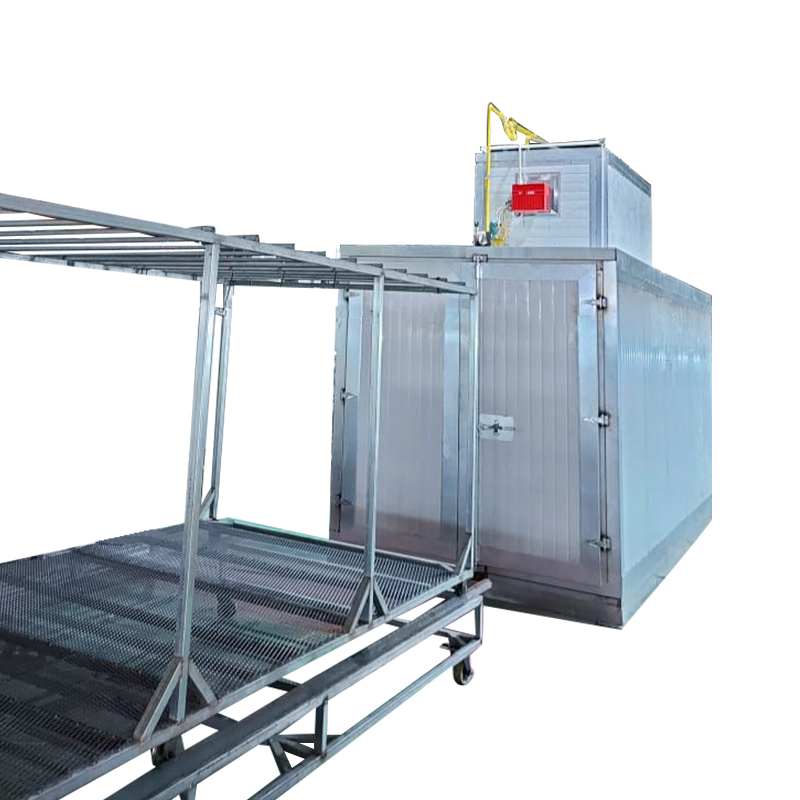

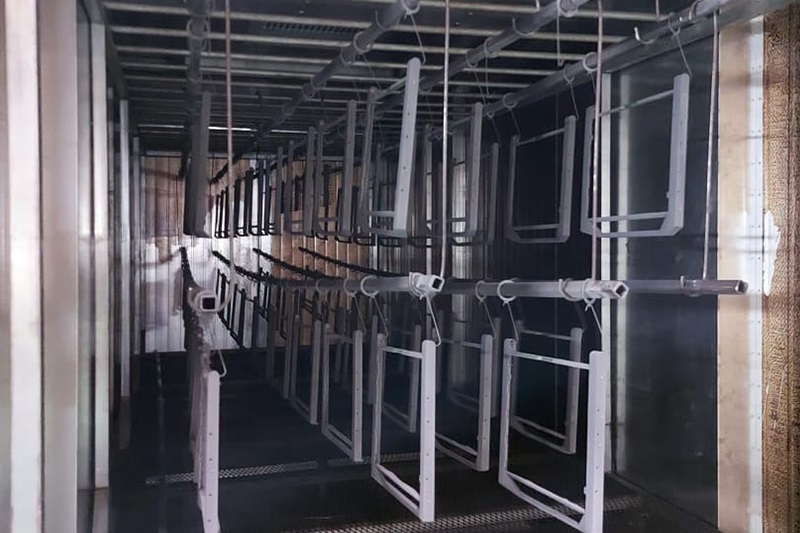

Gas Powder Coating Batch Oven

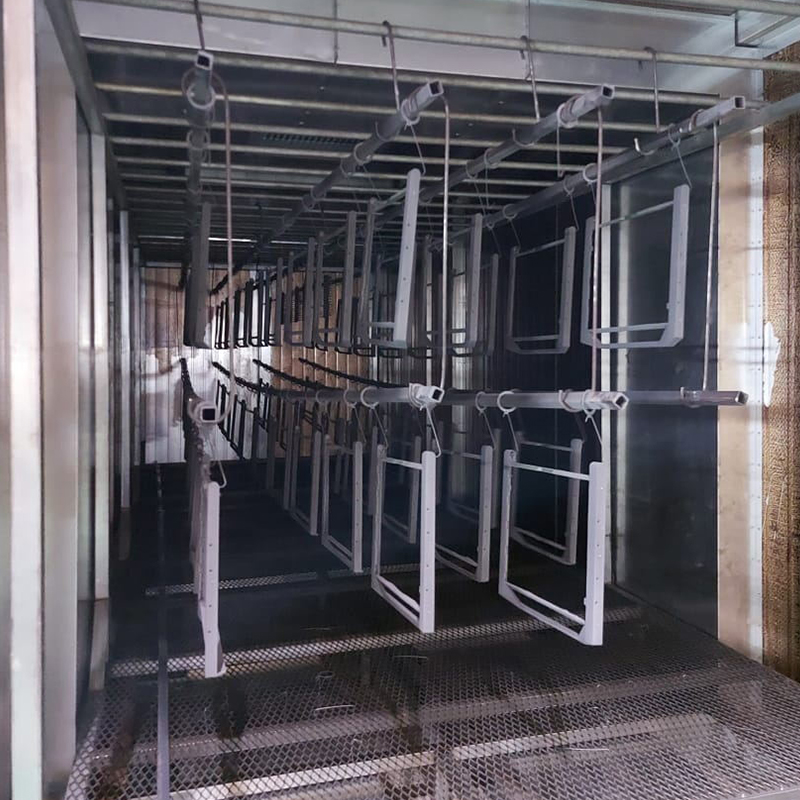

Gas powder coating oven equipped with a trolley system which allows transportation of heavy elements using a small amount of force. This system maximize the use of the entire space that provides big output and  high purity painted elements.

powder coating oven

Configurations & Features

1. Made of 100mm thick rockwool board inserted between durable galvanized wall and steel skin, always keeps the chamber a consistent high temperature with minimum heat loss.

2. PLC system provides a precise and reliable heating process with easy setting of temperature and time.

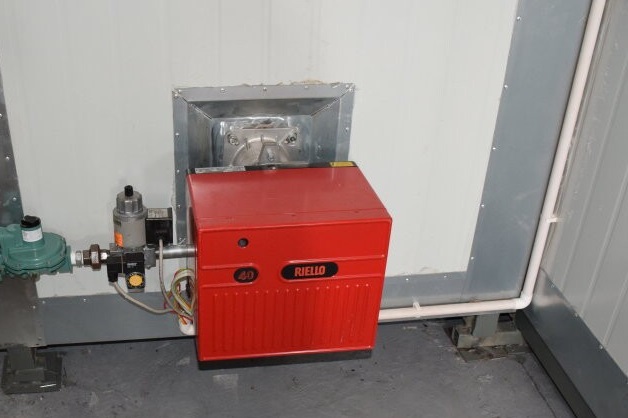

3. Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.

4. Circulation fans causes uniform temperature in the entire inner space that results in quality cured finishes.

powder coating oven material
100mm Thick Rock Wool Board
powder coating oven burner
Circulation Fan
Powder Coating Oven PLC
Precise PLC Control

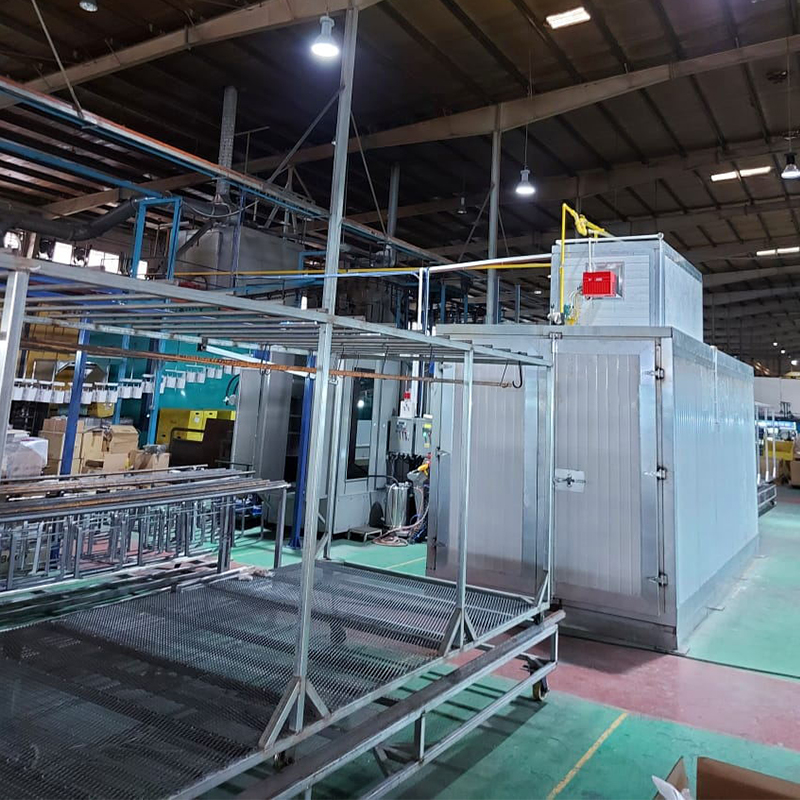

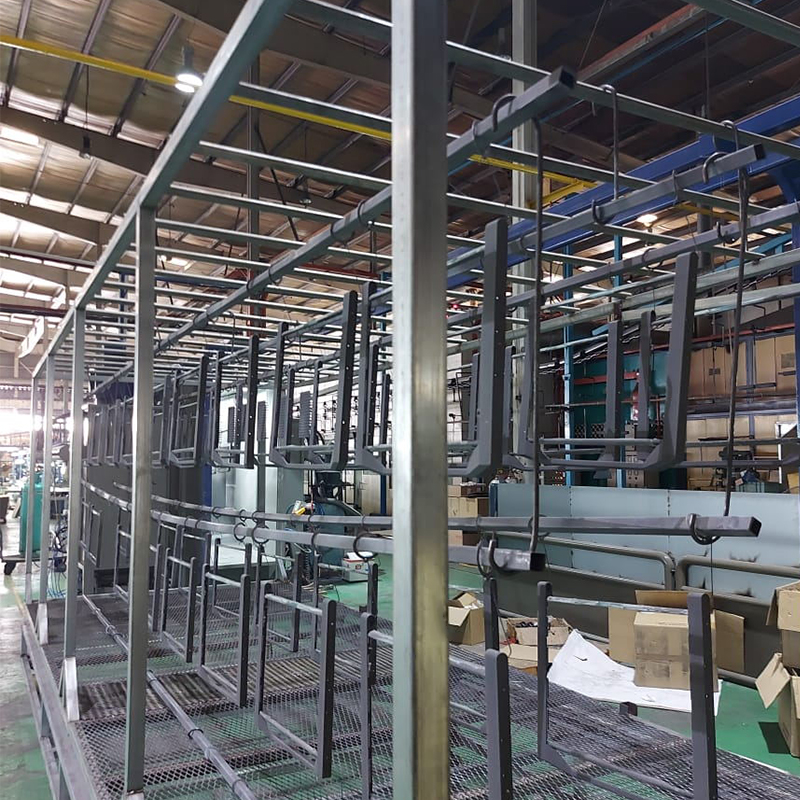

Manual batch powder coating plant  - Customer Case in Malaysia.

This manual powder coating plant is designed for our Malaysia customer, whose workparts are big metal plates, steel frames, profiles. COLO specialize in customizing complete powder coating solutions and system for your increased efficiency and improved application.

Manual Powder Coating Plant - Malaysia.pdf
