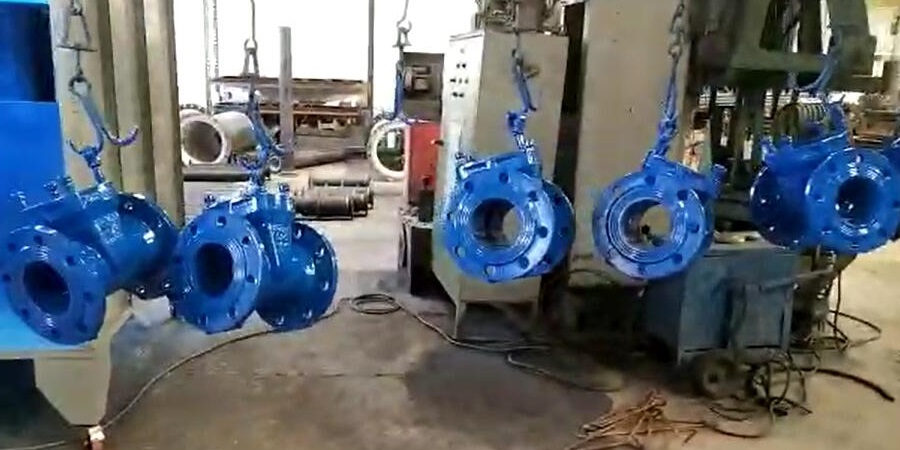

The manual powder coating system is specially designed for our Saudi Arabia customer for their efficient applications of fire hydrants

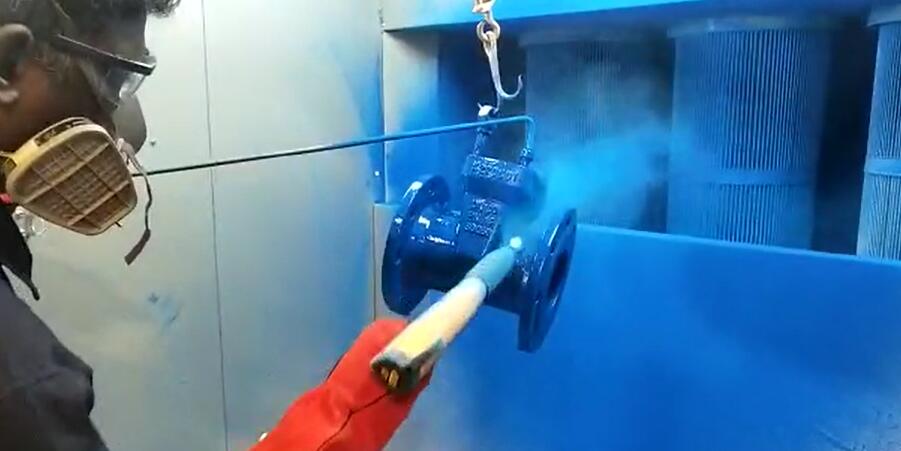

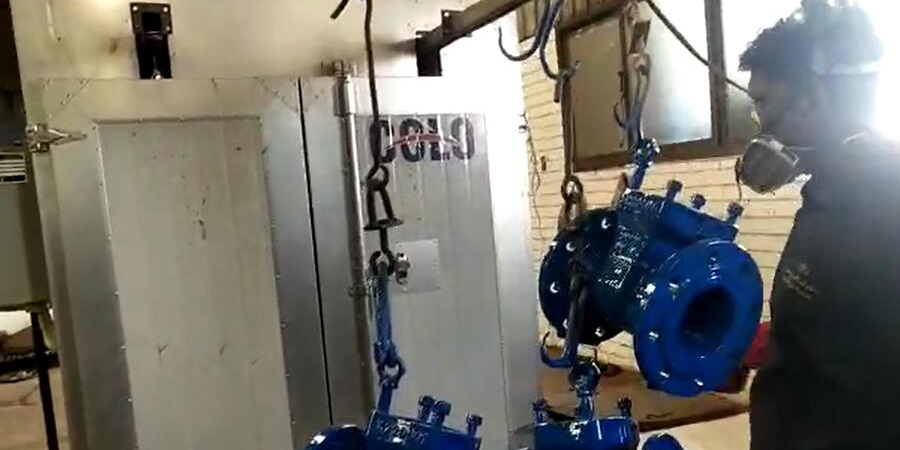

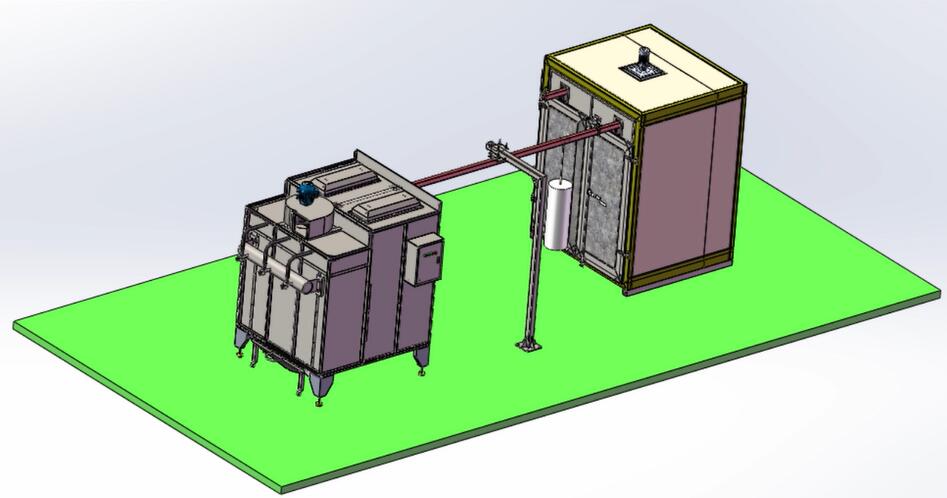

The system consists of our standard powder coating equipment and integrates a bit of customization. The users firstly performs powder spraying at spray booth, afterwards, the coated fire hydrants with be pulled into the curing oven through a U-shape overhead rail connecting booth and passing through the oven.
This manual powder coating system reduces labor efforts and requires less space and budget. We recieved praises from the customer.
Project Key Data
Workpart: Steel Plates, Frames
Productivity: 15-20pcs / hour
Main Components
1. Manual Powder Coating Machine COLO-191S
2. Cartridge FIlter Powder Coating Biooth COLO-1517
3. Electric Powder Curing Oven COLO-1864
4. U-shape Overhead Rail

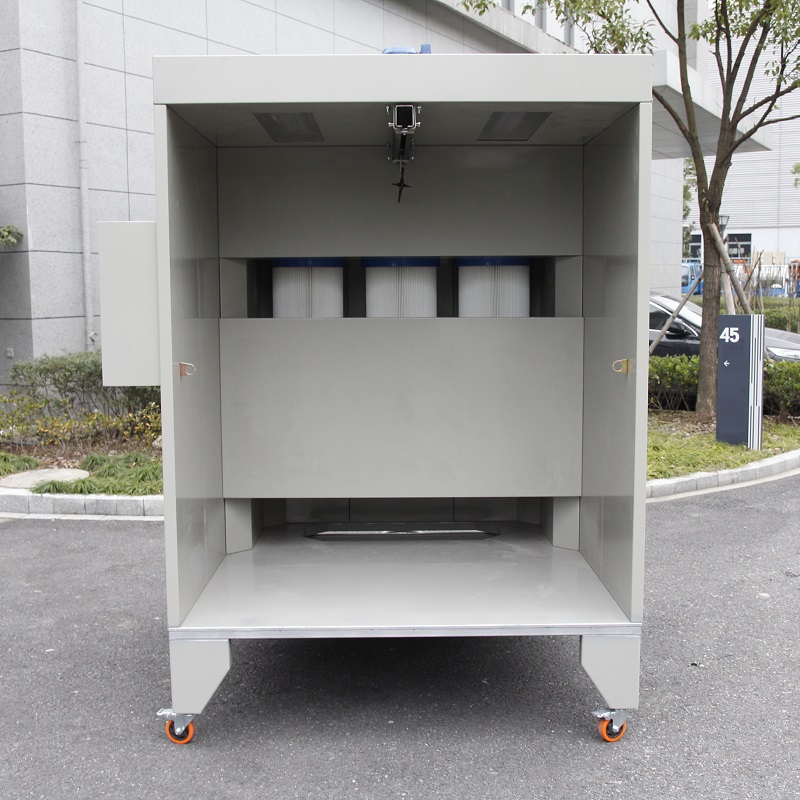

COLO-1517 Powder Coating Booth
COLO-1517 Powder coating booth provides a bright and clean environment for spraying process. An integrated and innovative powder collection module includes 3pcs cartrdge filters is designed for effectively capturing oversprayed powder.
Specifications
1. Working Size: Width1500 x Height1700 x Depth10000(mm)
2. Overall Size: Width1600 x Depth2000 x Heght2250(mm)
3. Voltage/Frequency: 220V/380V, 3Phase, 50-60HZ
4. Recovery: 3pcs high precsion cartridge filters
5. Fan Motor: 2.2kw, 1 set
6. Control: PLC

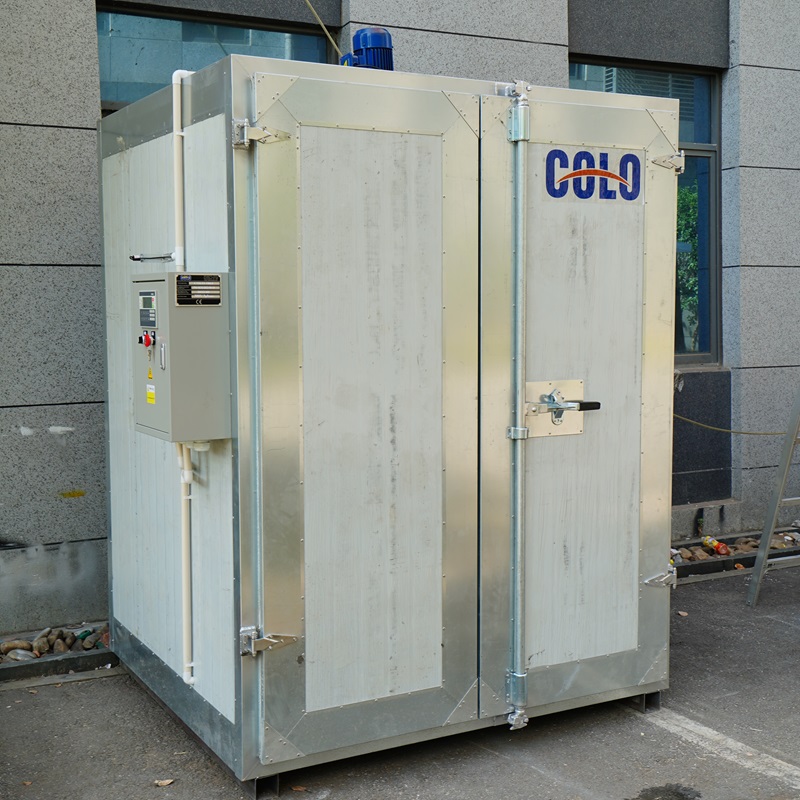

Electric Heated Powder Coating Oven
Hot selling COLO-1864 powder coating oven heated by electricity, is a simple and efficient tool for powder curing process with plenty space for holding batch of small to medium sized parts. COLO curing oven with optimal airflow is built to provide an even, constant cure for your parts.
Specifications
1. Working Size Width1600 x Height1800 x Depth1400(mm)
2. Heating source: Electric
3. Electric Power: 18kw
4. Circulation Fan: 0.75kw, 1 set
5. Thermal Insulation Material: 100mm thickness rock wool board.
6. Temperature: 180°C - 250°C
7. Control: PLC
COLO-191S Manual Powder Coating Machine
1. COLO-191S is developed for professional and efficient job, even most complex parts with deep corner can be perfectly coated with this model.
2. Unprecedented precision control of current and voltage ensuring maximum efficiency.
Accurate and repeatable settings of the powder output for stable coating results
3. Combined 100kv spray gun with nozzle assembly is easy to penetrate deep corner with least powder waste.
4. The powder coating machine offers beginners 3 pre-set modes for flat work, complex profiles and re-coat operation, as well as allows to create and save 20 personalized programs optimized for different parts or powders.
