The manual powder coating plant is specially custom-designed for our Australia customer for the application of various complex shaped workparts, most of are large, heavy objects.
The system allows operator walking into the spray booth using a manual coating equipment for flexible and precise powder spraying operations. Workparts movement from booth to curing oven by manual-pulled track system, thus reduces labor efforts and saves factory space.
![20210118_093159]()
![workparts 900x600]()
![workparts 1000-600]()
Heavy Metal Cabinets
![powder coating metal parts]()

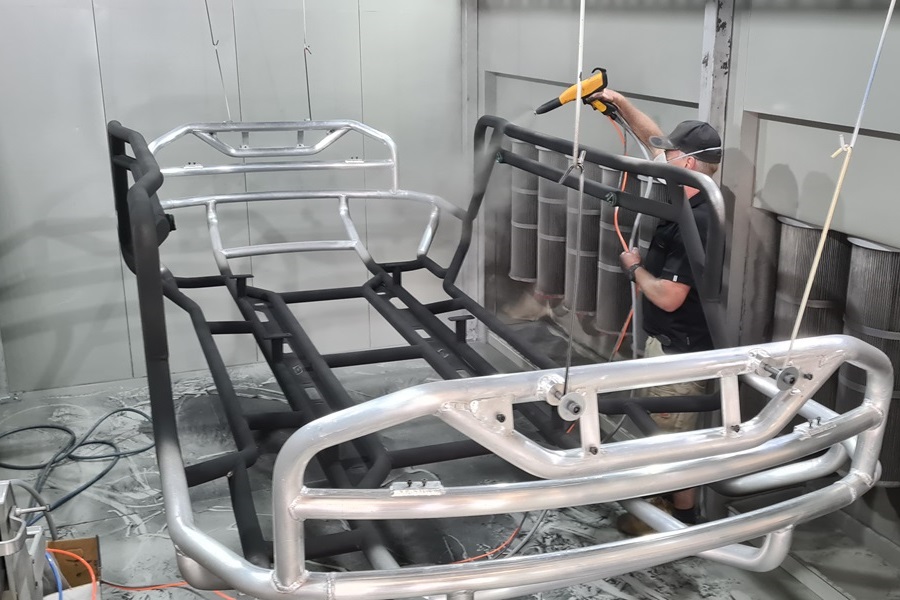

Complex Brackets
![powder coating aluminium profiles]()

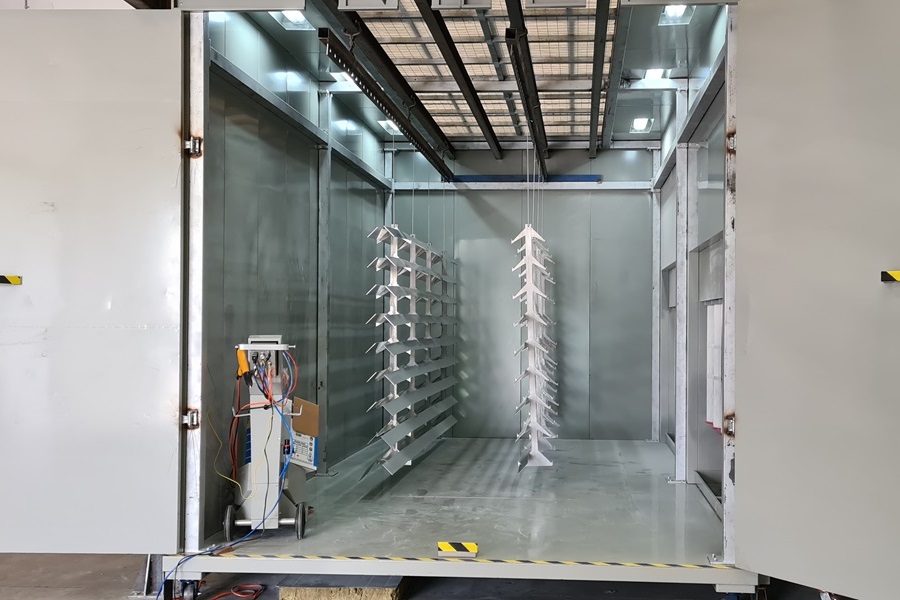

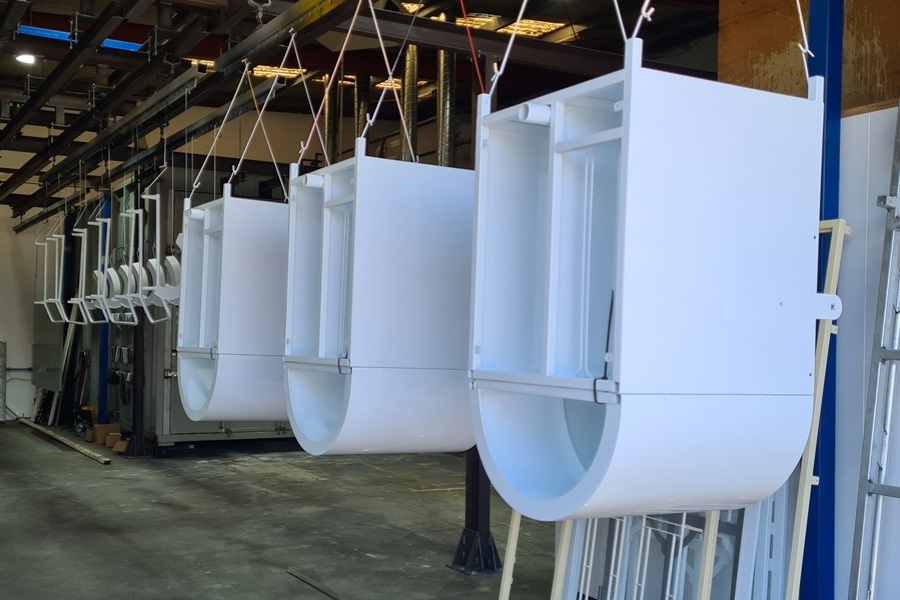

Long Profiles
Manual Powder Coating Plant Application Videos
Overview of Manual Powder Coating Plant
Key Data
Workpart: Brackets, Frames, Cabinets, Profiles
Factory Size: L14m x W12m
Scope of Main Components
1. Manual Powder Coating Machine
2. Walk-in Powder Coating Biooth
3. Gas Powder Coating Oven
4. Manual Operated Track System
Manual Powder Coating Plant Configurations
Manual Powder Coating Equipment COLO-191S

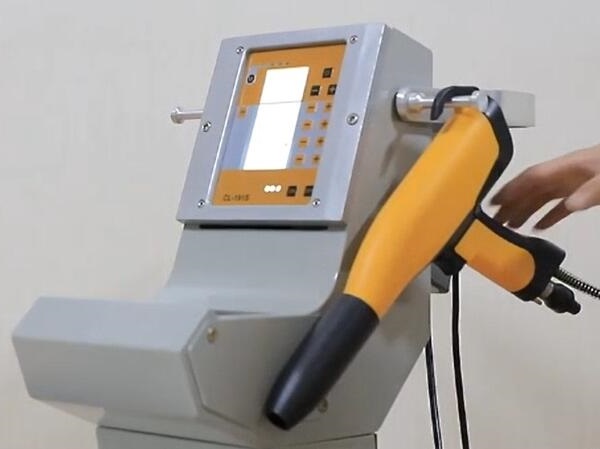

![powder coating gun]()

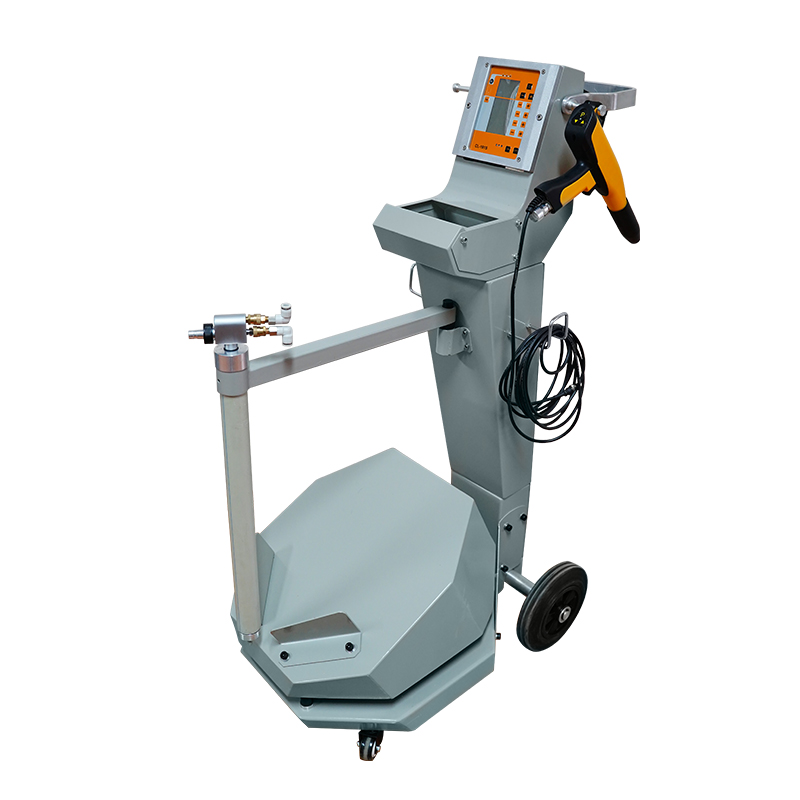

1. COLO-191S is developed for professional and efficient job, even complex parts with deep corner can be perfectly coated with this model.
2. Precise control of electrostatic and pneumatic parameters, ensuring optimal coating quality and maximize utilization of powders.
3. Combined 100kv spray gun with nozzle assembly is easy to penetrate deep corner with least powder waste.
4. The Intelligent controller offers beginners 3 pre-set modes for flat work, complex profiles and re-coat operation, as well as allows to create and save 20 personalized programs.
5. Box feed type directly conveying powders from original powder carton, suitable for fast color change. Also Supply big hopper type for 1-2 colors application.
![powder coating gun control - 副本]()

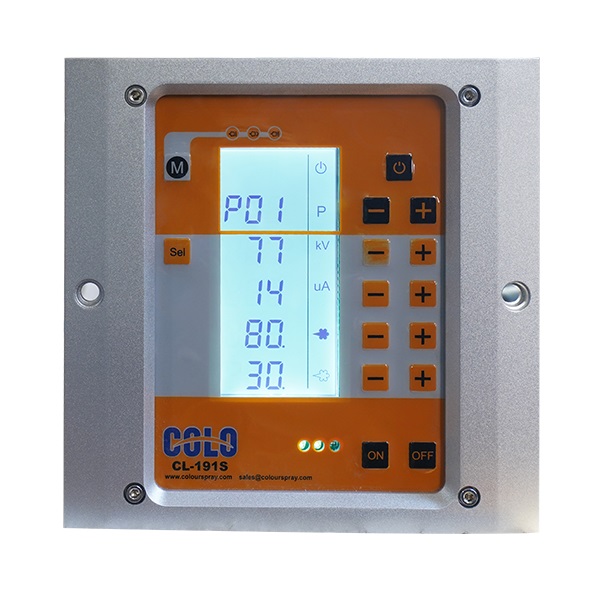

Full Digital Display for Precise Control
![powder spray gun]()

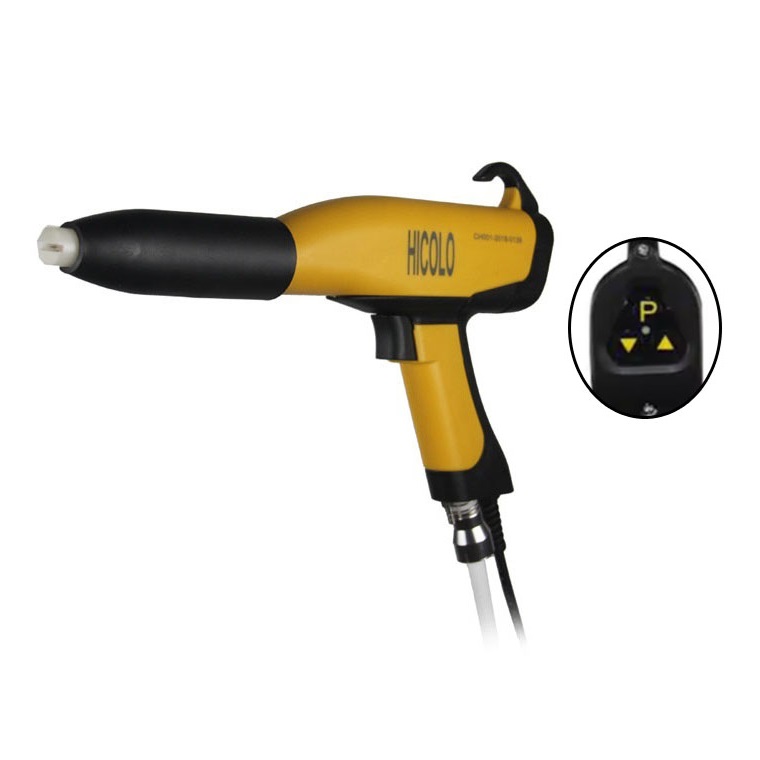

100kv Spray Gun with Remote Control
![hopper type powder coating equipment]()

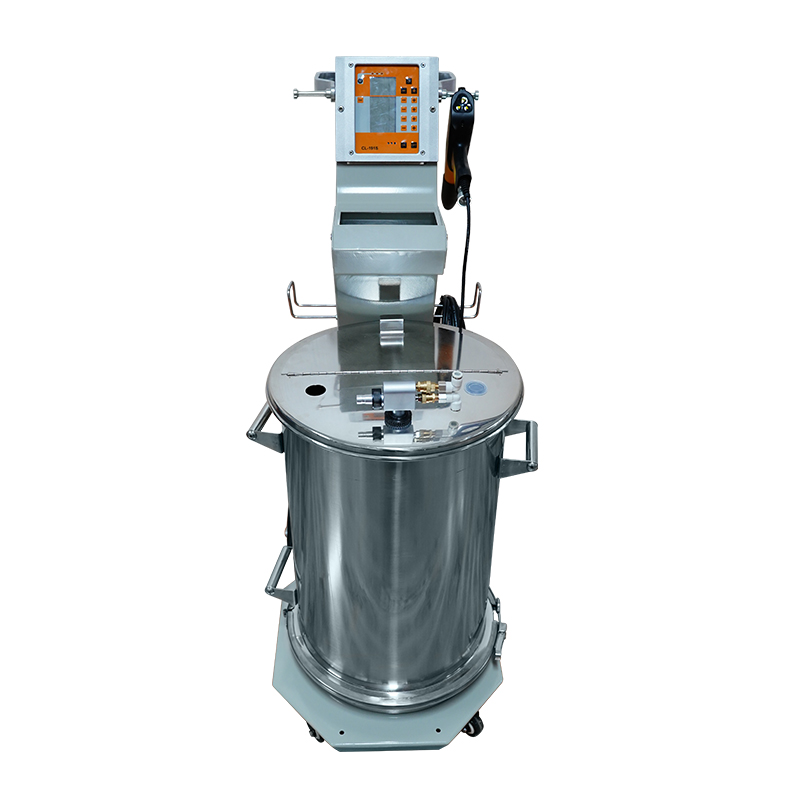

Hopper Type
Walk-in Powder Coating Booth
![walk-in powder coating booth]()

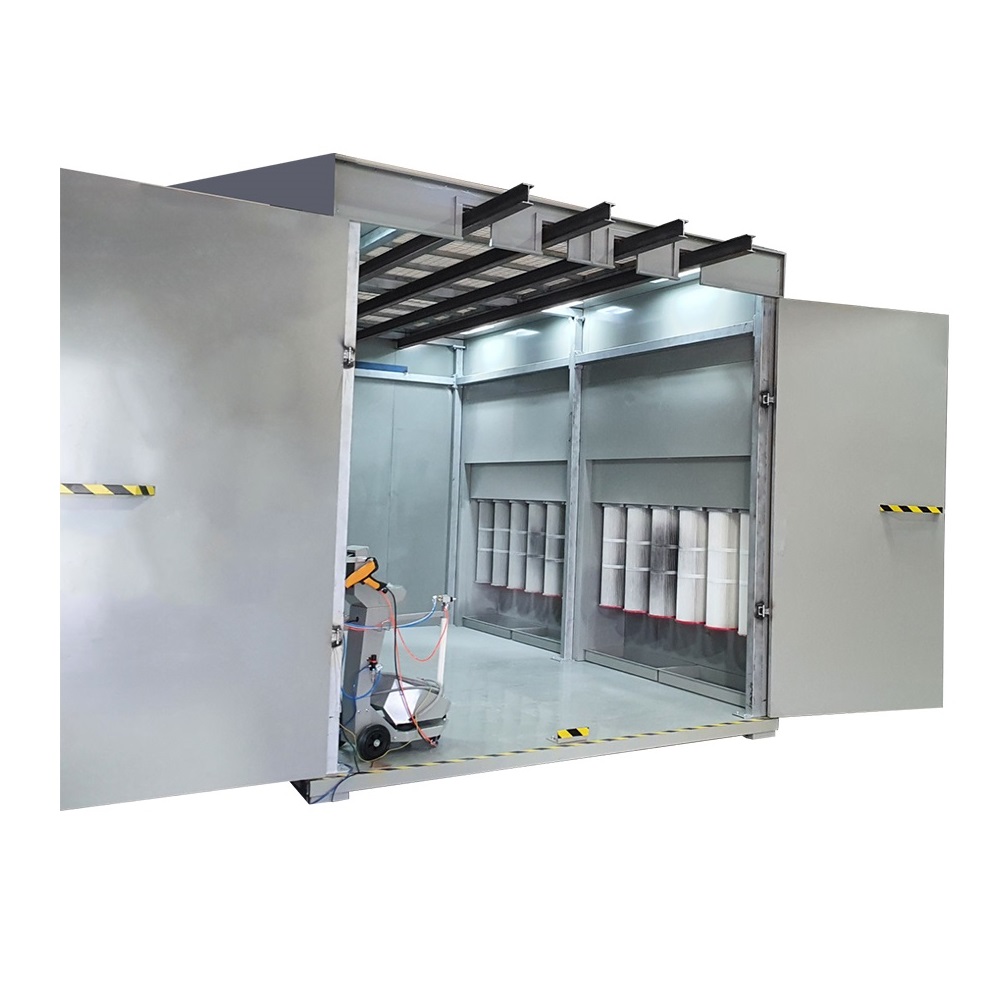

Walk-in powder spray booth, allows operators entering into the room for mediculous coating from all directions, designed with doors can be closed for dustless workshop. Big dimension workparts are transported into the booth through the overhead rail system. Configured with high performance filter recovery stages ensures efficient powder recycling and clean working condition.
Specifications
1. Internal Working Size: L5.5m x W2.8m x H3.1m
2. Opening Size: W2.8m x H2.9m
3. Recovery unit: including 12pcs high precsion cartridge filters
4. Fan Motor: 3kw, 4 sets, 5000m^3/h
5. Material: SPCC/t=1.5mm.
6. Control: PLC
![closed powder coating booth]()

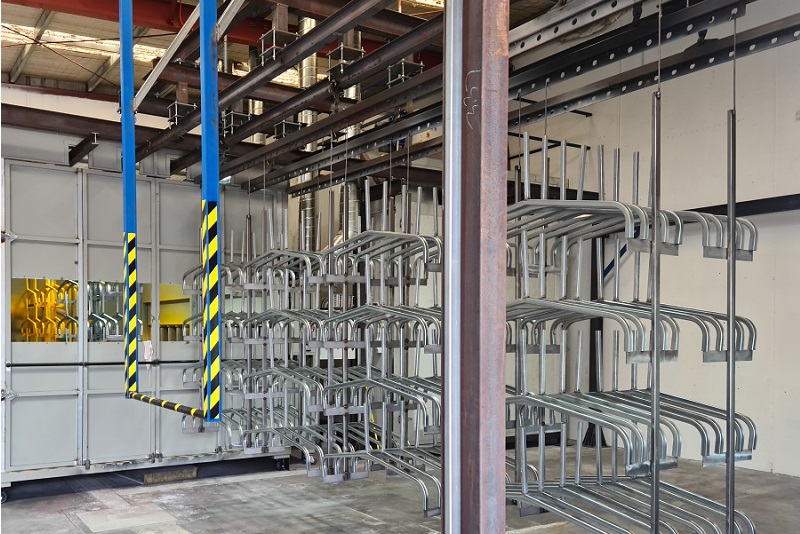

Closed Door
![powder coating booth filters]()

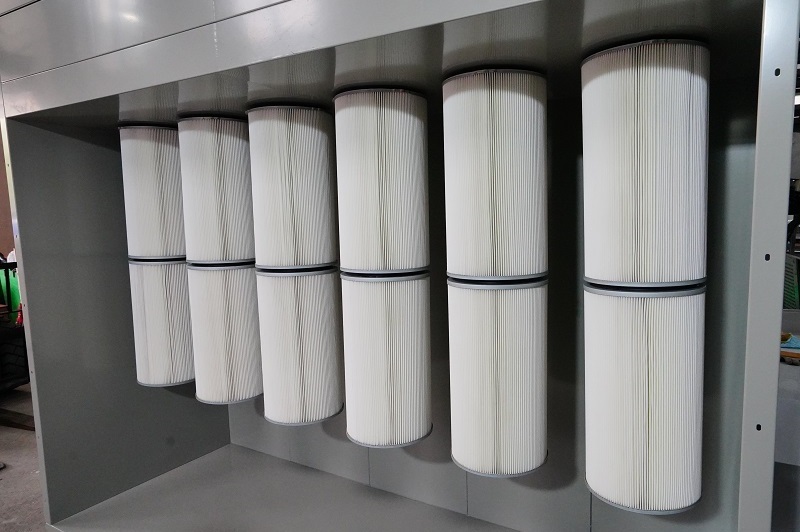

Filter Cartridges
![喷房PLC]()

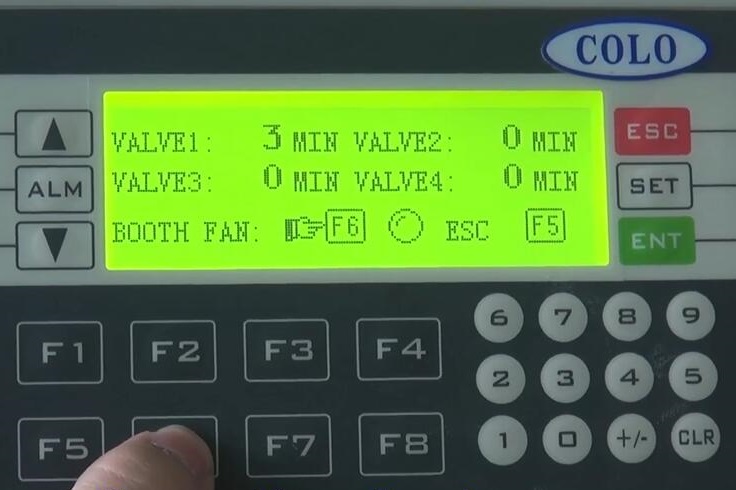

PLC Control
Gas Powder Coating Oven
![batch powder coating oven - 副本]()

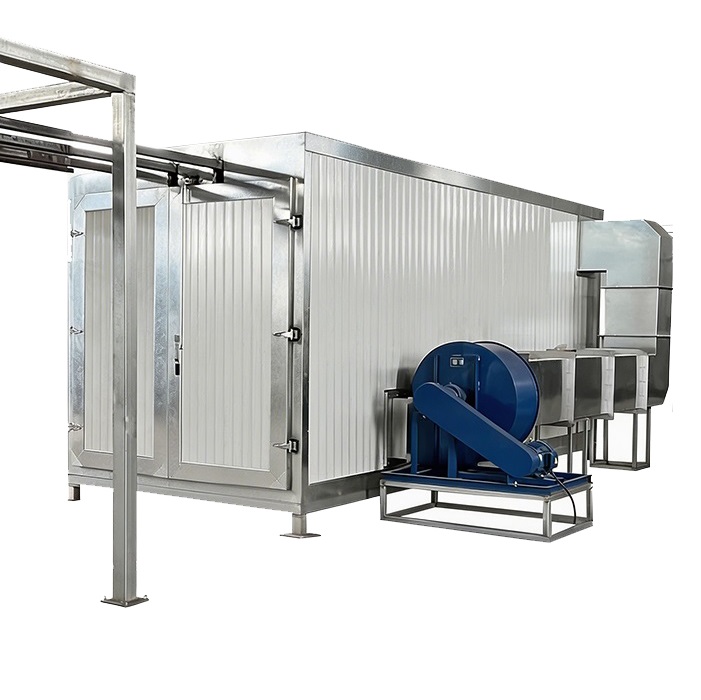

The powder coating ovens with overhead rail system is designed in order to carry heavy material into the oven manually. COLO curing oven is built to create optimal airflow throughout the enclosure, providing an even, constant cure for your parts. Heated by gas burner, the curing oven fastly rasies to required temperature saving your time everyday.
Specifications
1. Working Size W 2.5m x H 3.1m x D 5.6m
2. Heating source: Natural Gas
3. Gas Burner: 300,000 kcal/h, RIELLO brand
3. Circulation Fan: 11kw, 1 set, 12000m^3/h
4. Thermal Insulation Material 100mm thickness rock wool board.
5. Temperature: 180°C - 250°C
![powder coating oven with rails]()

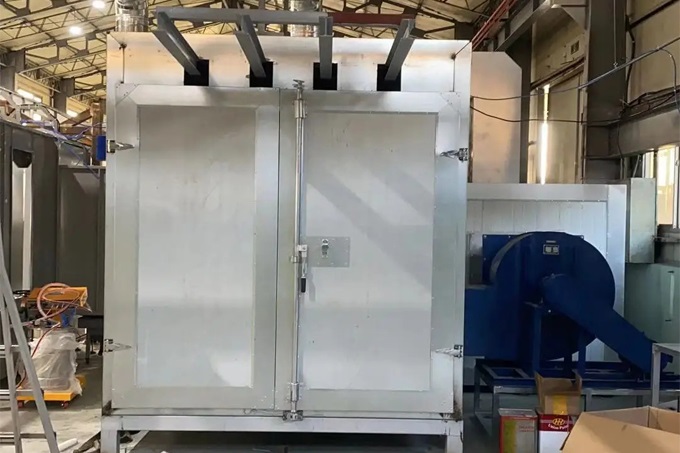

Overhead Rails
![powder coating oven burner]()

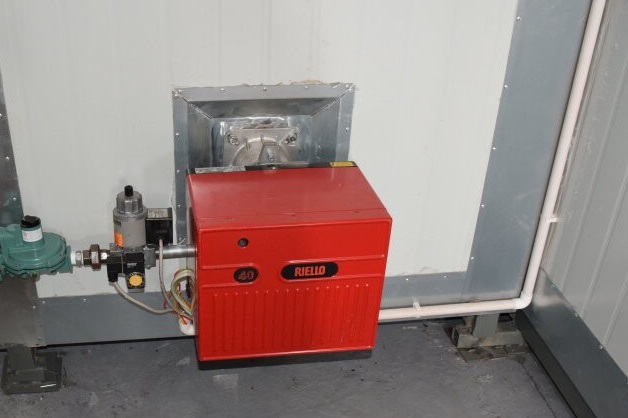

Gas Burner
![Powder Coating Oven PLC]()

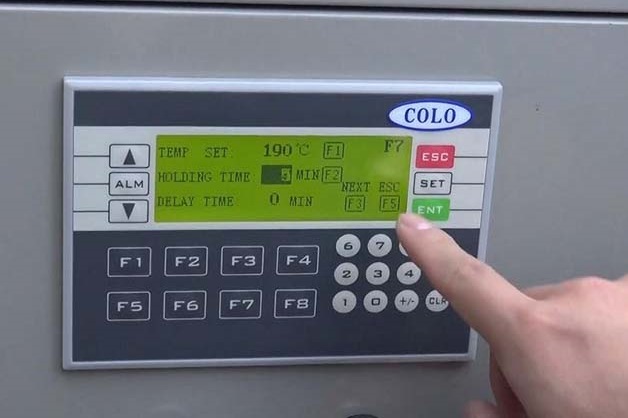

PLC Control
