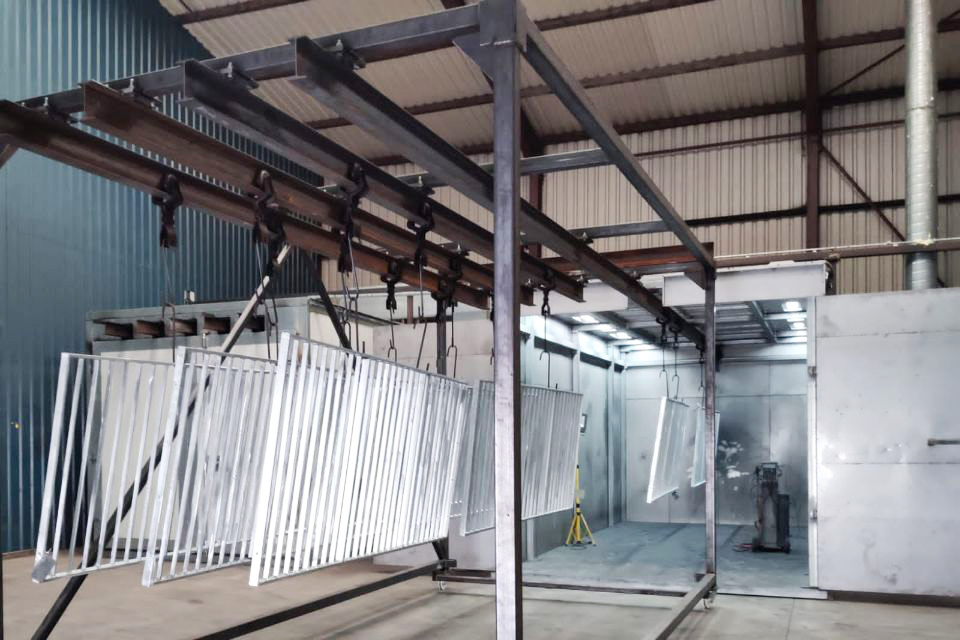

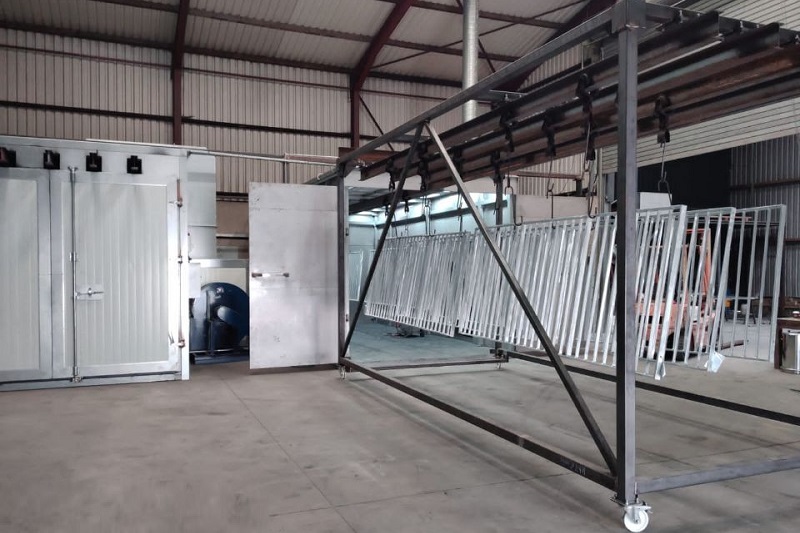

The manual powder coating plant is COLO specially designed for our Ireland customer for the application of heavy fences and frames, security gates made of iron. Coating equipment, booth, oven and tracks are fabricated by COLO, the transport trolley is made by customer.
Powder coating by manual coating equipment ensures high precision operation, especially for complex shaped. Workparts movement from booth to curing oven trolley and tracks, thus reduces labor efforts and saves factory space.

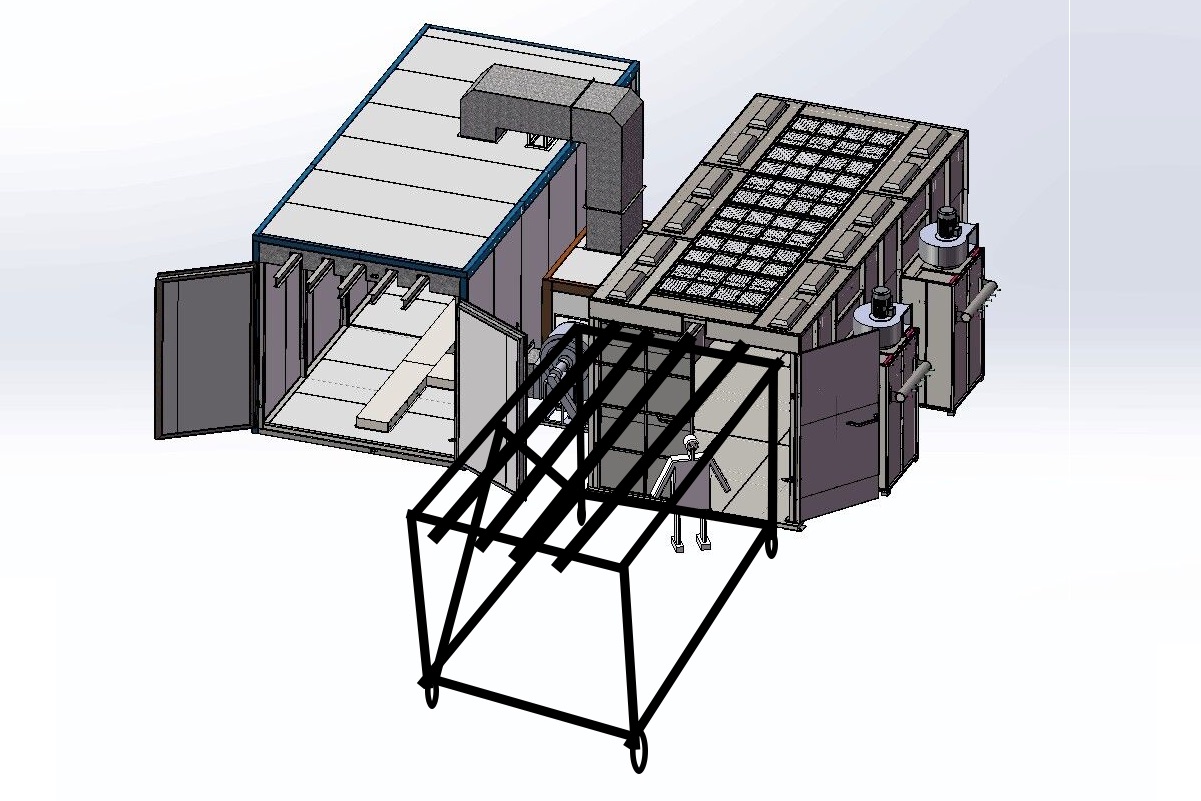

Overview of Manual Powder Coating Plant
Key Data
Workpart Name: Fence, Iron Gates
Max. Workpart Size: L6m x W2.8m xH2.8m
Factory Size: L21mx14m
Scope of Main Components
1. Manual Powder Coating Machine
2. Walk-in Powder Coating Biooth
3. Gas Powder Coating Oven
4. Manual Operated Tracks and Trolley
Manual Powder Coating Line Configurations

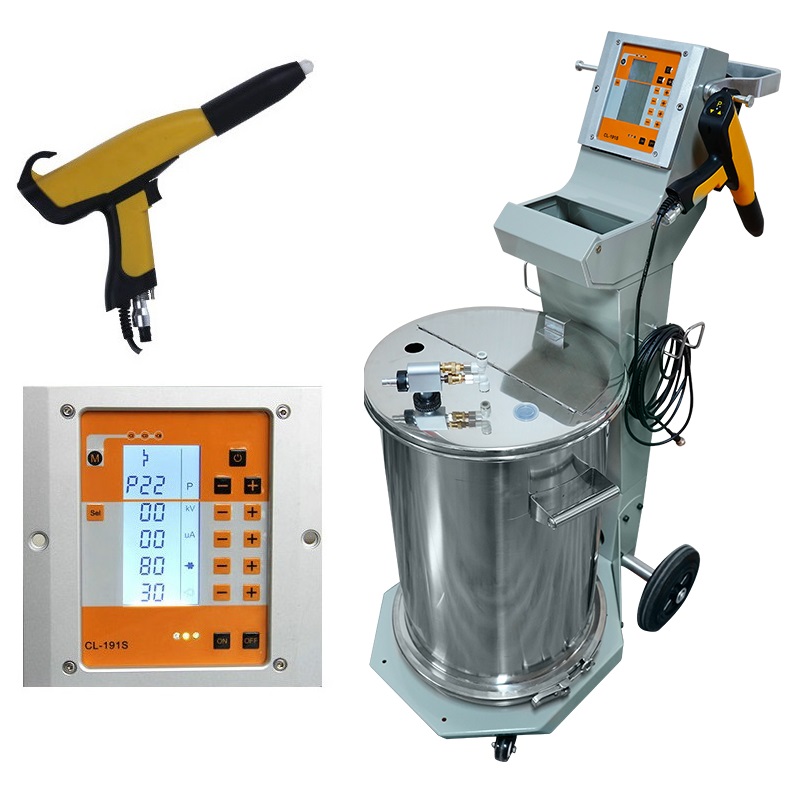

Manual Powder Coating Machine COLO-191S
1. COLO-191S is developed for professional and efficient job, even complex parts with deep corner can be perfectly coated with this model.
2. Precise control of electrostatic and pneumatic parameters, ensuring superior working efficiency and excellent application quality.
3. Combined 100kv spray gun with nozzle assembly is easy to penetrate deep corner with least powder waste.
4. The Intelligent controller offers beginners 3 pre-set modes for flat work, complex profiles and re-coat operation, as well as allows to create and save 20 personalized programs.
5. 60lbs hopper onveying powders from a well-sealed fluidizing hopper, suitable for 1-2 colors with big scale productions.

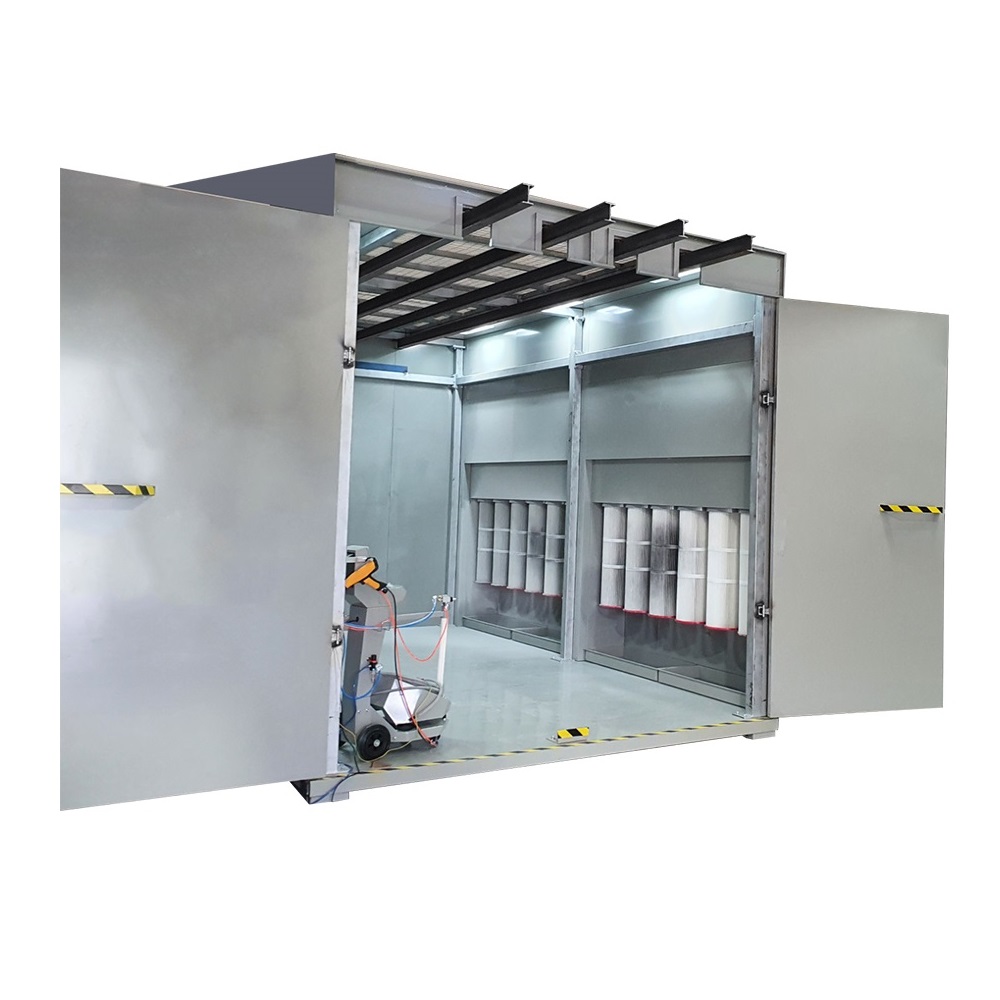

Walk-in Powder Coating Booth
Walk-in powder spray booth, allows big dimension workparts entering the booth through the overhead rail system, operators walk into the room coating workparts with precise operation. Configured with several recovery stages including big quantity of high precision cartridge filters, ensures high powder recycling rate and clean working condition.
Specifications
1.Working Size: L7.2m x W3m x H3m
2.Opening Size: W3m x H3m
3. Recovery unit: including 12pcs high precsion cartridge filters
4. Fan Motor: 3kw, 2 sets.
5. Material: SPCC/t=1.5mm.
6. Control: PLC

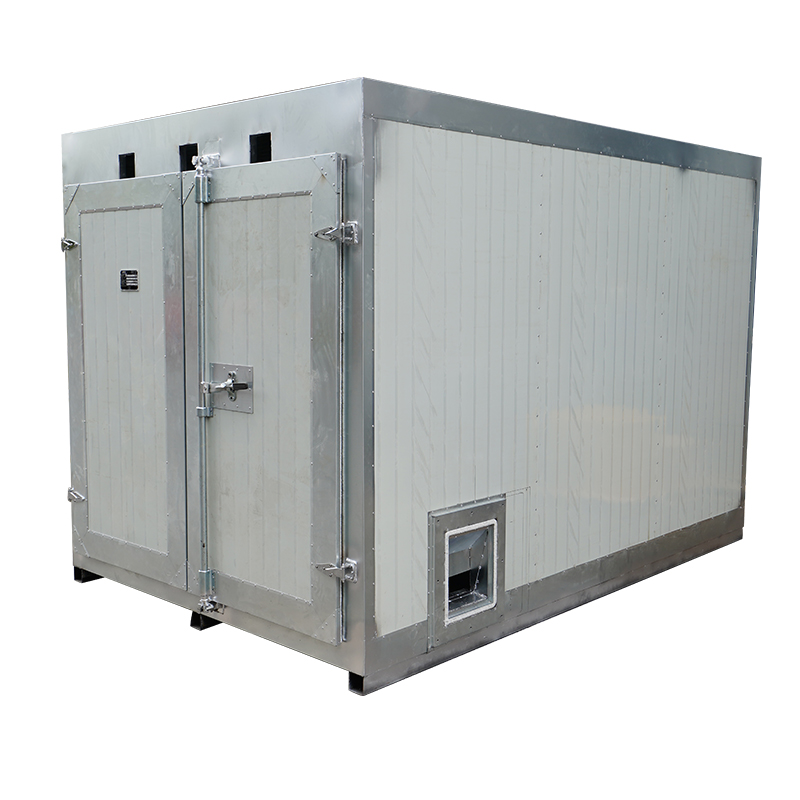

Track Powder Coating Oven
The powder coating ovens with overhead tracks is designed in order to carry heavy material into the oven manually. COLO curing oven is made of 100mm thick rockwool board, and consists of Italy Riello burner, circulation fan, which is built to create optimal airflow throughout the enclosure, and provides an even, constant cure for your parts.
Specifications
1. Working Size W3m x H3m x D7.2m
2. Heating source: Natural Gas
3. Gas Burner: 300,000 kcal/h, RIELLO brand
3. Circulation Fan: 11kw, 1 set, 12000m^3/h
4. Thermal Insulation Material 100mm thickness rock wool board.
