The manual powder coating system is specially designed for our Malaysia customer for their various applications of steel plates, frames and other long length metal parts.
Workparts are firstly enter into a pass through spray booth which has no restriction of parts' length, the movement is assisted by a manual pulled overhead track, workparts are coated by manual spray equipment from from 2 opening coating stations, after spraying, a batch of workparts will be loaded o a trolley, the whole will be pushed into an oven for curing process.
This manual powder coating plant thus reduces labor efforts and requires less space and budget.
Project Key Data
Workpart: Steel Plates, Frames
Max.Part Size: Length 6m
Factory Size: L24 x W8m
Main Components
1. Manual Powder Coating Machine
2. Pass Through Powder Coating Biooth
3. Manual Operated Overhead Track System
4. Gas Powder Coating Oven with 2 Carts
Pass Through Powder Coating Booth

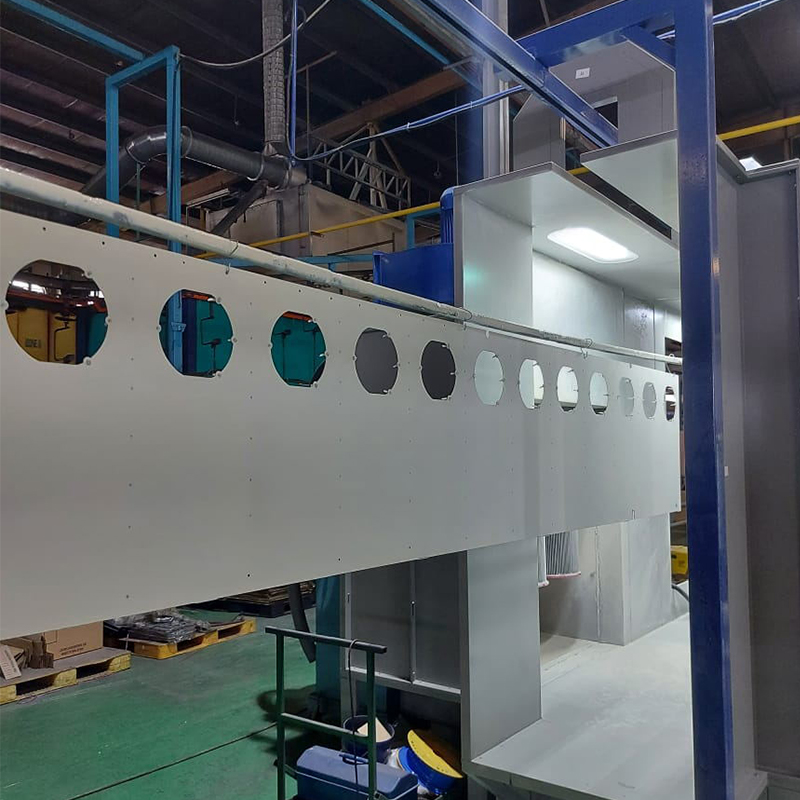

Dual station powder spray booth, parts enter the booth through the overhead rail system, then pass through the coating stations to receive the powder spraying from both sides.
Specifications
1. Working Size: Width1120 x Height2000 x Depth4000(mm)
2. Opening Size: W800 x H2000 (mm)
3. Overall Size: Width3860 x Height3063 x Depth4000(mm)
4. Double-stage for recovery, includes 12pcs high precsion cartridge filters
5. Fan Motor: 5.5kw, 2 sets, 5000m^3/h
6. Control: PLC

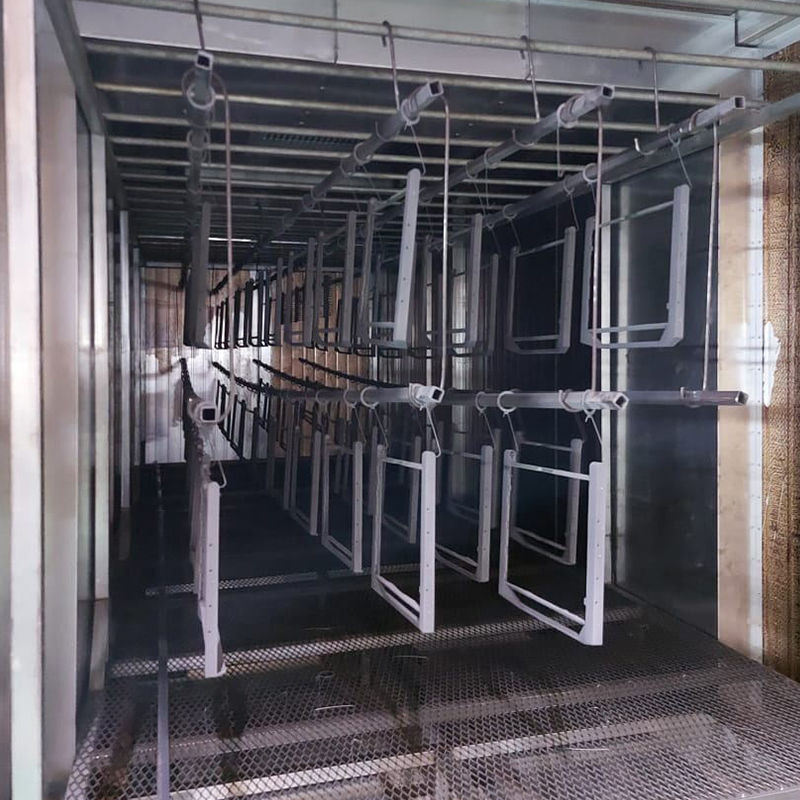

Trolley Type Powder Coating Oven
The powder coating oven with trolley is designed to load a batch of coated material easily entering into the chamber and take full utilization of inner space . COLO curing oven with optimal airflow is built to provide an even, constant cure for your parts.
Specifications
1. Working Size Width2000 x Height2000 x Depth6000(mm)
2. Heating source: Natural Gas
3. Gas Burner: 200,000 kcal/h, RIELLO brand
4. Circulation Fan: 7.5kw, 1 set, 8000m^3/h
5. Thermal Insulation Material: 100mm thickness rock wool board.
6. Temperature: 180°C - 250°C
7. Control: PLC
COLO-191S Manual Powder Coating Machine
1. COLO-191S is developed for professional and efficient job, even most complex parts with deep corner can be perfectly coated with this model.
2. Unprecedented precision control of current and voltage ensuring maximum efficiency.
Accurate and repeatable settings of the powder output for stable coating results
3. Combined 100kv spray gun with nozzle assembly is easy to penetrate deep corner with least powder waste.
4. The powder coating machine offers beginners 3 pre-set modes for flat work, complex profiles and re-coat operation, as well as allows to create and save 20 personalized programs optimized for different parts or powders.
