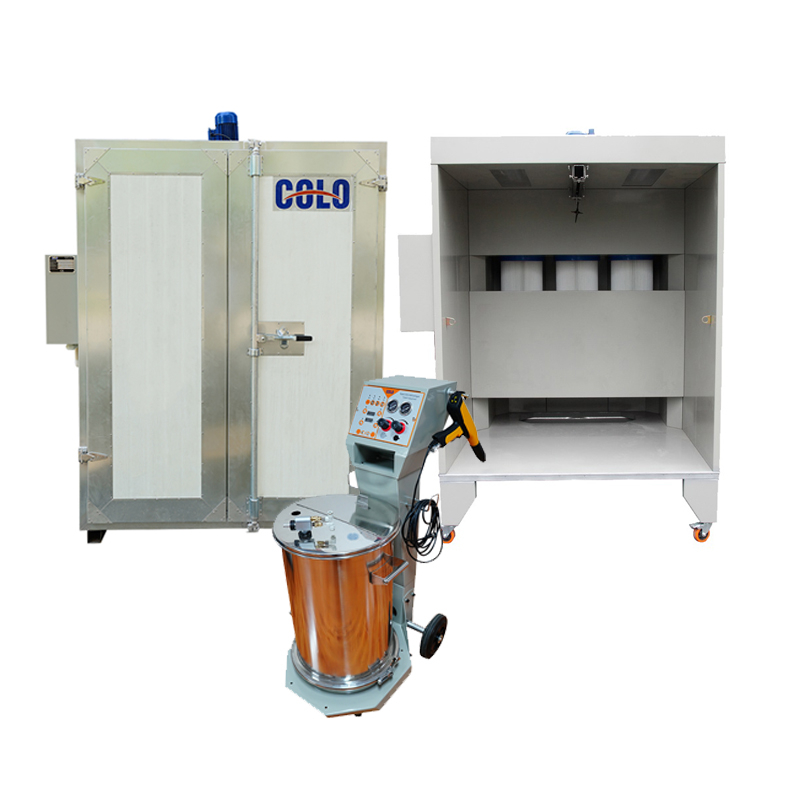

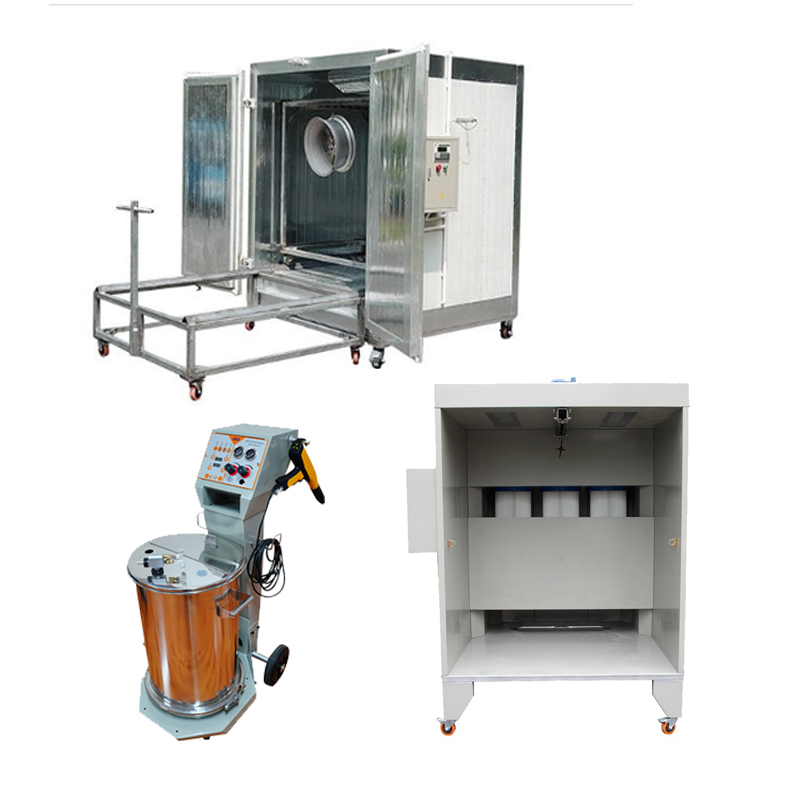

Manual Powder Coating System for Beginners

Configurations & Features

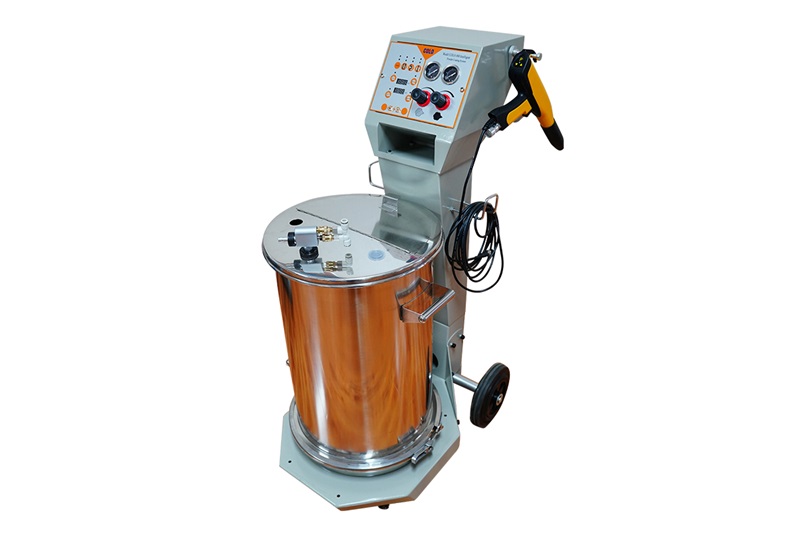

1. An intelligent control panel with pre-set application programs is easy to coat all kinds of metal parts, suitable for beginners.

2. Combined with COLO-08 100kv powerful manual spray guns always delivers highest transfer efficiency even during long time jobs.

3. The 60lbs fluidizing hopper type is ideal for daily continuous production and keeps powder clean and dry.

4. Compact design with wheels is easy to move everywhere.

5.  The reliable quality ensures minimum number of wear parts and maintenance costs minimized.

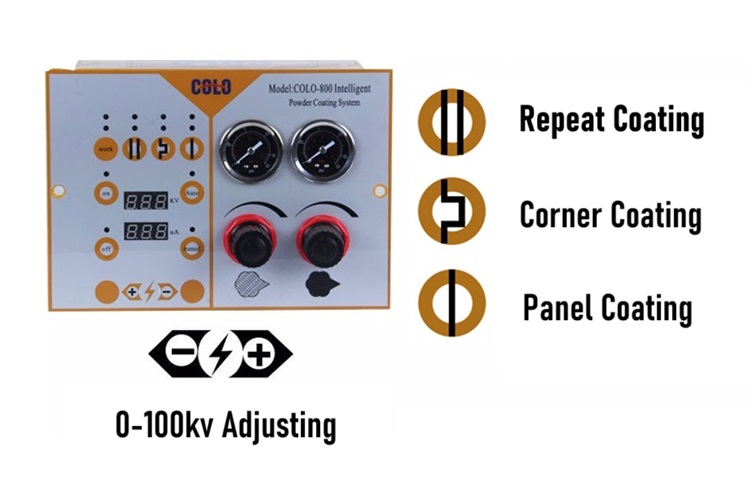

COLO-800D Intelligent Controller

1.The intelligent controller offers basic functions for precisely adjusting high voltage from 0-100kv by keyboards, the kv and amperage values will be shown on the digital display. Powder conveying air and atomization air are regulated by mechanizal valves with convenience and reliability.

2. Just press the 3 one-touch intelligent buttons, application programs switches automatically between panel coating, corner coating and recoating.

Flat coating: ideal for flat shape workpieces.

Corner coating: ideal for complex shape parts with deep corners.

Recoating: ideal for repairing coating.

Configurations & Features

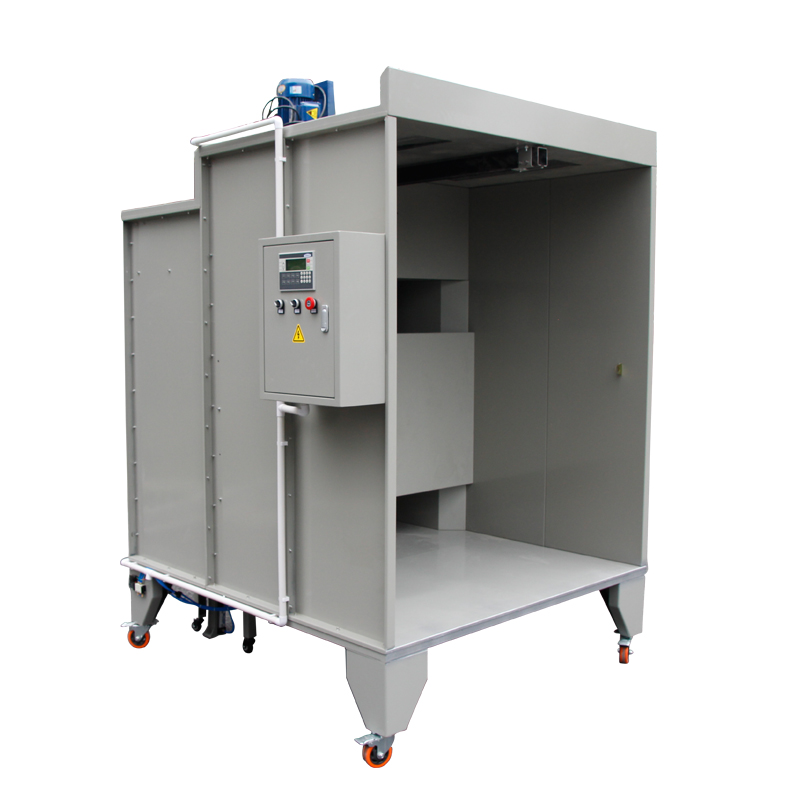

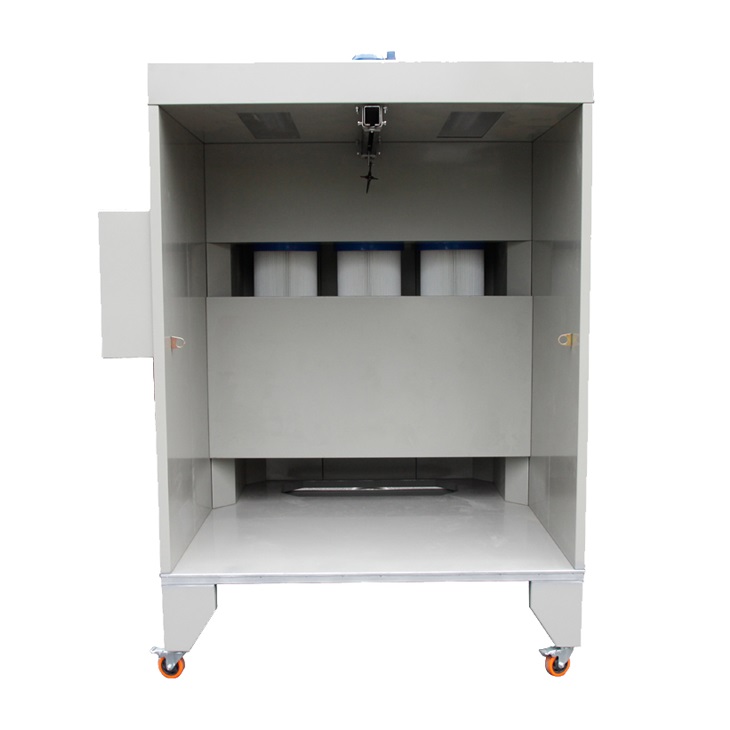

1. This open-faced manual spray booth consists of 3 pcs cartrifge filters for high efficiency of powder collection, which ensures recovery rate and create dustless working condition.

2. These filters are intervally cleaned by releasing accumulated powders, which extends the filters' lifespans.

3 A user-friendly PLC panel integrates all functions, such as turning on / off the fan, setting pulse-jet for filter cleaning, light on/off, emergency stop, etc.

4 Built with energy-saving lights provides bright and precise powder coating jobs.

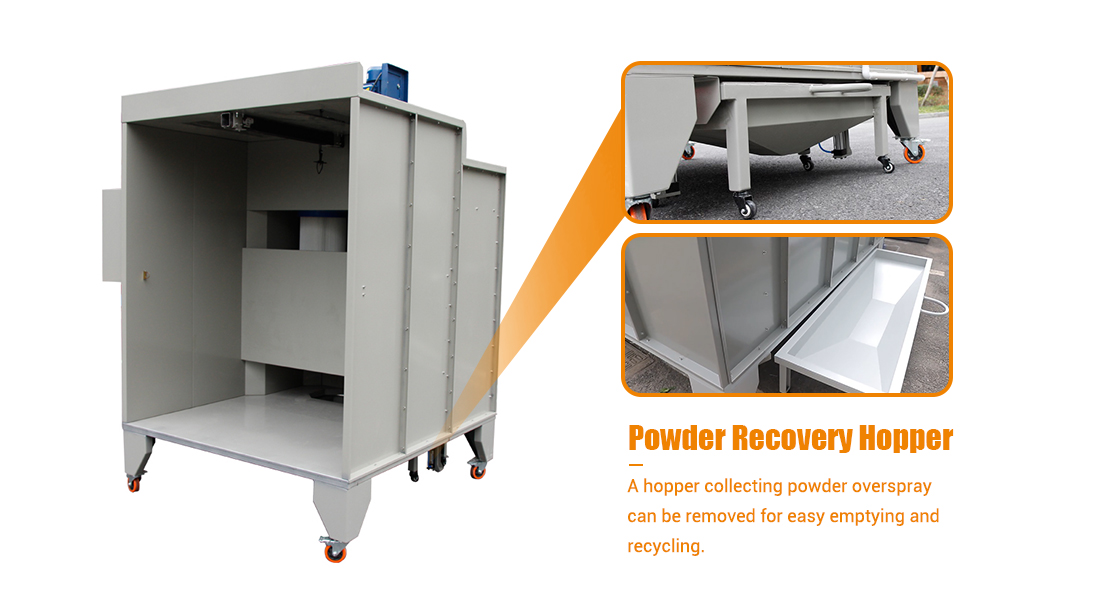

5  A removable powder hopper beneath the filter unit simplifies the utilization of recovery powders.

6 A high-performance fan built on the roof for saving space, and efficiently circulates air with low noise and less energy.

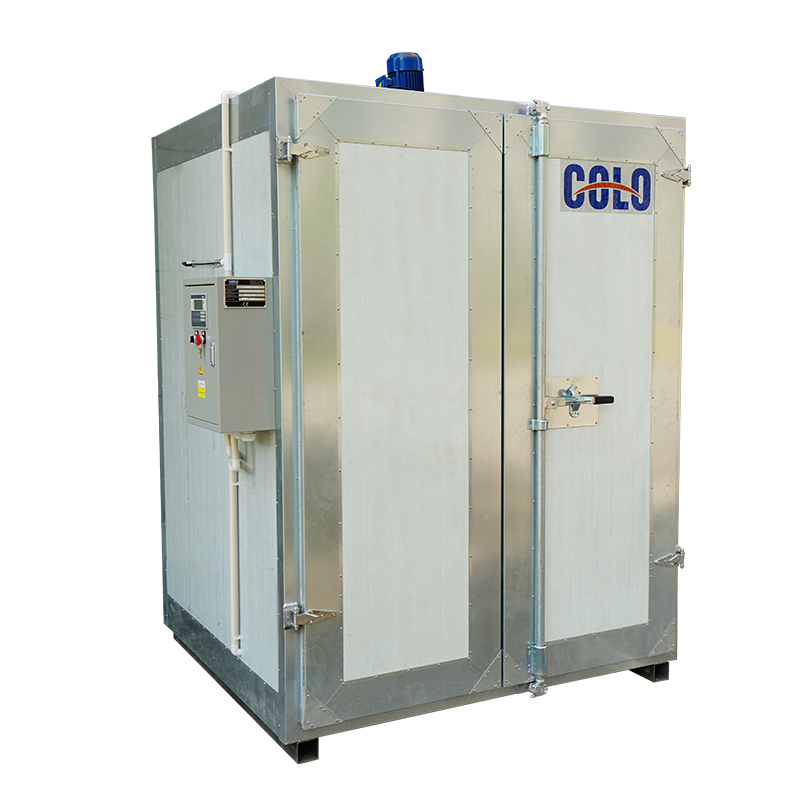

Configurations & Features

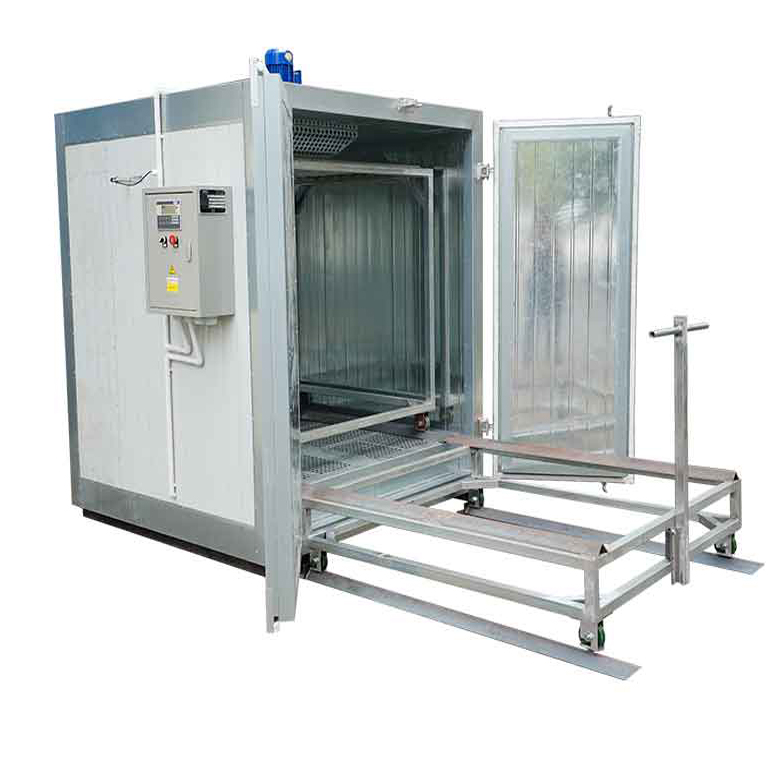

1. Heated by electricity features environmetal protective and reduces the task of operation and maintenance,

2. Utilizes a sandwich panel design, rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins.

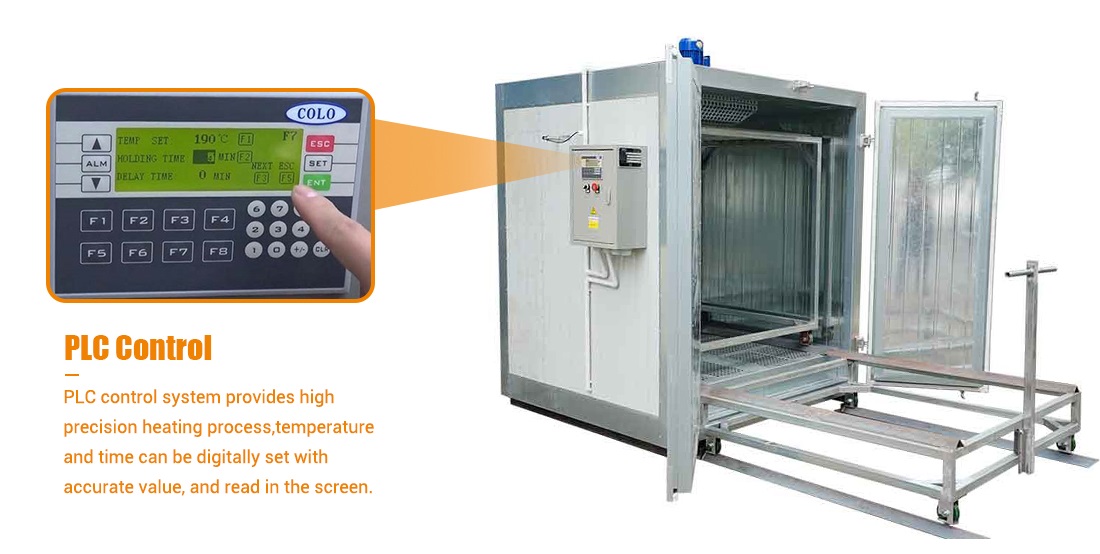

3. The powder coating oven applies PLC control system offering user-friendly interface for users to set the heating temperature and heating time accurately.

4 Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber, ensures powder curing effect.

5 Standardly equipped with a pair of carts: internal one and external one, It is a superior solution that allows loading batch of workparts taking full utilizing of oven space,  as well as easily carrying heavy elements.
