CHOOSE A RIGHT POWDER COATING SPRAY BOOTH FOR YOUR EFFICIENT PRODUCTIONS

COLO design and manufacture powder coating spray booth for efficient production of various shapes and sizes, such as standard manual spray booths are cost-effective for small and medium business, and walk-in type are extremely flexibile for large buiker parts, tunnel booths worked with conveyor system are productive for continuous batch production, special cyclone powder coating booth are designed to maximize efficiency during color change.

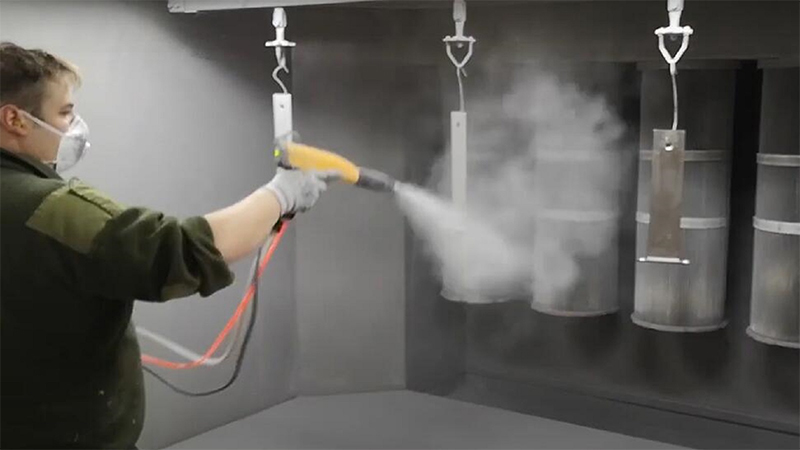

Cartridge Recovery Powder Spray Booth

Powder spray booths with cartridge recovery are an easy and economical solutions for basic manual powder coating operations requiring reclaim capability.

Those booths are suitable for handling small and medium sized workparts. All components with premium quality and performance making them quick cleaning and efficient powder recovery,

Walk-in Powder Spray Booth

Walk-in powder coating booth are specially designed for flexibile operating of heavy bulky parts such as: steel frames, alumimium profiles, furniture cabinet, security fence, large iron casting products.
The cabin size, filter cartridge stages and other conifgurations are often customer-made according to your production demands.

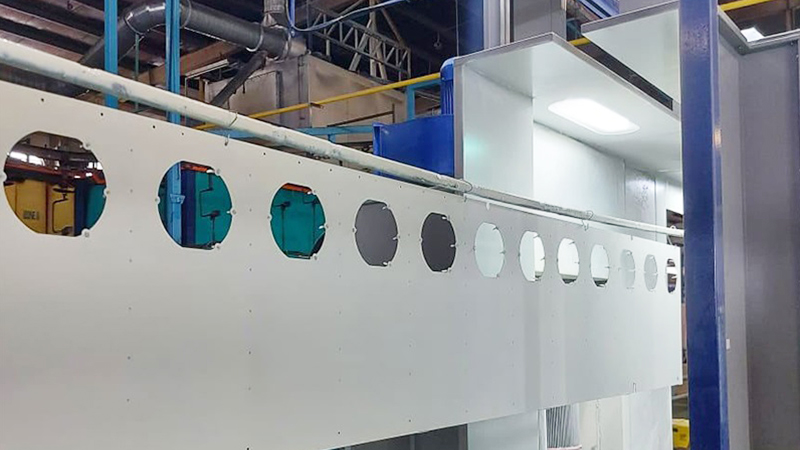

Pass Through Powder Spray Booth

Pass Thru Manual Powder Coating Booth is the best choice for continuously painting long and thin products, such as aluminum profiles, window frame, metal doors, etc.
The opening size, external height, filter cartridge stages and other conifgurations are often customer-made according to your production demands.

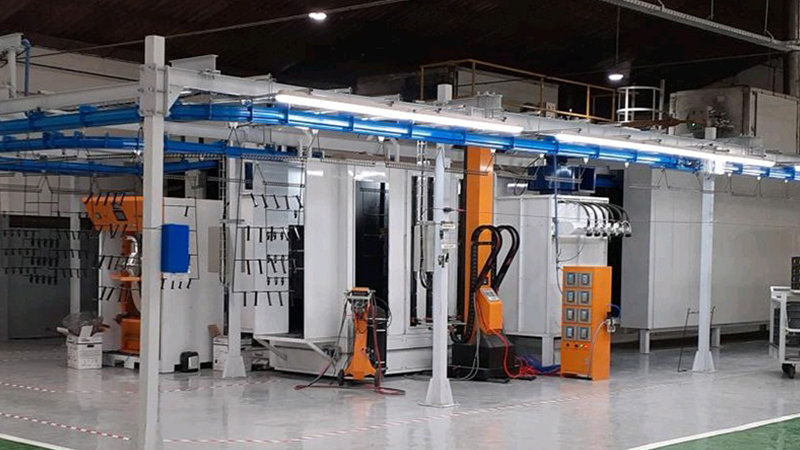

Cost-saving Automatic Powder Coating Booth for Single Color

For continuous productions in high efficiency, COLO automatic spray booths meet your effective powder recovery needs. The cartridge filter recovery automatic booth is a cost-saving & space-saving solution.
Working with reciprocators, spray guns, overhead conveyors, it delivers best productivity and application quality in automatic production line.

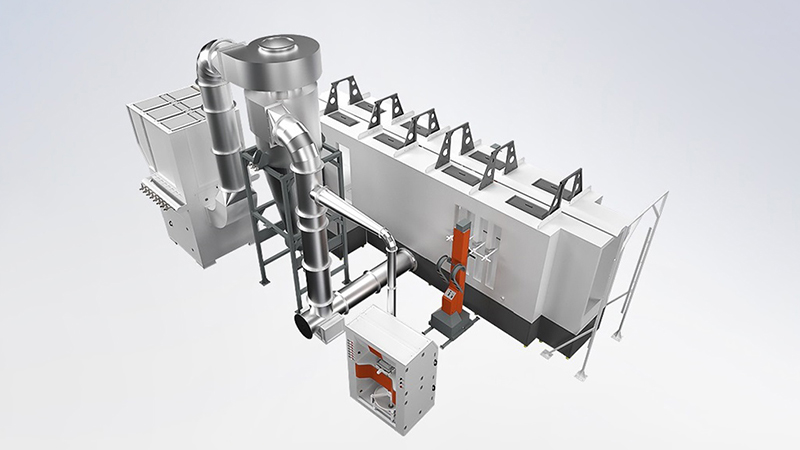

Fast Color Change Cyclone Booth

In high production automatic powder coating line, our Mono Cyclone Spray Booth made of PP plastic material, is the most efficient solution for fast color change or high powder recovery demands.
The anti-static plastic spray booth chamber with stainless steel cyclone has obvious advantage to increase cleaning effiiency & reduce powder waste.

COLO Powder Coating Booth Benefits

Environmental Protective

These booths are designed with a Cartridge-Style Filtration System or Cyclone System that efficiently captures the powder overspray from the painting operation, allowing only clean, dustfree air to recirculate back into your plant which protects our atmosphere.

Safe and Efficient

COLO powder coating booths exceed safety and code requirements to protect those that work in any industrial spray environment, and provides you an extremely effective method of powder collecting. This eliminates the need for an exhaust stack with expensive air replacement systems.

Materials Saving

Our powder coating booths are built with high efficiency recovery systems to increase powder materials utilization and reduce waste. The recycled powders are clean and pure to be fed back to the spraying system. It is a great saving of production cost.

Flexible and Adaptable

COLO custom design powder coating booths to be flexible and adaptable to whatever your finishing applications might be. We design open face booths for manual batch production, conveyorized booths for high production automatic spray system, cyclone booths for fast color change demands.

COLO Powder Coating Booth Working Principle

For Single Stage Filter Recovery Powder Coating Booths

The powder spray booth has a powerful fan draws air into the booth that creates a negative pressure in the chamber, during powder spraying, the suspended powder particulates in the air flow will gather in the cartridge filters, thus dustless air willm vent back to the workshop.

A pulse-jetting device will automatically clean the filter by interval controlled via PLC. The cleaned and released powders from cartridge filters will drop into a recovery hopper beneath the stage.

Filter recovery unit are economical and easy to maintenance in manual powder coating applications, changing color just changing filter cartridges by quick coupling.

For Secondary Stage Cyclone Recovery Powder Coating Booths

Cyclone systems handles all of the exhausted air from the booth. Air flow containing overspray powders will be transported into cyclone device The air is moved in a rotational pattern around the cyclone chamber, The heavier particles fall down into a collection tray, which will be connected with powder sieving and feeding device. These powder particles are recycled

While the rest superfine particulates will be propelled upwards to a secondary recovery unit The unit includes 9-16pcs high precision cartridge filters to capture superfine particles for a dustless conditions. These powder particles are wasted.

Cyclone systems can typically have a recovery efficiency of approximately 85% to 95% It is more recommended in automated or high-volume production environments, especially in multi-color applications.

COLO Powder Coating Booth Configurations

Durable Materials – booth is constructed by 2mm cold-rolled steel with powder-coated surface, study and anti-rust.

High Velocity Pulse Jet Cleaning System – maintains optimum filter efficiency for a longer filter life
Quiet Exhaust Fan – typically operates at low DBA noise levels, create optimal airflow at the booth cabin

PLC Control - manage timing of filter cleaning, control fan working and other electric functions

Cartridge Filters – high precision filters made of 100% polyester, yield a higher air-to-cloth ratio.

Cyclone Separator - Choose for fast color change demands with maximize cleaning effeciency in automatic line.
Lighting – high efficiency lighting fixtures designed for more precise powder spraying jobs.
Essential Accessories – all necessary caulking, nuts and bolts, and hardware for proper booth installation
