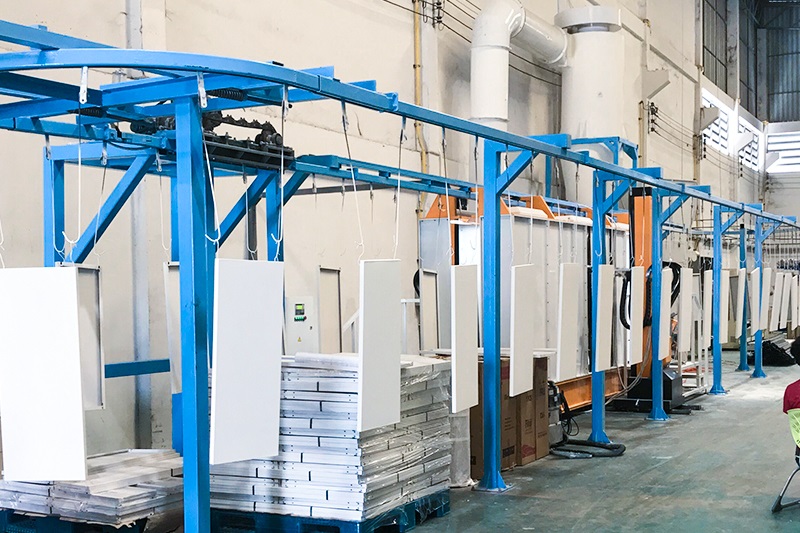

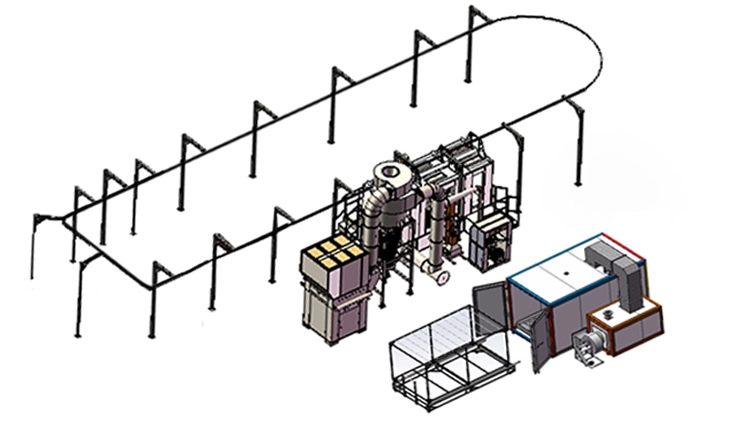

The semi-automatic powder coating line is specially custom-designed for our Thailand customer for the application of metal storage shelves.
Powder coating by automatic ensures high production and uniform quality, workparts are automatically transported via conveyors at booth system, and the movement into curing oven is by manual operated trolley system, thus requires smaller factory space and and less budget.It is ideal for powder coating small and light metal parts.
Details of Powder Coating Line Configurations

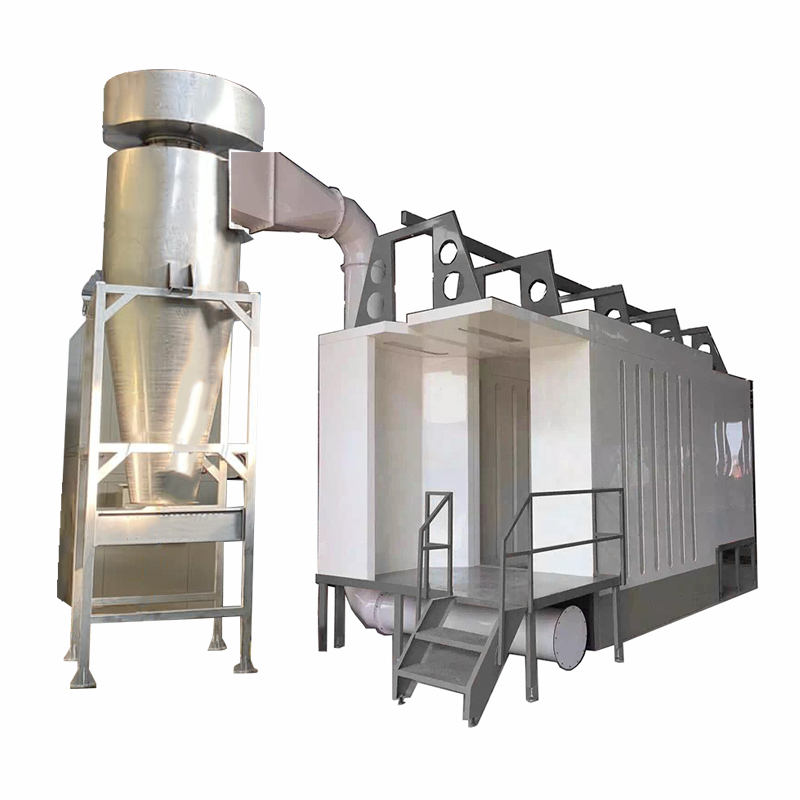

Automatic Powder Coating Booth
![3]()
1. Working Size W800*H2000*L6000mm
2. First stage recovery: Mono cyclone type, maximize cleaning efficiency during color change, achieves recycling efficiency up to 98%, a great saving of powders.
3. Secondary recovery stage: a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
4.Booth Floor cleaning system: air cleaning, transfer sprayed powder from the booth floor to recycling system
5. Booth material: durable stainless steel.

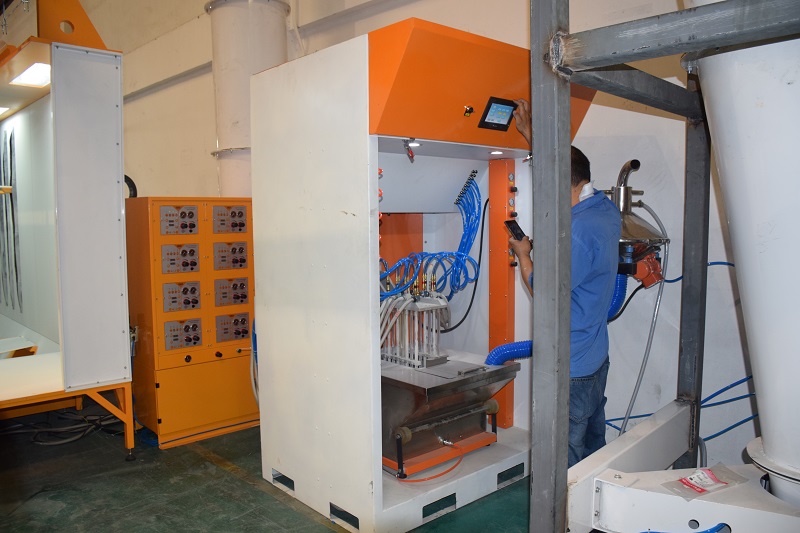

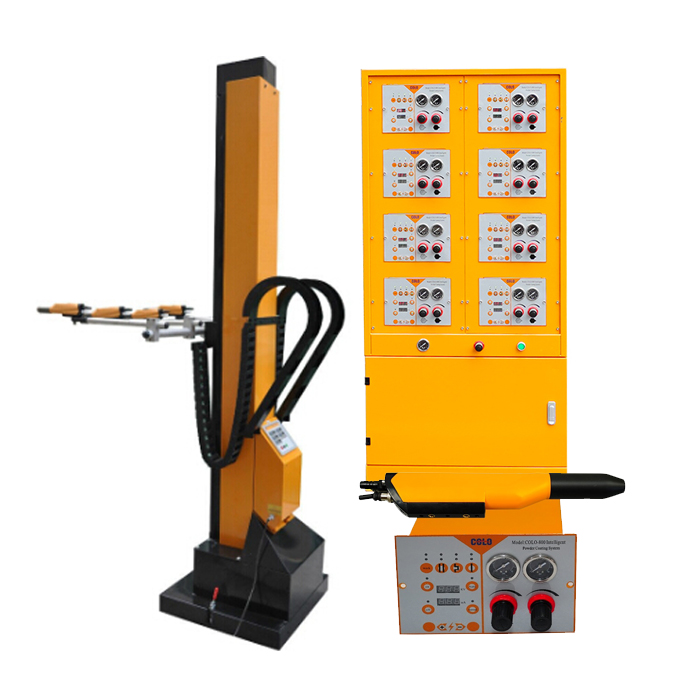

Automatic Powder Coating Equipment
![800package]()
1. It is the ideal entry into automatic series production offering quality finishes and great powder savings.

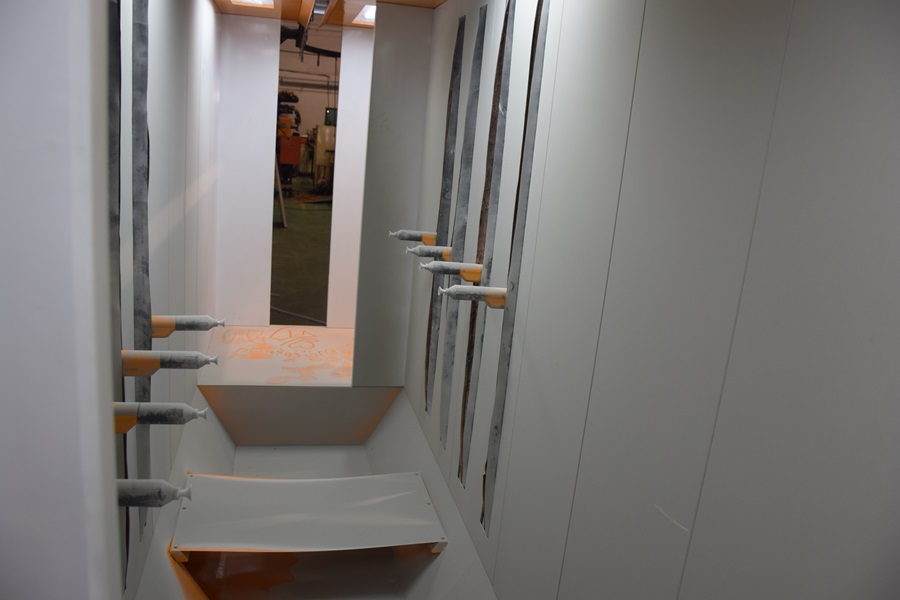

2. Multi controllers of automatic powder coating gun installed on a central cabinet, with compact design and simple operation.
3. COLO-800D automatic powder coating machine is one of the most suitable solution for coating line, effective, reliable, cost-saving.
4. The COLO-2000D reciprocator is driven by frequency motor with speed and stroke adjustable, carrying spray guns for smooth and precise movement.

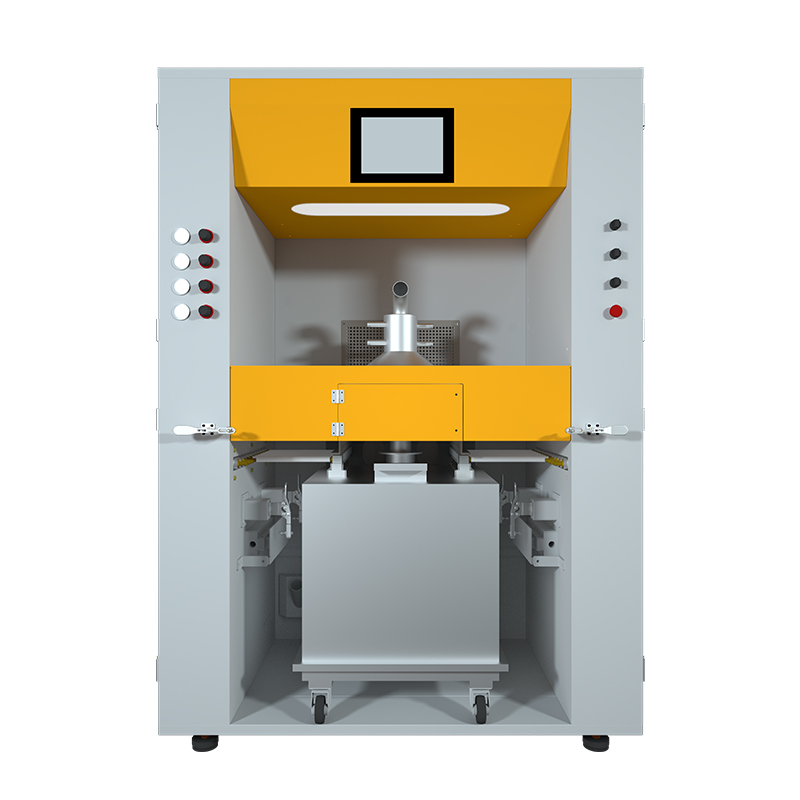

Automatic Powder Feed Equipment
![powder feed center]()
1.This powder feed equipment is connected in the automatic powder coating line, full automatic operations increases working efficiency.
2. Automatically feeding fresh powders and uniformly mixing with recycled powders, increases powder utilization.
3. Break powder accumulation, separate dusts and oversized, delivering pure and smooth powder flow which ensures application quality
4. The fully enclosed structure avoids dust leaking, features more environmentally friendly.
5. PLC system allows integrated control of all in-line components

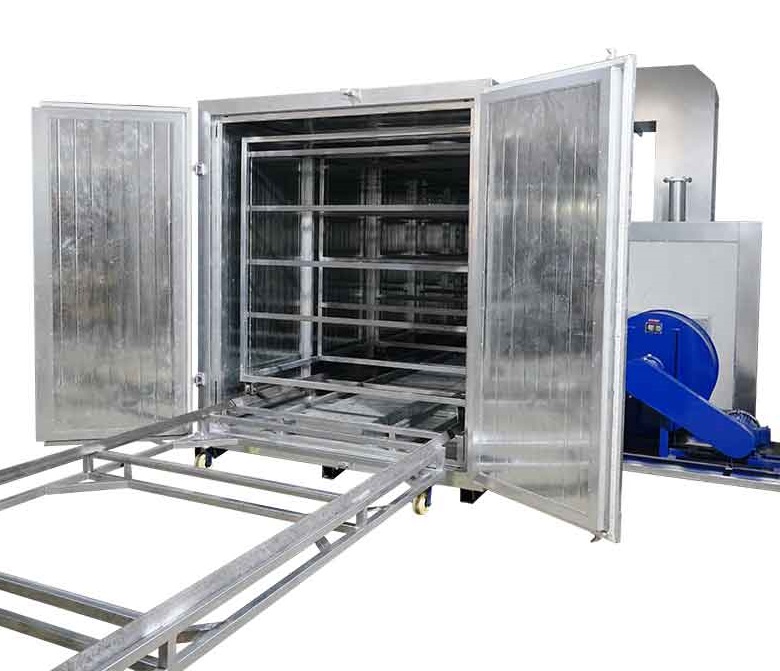

Trolley Powder Coating Oven
![batch powder coating oven]()
1.Working Size: Width1.8m xHight1.8m x Depth5m
2.Heating source: gas, features quick heating, environmental-friendly & cost-saving
3. A powerful circulation fan makes uniform hot airflow in inner chamber ensure high quality curing results.
4. Construced with 100mm thickness rock wool board, ensures minium temperature dropping.
5. Precise PLC control provides an easy and accurate heating process, digitally setting the heating time and temperature.
6. Batch parts are loaded and transported by trolley system.
