| Availability: | |
|---|---|

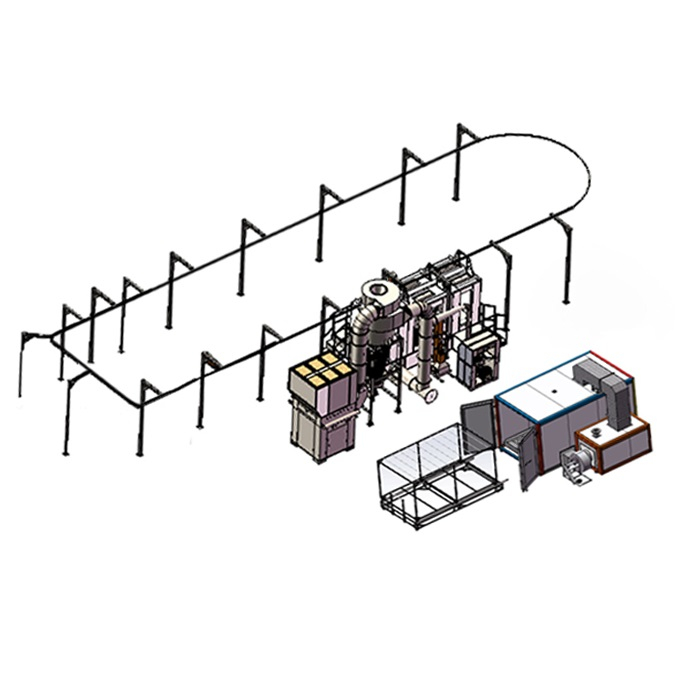

Semi-automatic powder coating line combines automatic powder guns and reciprocator for consistent and uniform powder spraying, while this process is accomplished at an automatic powder booth with converiosed system. The oversprayed powders will be transferred to a powder management equipment for automatic recycling.
After powder spraying, a batch of coated workparts will be manually moved to a loading cart, and pushed into the oven for heating and curing. Though the curing process is not continous with spraying, a manual batch oven occupies with much smaller space and much lower budget than a curing tunnel.
Automatic Powder Coating Booth
- Usually configured with cyclone system for powder recovery, the cyclone uses centrifugal force and gravity to effectively separate particulates from air stream achieving high recycling rate and quick cleaning operation.
- The booth wall can be made anti-static plastic which does not attract powders, as there is minimum powder accumulation on the booth wall, it is easier to clean and more powders will be recycled.
- The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
- The powder coating booth is designed with automatic spraying station for reciprocating guns, as well as manual coating station for after-checking.
Self-cleaning Spray Booth Floor
The powder spray booth floor is designed with air knives and mesh plates specially for self-cleaning.
The cleaning system is controlled by air blasts, which remove the powder accumulated on the booth floor and push it to the extraction and recovery system.
The booth floor always remains clean with just a minimum amount of powder, and increase powder coating recovery.
COLO could design different booth floors to suits special products and requirements.
- A central cabinet combines all powder coating gun controllers for integrated convenient operation. The quantity of the installed control unit can be customized.
- The COLO-800D powder coating unit designed with intelligent functions for easiest operation, delivering excellent finish quality whether for panels or complex shapes. The classoc design requires minimum operation and maintenance cost.
- The 100kv electrostatic spray gun powerfully charging powders delivers high transfer efficiency, increase powder utilization and reduce waste.
- It is a tested reliable system based on COLO years of manufacturing experience since 2009.
- COLO Reciprocator is designed for consistent and uniform coating in automatic production line, driven by frequency-controlled motor, solid and maintenance free.
- Spraying guns movement is programmed in various speeds & strokes to suit conveyor speed & object height respectively.
- Working parameters are monitored on a user-friendly panel, The digital system can be memorized for 80 storable programs
- Allows to carry 2-12pcs spray gun, making smooth movement, Sturdy construction could adapt to continual load everyday operational conditions.
- The powder feed center allows directly placing the powder carton on a funnel, flexible for color change.
- Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
- Automatic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder flow.
- A built-in closed powder container with a senser will detect the powder position and alarm a signal when a lack of powder, ensure continuous powder feeding.
- A user-friendly PLC touching screen panel makes it easy to handle the process

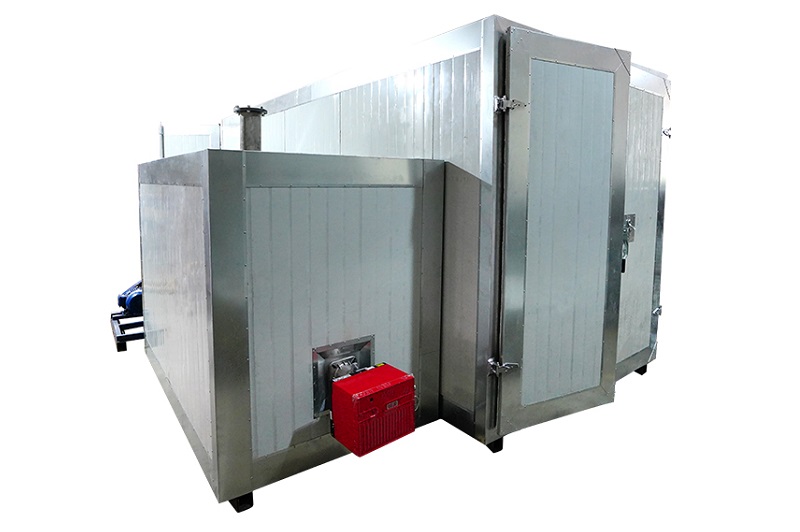

- Our powde curing oven is made of 100mm rock wool board with heat-resistent galvanized steel wall and durable color steel skin, ensures heating performance and longer lifespan.
- Using Riello Burner Heating System quickly and uniformly raise to required temperature up, increase production efficiency, and ensure curing results consistency.
- With fan that circles hot air through the entire chamber ensures even temperature, which minimizes temperature difference and guarantees uniform-heated chamber.
- Applies a PLC system offering all the features you need. the keyboard and clear display allows you to set and read precise temperature, heating duration, control the fan, etc, ensuring an easy, safe and reliable heating process.
Standardly equipped with a pair of carts: internal one and external one.
Internal cart designed in the form of a frame to loading workparts participating in curing process inside the oven. External cart is used to carry the internal cart for outside operation and transportation.
It is a superior solution that allows loading batch of workparts taking full utilizing of oven space, as well as carrying heavy elements using a small amount of force.
Powder coating oven cart design can be customized for your production needs and convenient.
Semi-automatic powder coating line combines automatic powder guns and reciprocator for consistent and uniform powder spraying, while this process is accomplished at an automatic powder booth with converiosed system. The oversprayed powders will be transferred to a powder management equipment for automatic recycling.
After powder spraying, a batch of coated workparts will be manually moved to a loading cart, and pushed into the oven for heating and curing. Though the curing process is not continous with spraying, a manual batch oven occupies with much smaller space and much lower budget than a curing tunnel.
Automatic Powder Coating Booth
- Usually configured with cyclone system for powder recovery, the cyclone uses centrifugal force and gravity to effectively separate particulates from air stream achieving high recycling rate and quick cleaning operation.
- The booth wall can be made anti-static plastic which does not attract powders, as there is minimum powder accumulation on the booth wall, it is easier to clean and more powders will be recycled.
- The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
- The powder coating booth is designed with automatic spraying station for reciprocating guns, as well as manual coating station for after-checking.
Self-cleaning Spray Booth Floor
The powder spray booth floor is designed with air knives and mesh plates specially for self-cleaning.
The cleaning system is controlled by air blasts, which remove the powder accumulated on the booth floor and push it to the extraction and recovery system.
The booth floor always remains clean with just a minimum amount of powder, and increase powder coating recovery.
COLO could design different booth floors to suits special products and requirements.
- A central cabinet combines all powder coating gun controllers for integrated convenient operation. The quantity of the installed control unit can be customized.
- The COLO-800D powder coating unit designed with intelligent functions for easiest operation, delivering excellent finish quality whether for panels or complex shapes. The classoc design requires minimum operation and maintenance cost.
- The 100kv electrostatic spray gun powerfully charging powders delivers high transfer efficiency, increase powder utilization and reduce waste.
- It is a tested reliable system based on COLO years of manufacturing experience since 2009.
- COLO Reciprocator is designed for consistent and uniform coating in automatic production line, driven by frequency-controlled motor, solid and maintenance free.
- Spraying guns movement is programmed in various speeds & strokes to suit conveyor speed & object height respectively.
- Working parameters are monitored on a user-friendly panel, The digital system can be memorized for 80 storable programs
- Allows to carry 2-12pcs spray gun, making smooth movement, Sturdy construction could adapt to continual load everyday operational conditions.
- The powder feed center allows directly placing the powder carton on a funnel, flexible for color change.
- Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
- Automatic sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder flow.
- A built-in closed powder container with a senser will detect the powder position and alarm a signal when a lack of powder, ensure continuous powder feeding.
- A user-friendly PLC touching screen panel makes it easy to handle the process
- Our powde curing oven is made of 100mm rock wool board with heat-resistent galvanized steel wall and durable color steel skin, ensures heating performance and longer lifespan.
- Using Riello Burner Heating System quickly and uniformly raise to required temperature up, increase production efficiency, and ensure curing results consistency.
- With fan that circles hot air through the entire chamber ensures even temperature, which minimizes temperature difference and guarantees uniform-heated chamber.
- Applies a PLC system offering all the features you need. the keyboard and clear display allows you to set and read precise temperature, heating duration, control the fan, etc, ensuring an easy, safe and reliable heating process.
Standardly equipped with a pair of carts: internal one and external one.
Internal cart designed in the form of a frame to loading workparts participating in curing process inside the oven. External cart is used to carry the internal cart for outside operation and transportation.
It is a superior solution that allows loading batch of workparts taking full utilizing of oven space, as well as carrying heavy elements using a small amount of force.
Powder coating oven cart design can be customized for your production needs and convenient.
The COLO manual batch powder coating plant built in Thailand.
The COLO manual batch powder coating plant built in Thailand.
