Small Powder Coating Machine COLO-668T-H

Colo-668 small powder coating machine offers a variety of advanced coating features for your easiest operation and great efficiency, suitable for coating all kinds of flat or complex metal shapes.
  • COLO-668

  • COLO

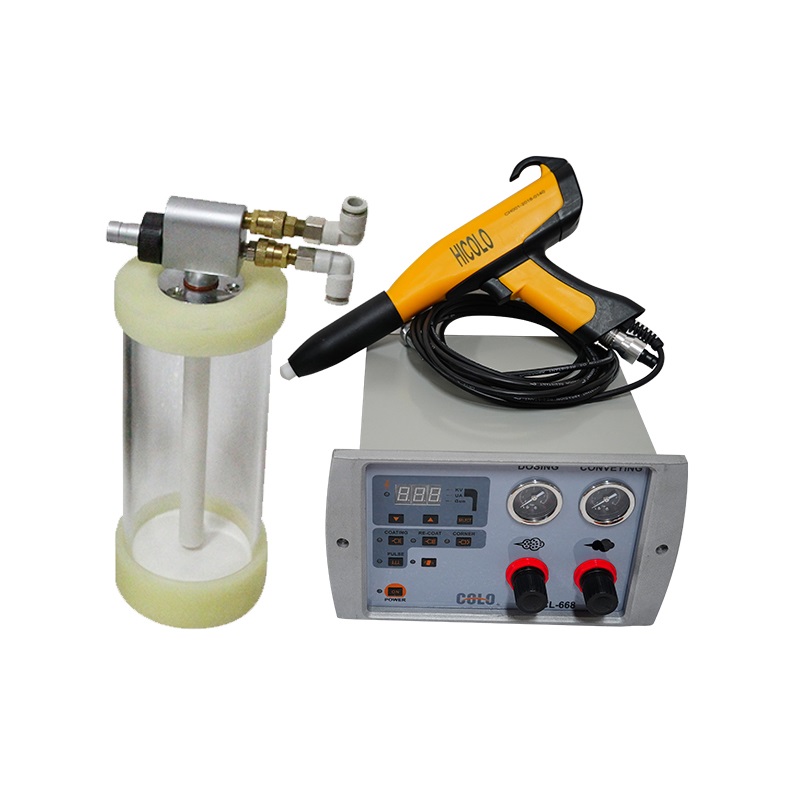

COLO-668 Small Powder Coating Machine

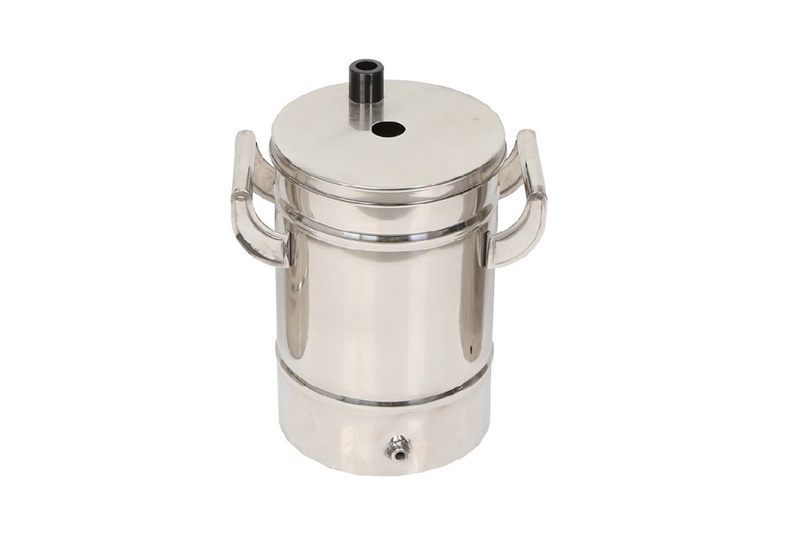

Portable Powder coating machine with 10lbs fluidizing hopper supports constant production of small scales. Stainless steel hopper is easy for cleaning and enables a very quick color change. Our classical model COLO-668 applies the easiest spray method realizes superior efficiency and performance.

small powder coating machine

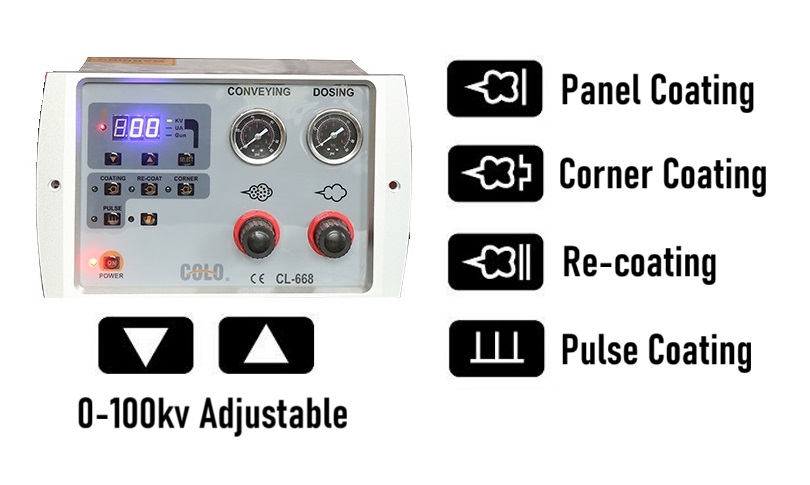

COLO-668 Powder Gun Controller Features

powder coating machine controller

The intelligent conrtoller has one-touch operation buttons standing for 4 pre-sets coating programs, giving quick change of different metal shapes:

1 Flat mode, suitable simple panel shape parts.

2. Corner mode,suitable for coating deep corner

3. Re-coat mode, suitable for repairing coating

4. Pulse coating mode: repidly recharge the powder for high transfer efficiency, a coating option that is able to penetrate tough Faraday cage areas, reducing time and material consumption

Advantages: COLO-668 powder coating system supports for versatile applications, such as metal plate, rims, profiles, furniture, accessories, etc, whose professional design is suitable for both beginners and experienced users.

COLO-08 Electrostatic Spray Gun Features

powder coating spray gun

100 kV powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.

The lightweight and ergonomic design enables you to do jobs at ease. We use high quality engineering materials for less wear and longer life.

Comes with full array of nozzle assortment for optimal effect , including flat nozzles, round nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.

COLO-668 Manual Powder Coating System Components

1. CL-668 Digital Intelligent Controller

2. COLO-08 Manual powder gun corona type with 5m cable

3. 100kv cascade for powderful and long lasting work

4. Nozzle assortment, including fan spray nozzles, and round nozzles

5. Fluidizing well-sealed powder coating hopper, 10lbs capacity.

6. High quality powder injectors for smooth and uniform output.

7. Grounded powder hose 5 meters, anti-static material.

8. Oil-water separating filter

9. Installation kit with all connections.

Specification of COLO-668 Powder Coating System

Voltage: AC110V/220V, 50-60Hz

Power: 50W

Output voltage: DC24V

Max voltage :0-100KV (adjustabale)

Max powder injection: 600g/min

Polarity: negative

Max input air pressure 10kg/cm

Optimum input-air pressure 6kg/cm

Minimum input-air pressure 4kg/cm

Maximum water vapor content or compressed : 1.4g/Nm3

Maximum oil vapor content of compressed air: 0.1ppm

Maximum compressed -air consumption 13.2m3/h
