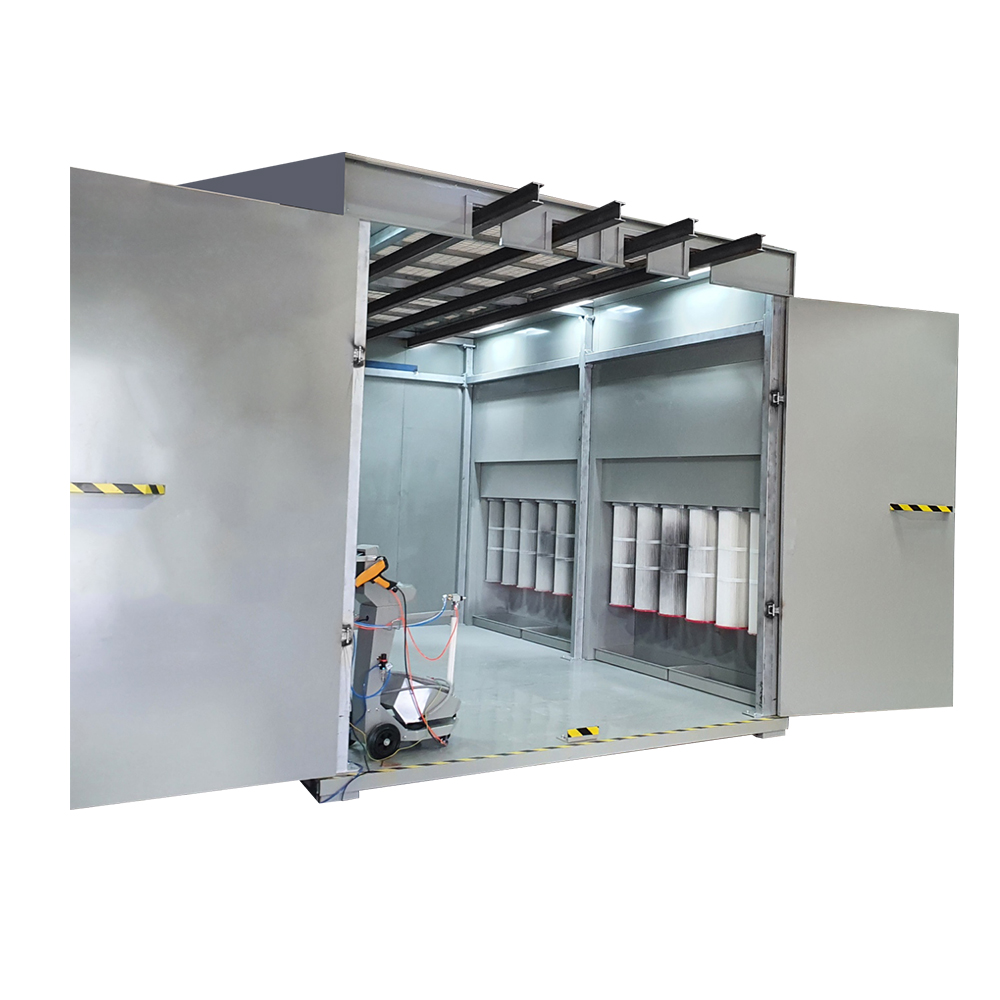

COLO Walk-in Type
COLO
Width2800 * Depth5500 * Heght2100mm

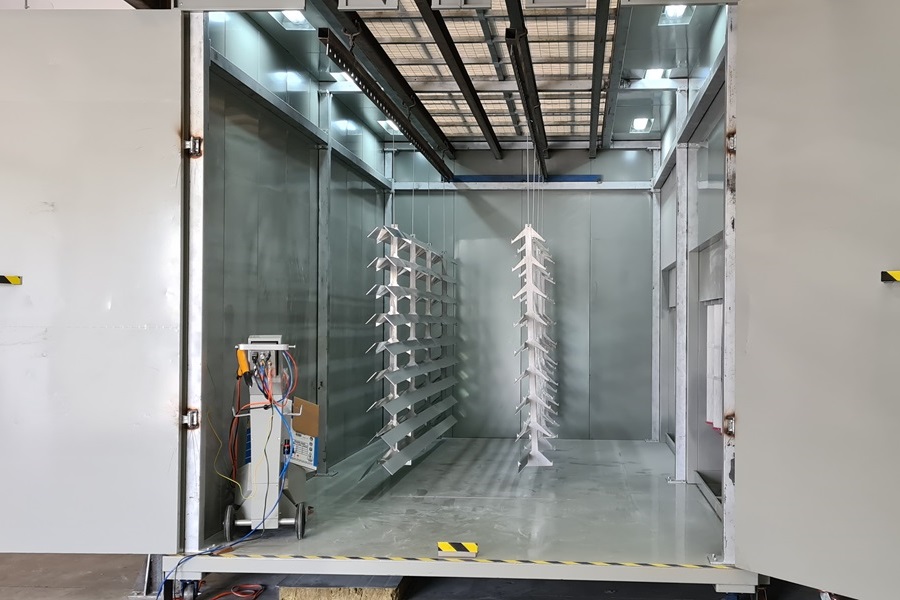

Walk-in powder coating booth allows for maximum operating access to parts being coated, flexibility of movement based on part size and shape for highest-possible transfer efficiency. The side doors can be closed during powder spraying for a clean, dustless workshop.
Bulky heavy parts can be transported through overhead tracks into the booth cabin, operators walk in the spray booth and coat the parts roundly, meticulous manual operation ensures superior painting effect.

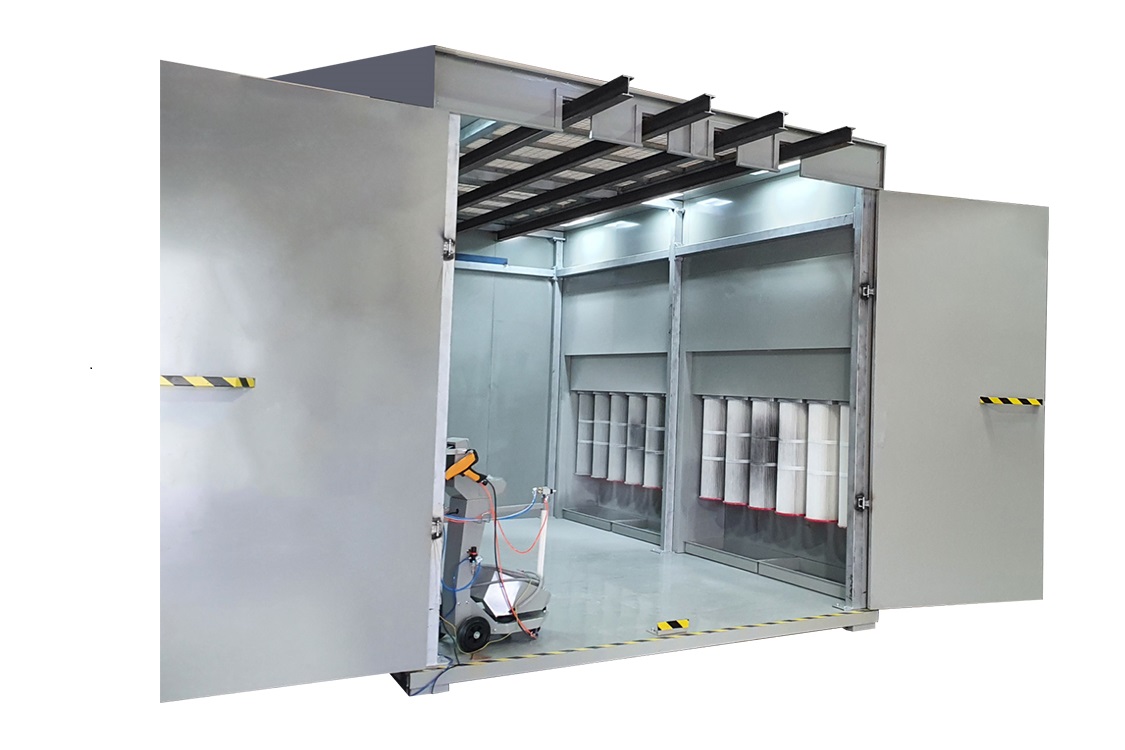

Walk-in Powder Spray Booth

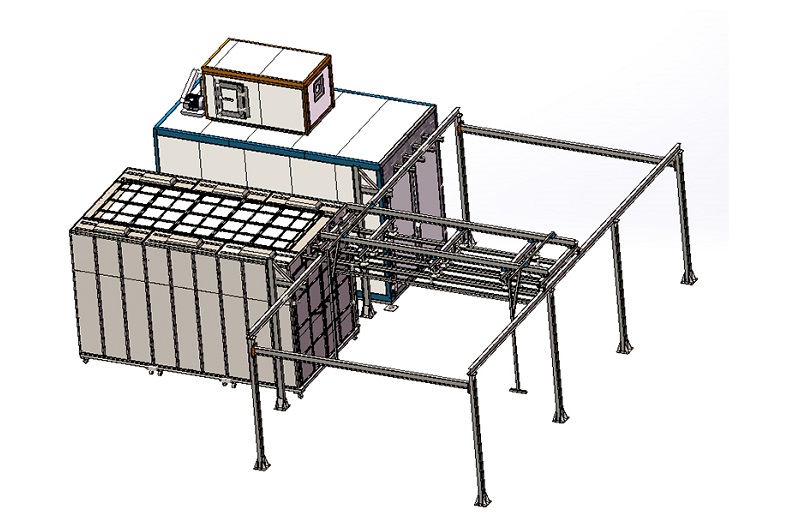

Walk-in Booth for Manual Coating Plant
Big Complex Parts

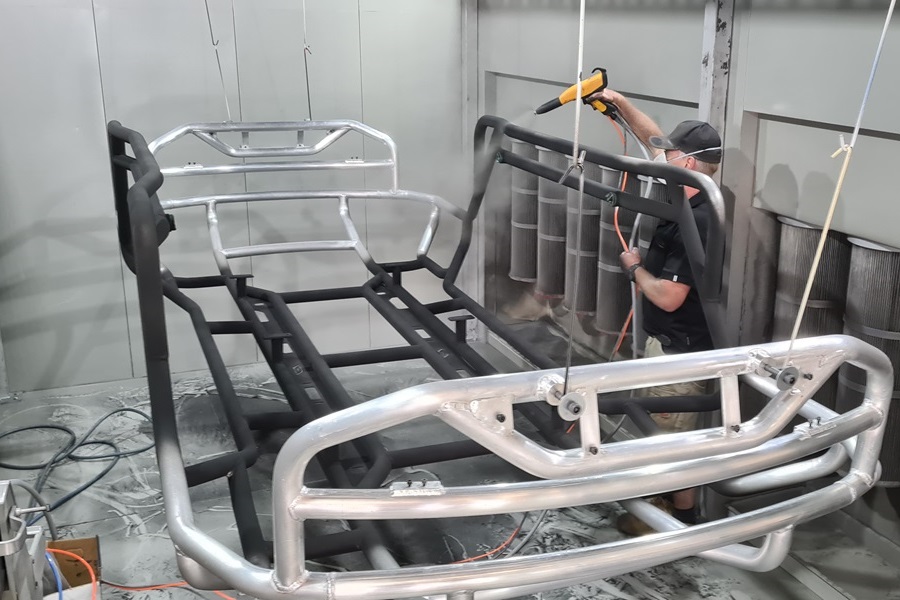

Long & Heavy Profiles

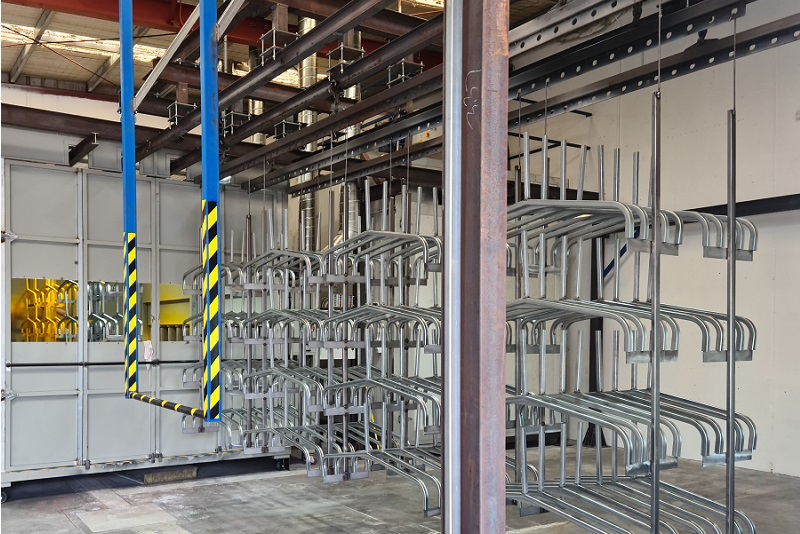

Batch Small Parts
Our powder spray booth are fully constructed with powder-coated steel exceptionally increases stability and durability
Cartridge FIlters
0.1micron high-precision filters effectively separate powder particles and return clean air to the workshop. A load-triggered pulsing system intermittently cleans filters for a longer life span.
PLC Control
Full-function PLC controller provides easy-to-use interface to set all processing parameters, including pre-programmed filter cleaning process, fan on/off, etc.
Lighting
Each spray booth cabin overhead are built with energy-saving lights for precise coating spraying job.
Fan
Powerful and rigid exhaust fan provides a substantial decrease in noise at your shop. Fan motor can be installed above the filter stage for space-saving.
| Model | Customized Type |
| Operating Dimensions | L5.5m x W2.8m x H3.1m |
| Opening Size | W2.8m x H2.9m |
| Power Supply | 220V/380V/415V, 3Phase, 50-60HZ, Customized |
| Fan Power | 3kw, 4 sets |
| Filter Count | 24 pcs, Quick-release Type |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |
| Air Flow | 4050m^3/h |
For Those Big Dimension Booths, We Can Customized Sizes and Configurations Specially for you!
Walk-in spray booth are ideal for compact manual powder coating plant, works with batch curing oven and manual professional powder gun, ideal for batch production of big volume small parts, long aluminium profiles, heavy steel frames, plates, iron cabinets, etc.

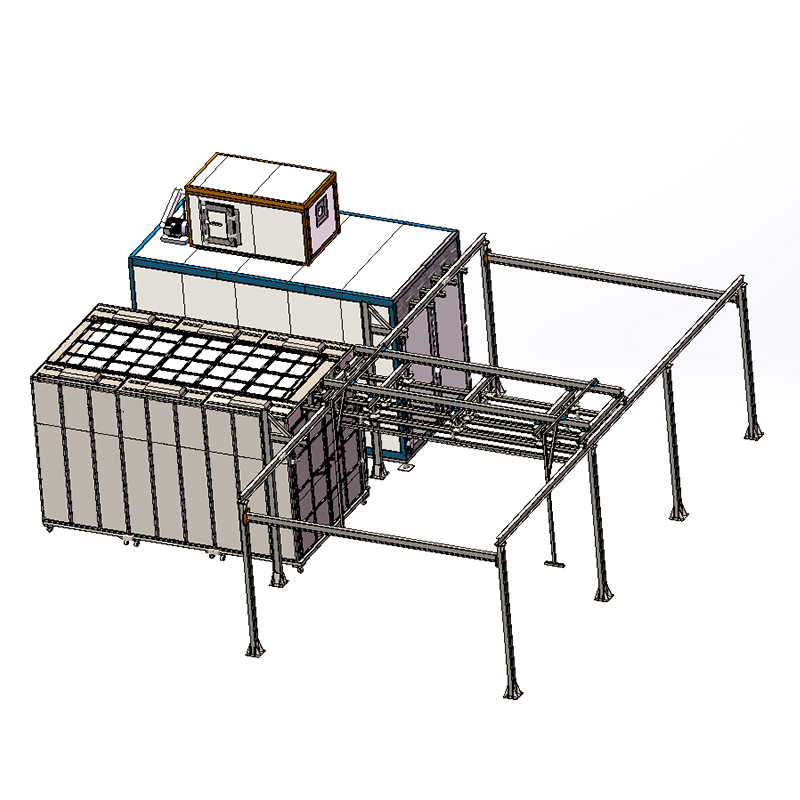

This manual powder coating plant is configured with overhead track system which greatly reduce manual efforts for handling oversized and overweight parts.
