COLO
| Quantity: | |
|---|---|

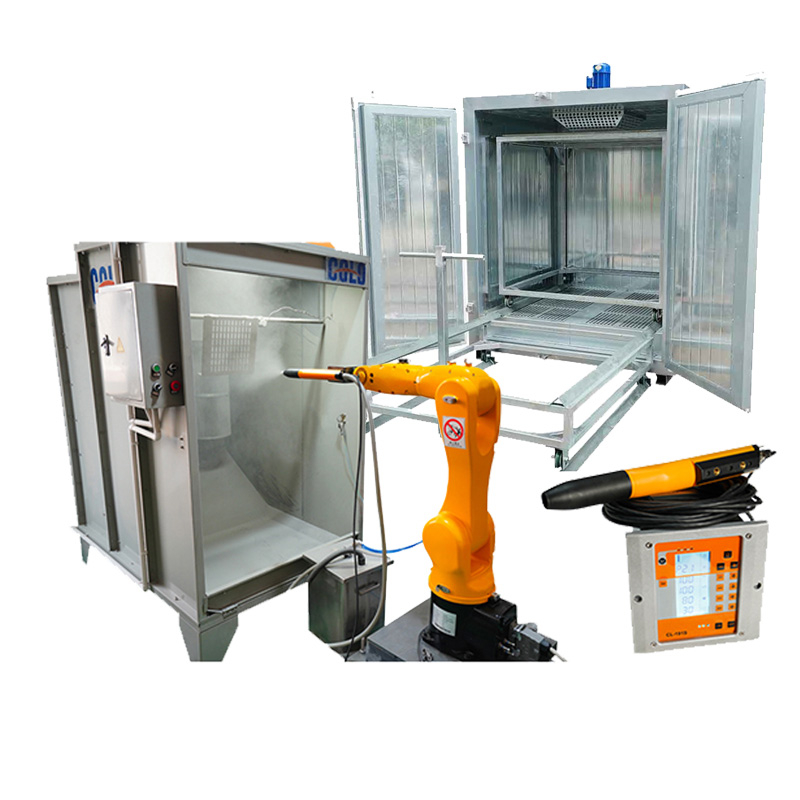

The robotic powder coating system includes a 6-axis robot, automatic powder coating gun, manual powder coating booth and oven, suitable for small to medium scale production, the robotic application gun replaces manual operator, which optimize the labor cost, material cost and finishing quality.

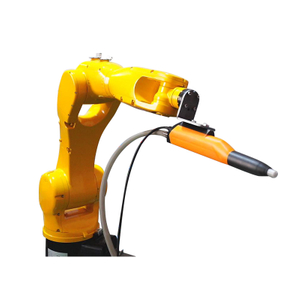

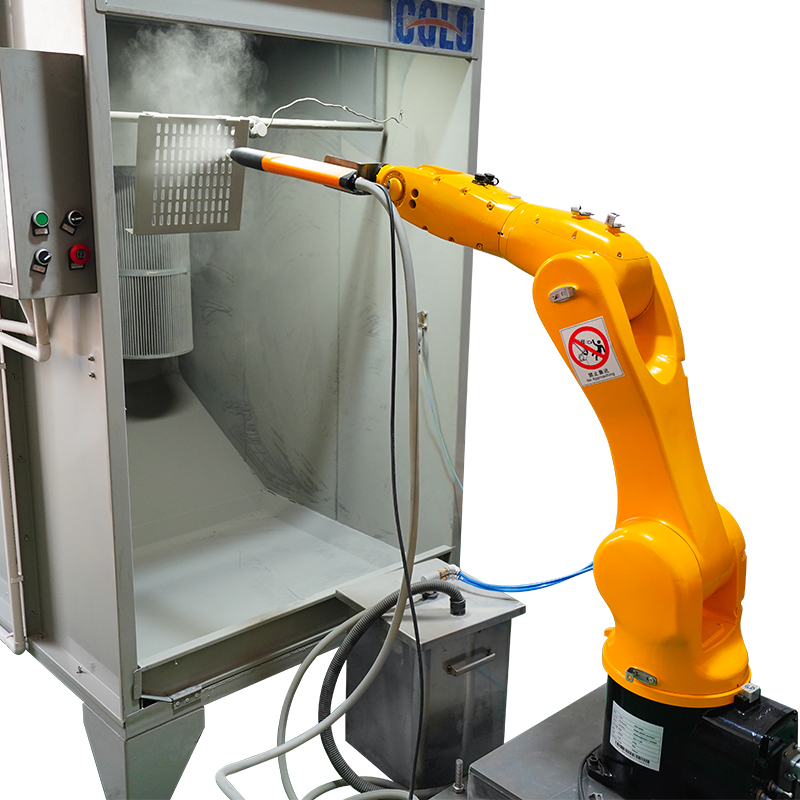

COLO 6-Axis robot is the initial choice for maximum flexibility and perfect coating quality, which is developed specially for the powder application industry along with huge savings in materials, energy and manual interventions
Configurations & Features
1. It is a six-axis joint structure, with six servo motors driving the rotation of the six joint axises.
2. Robot joints are made of high-intensity aluminum, ensuring the precision and reliability in high-strength and high-speed working.
4. Precise movement and 100% repeatability for greater process control
5. Fast robot movement for high production rate, Achieve uniform and reproducible coating results.
6. Flexible, highly targeted, up-close application, Perfect and efficient for coating products of complex shapes

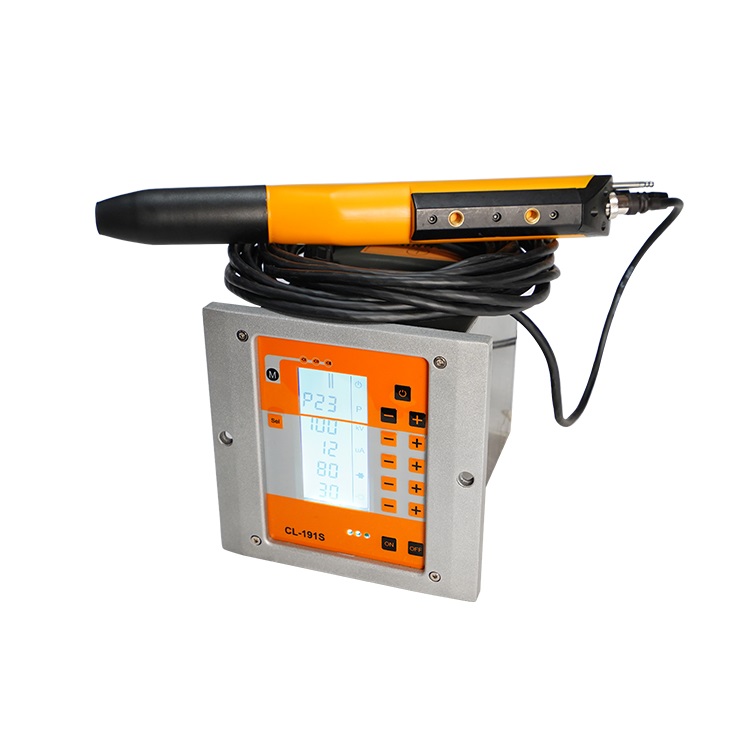

COLO-191S powder coating gun is developed for easy and efficient jobs. Based on COLO technology, all kinds of metal parts, even most complicated shapes can be perfectly coated with this model.
Configurations and Features
1. The advanced DVC technology allows you to precisely control crucial paramters such as high voltage, spraying current and powder outpur, achieving perfect and repeatable coating results.
2. Three pre-set application programs stand for flat parts, profiles, re-coating applications, suitable for beginners. Allows specialists to store 20 personalized programs for different parts and jobs.
4. 100kv COLO-08 powder spray guns always maintain high transfer efficiency even after long time working.
5. There are various type of spray nozzles designed for different applications, such as flat nozzle for panels, round nozzle for profiles, extension nozzle for deep corners.
COLO-S-1115 Manual Powder Spray Booth
Our powder coating booth exceeds safety and code requirements to protect those who work in spraying environment, by means of a fan drawing clean air into the booth and passing it across high-quality filters before discharged outside, thus all recycling air is free-particles and oversprayed powders can be effectively recycled
Specfications
Model: COLO-S-1115
Working dimensions: Width1000 x Depth1000 x Height1500mm
Overall dimensions: Width1580x Depth2000 x Height2150mm
Power supply: 220V380V, 3Phase, 50-60Hz
Fan: 2.5kw, 1set
Filters Material: Polyester
Filters count: 3pcs（325*900）
Filters hang type: easy for change
Filter cleaning system: Pneumatic
Air consumption: 4000m3/h
Control: PLC
COLO-1515 Electric Powder Coating Oven
This hot-selling powder coating oven heated by electricity features user-friendly and environmetal protective. A circulation fan circles hot air uniformly and ensures quality curing effect. Constructed by 100mm thick rockwool insulation board, effectively minimizes temperature dropping.
Specifications
Model: COLO-1515
Working dimensions: Wdith1500 x Height1500 x Depth1500mm
Power supply: Electric/18kw
Voltage/Frequency: 380V/220v(50-60hz)
Warm-up time: 15-30 min. (180°?C)
Temperature stability: < ± 3-5°C
Temperature max.: 250°C
Ventilation performance: 805-1677m3/h
Motor power: 0.75kw
Circulation/Air flow: Vertical ,Variable through holes on the walls
Transportation: Trolley
