COLO-191S, COLO-3212, COLO-5219
COLO
| Quantity: | |
|---|---|

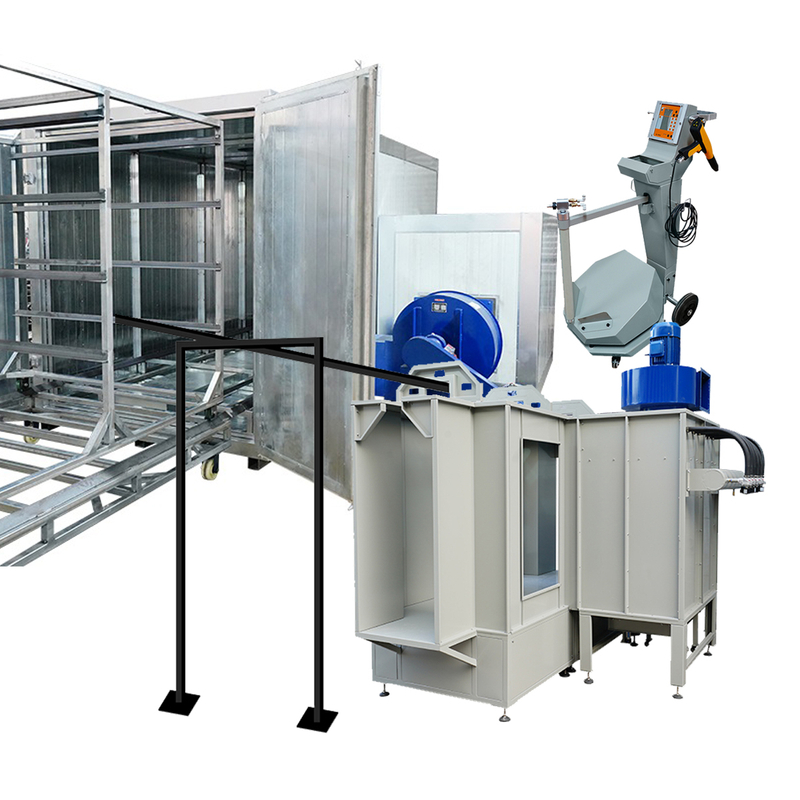

Parts can be sprayed by double sides thanks to the dual station booth, they enters to the booth and exit under the track system, then a batch of coated parts are put on the frame sent to the powder oven for curing.

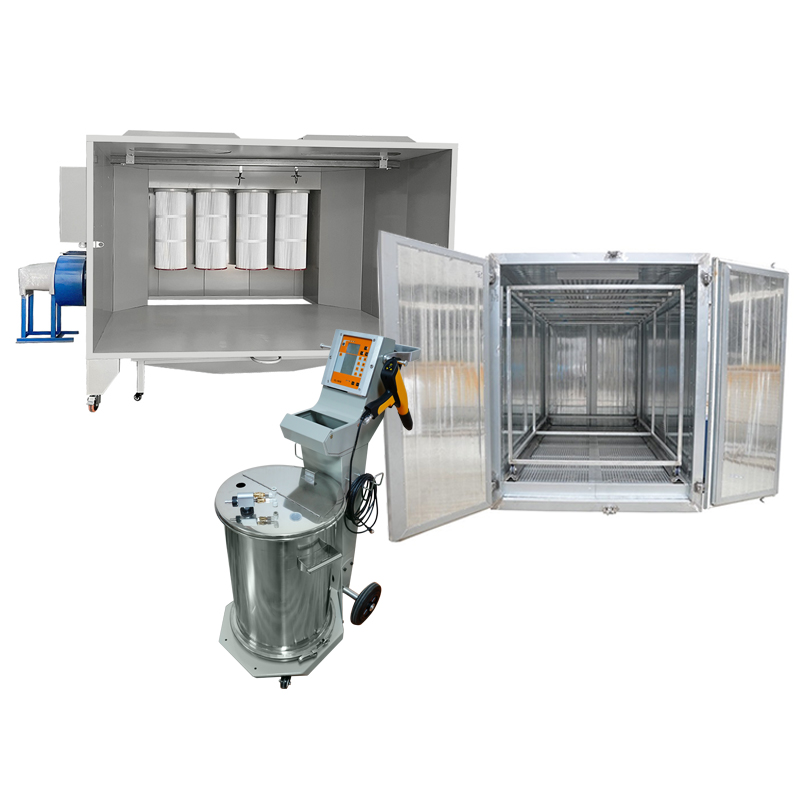

This manual equipment package helps new comers easily and quickly start powder coating businesses, creates a successful and profitable powder coating venture,

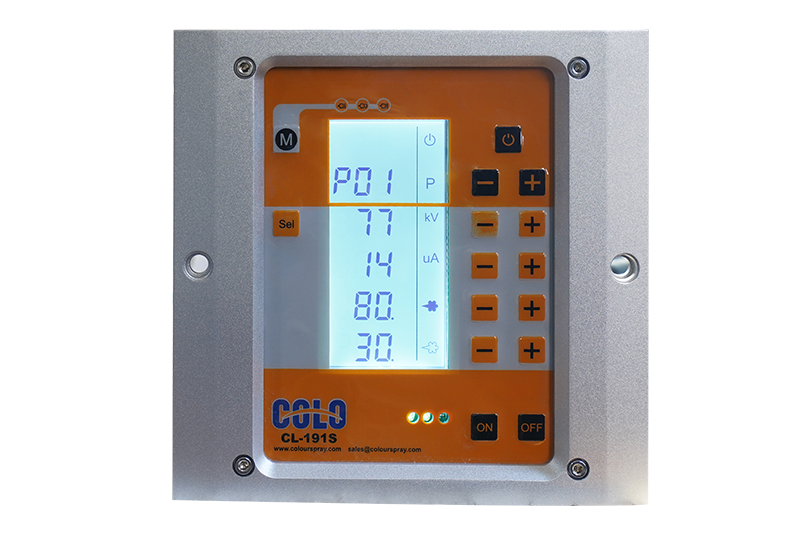

Digital valve controlled COLO-191S system allows precise regulation of powder output which is a great benefit to achieves repeatable performance, improve the film thickness consistency and saving powders.
Configurations and Features
1. Flexibly, precisely control all the electrostatic and pneumatic parameters to optimize processing.
2. Create excellent uniform finish even with challenging powders and complex workparts.
3. Three pre-set application programs are designed for beginners, application for flat parts, profiles and re-coating.
4. Allows advanced users customize 20 programs optimized for their parts and powder, and easily recall them for use the next time.

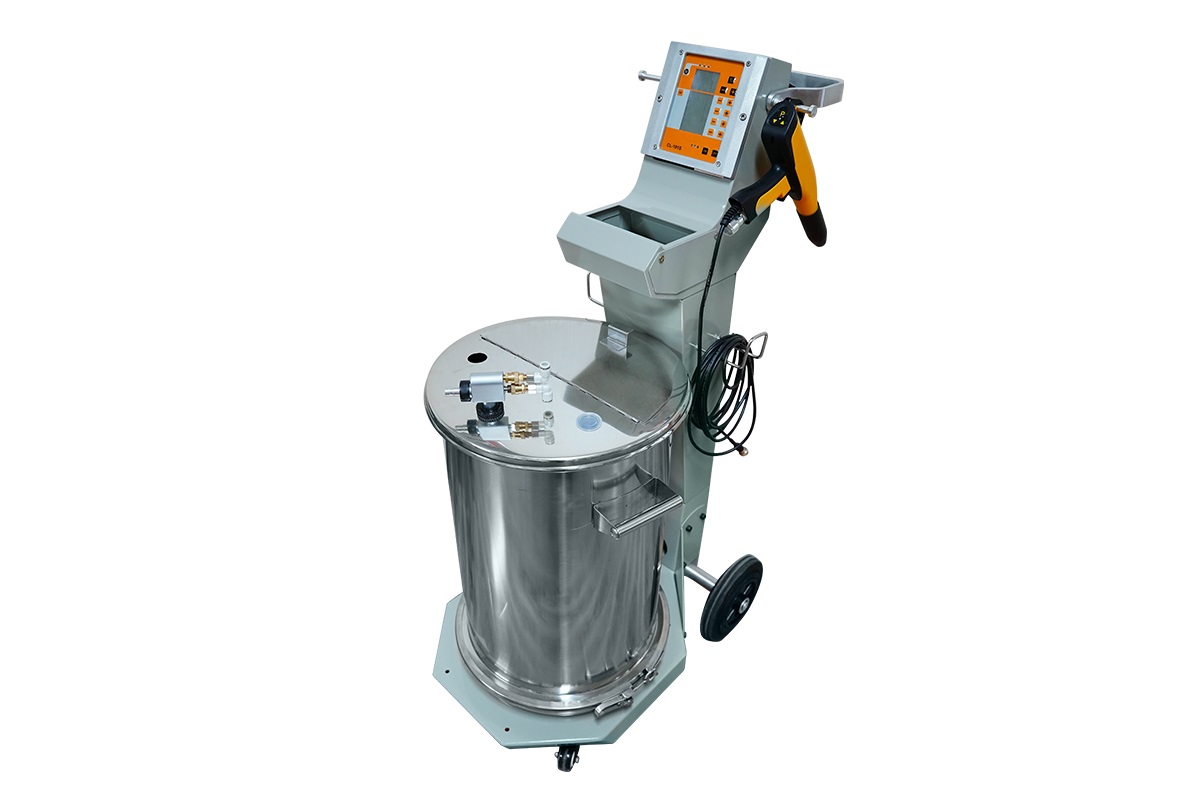

5. 100kv manual spray guns delivers long-lasting high transfer efficiency
6. 60lbs fluidizing powder hopper is welled sealed to avoids damp and contaminated.

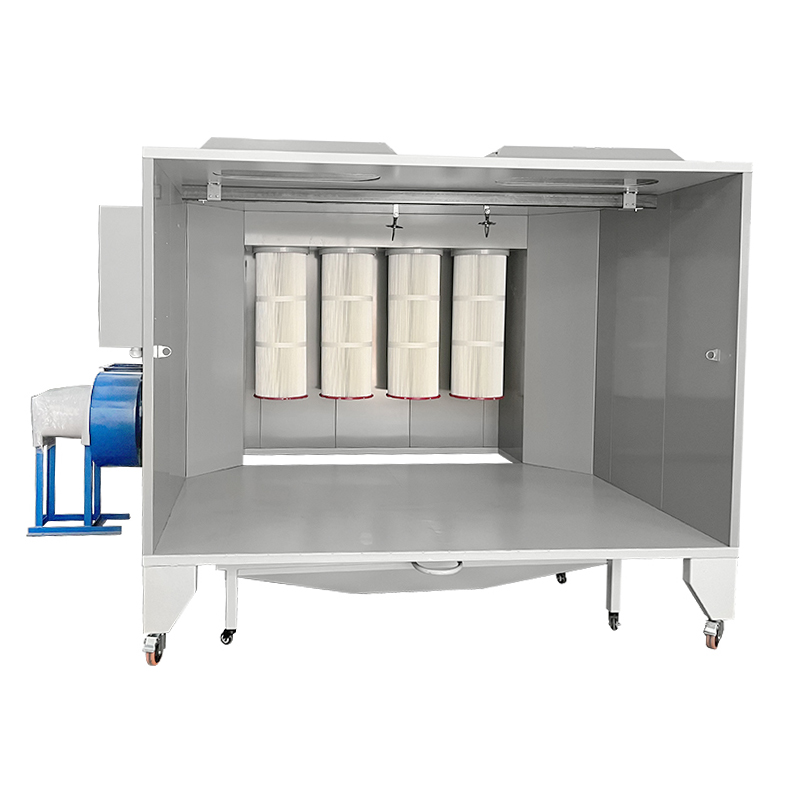

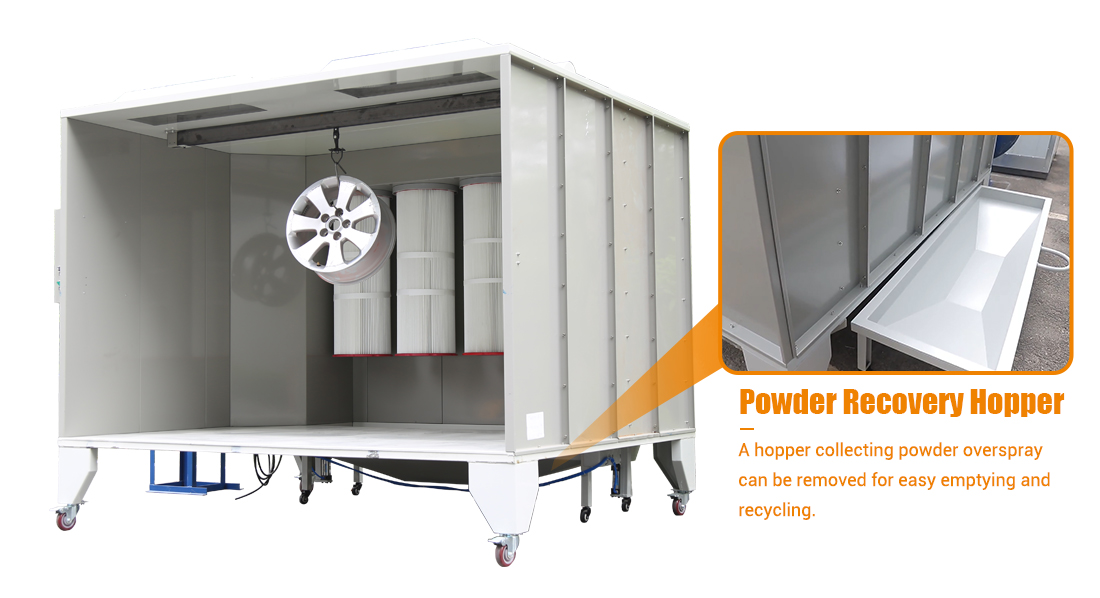

This tunnel powder coating booth requires a top track that loads workparts entering the booth from one side and exiting from the other. There are two manual opening station allows parts recieving manual coating from both sides. Our spray booth is designed to increase efficiency and ensure application quality.
Specifications
| Model | COLO-S-3212 |
| Operating Dimensions | Width620 * Depth2920 * Heght1500mm |
| Overall dimensions | Width1200 * Depth3000 * Heght2033mm |
| Power Supply | Electric |
| Weight | 500kg |
| Power Supply | 220V/380V, 3Phase, 50-60HZ |
| Fan Power | 4kw |
| Filter Qty | 6 pcs, Quick-release Type |
| Filter Size | D320 x H900 mm |
| Filter Material | Polyester |
| Filter Cleaning | Pneumatic |

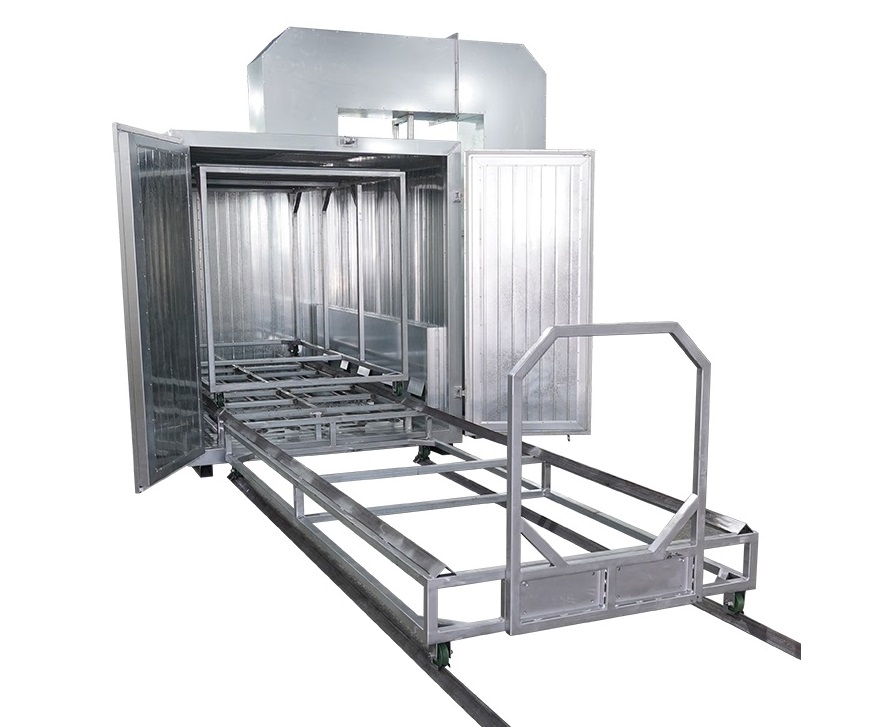

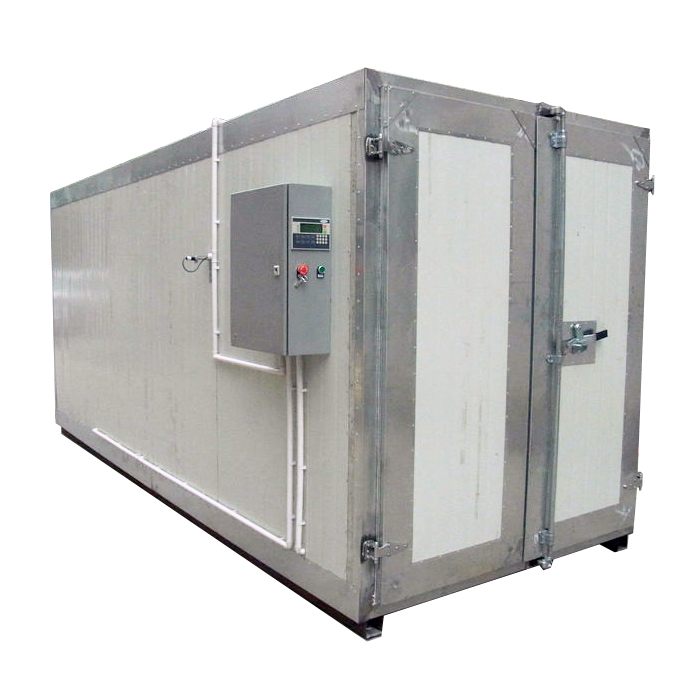

Our powder coating gas oven are fitted with the most efficient burners, get your oven to required temperature faster with less use of fuels. A circulation fan cycles hot air uniformly and keeps even temperature in the chamber. Gas powder coating ovens feature environmental friendly, reduce operating cost and cure more parts everyday.
Specifications
| Model | COLO-5219 |
| Worksize Dimensions | Width1800 * Height1800 * Depth5000 mm |
| Overall Dimensions | Width2100 * Height2200 * Depth5200 mm |
| Power Supply | LPG / Gas / Diesel |
| Voltage/Frequency | 380V/220V (50-60Hz) |
| Warm-up Time | 15-30 min. (180° C) |
| Temperature Stability | < ± 3.0-6°C |
| Temperature | Max. 250° C |
| Transport System | Two trolleys |
| Burner | Italy Riello, 10,0000kcal |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Ventilation Performance | 8288-16576m3/h |
| Motor Power | 7.5kW |
| Warranty | 12 months |
