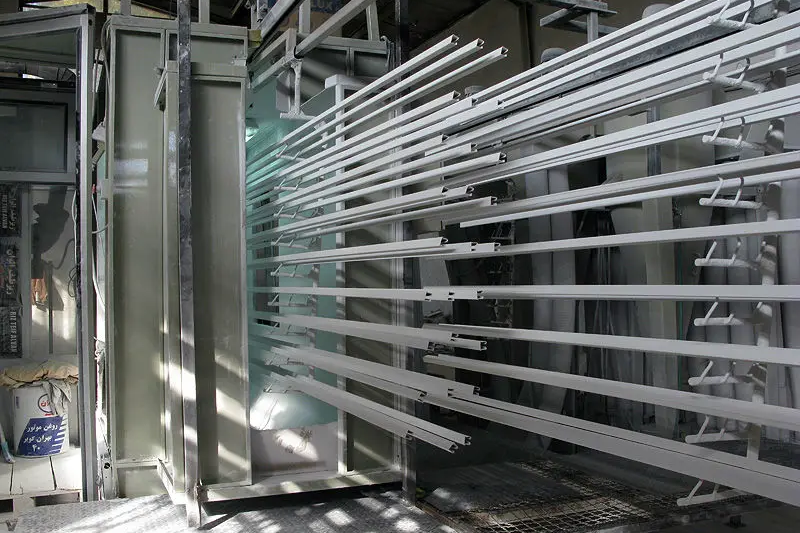

The manual powder coating line is specially custom-designed for our Korean customer for the application of aluminium profiles and other long length metal parts.
Powder coating by manual coating equipment ensures high precision operation, especially for complex shaped. Workparts movement from booth to curing oven by manual pulled track system. thus reduces labor efforts and requires less budget.
Manual Powder Coating Line Application Video
Overview of Manual Powder Coating Line
Project Key Data
Workpart Name: Aluminium Profiles
Max. Workpart Size: L6m x W0.7m x H1.5m
Factory Size: L29m x W10m x H5m
Scope of Main Components
1. Manual Powder Coating Machine
2. Pass Through Powder Coating Biooth
3. Gas Powder Coating Oven
4. Manual Operated Overhead Track System
Manual Powder Coating Line Configurations
Pass Through Powder Coating Booth

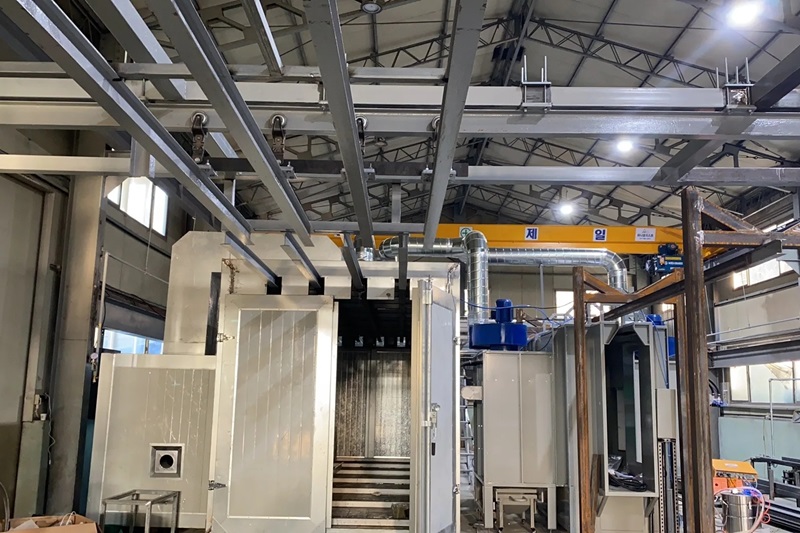

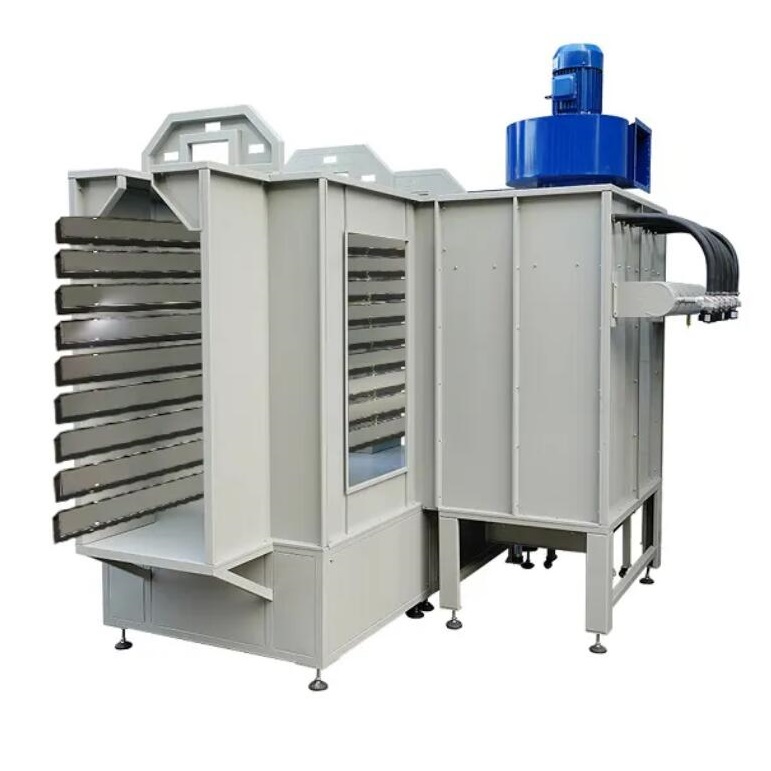

Dual-station powder spray booth, parts enter the booth through the overhead rail system, then pass through the coating stations to receive the powder spraying from double-faced directions. Overspray powders will be collected in a funnel for recycling.
Specifications
1. Internal Working Size L4m x W1.1m x H1.82m
2. Opening Size: W0.5m x H1.82m
3. Double stage of recovery unit, including 10pcs high precsion cartridge filters
4. Fan Motor: 4kw, 2 sets, 5000m^3/h
5.Material: SPCC/t=1.5mm.
6. Control: PLC
Batch Powder Coating Oven

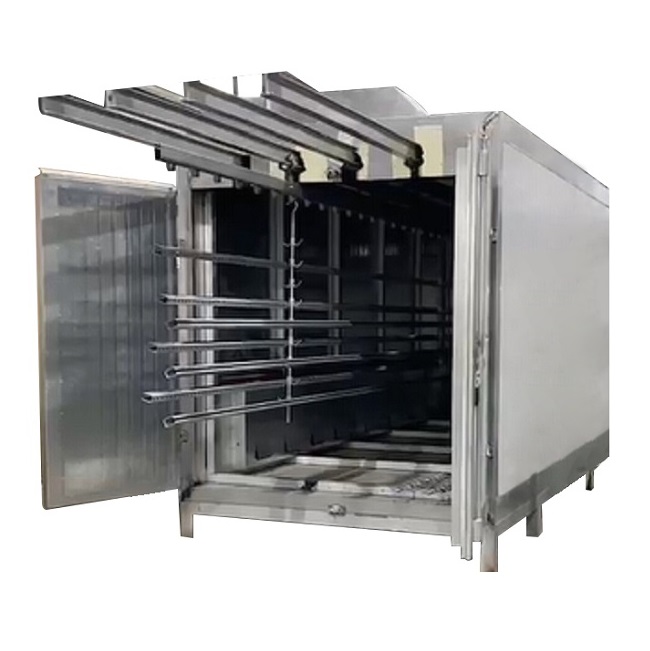

The powder coating ovens with overhead rail system is designed in order to carry heavy material into the oven manually. Heated by gas burner, it fastly reaches to required temperature that saves your time. COLO curing oven is built to create optimal airflow throughout the enclosure, providing an even, constant cure for your parts.
Specifications
1. Working Size Width 1.87m x Height 2.16m x Depth7m
2. Heating source: Natural Gas
3. Gas Burner: 300,000 kcal/h, RIELLO brand
3. Circulation Fan: 7.5kw, 1 set, 8000m^3/h
4. Thermal Insulation Material 100mm thickness rock wool board.
5. Temperature: 180°C - 250°C
Manual Powder Coating Equipment

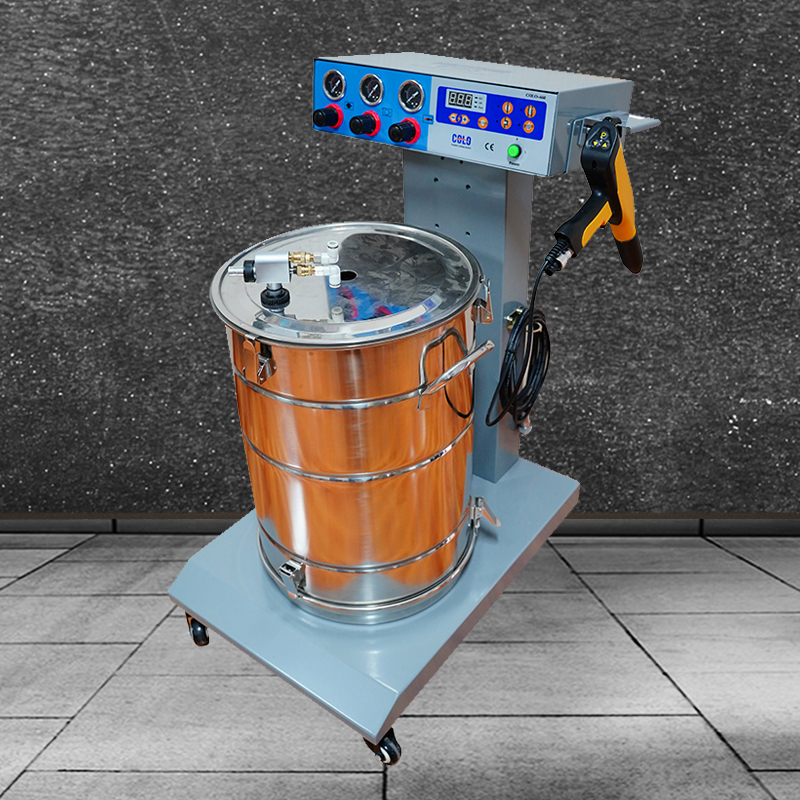

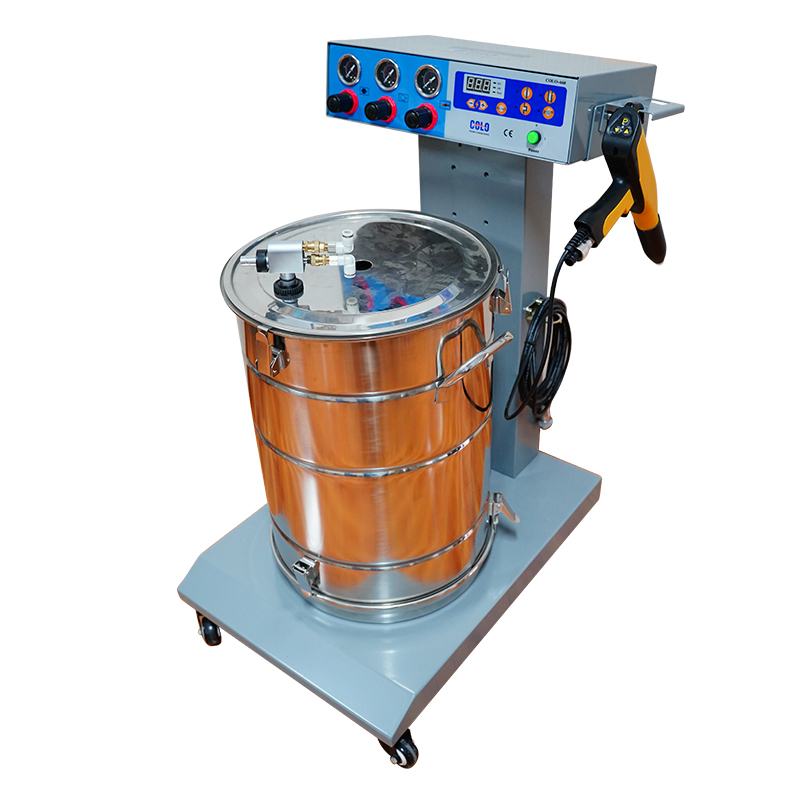

The COLO-660 Electrostatic Powder Painting Equipment isan intelligent model, there are One-touch Intelligent Buttons provides quick operation for handling different metal shapes, including flat parts mode, corner mode, re-coating mode, pulse mode.
The special pulse coating technology for COLO-660 could repeatedly charge powder with a lo w current and a high voltage at intervals of short time, which is perfect for penetration tough faraday cage areas.
The higher transfer efficiency significantly reduces the amount of powder and results in lower operating costs in the industry.
Dual-station powder spray booth, parts enter the booth through the overhead rail system, then pass through the coating stations to receive the powder spraying from double-faced directions. Overspray powders will be collected in a funnel for recycling.
