KF-23
Kafan
| Quantity: | |
|---|---|

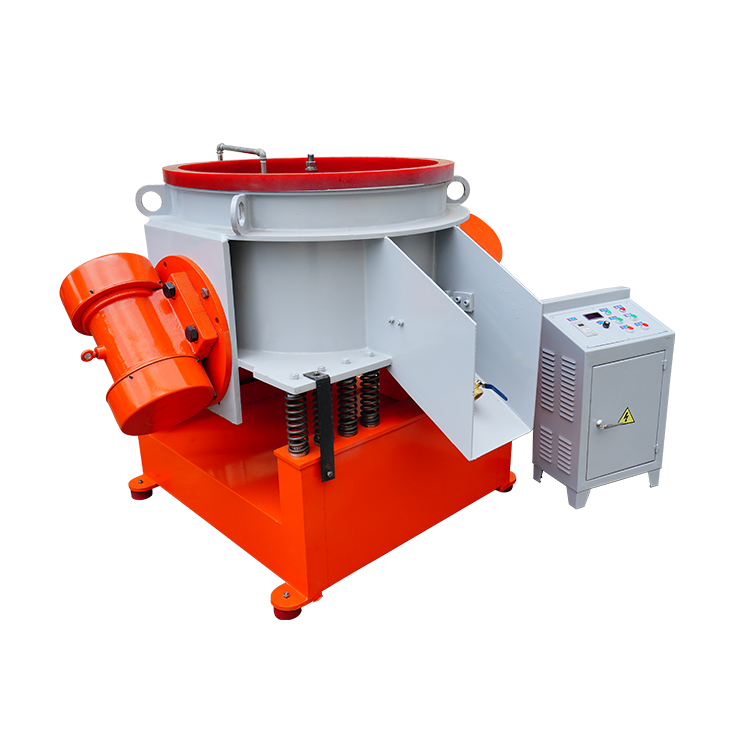

High performance vibratory motors ensures finishing efficiency, adjustable frequency meets different polishing requirememts
Wheels can be mechanically fixted on bottom of the vibratory bowl, which allows a thourough polish with quantities of components and media added.
An electric control cabinet is easy to control the whole process
Constructed with heavy-loaded spring that ensures a reliable working.
Designed with a discharging chute is that could quickly and fully empty medias and compounds.
| Model: | KF-23 |
Wheel processing range | 23 inches -12 inches |
| Voltage | 220V/380V, can be made as request |
| Frequency | 50HZ |
Rated power: | 1.1KW/2sets |
| Vibratory times | 1440r/min |
| Capacity: | 200L |
Inner barrel size: | Φ690*H540 mm |
Inner barrel lining material: | PU glue |
PU glue thickness: | 20mm |
| Amplitude (mm): | 3-6mm |
Dimension： | L1500MM*L1300*H1285 |
The vibratory polishig machine is efficient and excellent for wheel polishing. Alloy wheels or aluminium wheels will get high brightness after finishing, It is an ideal pretreatment process for powder coating with transparent effect.
High performance vibratory motors ensures finishing efficiency, adjustable frequency meets different polishing requirememts
Wheels can be mechanically fixted on bottom of the vibratory bowl, which allows a thourough polish with quantities of components and media added.
An electric control cabinet is easy to control the whole process
Constructed with heavy-loaded spring that ensures a reliable working.
Designed with a discharging chute is that could quickly and fully empty medias and compounds.
| Model: | KF-23 |
Wheel processing range | 23 inches -12 inches |
| Voltage | 220V/380V, can be made as request |
| Frequency | 50HZ |
Rated power: | 1.1KW/2sets |
| Vibratory times | 1440r/min |
| Capacity: | 200L |
Inner barrel size: | Φ690*H540 mm |
Inner barrel lining material: | PU glue |
PU glue thickness: | 20mm |
| Amplitude (mm): | 3-6mm |
Dimension： | L1500MM*L1300*H1285 |
The vibratory polishig machine is efficient and excellent for wheel polishing. Alloy wheels or aluminium wheels will get high brightness after finishing, It is an ideal pretreatment process for powder coating with transparent effect.
