Hobby Powder Coating Gun Kit COLO-660T-B

Powder coating gun with 2lbs fluidizing cup delivers smooth and consistent powder flow. This model is suited for small scale production, powder testing, or hobby use etc.
With the high-tech pulse powder coating function, COLO-660 series effectively increase transfer efficiency and save powder paintings.
  • COLO-660T-B

  • COLO

Availability:
Quantity:

Hobby Powder Coating Gun Kit COLO-660T-B

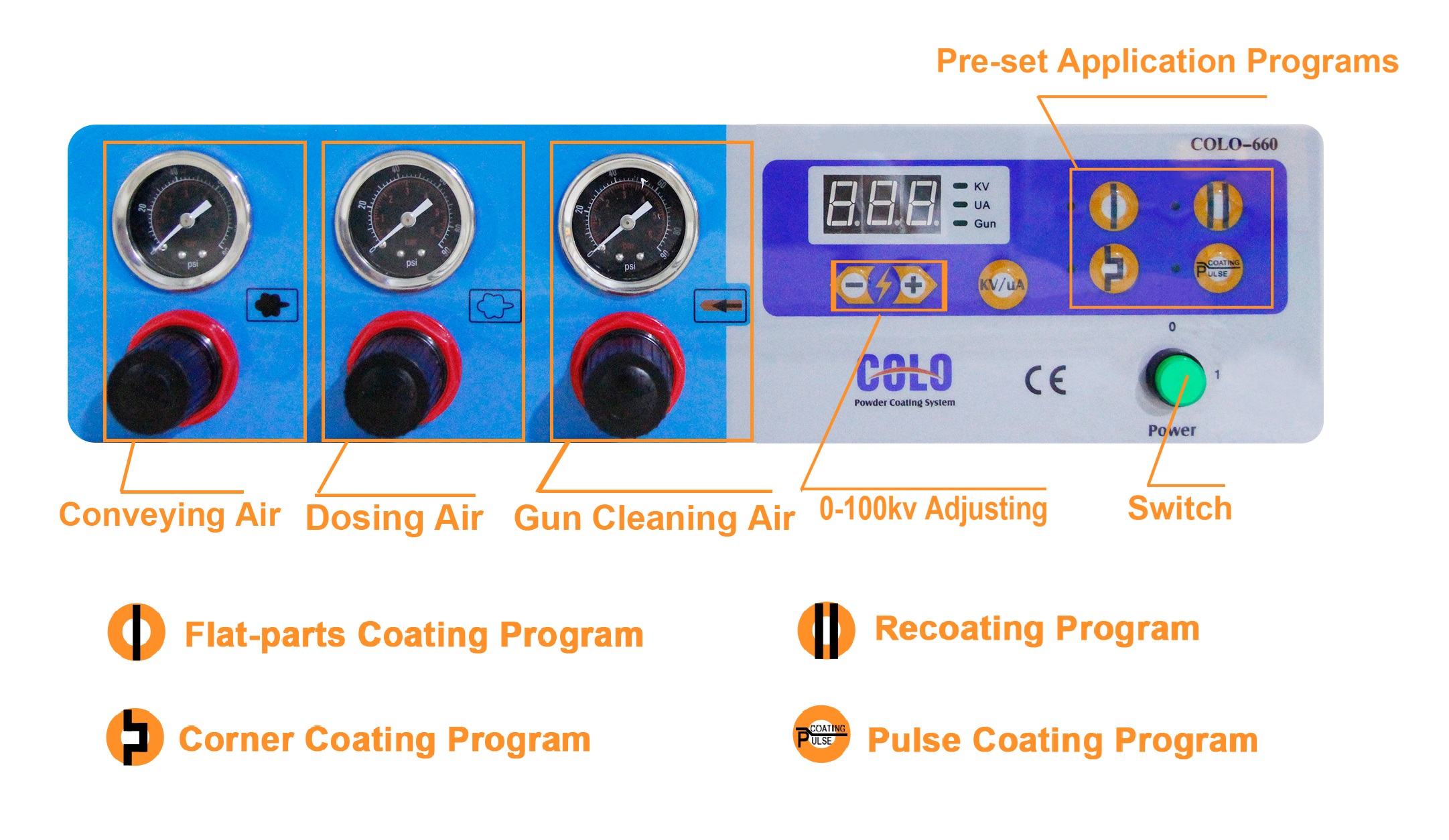

COLO-660 Powder Coating Gun Controller

powder coating gun control

1. The COLO-660 controller offers easy adjustment for high voltage from 0-100kv, the kv and amperage values will be shown on the digital display for accurate reading, as well as pressure regulation valves for powder output air, atomization air and gun cleaning air.

2. There are one-touch intelligent buttons stands for 4 preset powder coating programs: provide quick operation to get the best coating result for different shapes workpiece,

Flat coating: high-quality powder coating for flat parts.

Corner coating: for powder coating complex shapes and corners of parts.

Recoating: easy to operate when parts need to be secondary powder coated.

Pulse coating: rapidly and continuously recharges the powder to coat complex shapes and deep corners.

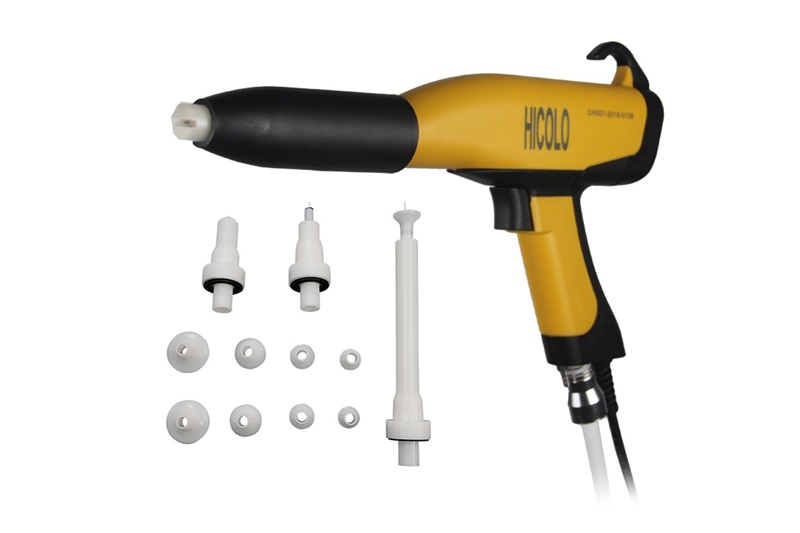

Electrostatic Spray Gun Features

powder spray gun

1. 100 kV powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.

2. Comes with full array of nozzle assortment to optimize your spray effect, including flat spray nozzles,  round spray nozzles with different size deflectors, and extension nozzles for touching deep corners.

3. 500g Lightweight manual spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

4. Robust structure and high-quality materials provides this spray gun a longer lifespan.


2lbs Portable Powder Hopper

powder coating gun hopper

1. Size: D10xH20cm, 2 Ibs mini hopper is ideal very small series production of powder testing, laboratory use.

2. The hopper can be quickly detached into small pieces for easy cleaning during color change, as well as assembled without any tools.

3. Incorperates with fluidizing plate which allows powders easily to be conveyed from the hopper to the gun with a high degree of uniformity and consistency

4. Powders stored in a well-sealed hopper will maintain a dry condition without moist, which is important to get a uniform powder output cloud and quality finishing results


COLO-660T-B Hobby Powder Coating Gun Components

1. COLO-660 Digital Intelligent Controller

2. COLO-08 100kv Manual powder gun corona type with 5m cable

3. Nozzle assortment, including fan spray nozzles, and round nozzles, extension nozzles.

4. Fluidizing well-sealed powder coating hopper, 2 lbs capacity

5. High quality powder injectors for smooth and uniform output

6. Grounded powder hose 5 meters, anti-static material

7. Oil-water separating filter

8. Other Installation tools and connections
