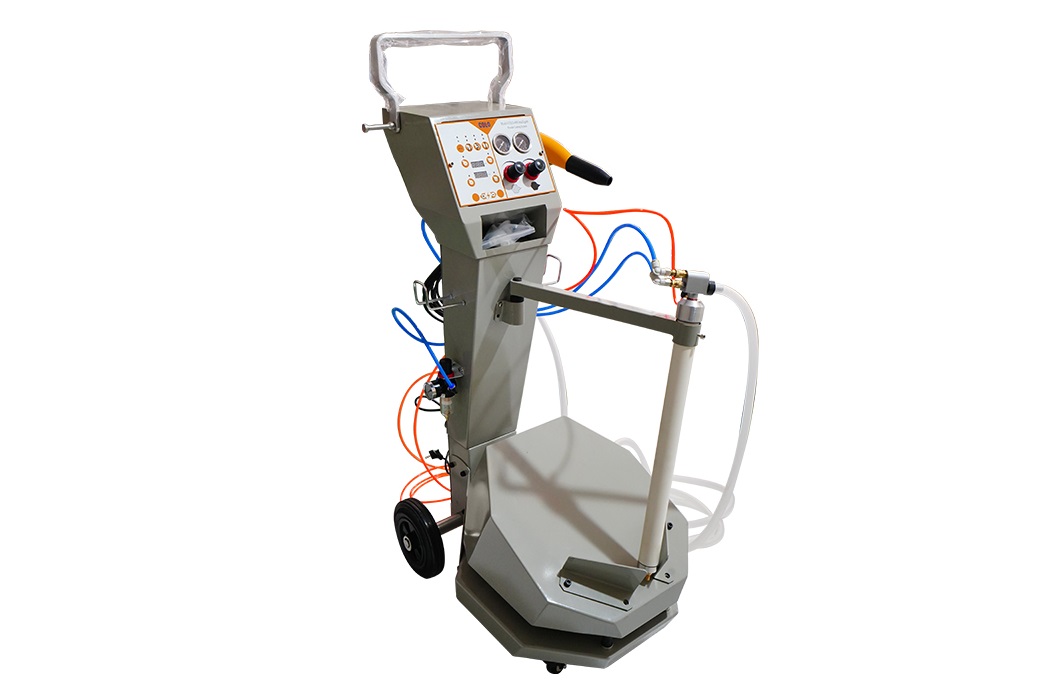

Box Feed Powder Coating System COLO-800D-V

This Box Feed Powder Coating System is an excellent model for users who has multi colors that requires to be changed frequently in powder coating process.
It is designed to place original powder carton on the inclined vibration table, allowing complete emptying of the powder box by fluidized suction tube.
  • COLO-800D-V

  • COLO

Availability:
Quantity:

COLO-800D-V Box Feed Powder Coating System

Intelligent Controller Features

colo 800d powder coating system

1. 0-100kv voltage easily adjustable by keyboards. Kv and Amperage values can be precisely read on digital display, which is powerful enough to handle any shape of parts. Power output air and atomization air are regulated by reliable pressure valves.

2. For beginners who are short of powder coating knowledge we offer one-touch intelligent operation buttons that stands for three pre-sets application programs, which can meet most basic or challenging needs.

Flat coating: ideal for flat shape workpieces.

Corner coating: ideal for complex shape parts with deep corners.

Recoating: ideal for repeat coating.



Electrostatic Spray Gun Features

powder coating gun

100 kV powder spray gun maximizes powder charging capacity, and always maintains highest transfer efficiency even after long time use, most powders are attracted to the metal parts with least material waste.

Comes with full array of nozzle assortment for optimal effect , including flat nozzles, round nozzles with a series of deflectors, as well as extension nozzles for better penetration of corners.

The lightweight and ergonomic design enables operators to do powder coating jobs at ease.



COLO-800D Powder Coating System Application

All setting for efficient powder coating are made simple and efficient on the COLO-800D, such as 0-100kv accurate adjustable for voltage, 3 pre-set applications programs. Flow meters permit easy setting of the optimum powder coating rate. In addition the corona voltage and current also can be checked on the digital display

The COLO-800D series intelligent powder coating system with proved performance specially balanced for the maximum spray capability with the smoothest finish possible, exclusive application of every kind of metal shapes, whether panels, profiles, or wheel rims.


COLO-800D-V Powder Coating System Components

1. COLO-800D Digital Intelligent Controller

2. COLO-08 100kv Light weight manual powder gun with 5m cable

3. Nozzle assortment, including fan spray nozzles, round nozzles with deflectors, and extension nozzles.

4. COLO self-designed powder injectors for smooth and uniform output

5. Flexible trolley with wheels, allows to move everywhere

6. Suction tube with fluidizing section

7. Vibration motor

8. Oil-water separating filter

9. Other connection tubes and installation kits.
