Our powder coating booth cyclone recovery system includes cyclone and filter recovery stages. Cyclone recovery is designed to deliver the industries most flexible color changing operation due to the superior efficiency of overspray collection.
The whole recovery unit attaches directly to the booth, minimizing space needs and diminishing potential contamination concerns. It works effectively for both manual and automatic spray operations.

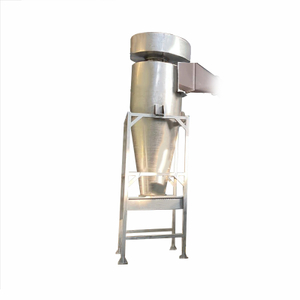

Cyclone Recovery system
Cyclone systems are characterized by a cyclone chamber that handles all of the exhausted air from the booth.
The air is moved in a rotational pattern around the chamber, which separates particles based on size for further filtration.
The heavier particles fall down into a collection tray, while the rest are propelled upwards to a filter section.
cyclone systems can typically have a recovery efficiency of approximately 85% to 95%

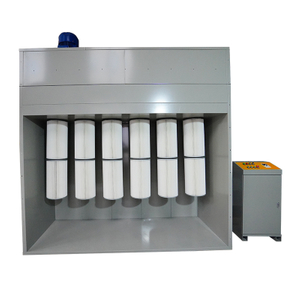

Filter Recovery Stage
The stage containes a group of high-precision cartridge filters that is capable of capturing approximately 99 percent of powder that passes through them.
Particles that accumulate on the filter will be periodically released thanks to a pulse air jet controlled by solenoid valves
Our cartridge filter are fitted with "Rotary-Wing" system inside, which increases cleaning efficiency of surface area and ensures long-term performance of the filters.
Powder Coating Booth Cyclone Recovery System Specifications
| Power Supply | Electric |
| Nominal Power | 7.5 kW |
| Voltage and Frequency | Customized as local |
| Cyclone | 9 pcs |
| Pulse Soleniod | 9 pcs |
| Filters | Polyester |
| Filters Count | 9 pcs |
| Filters Hang Type | Rotary wing type |
| Filter Cleaning System | Pneumatic |
| Powder Collector | 1 set |
| Total Height | 3348mm |
| Warranty | 12 months |
