Sandblasting & Powder Coating Equipment Package for Car Rim

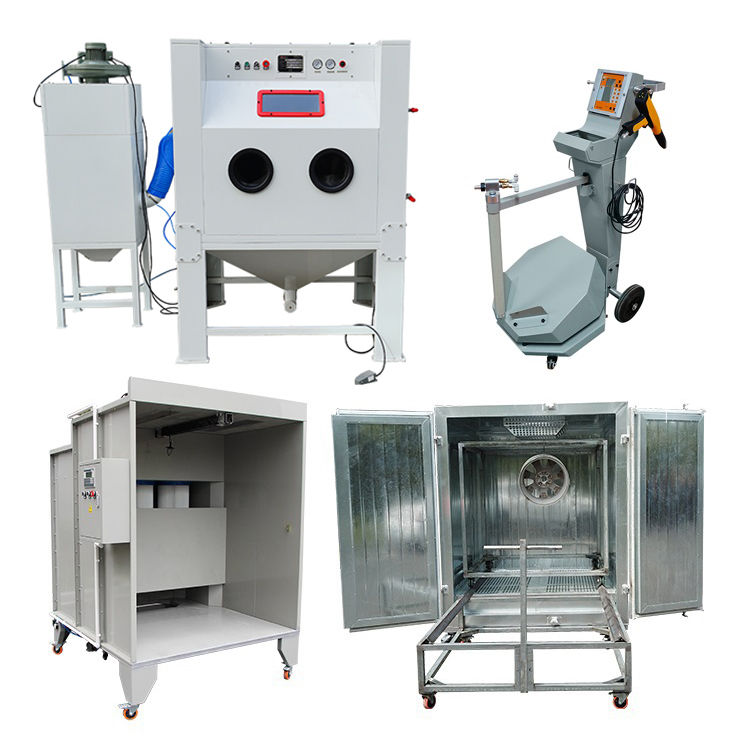

Sandblasting & Powder Coating Equipment Package

Including sandblasting cabinet, powder coating gun, powder coating booth and powder curing ovens, this manual equipment package gives an easy and quick start of powder coating business. efficient and econimical solution for coating rims, and other small objects such as bike and bicycle accessories.

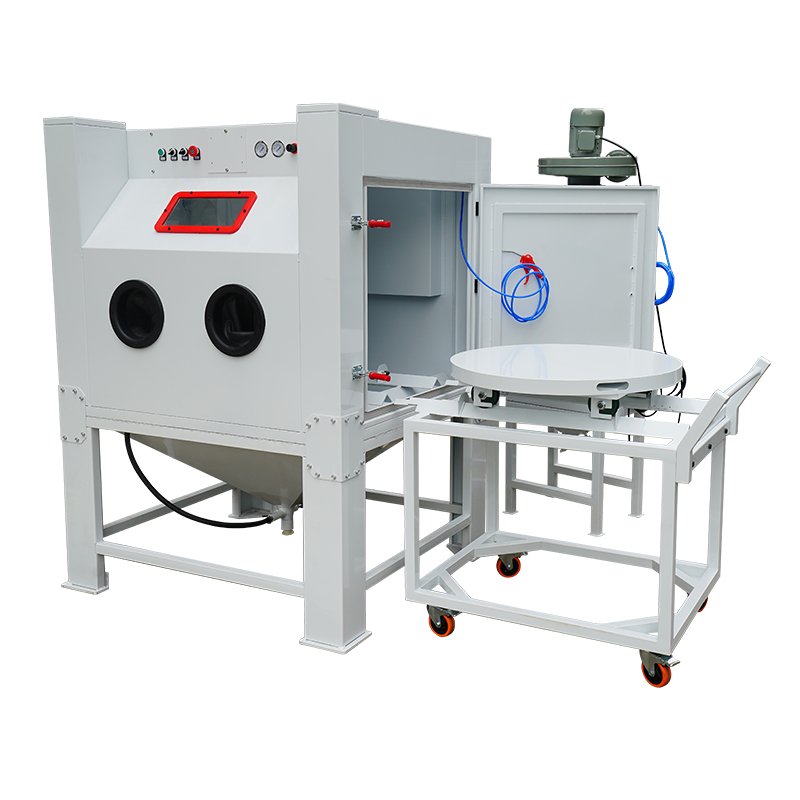

COLO-1212 Sandblasting Cabinet

Pretreatment tool for powder coating, completely clean of oils, dirt, old paint, rust, corrosion, ensure quality results. The sandblast cabinet using compressed air as force, accelerates media to impact and grind with treated surfaces, effectively get required finish.

Specifications

Operator dimensions: Length1200 * Width1200 * Height800 (mm)

Overall dimensions:: Length1200 * Width1680 * Height1840 (mm)

Door Size: W830xH770mm

Power Supply: 220V/380V/410V450V(50-60Hz)

Motor Power:0.75kw

Dust Collector: Cartridge filter

controll system: Electric & Pneumatic

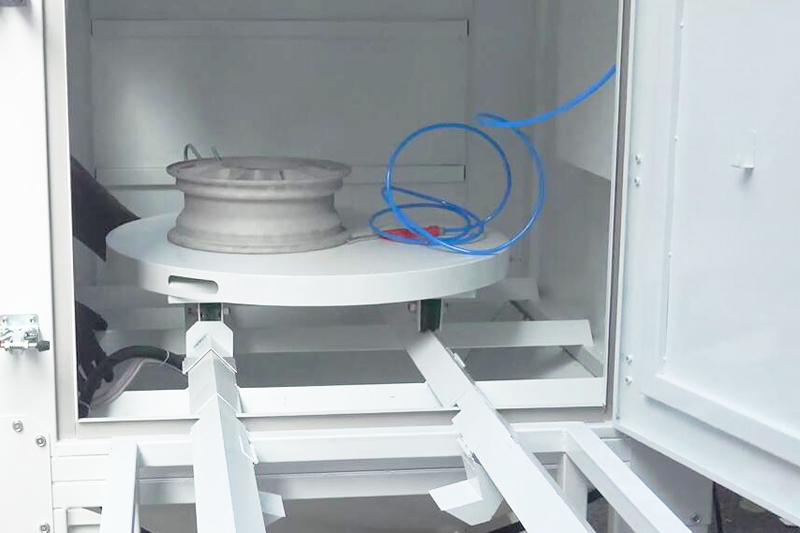

Optional: Rotating Turtable Loading Cart and track

Spare parts: Sandblasting gun, boron carbide nozzle, Air blowing gun, Blasting hose, Sandblasting gloves

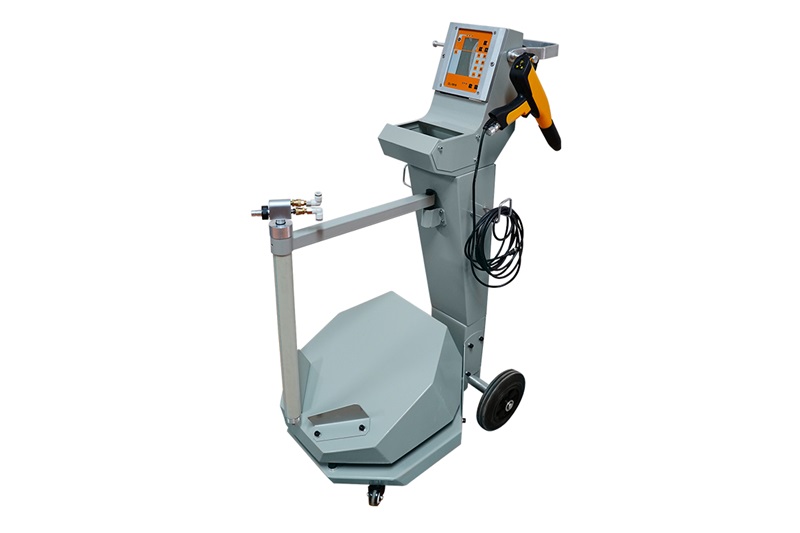

COLO-191S Powder Coating Spray Gun

COLO-191S powder coating gun uses advanced digital valve controlled technology, delivering more uniform and smooth powder flow, which ensures perfect coating results. The powerful control panel offers great experience for both beginners and specialists.

Configurations and Features

1. Digital controller allows precise setting and reading processing paramters

2. Three pre-set application programs stand for flat parts, profiles, re-coating.

3. Allows users create and store 20 kinds of programs for individual jobs.

4. 100kv manual spray guns delivers high transfer efficiency with long time working

5. Box feed type, direct put the powder carton the the inclined table, suitable for muilti color application.

6. Compact design, easy to move and save space

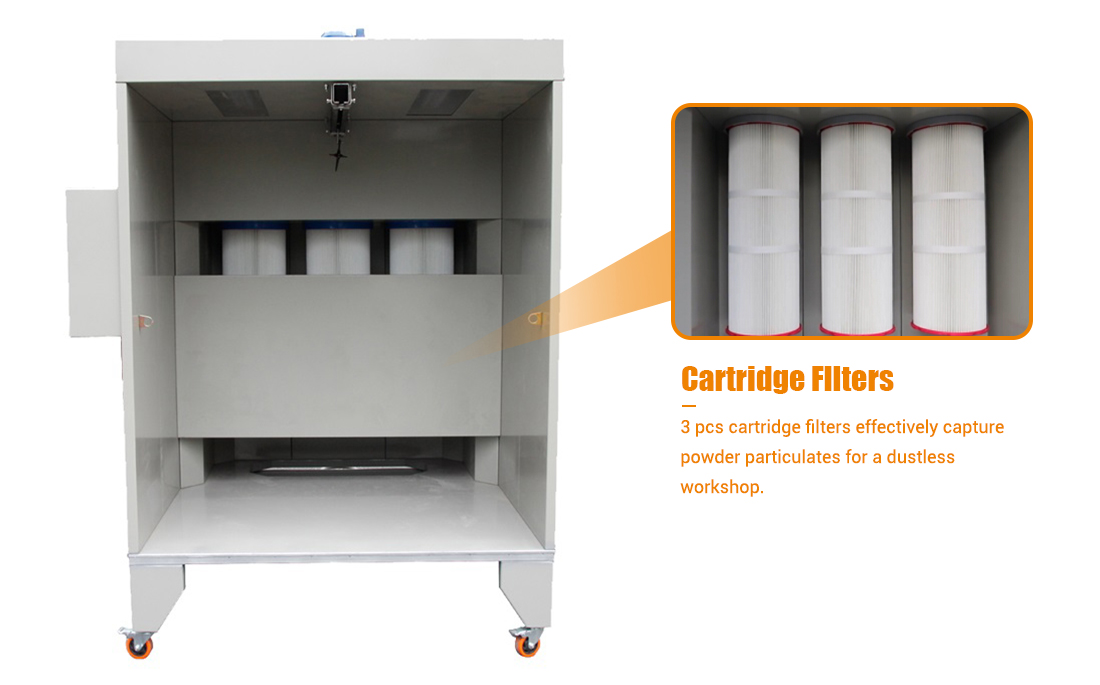

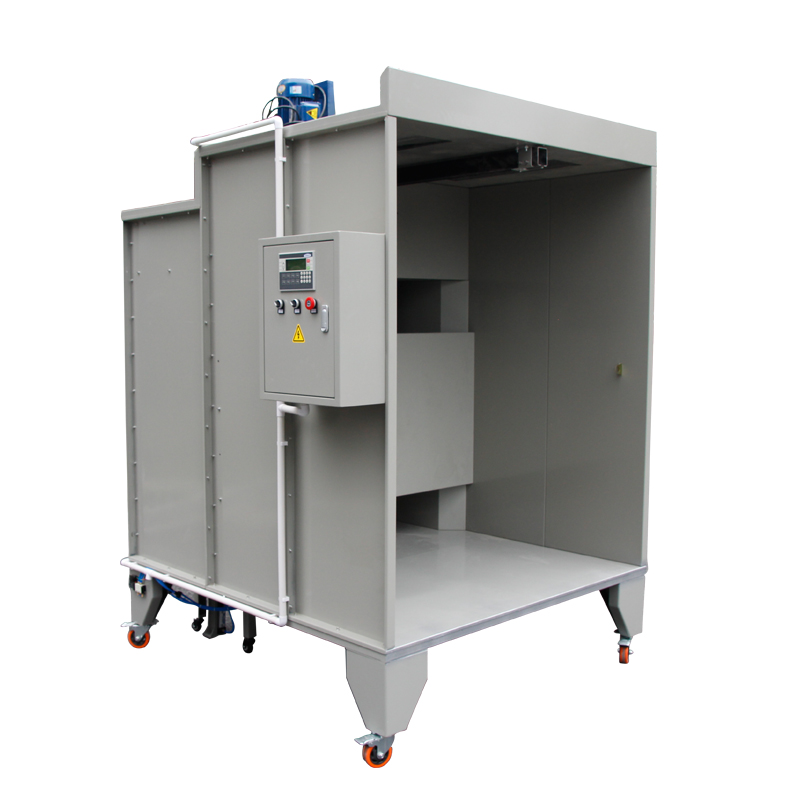

COLO-1517 Powder Spray Booth

This open-faced manual powder coating booth consists of 3 pcs cartrifge filters for high efficiency powder recovery that makes clean and dustless working condition. The compact powder booth is made of durable steel plate by powder-coated, sturdy and long lifespan

Specfications

Model: COLO-S-1517
Operator dimensions: Width1500 * Depth1000 * Height 1700 (mm)
Overall dimensions: Width1640 * Depth2070 * Height2180 (mm)
Power supply: Electric
Nominal power: 2.2kw
Voltage: 220V380V, 3Phase
Frequency: 50-60Hz
Filters Material: Polyester
Filters count: 3pcs（325*900）
Filters hang type: easy for change
Filter cleaning system: Pneumatic
Air consumption: 4000m3/h

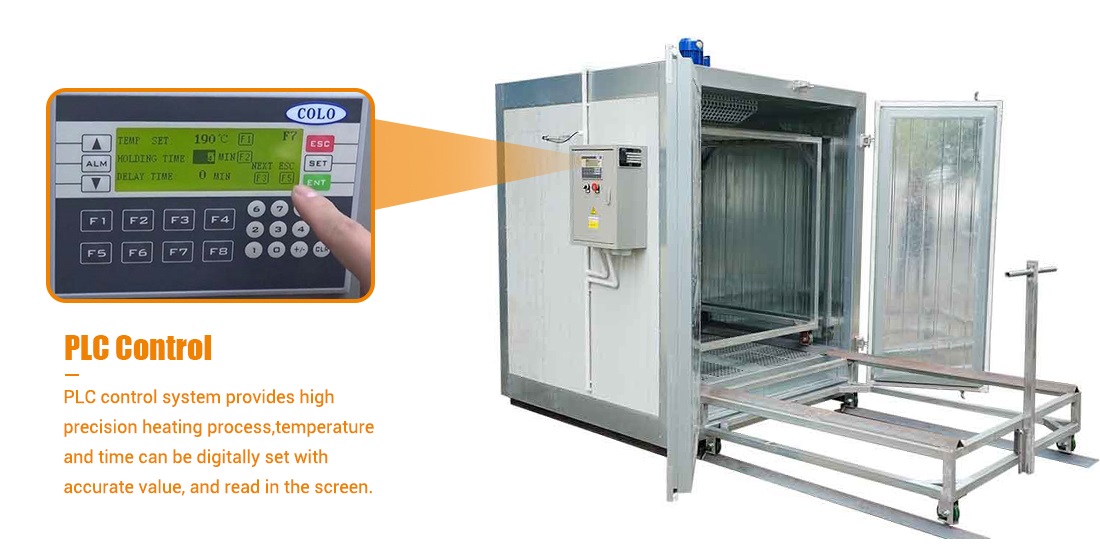

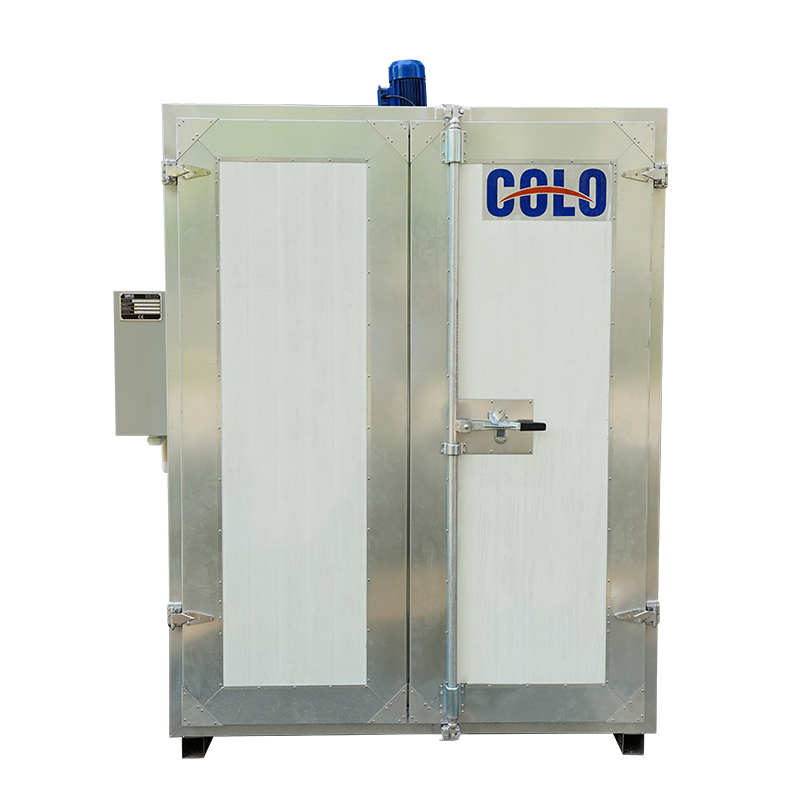

COLO-1864 Electric Powder Coating Oven

This basic size powder coating oven heated by electricity features user-friendly and environmetal protective. A circulation fan cycles hot air uniformly and ensures quality curing effect. Constructed by 100mm thick rockwool insulation board, heating preservation is well achieved.

Specifications

Operator dimensions: width1600 * height1800 * depth1400 (mm)
Overall dimensions: width1900 * height2200 * depth1700 (mm)
Power supply: Electric/ 18kw
Voltage/Frequency: 380V/220v(50-60hz)
Warm-up time: 15-30 min. (180°?C)
Temperature stability: < ± 3-5°C
Temperature max.: 250°C
Ventilation performance: 805-1677m3/h
Motor power: 0.75kw
Circulation/ Air flow: Vertical ,Variable through holes on the walls
Transportation: Trolley
