Alloy Wheel Powder Coating Equipment Package Application
This alloy wheel powder coating equipment package gives an easy and quick start of powder coating businesses. With quality powder coating equipment can completely renovate and establish all your metal parts in new look and high performance. COLO powder coating system has been supplied to worldwide for their excellent application.

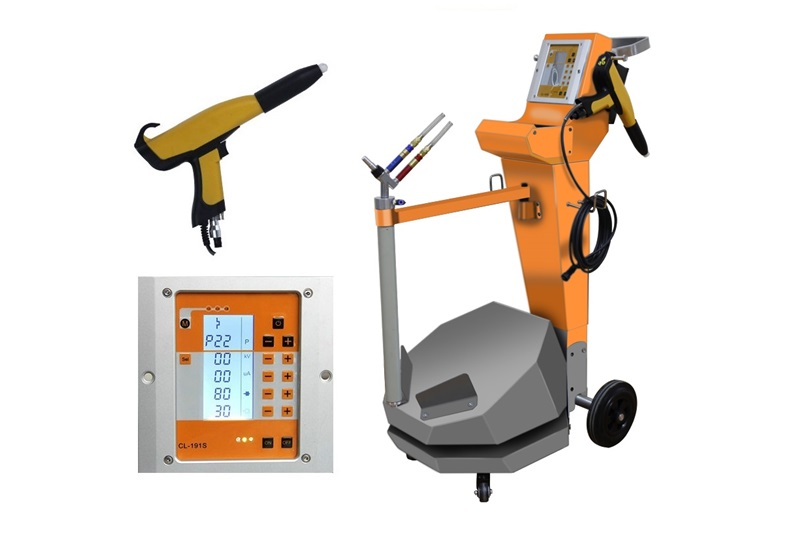

COLO-191S Powder Coating Gun
COLO-191S manual powder coating gun is world-known as it provides easy and efficient job, an excellent tool for both beginners and specialists. Based on COLO's 15+ years technology, all kinds of metal parts can be perfectly coated with this model, even with challenging corners.
Configurations and Features
1. Digital valve control technology allows precise setting of all electric and pneumatic parameters.
2. It has 3 intelligent pre-set programs, including flat parts, profiles, re-coating applications.
3. Allows experienced users to store 20 personalized programs for different parts and powders.
4. 100kv powerful spray guns always delivers highest transfer efficiency even during long time jobs.
5. Box feed type suits for fast color change.
Powder Coating Gun Specifications
| Power Range | 220V/110V |
| Frequency | 50HZ/60HZ |
| Temperature range in use | -10 ℃+50 ℃ |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input Voltage | - 200kv |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100KV (adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative (-) |

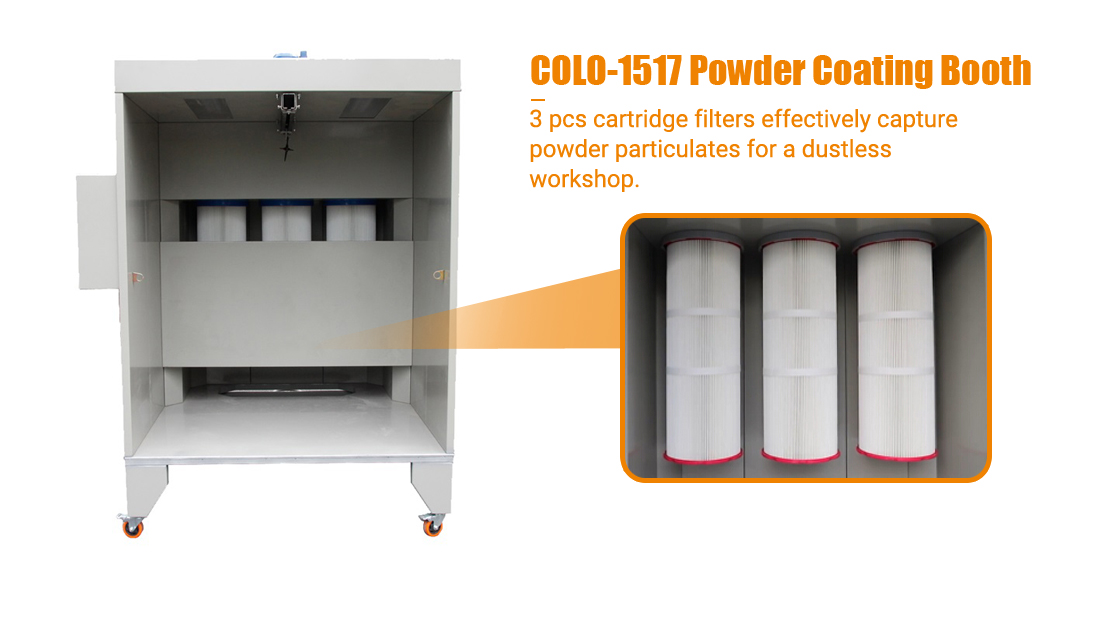

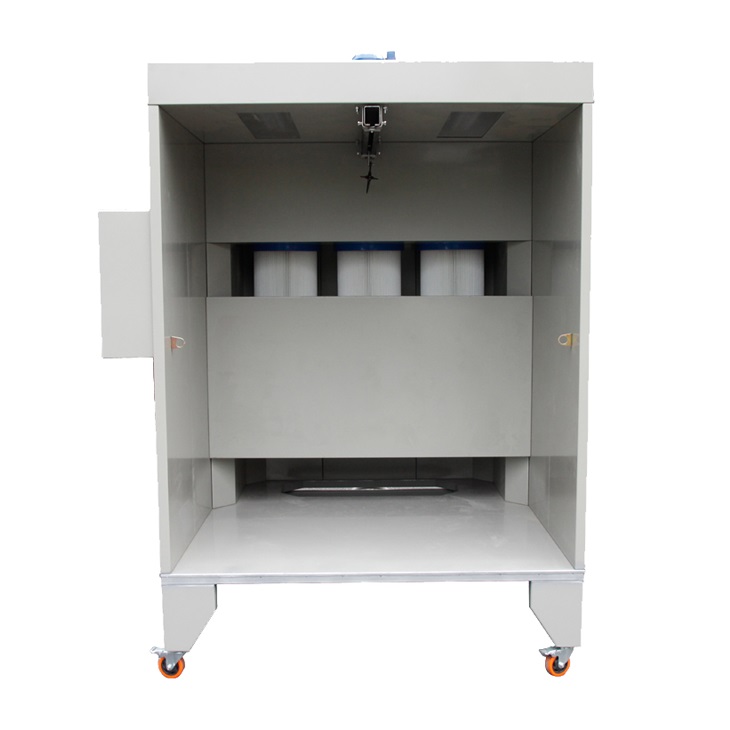

COLO-1517 Powder Coating Booth
This open-faced manual powder coating booth consists of 3 pcs cartrifge filters for high efficiency of powder collection, which ensures recovery rate and create dustless working condition. The compact powder booth is made of durable steel plate by powder-coated procedures, sturdy and long lifespan.
Configurations & Features
1 High-precision filters ensures only particle-free air discharged to workshop and increase powder recovery rate.
2. These filters are intervally cleaned by releasing accumulated powders, which extends the filters' lifespans.
3 A user-friendly PLC panel integrates all functions, such as turning on / off the fan, setting pulse-jet for filter cleaning, light on/off, emergency stop, etc.
4 Built with energy-saving lights provides bright and precise powder coating jobs.

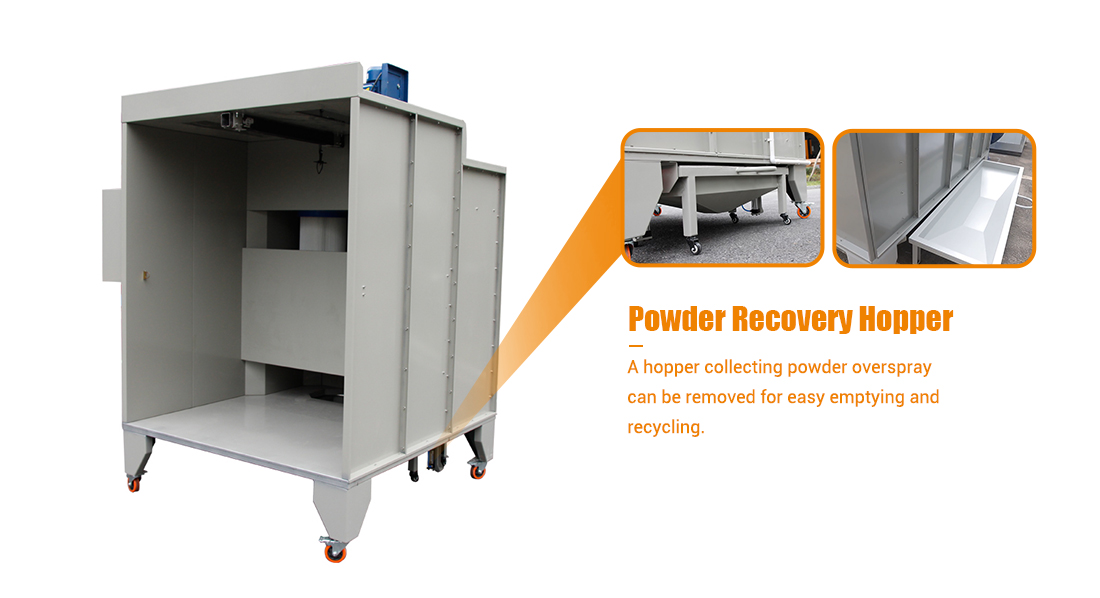

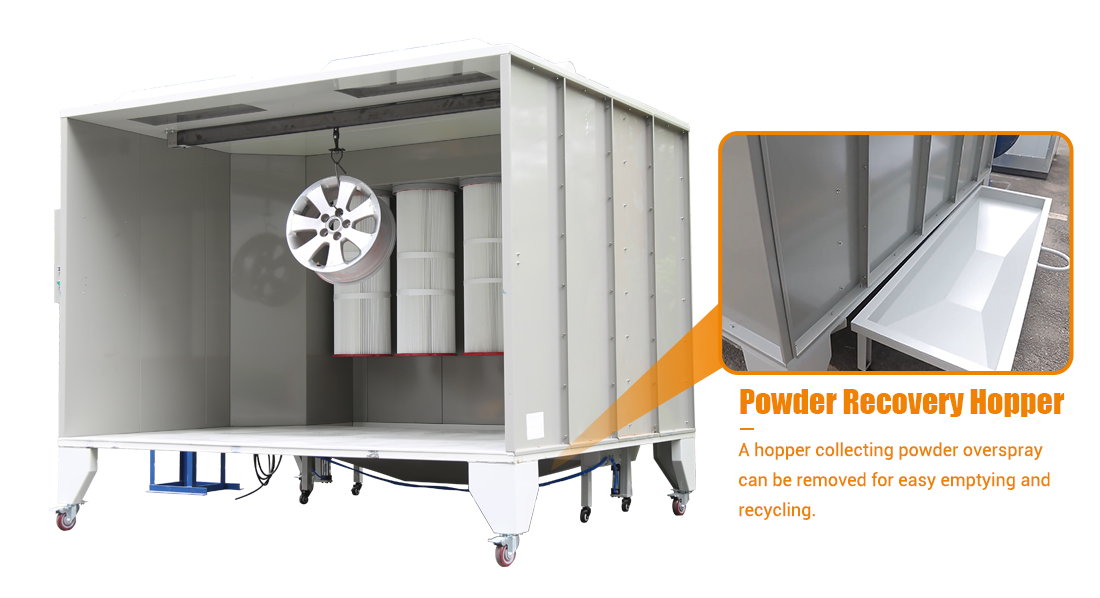

5 A removable powder hopper beneath the filter unit simplifies the utilization of recovery powders.
6 A high-performance fan built on the roof for saving space, and efficiently circulates air with low noise and less energy.
Powder Coating Booth Specfications
| Model | COLO-S-1517
|
| Operating Dimensions | Width1500 * Depth1000 * Heght1700mm |
| Overall dimensions | Width1600 * Depth2000 * Heght2250mm |
Weight
| 480kg
|
Power Supply
| 220V/380V, 3Phase, 50-60HZ
|
Fan Power
| 2.2kw
|
| Powder Recovery | Cartridige Filters(D325 x H900mm) |
Filter Count
| 3 pcs, Quick-release Type
|
Filter Material
| Polyester
|
Filter Cleaning
| Pneumatic
|
Air Consumption
| 4000m^3/h
|

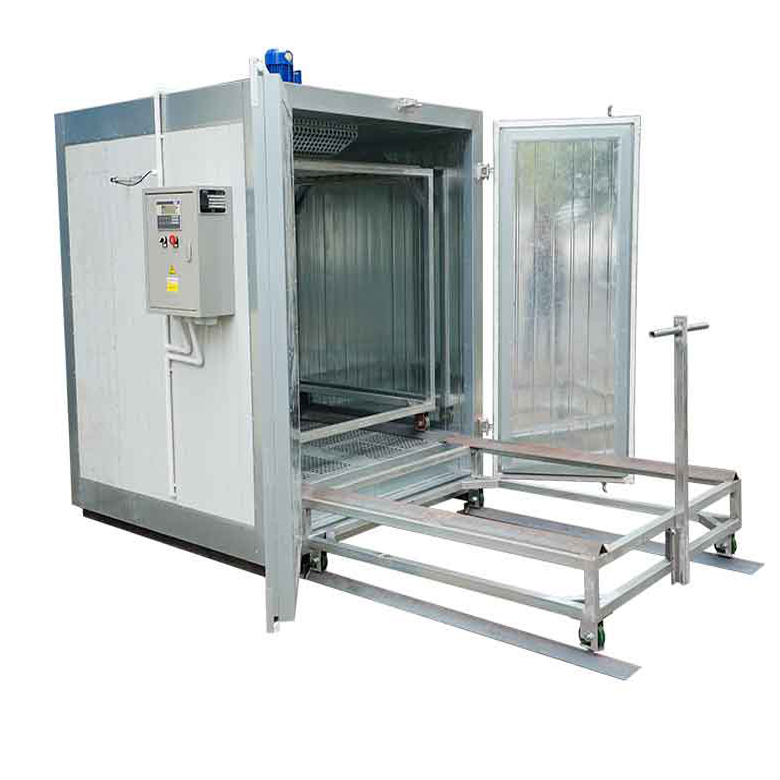

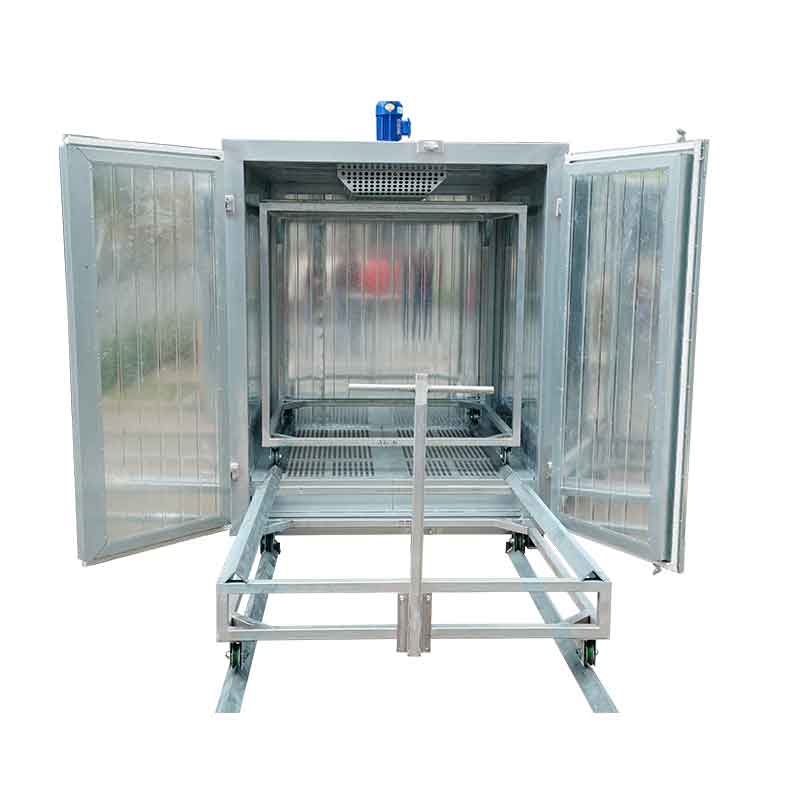

COLO-1864 Electric Powder Coating Oven
This basic size powder coating oven heated by electricity features user-friendly and environmetal protective. A circulation fan cycles hot air uniformly and ensures quality curing effect. Constructed by 100mm thick rockwool insulation board, heating preservation is well achieved.
Configurations & Features
1 COLO powder coating oven utilizes a sandwich panel design. Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins.

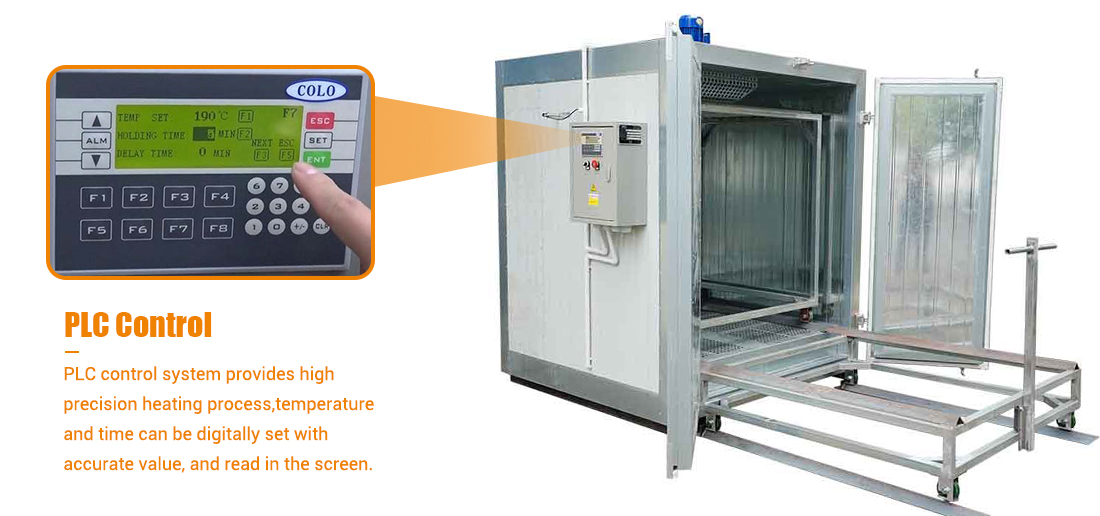

2 The powder coating oven applies PLC control system offering user-friendly interface for users to set the heating temperature and heating time accurately.
3 Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber, ensures powder curing effect.
4 Standardly equipped with a pair of carts: internal one and external one, It is a superior solution that allows loading batch of workparts taking full utilizing of oven space, as well as easily carrying heavy elements.
Powder Coating Oven Specifications
| Model | COLO-1864 |
| Working dimensions | Width1600 x Height1800 x Depth1400 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months
|

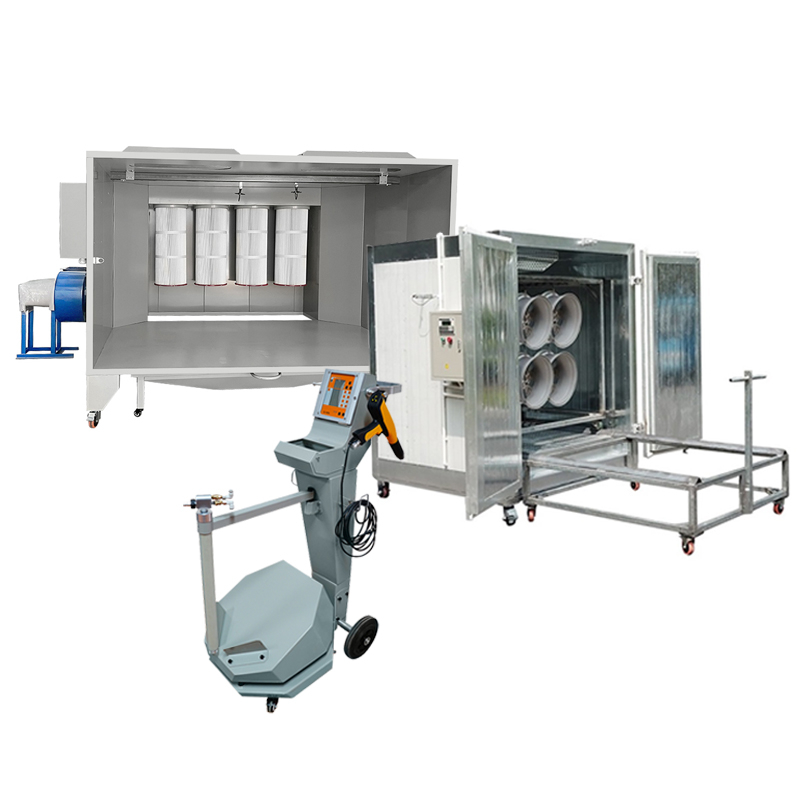

Powder Coating Equipment Package Customer Case
We have supplied a variety of powder coating equipment packages overseas, including different combinations, powder coating machines you can choose hopper type or box feed type, powder coating booth you can choose our standard modes from 1m to 3m or customize sizes, powder coating oven also you can choose electric type or gas type with standard or customized sizes.
With COLO over 15 years on studying and manufacturing powder coating equipment, you will get excellent experience from the efficiency, performance and reliablity. COLO products are one of the most valuable choice in the market.
