COLO-L-M01
COLO

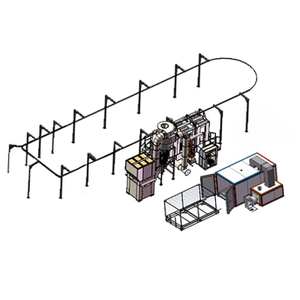

This manual powder coating line includes manual coating machine, pass thru powder coating booth and curing oven, ideal for continuous batch production of workparts.
With the assists of manual-pull overhead conveyor system, it greatly reduce labor efforts for operating big and heavy workparts. Comparing with automatic system, it requires less factory space and fund investment.

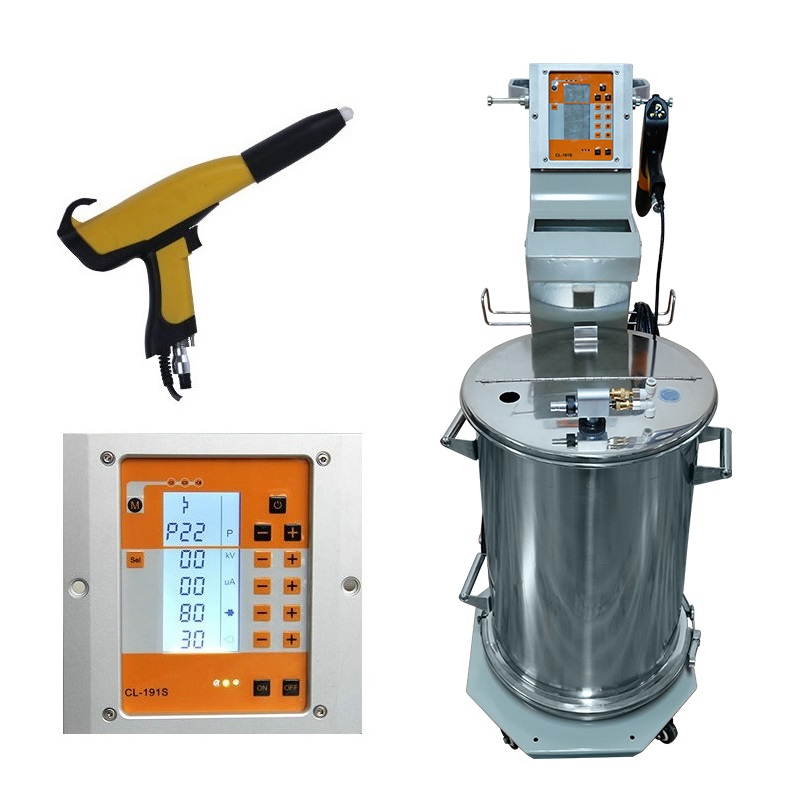

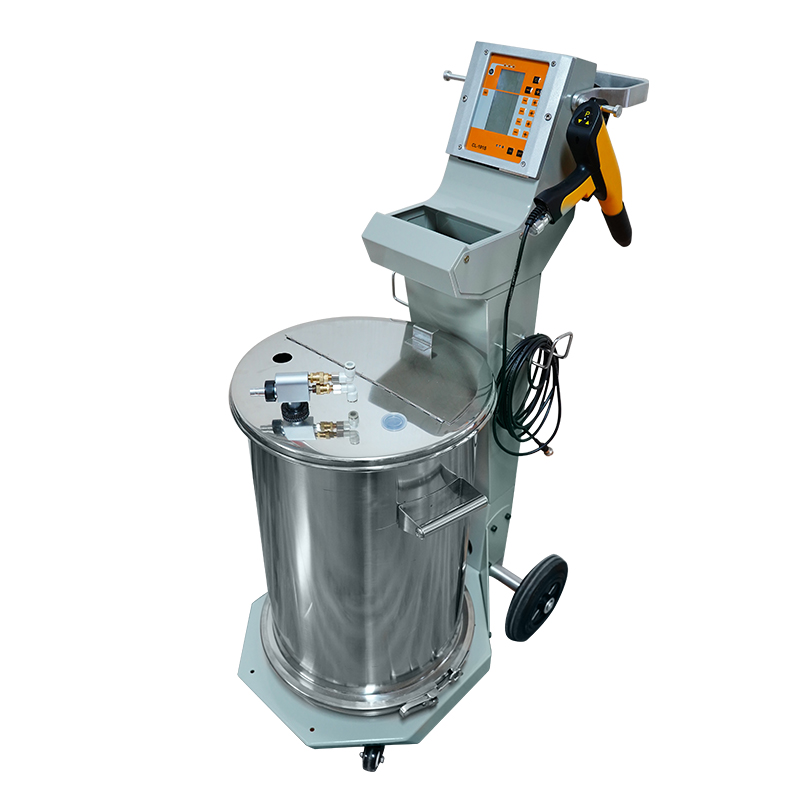

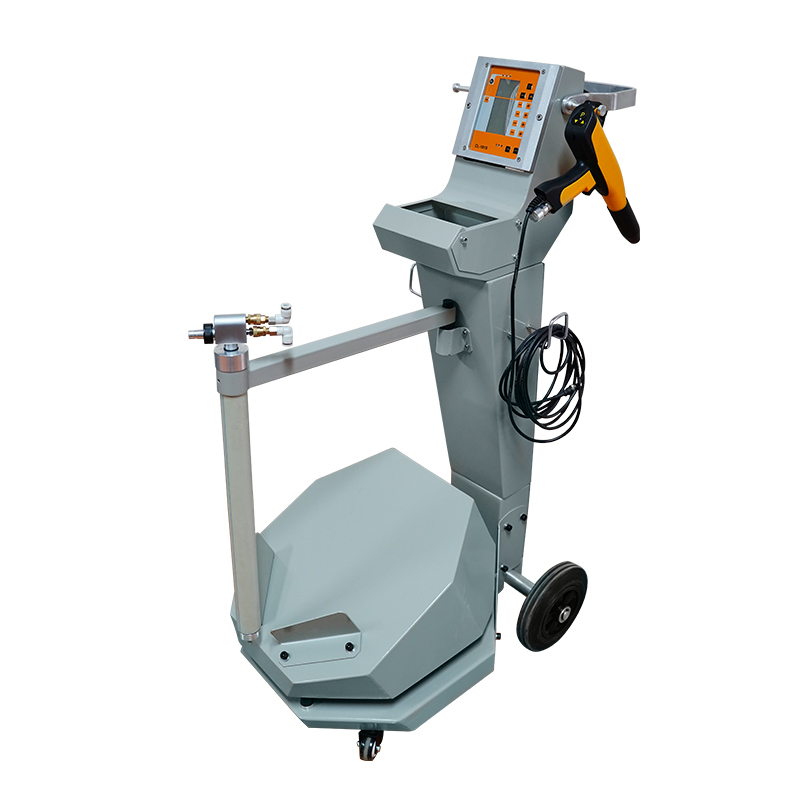

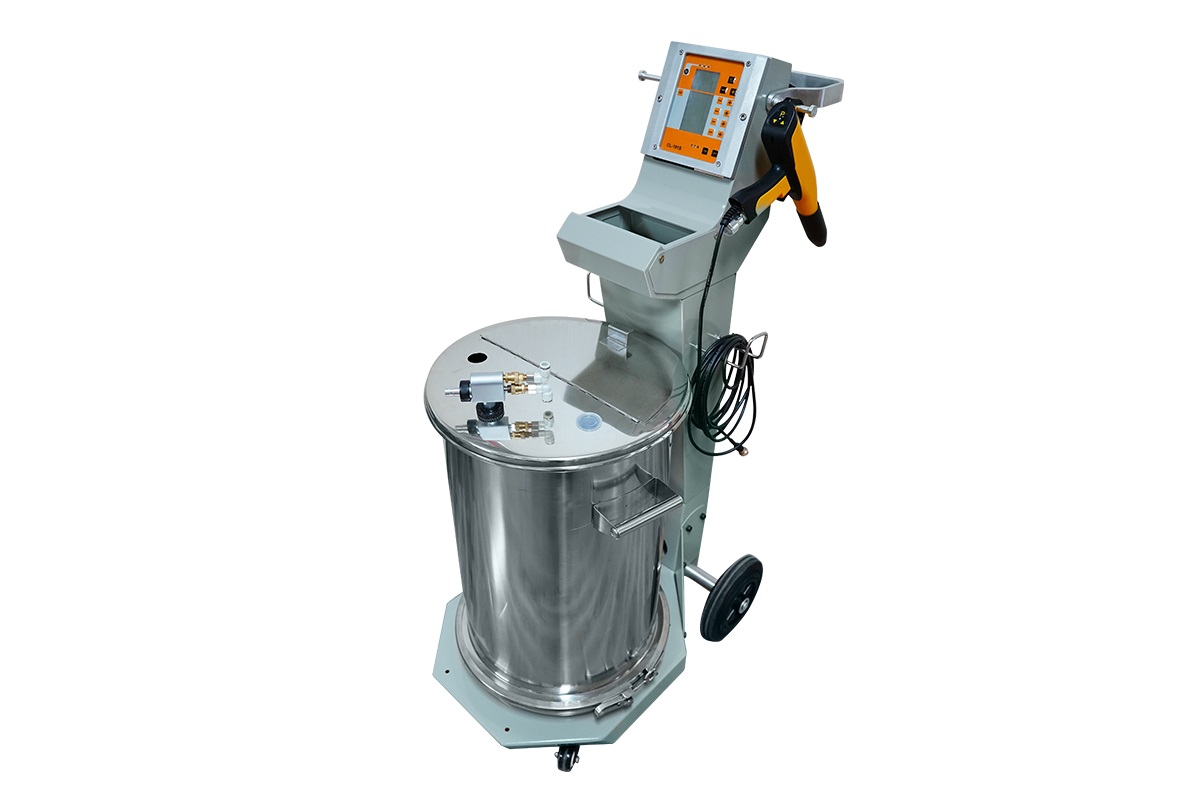

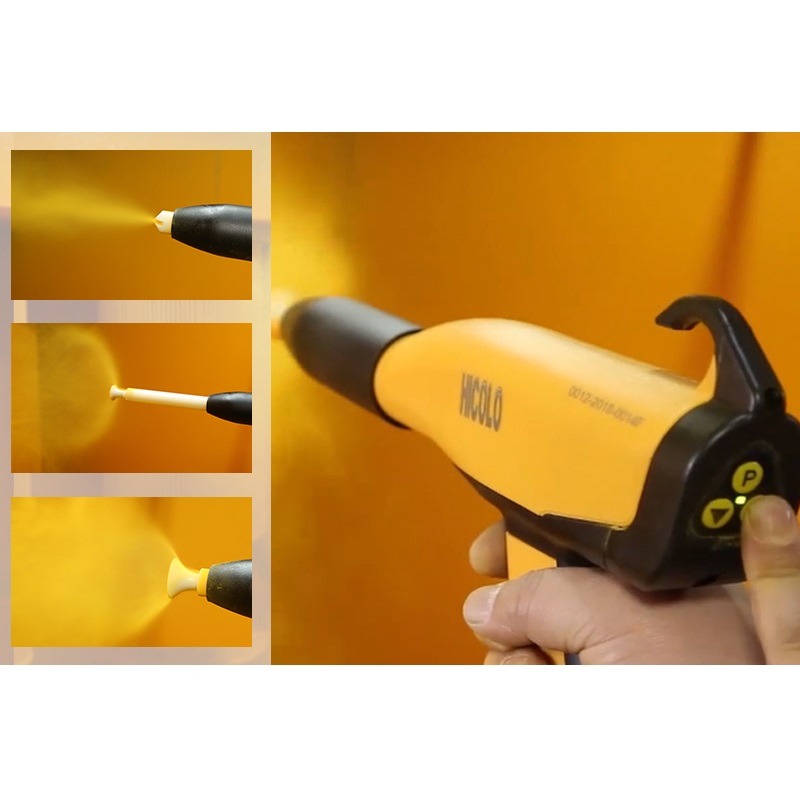

COLO-191S manual powder coating gun is developed for easy and efficient job, suits for both beginners and specialists. Based on COLO advanced technology, especially complex parts with deep corners can be perfectly coated with this model.
Configurations and Features

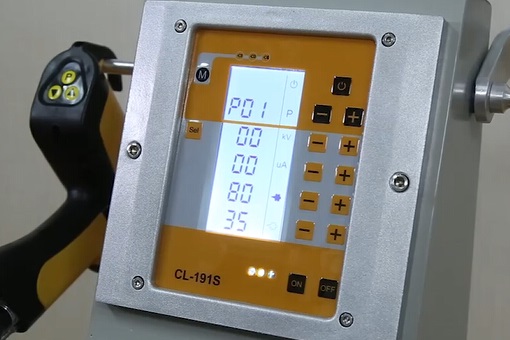

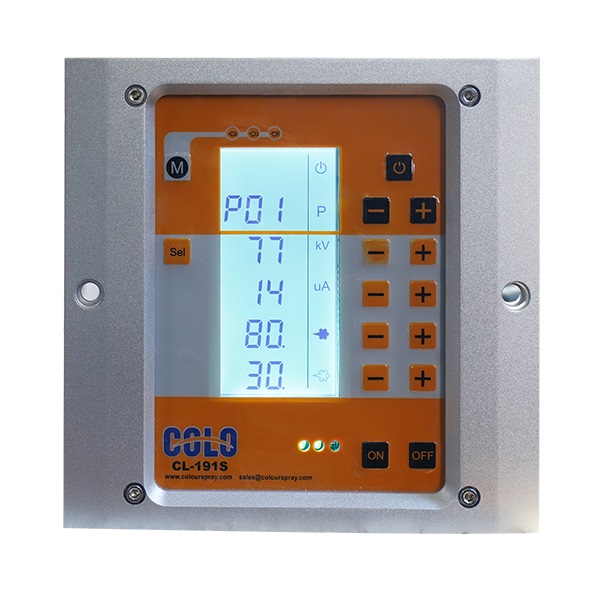

1. Applies latest technology allows precise setting electric and pneumatic parameters. The flexible control helps operators find the optimal data for each part, each powder.
2. It has 3 pre-set programs designed for beginners by application of flat parts, profiles and re-coating, and allows experienced users to create and store 20 personalized programs.

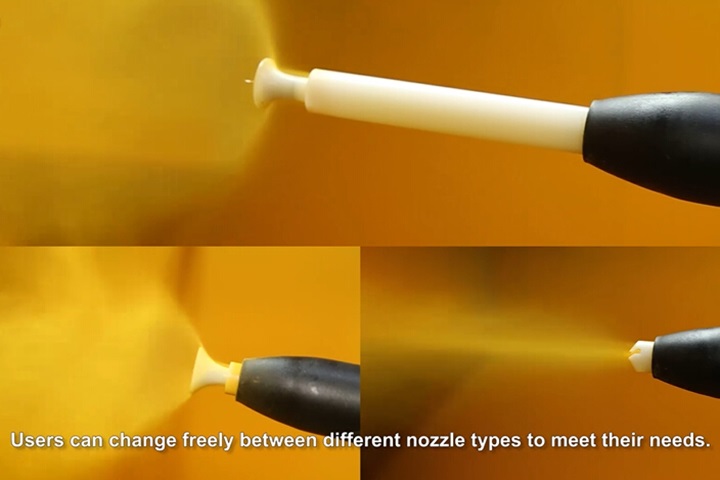

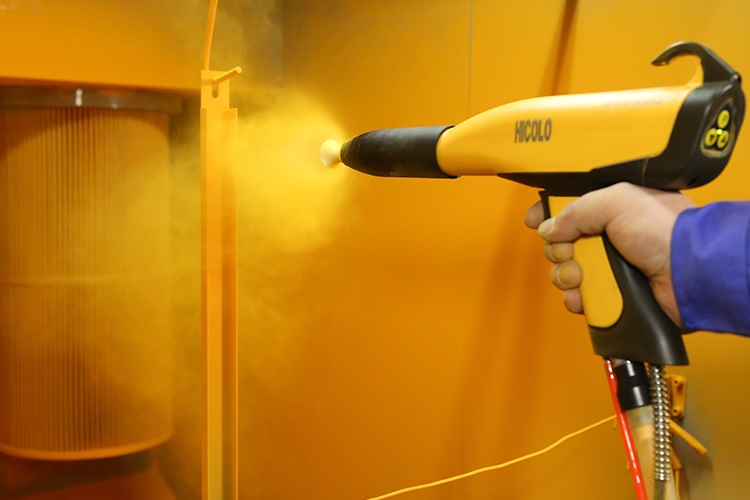

3. 100kv manual electrostatic spray gun delivers high transfer efficiency that saves time and powder. Nozzles with different spraying patterns help easily coat different shapes.
4. 60lbs fluidizing powder hopper allows big continuous production. Powder in this well-sealed hopper that never gets damp

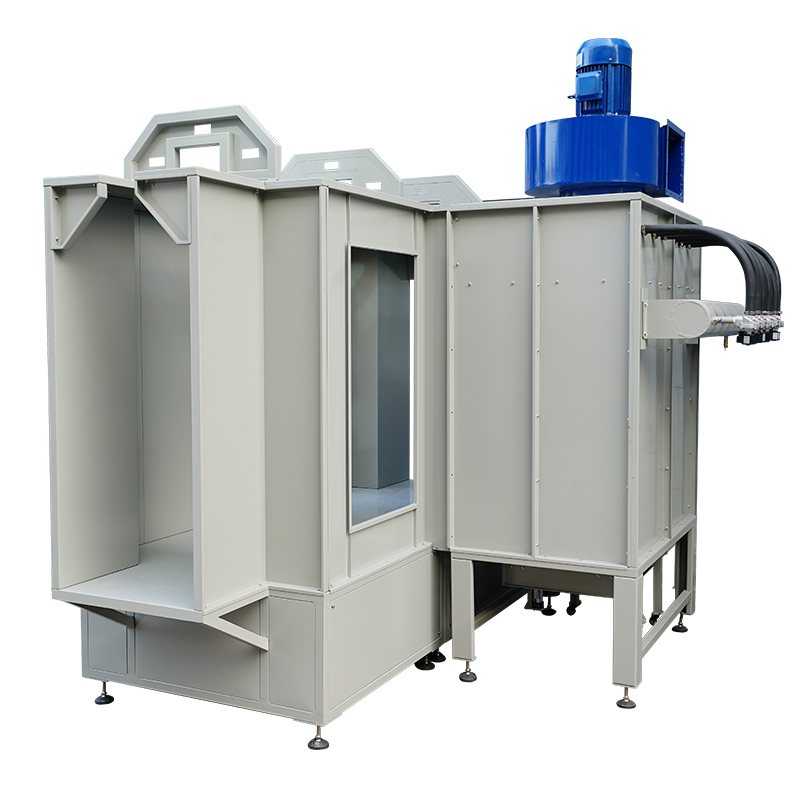

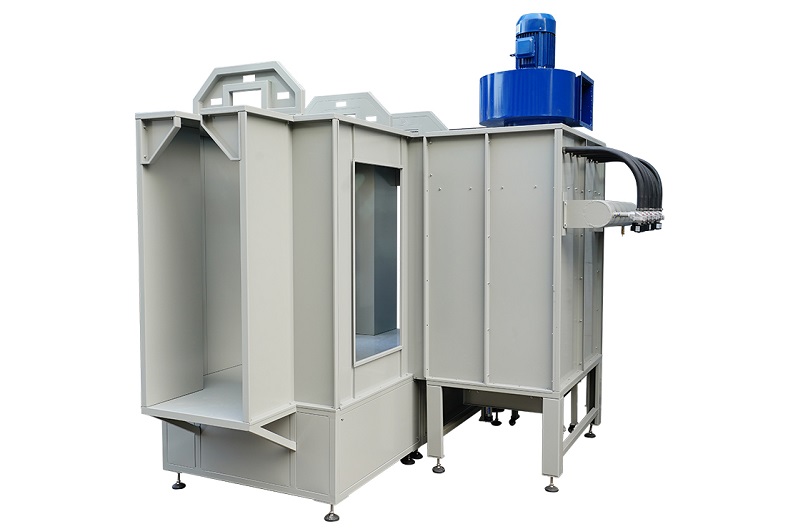

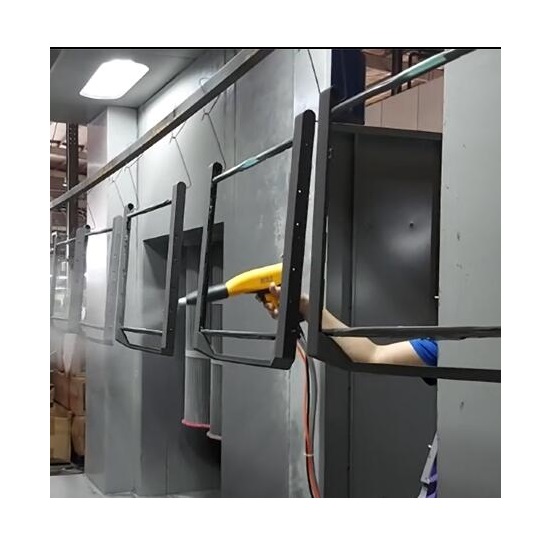

This pass thru powder coating booth has 2 working station allows parts recieving coating from both side, parts enter the booth from one entrance and exit from the other through conveyors, continuous coating increases efficiency and ensures application quality.
Configurations & Features

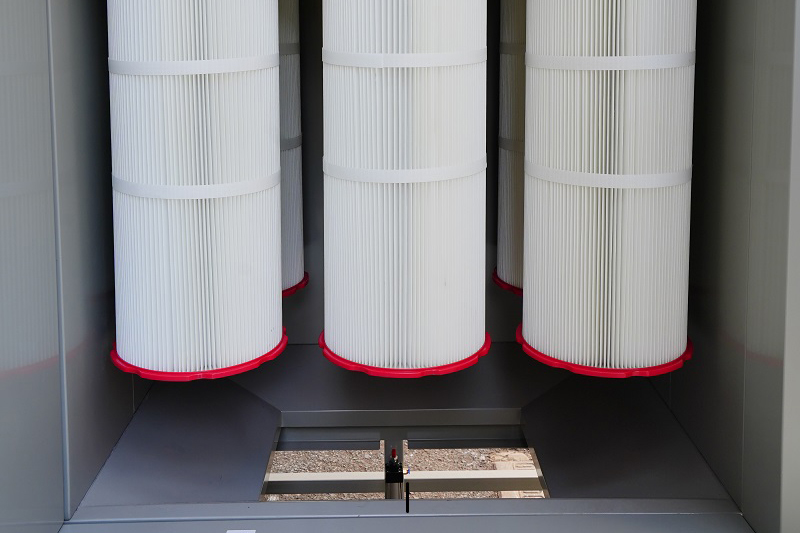

1. The recovery module combines a group high-precision filters made of 100% polyester that maximize separating efficiency
2. Automatic Interval filters cleaning by pulse jet device are programmed in PLC control, effectively eliminates powder accumulation and prolongs filters' useful life.

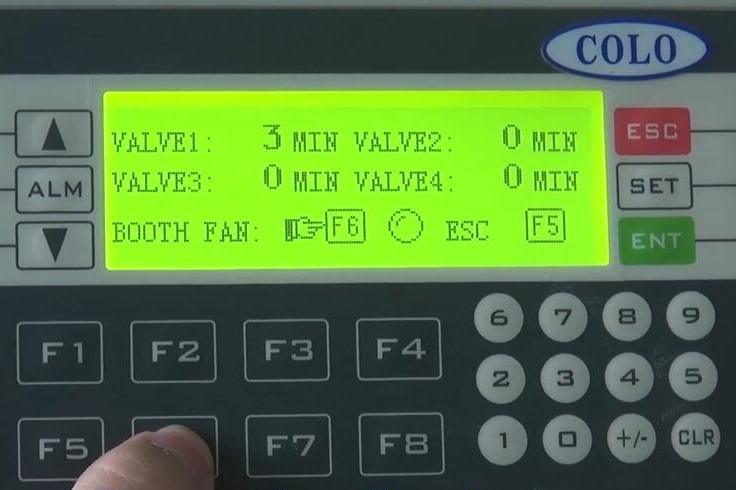

3. Full parameters and functions can be handled on the PLC panel, such turning on / off fan, setting pulse-jetting time and interval, light on/off, emergency stop etc.

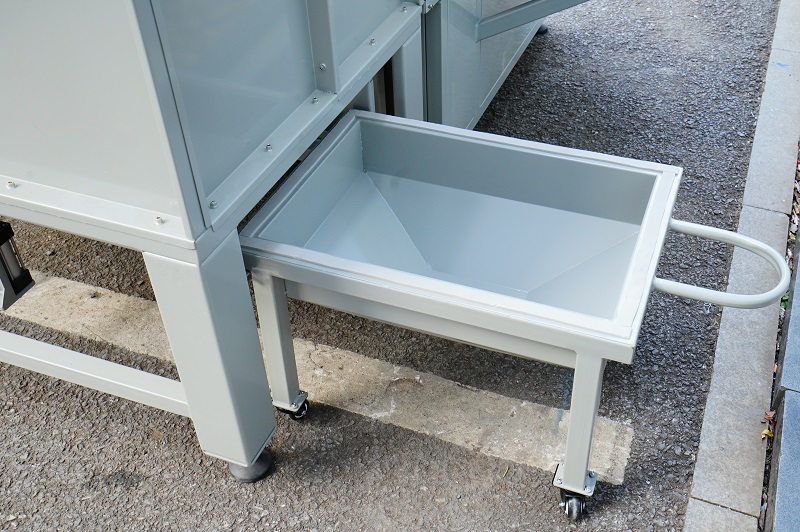

4. A collection hopper beneath the filter stage ensure the collected overspray powders are clean, and can be easily taken away for recycling.
5. Simple installation - only electrical and air connections are required to start production.

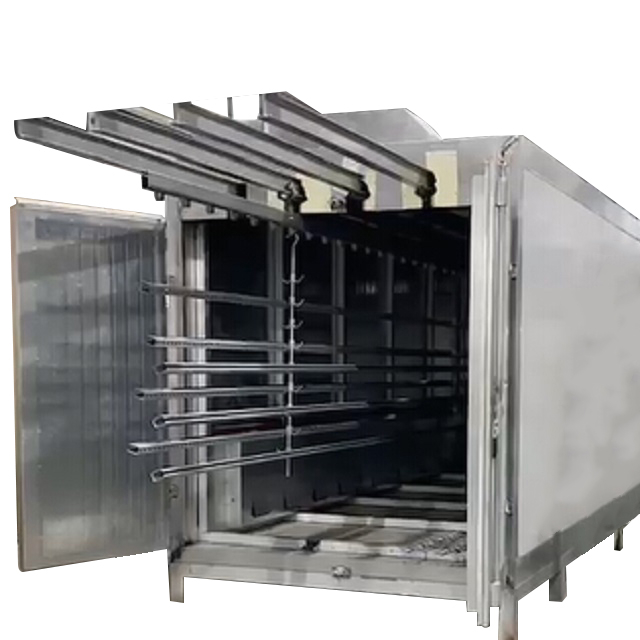

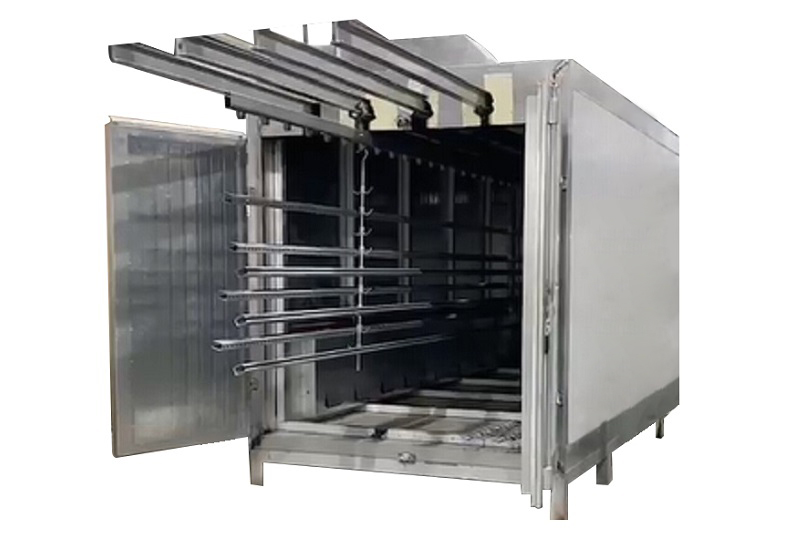

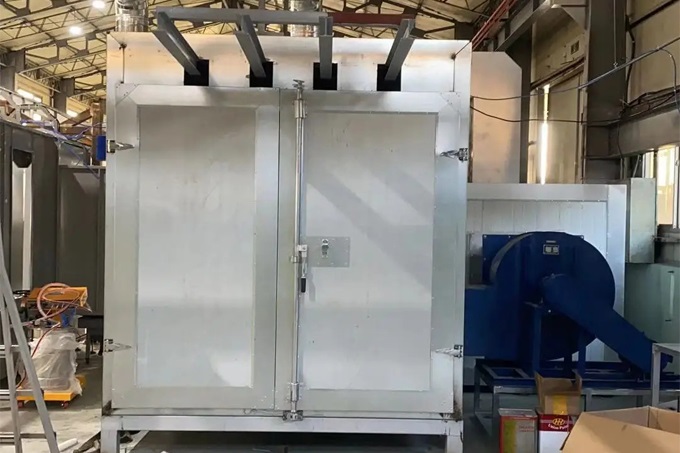

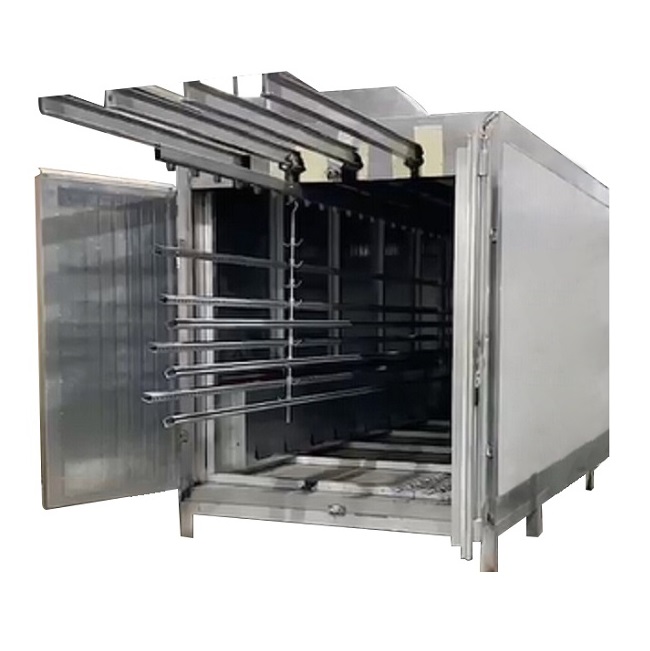

This powder coating oven installed with overhead track system is designed to carry heavy materials into the oven for continuous production, can be heated by electric, gas or diesel as required. Our powder coating ovens features environmental friendly, reducing operating cost and curing more parts everyday.
Configurations & Features

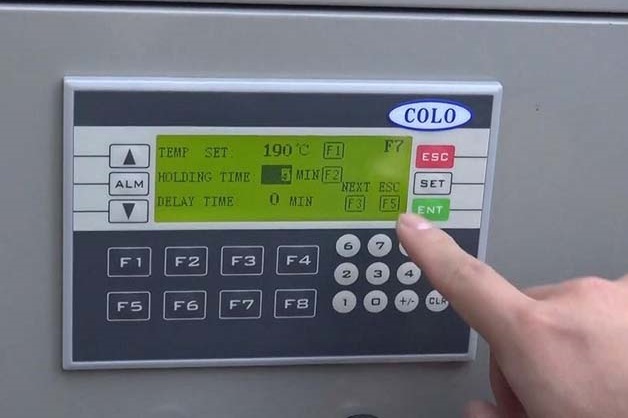

1. Applies PLC system that provides a precise and reliable heating process with easy setting of temperature and time, controlling the fan and other functions.
2. Configured Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.
3. A circulation fan causes uniform temperature in the entire inner space that results in quality cured finishes.

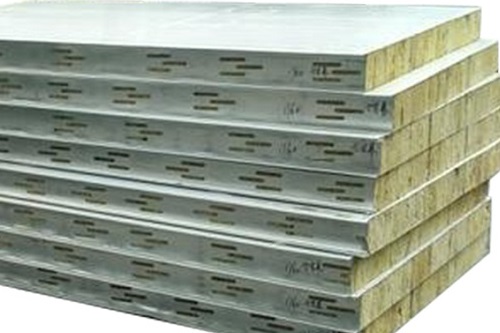

4. Made of 100 mm thickness rockwool board inserted between galvanized steel wall and durable steel skin always keeps the chamber a consistent high temperature with minimum heat loss.
5. It is recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.

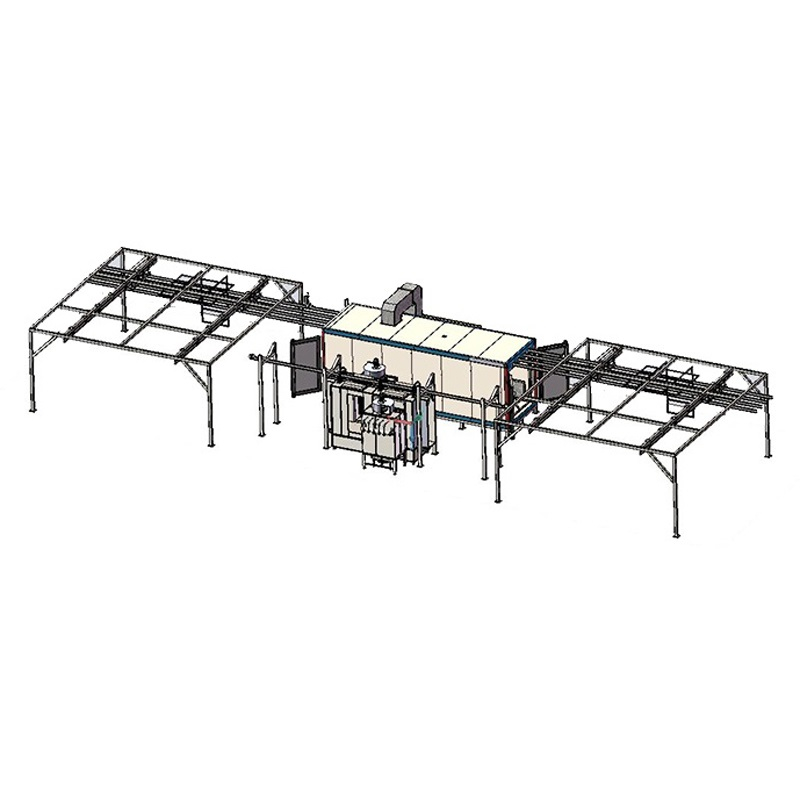

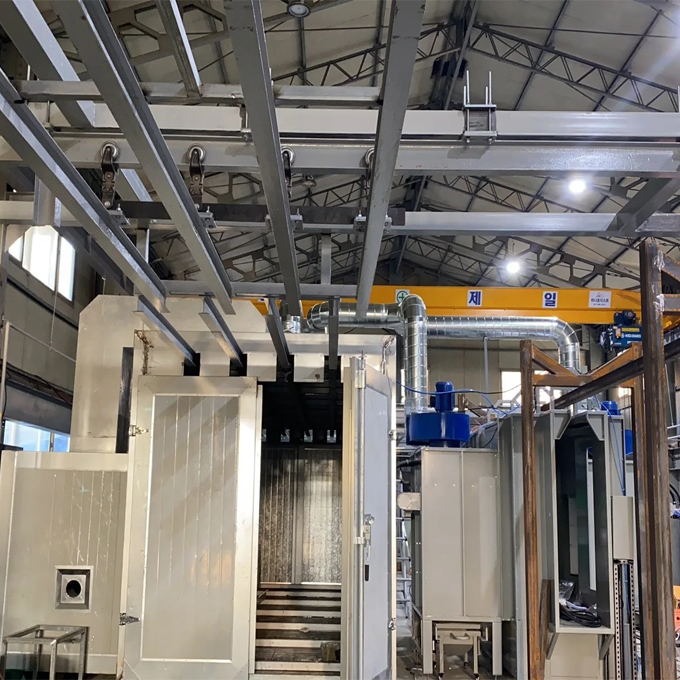

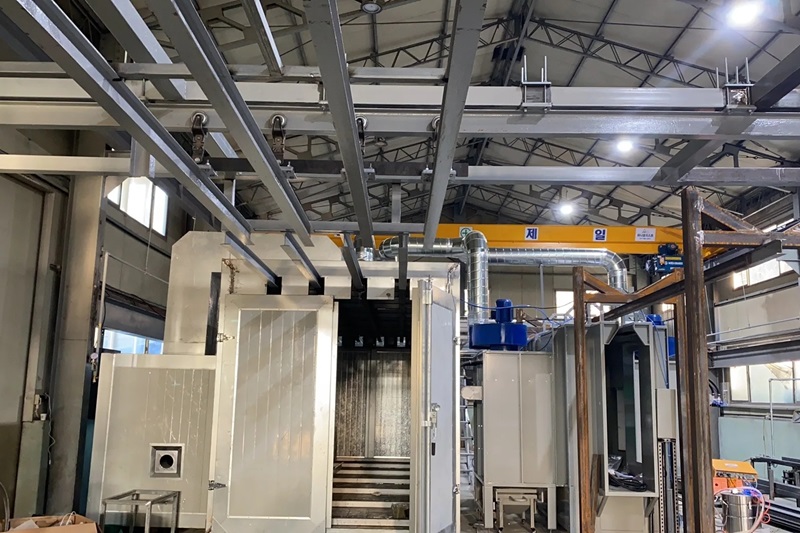

This manual powder coating line is designed for our Korean customer, whose Max. workpart is 6m length aluminium profiles. COLO specialize in customizing complete powder coating solutions and system for your increased efficiency and improved application.
