Manual Powder Coating Equipment KF-X1-F

State-of-art design KF-X1 powder coating equipment delivers the most advanced technology in the industry, An ideal model for coating most complex shapes, such as profiles, wheels, furniture, cabinet, shelves,
  • KF-X1

  • COLO

Availability:
Quantity:

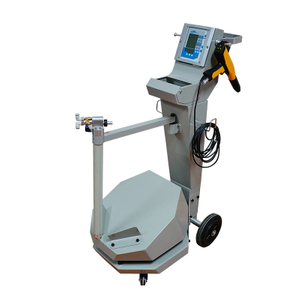

Manual Powder Coating Equipment KF-X1-F

Professional powder coating equipment gives you the ability and flexibility to contral all vital parameters. Combined the 100KV spray gun technology, our system offers optimal method to achieve high transfer efficiency even for complex shapes.

The 60lbs fluidizing hopper type powder coating system is designed for continuous production of single color, which ensures high quality powder conveying.

Manual Powder Coating System



Excellent Features of KF-X1 Powder Coating Equipment

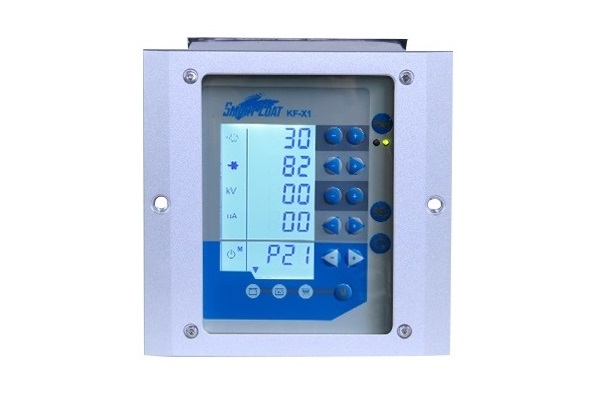

X1 Control Unit

KF-X1 Full Digital Controller

Comparing with existing mechanical valve controlled models, this system is improved to the digital valve technology, which offers precise regulate of powder output, generates more smooth flow and uniform coating thickness.

This digital system can flexibly and precisely adjust both current and voltage. which helps to optmize the amount of charges for powders/objects.

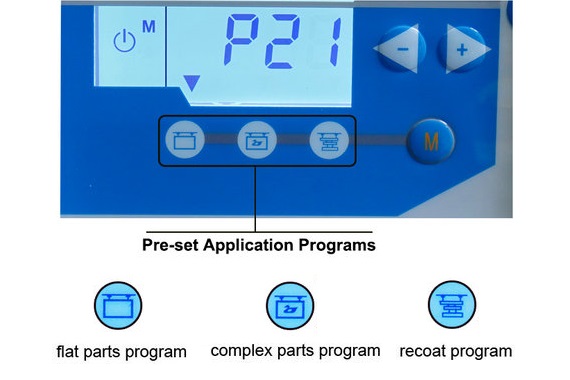

Touch keys for high-grade spraying operations. Use the touch keys to select any of the electrostatic coating processes "Flat-parts coating," "Complicated parts coating," or "Re-coating Workpiece."

Allows experienced users to create and store their own application programs, optimized for your parts and powder. Each part can be coated always with its individual settings.


COLO-08 Electrostatic Spray Gun

1. Long-lasting 100kv spray gun maximizes the electrostatic charging, provides high transfer efficiency and saves materials

2. Remote control of adjusting powder flow and changing application programs by press buttons on the rear cover, fast and easy.

3. Comes with full array of nozzle assortment to optimize your spray effect, including flat,  round spray nozzles with different size deflectors, and extension nozzles.

4. Quick release coupling for easy and efficient cleaning during color change. Robust structure and high-quality materials provides this spray gun a longer lifespan.

5. 500g Lightweight and ergonomical design enables operators to accomplish jobs at ease.



KF-X1 Powder Coating Equipment Applications

The KF-X1 powder coating equipment is powerful for penetrating corners and recesses, it is ideal for painting complex shapes such as profiles, heat sinks, wheels, valve covers, furnitures, cabinet, shelves, etc, ideally overcome the Faraday Cage Effect.

Electrical data
Power Range220V/110V
Frequency50HZ/60HZ
Temperature range in use-10 ℃+50 ℃
Powder Gun
Gun Weight500G
Rated output voltage24VDC
Input Voltage- 200kv
Maximum output current180Ua(max)
Maximum output voltage0-100KV (adjustable)
Maximum powder injection600g/min
Polaritynegative (-)
Pneumatic Data
Maximum input-air pressure10kg/cm
Optimum input-air pressure6kg/cm
Minimum input-air pressure4kg/cm
Maximum oil vapor content of compressed air1.4g/N m3
Maximum compressed-air consumption13.2 m3/h



KF-X1 Powder Coating Equipment Components

1. Digital Intelligent Controller

2. COLO-08 100kv manual spray gun with 5m cable

3. Nozzle assortment, including round and fan spray nozzles, extension nozzles

4. Vibration motor for powder fluidizing.

5. COLO-08 powder injectors for smooth and uniform output.

6. Flexible trolley with inclined base.

7. Grounded powder hose 5 meters, anti-static material.

8. Oil-water separating filter

9. Installation kit with all connections.
