COLO-1818
COLO
Width1800 x Height1800 x Depth1800 mm

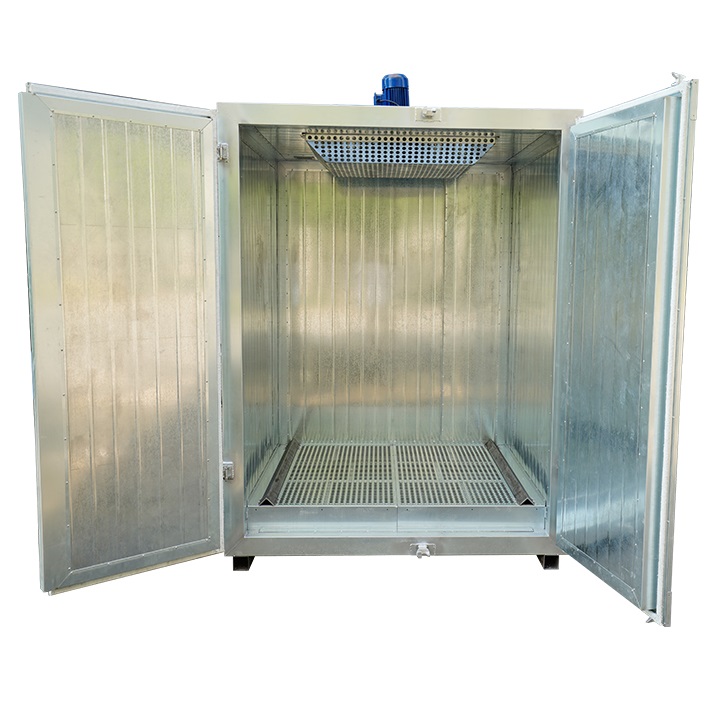

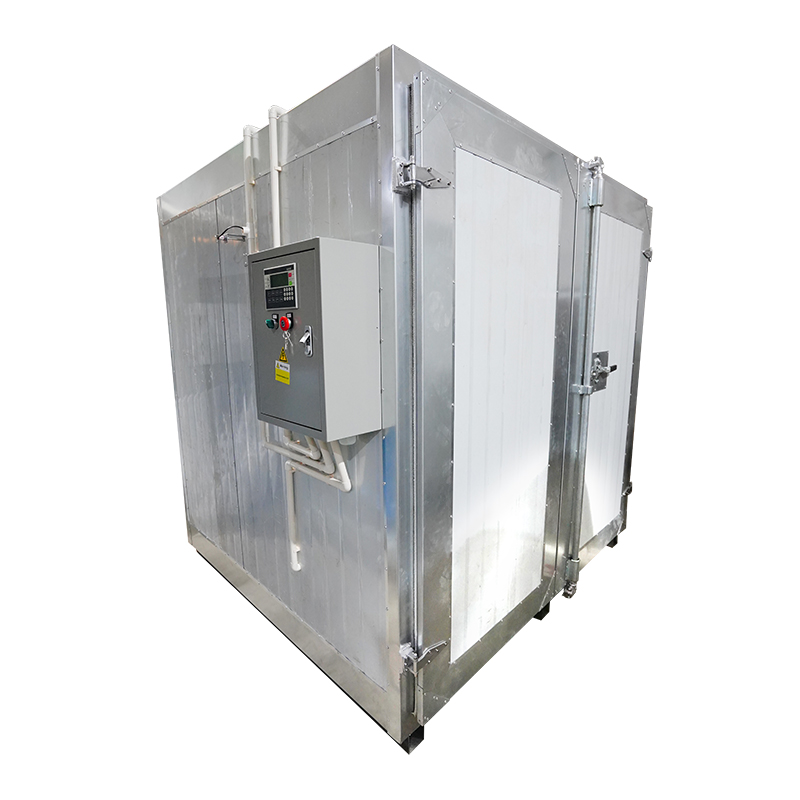

The 6x6x6(1.8x1.8x1.8m) electric powder coating oven is ideal for batch production of small and medium-sized objects after powder spraying process. COLO-technology based curing oven provides a consistent heating temperature hat results in a quality powder coating finish.
COLO professional powder coating ovens are built with premium quality and performance components, creating optimal airflow throughout the curing oven enclosure, resulting an even, constant cure for your parts.
PLC Control
Easy-to-use PLC control panel allows the operator accurately setting desired temperature & heating time as well as adjust the unit accordingly, with alarms function to ensure safety
Circulation Fan
Powerful 0.75kw fan speeds up hot airflow that leads to uniform heated chamber
The control system adjust the temperature uniform inside the oven by fine-tuning the performance of the exhaust fan.
Materials
Insulation material is 100mm thick rockwool board inserted betweent heat-resistent galvanized steel internal wall and durable color steel skin.
Heating Element
Our electric heating element uses a certain quantity of 1.5kw U shape heating tubes, uniformly distributed at the bottom of oven, covered with mesh plate for easy maintenance.
| Working dimensions | Width1800 x Height1800 x Depth1800 mm |
| Overall dimensions | Width1900 x Height2200 x Depth2000 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
The 6x6x6(1.8x1.8x1.8m) electric powder coating oven is ideal for batch production of small and medium-sized objects after powder spraying process. COLO-technology based curing oven provides a consistent heating temperature hat results in a quality powder coating finish.
COLO professional powder coating ovens are built with premium quality and performance components, creating optimal airflow throughout the curing oven enclosure, resulting an even, constant cure for your parts.
PLC Control
Easy-to-use PLC control panel allows the operator accurately setting desired temperature & heating time as well as adjust the unit accordingly, with alarms function to ensure safety
Circulation Fan
Powerful 0.75kw fan speeds up hot airflow that leads to uniform heated chamber
The control system adjust the temperature uniform inside the oven by fine-tuning the performance of the exhaust fan.
Materials
Insulation material is 100mm thick rockwool board inserted betweent heat-resistent galvanized steel internal wall and durable color steel skin.
Heating Element
Our electric heating element uses a certain quantity of 1.5kw U shape heating tubes, uniformly distributed at the bottom of oven, covered with mesh plate for easy maintenance.
| Working dimensions | Width1800 x Height1800 x Depth1800 mm |
| Overall dimensions | Width1900 x Height2200 x Depth2000 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
