COLO-1864
COLO
Width1600 * Height1800 * Depth1400mm
| Quantity: | |
|---|---|

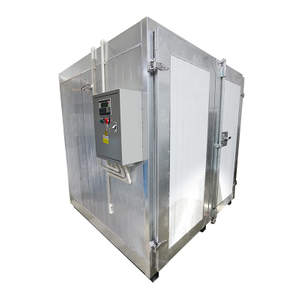

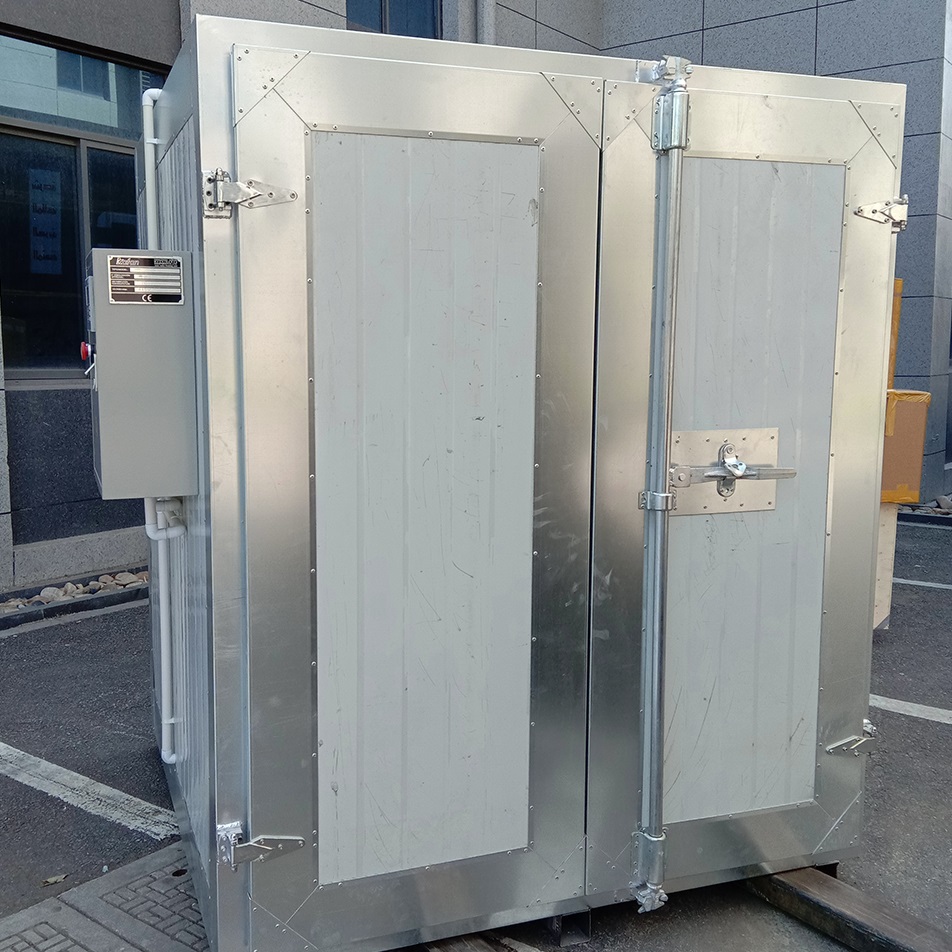

COLO-1864 Space-saving powder coating oven is specially designed for batch curing metal parts, such as alloy wheels bike or motorcycle accessories, etc. Applies electricity to create energy, the batch curing oven provides uniform heat distribution resulting in quality cured finishes and optimum cure cycles which reduces rework, saving you time.
Standardly equipped with a pair of carts: internal one and external one,
Internal cart supplied in the form of a frame to loading workparts participating in curing process inside the oven. External cart is used to carry the internal cart for outside operation and transportation.
It is a superior solution that allows loading batch of workparts taking full utilizing of oven space, as well as carrying heavy elements using a small amount of force.
Each cart moving across the hall does not contaminate the inside of the oven. ensures high purity painted elements. Trolley design can be customized for your production needs and convenient.
COLO professional powder coating ovens are built to create optimal airflow throughout the powder coating oven enclosure, creating an even, constant cure for your parts.
Circulation fan

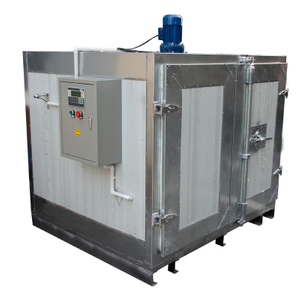

Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber, ensures powder curing effect. The fan for small sized oven is installed on the roof to save space. Power: 0.75kw.
PLC Control
The PLC control system offers user-friendly interface for users to set the required temperature and heating time accurately.
The electric control cabinet also includes includes fan starting, alarm lights and emergency stop buttons. Touchscreen controls with integrated data logging capabilities are another popular option.
100mm Thick Rockwool Wall
COLO powder coating oven utilizes a sandwich panel design. Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping. The durable materials maximize the its lifespan.
| Model | COLO-1864 |
| Working dimensions | Width1600 x Height1800 x Depth1400 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
For 14 years, we've been researching and upgrading our powde coating ovens to meet various demands of woldwide customers and ensure each appliance produces high-quality, long lasting powder finishes.
We use advanced heating technology to get the oven to curing temperature faster and requires less fuel to cure powder coated parts, which saves your time and reduces your operating costs every day. The high quality materials and imported components consist of a longlife, efficient, reliable powder coating oven.
Our standard models range from small batch powder coating ovens to large curing ovens for large and heavy equipment. Custom ovens are available for conveyorized coating systems in manual or automated production lines.
We offer complete finishing solutions from pretreatment cleaning to powder spraying and powder curing, includes sandblasting machine, powder coating guns, powder spray booths, powder coating ovens. COLO, is your one-stop solver for surface finishing.
