Small Compact Powder Coating Oven COLO-1688

Space-saving and cost-saving electric powder coating oven, specially designed for small parts powder curing after powder spraying process.
  • COLO-1688

  • COLO

  • Width1000 * Height1600 * Depth845mm

Availability:
Quantity:

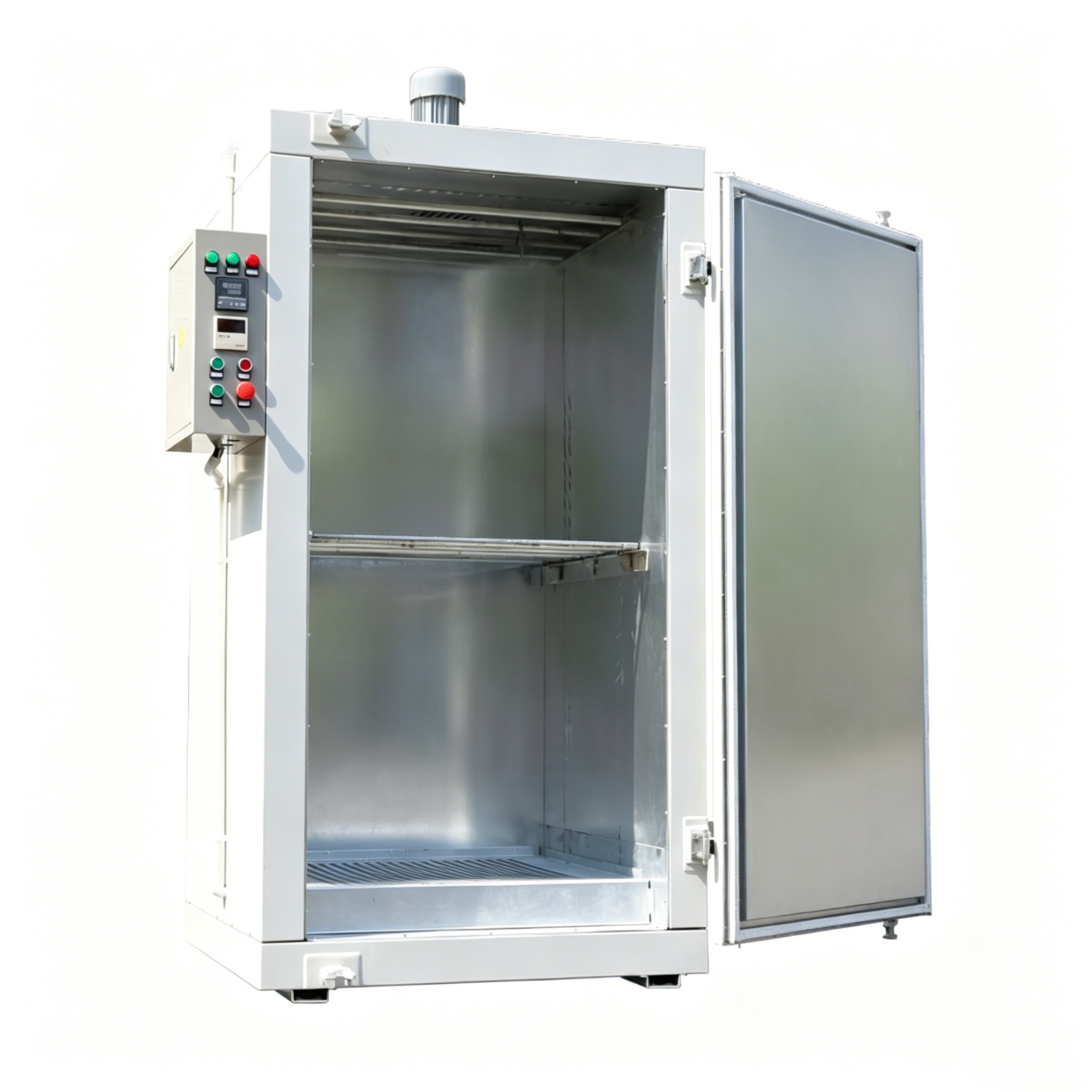

COLO-1688 Small Compact Powder Coating Oven

COLO-1688 Space-saving powder coating oven is specially designed for batch job of small metal parts, such as auto parts, bike or motorcycle accessories, etc.

Use electricity to create energy, the small curing oven provides uniform hot air distribution by circulation fan resulting in quality cured finishes which reduces rework, saving you time.

small powder coating ovensmall powder coat oven

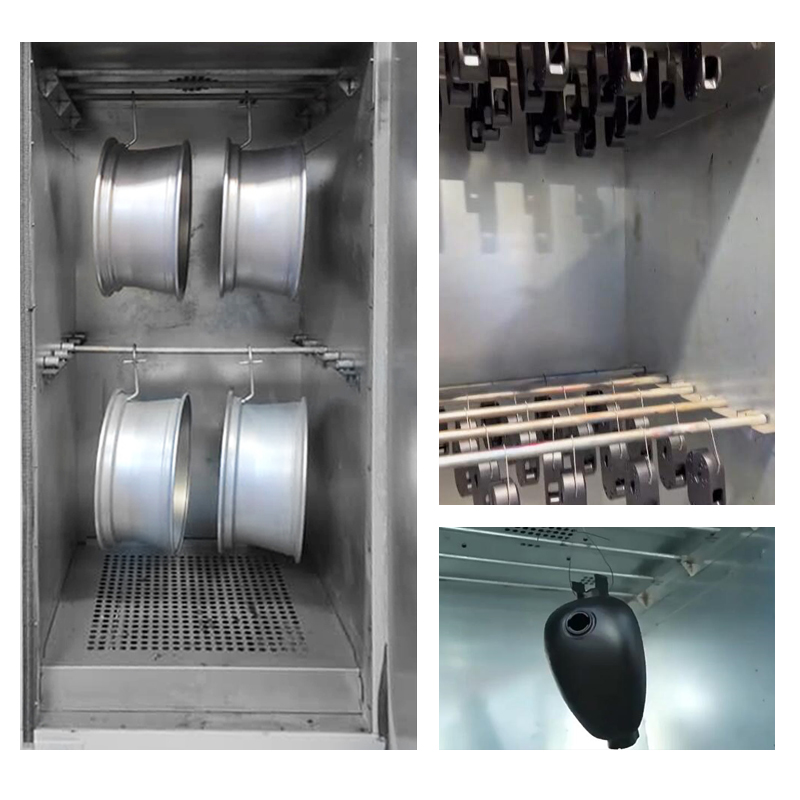

Small Powder Coating Oven Applications

Powder powder spraying process, the coated workparts will be sent to the powder coating oven, which is set to the required temperature( usually 180° C, Max. 250° C) , and a timer precisely control the time of curing. usally 15-30 minutes. The powder will melt and stick on the surface, forming a durable, even, protective film


Small Compact Powder Coating Oven Features

1. Electric controller allows to easily set temperature & time as well as displays actual inside temperature.

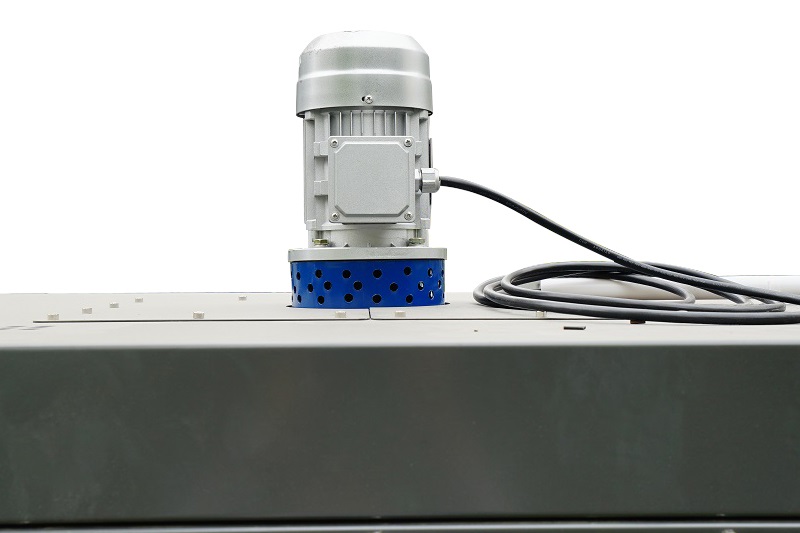

2. 0.55kw circulating fan provides excellent heating uniformity for consistent, high quality curing results.

3. Voltage for 110v or 220v standard can be chosen based on the needs of customers.

4. High-density rock wool insulation with 100mm thickness for Interlayer keeps balanced temperature inside the oven.

5. With 2 shelves and 5 rails per shelf, there's plenty of space for hanging coated workparts.

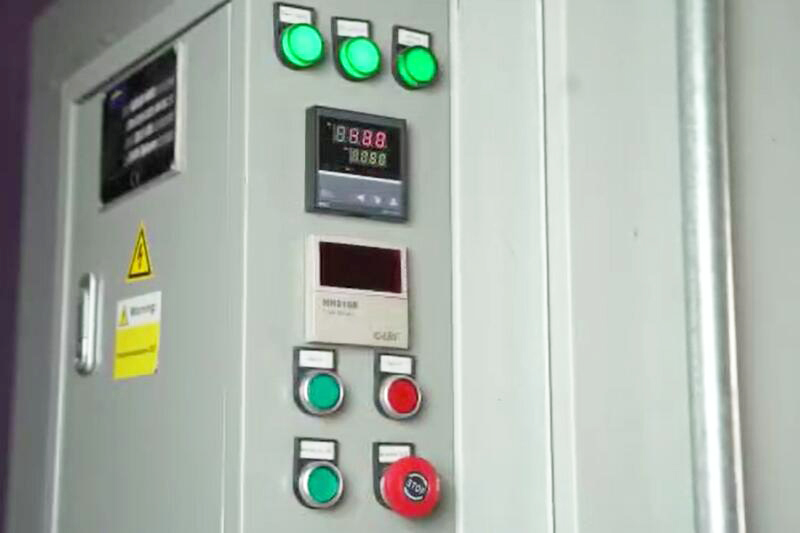

powder curing oven control

Control

MLF08036

Overhead Rails

powder coating oven heating element

Oven Floor


COLO-1688 Small Powder Coating Oven Specifications

Worksize dimension: Width1000  *Height1600 * Depth845 mm
Power supply
Electric/ 6kw(1.5kw Heating Tube x 4pcs)
Voltage/Frequency
110V/220v(50-60hz)
Warm-up time
15-30 min. (180° C)
Temperature stability
< ± 3-5°C
Temperature Max. 250° C
Ventilation performance
805-1677m3/h
Fan power  0.55kw
Circulation/ Air flow
Vertical, Variable through holes on the walls
