COLO-1864
COLO
Width1600 * Height1800 * Depth1400 mm
| Quantity: | |
|---|---|

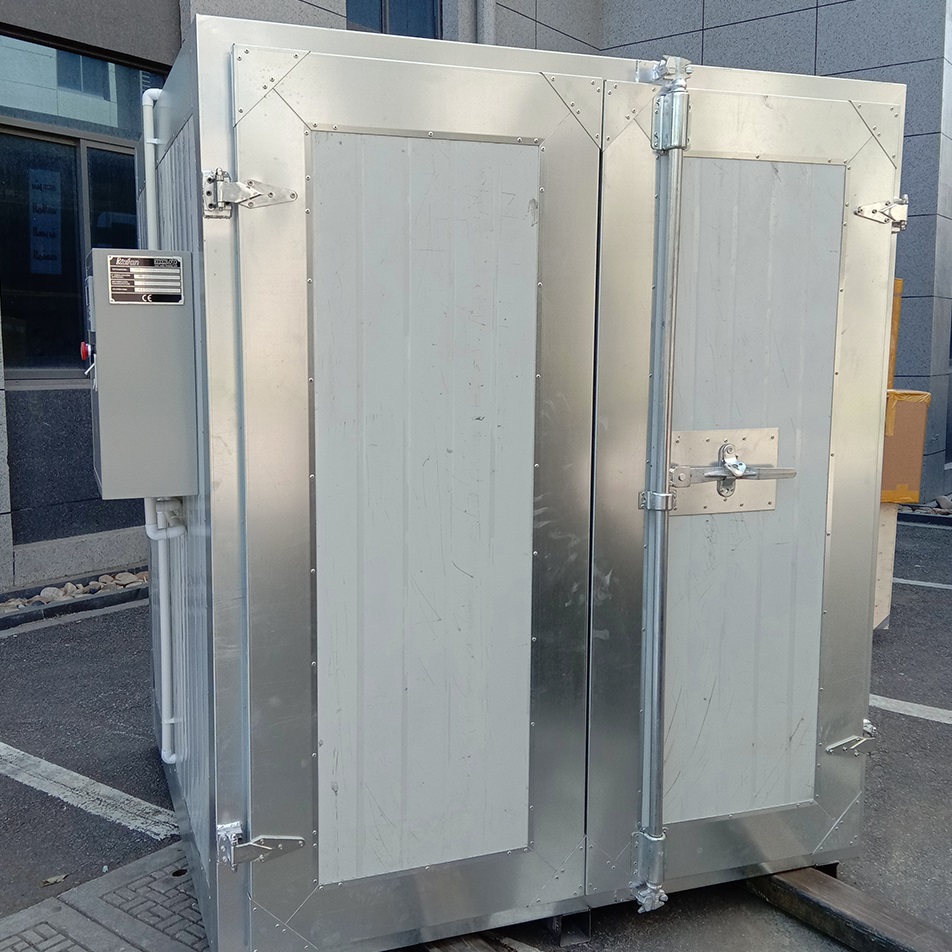

COLO-1864 powder coating oven is simple and efficient for powder curing process, whose electric heating method provides a quick raise to required temperature with using less energy as well as keeps the environment clean.
It is the most popular model applying to batch heating jobs for small and medium sized parts, such as alloy wheels, bike frames, motorcycle parts, etc.
COLO professional powder coating ovens are built to create optimal airflow throughout the powder coating oven enclosure, creating an even, constant cure for your parts.
Circulation fan
Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber, ensures powder curing effect.
The circulation fan for small sized powder coating oven is installed on the roof to save space. Power: 0.75kw.
PLC Control
The PLC control system offers user-friendly interface for operators to set the required temperature and heating time accurately.
The electric control cabinet also includes includes fan starting, alarm lights and emergency stop buttons.
100mm Thick Rockwool Wall
COLO powder coating oven utilizes a sandwich panel design. The durable materials maximize the its lifespan.
Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
Cart System
Standardly equipped with two carts: internal one and external one, Internal cart supplied in the form of a frame to loading workparts participating in curing process inside the oven, External cart is used to carry the internal cart for outside operation and transportation.
It is a superior solution that allows batch loading of workparts as well as carrying heavy elements using a small amount of force.
| Model | COLO-1864 |
| Working dimensions | Width1600 x Height1800 x Depth1400 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
For 14 years, we've been researching and upgrading our powde coating ovens to meet various demands of woldwide customers and ensure each appliance produces high-quality, long lasting powder finishes.
We use advanced heating technology to get the oven to curing temperature faster and requires less fuel to cure powder coated parts, which saves your time and reduces your operating costs every day. The high quality materials and imported components consist of a longlife, efficient, reliable powder coating oven.
Our standard models range from small batch powder coating ovens to large curing ovens for large and heavy equipment. Custom ovens are available for conveyorized coating systems in manual or automated production lines.
We offer complete finishing solutions from pretreatment cleaning to powder spraying and powder curing, includes sandblasting machine, powder coating guns, powder spray booths, powder coating ovens. COLO, is your one-stop solver for surface finishing.
COLO-1864 powder coating oven is simple and efficient for powder curing process, whose electric heating method provides a quick raise to required temperature with using less energy as well as keeps the environment clean.
It is the most popular model applying to batch heating jobs for small and medium sized parts, such as alloy wheels, bike frames, motorcycle parts, etc.
COLO professional powder coating ovens are built to create optimal airflow throughout the powder coating oven enclosure, creating an even, constant cure for your parts.
Circulation fan
Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber, ensures powder curing effect.
The circulation fan for small sized powder coating oven is installed on the roof to save space. Power: 0.75kw.
PLC Control
The PLC control system offers user-friendly interface for operators to set the required temperature and heating time accurately.
The electric control cabinet also includes includes fan starting, alarm lights and emergency stop buttons.
100mm Thick Rockwool Wall
COLO powder coating oven utilizes a sandwich panel design. The durable materials maximize the its lifespan.
Rockwool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.
Cart System
Standardly equipped with two carts: internal one and external one, Internal cart supplied in the form of a frame to loading workparts participating in curing process inside the oven, External cart is used to carry the internal cart for outside operation and transportation.
It is a superior solution that allows batch loading of workparts as well as carrying heavy elements using a small amount of force.
| Model | COLO-1864 |
| Working dimensions | Width1600 x Height1800 x Depth1400 mm |
| Overall dimensions | Width1900 x Height2200 x Depth1700 mm |
| Power supply electric | 18kw |
| Voltage | 380V/220V (Custom Voltage Available) |
| Frequency | 50-60hz |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flowVertical | Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
For 14 years, we've been researching and upgrading our powde coating ovens to meet various demands of woldwide customers and ensure each appliance produces high-quality, long lasting powder finishes.
We use advanced heating technology to get the oven to curing temperature faster and requires less fuel to cure powder coated parts, which saves your time and reduces your operating costs every day. The high quality materials and imported components consist of a longlife, efficient, reliable powder coating oven.
Our standard models range from small batch powder coating ovens to large curing ovens for large and heavy equipment. Custom ovens are available for conveyorized coating systems in manual or automated production lines.
We offer complete finishing solutions from pretreatment cleaning to powder spraying and powder curing, includes sandblasting machine, powder coating guns, powder spray booths, powder coating ovens. COLO, is your one-stop solver for surface finishing.
