COLO-191S-F
HICOLO
Availability: | |
---|---|
Quantity: | |
1) This machine applies digital control valve technology for fast and precise adjustment that ensures what you set at the controller comes out of the gun.
2) There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
3) Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
4) Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
1) Long lasting 100kv spray gun maximizes the electrostatic charging capacity, always provides high transfer efficiency in the first-pass, ensures coating film uniformity and saves powders.
2) Program and powder flow changes are fast and easy. Just press the “P” button on the rear cover to move between coating modes, and use the handy up and down arrows for adjusting powder flow as you coat.
3) Comes with full array of nozzle assortment to optimize your spray effect, including flat, round spray nozzles with different size deflectors, and extension nozzles.
4) Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

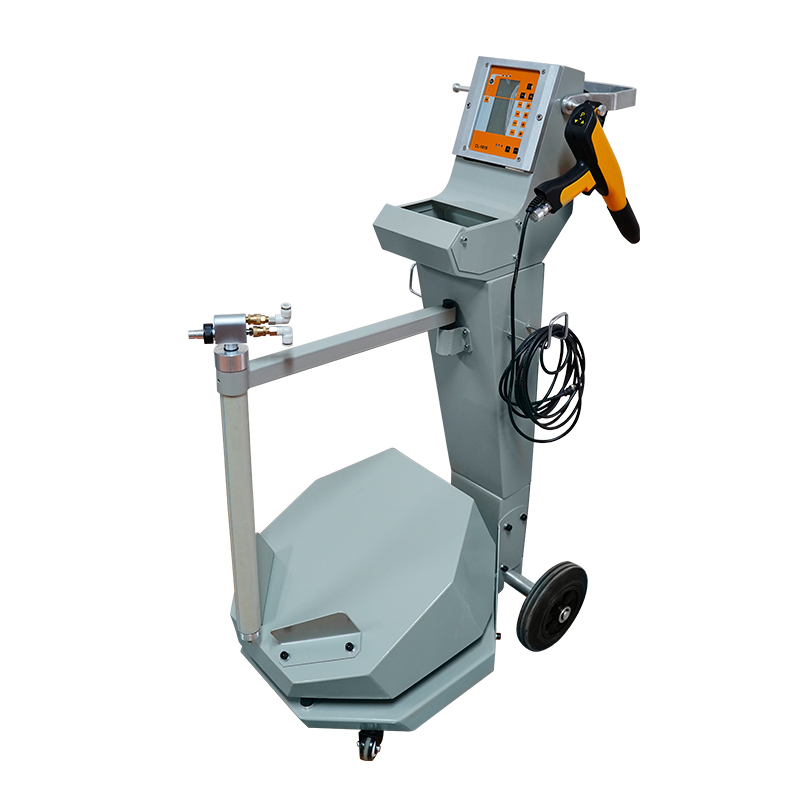

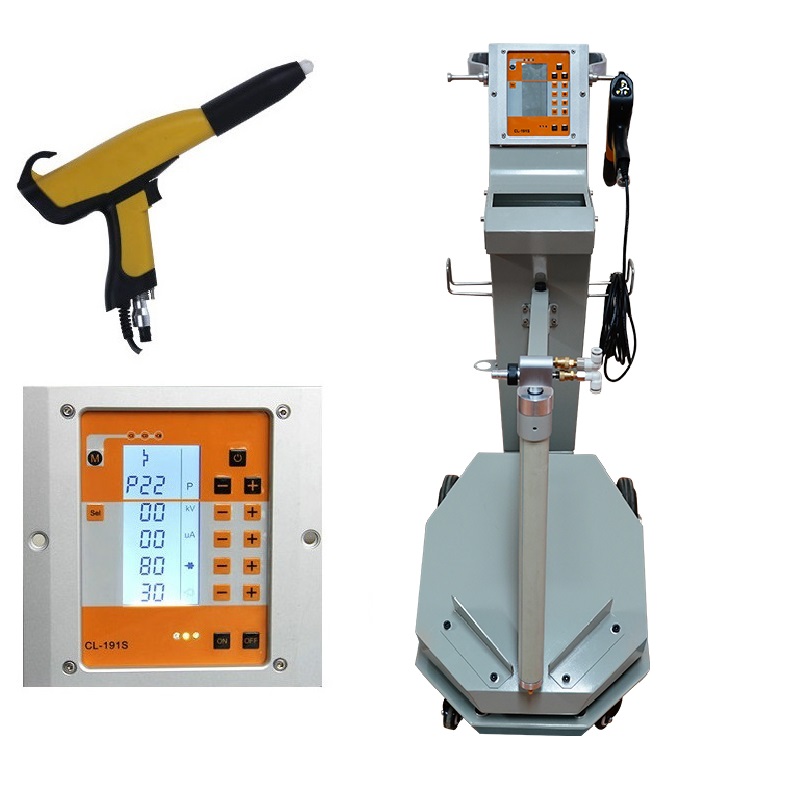

Easy, Efficient, Intelligent are the keywords describing this system. Even inexperienced users can start powder coating in minutes. COLO systems offer full, standard control functions and intuitive operator interface, with powerful electrostatic spray gun and highly efficient COLO injector pumps deliver superior powder coating performance. COLO-191S has become a world-known model of excellent practical experience while with affordable cost.
1) This machine applies digital control valve technology for fast and precise adjustment that ensures what you set at the controller comes out of the gun.
2) There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
3) Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
4) Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
1) Long lasting 100kv spray gun maximizes the electrostatic charging capacity, always provides high transfer efficiency in the first-pass, ensures coating film uniformity and saves powders.
2) Program and powder flow changes are fast and easy. Just press the “P” button on the rear cover to move between coating modes, and use the handy up and down arrows for adjusting powder flow as you coat.
3) Comes with full array of nozzle assortment to optimize your spray effect, including flat, round spray nozzles with different size deflectors, and extension nozzles.
4) Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
Easy, Efficient, Intelligent are the keywords describing this system. Even inexperienced users can start powder coating in minutes. COLO systems offer full, standard control functions and intuitive operator interface, with powerful electrostatic spray gun and highly efficient COLO injector pumps deliver superior powder coating performance. COLO-191S has become a world-known model of excellent practical experience while with affordable cost.
Electrical data | |
---|---|
Power Range | 220V/110V |
Frequency | 50HZ/60HZ |
Temperature range in use | -10 ℃+50 ℃ |
Powder Gun | |
Gun Weight | 500G |
Rated output voltage | 24VDC |
Input Voltage | - 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Pneumatic Data | |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Minimum input-air pressure | 4kg/cm |
Maximum oil vapor content of compressed air | 1.4g/N m3 |
Maximum compressed-air consumption | 13.2 m3/h |
Electrical data | |
---|---|
Power Range | 220V/110V |
Frequency | 50HZ/60HZ |
Temperature range in use | -10 ℃+50 ℃ |
Powder Gun | |
Gun Weight | 500G |
Rated output voltage | 24VDC |
Input Voltage | - 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
Pneumatic Data | |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Minimum input-air pressure | 4kg/cm |
Maximum oil vapor content of compressed air | 1.4g/N m3 |
Maximum compressed-air consumption | 13.2 m3/h |
