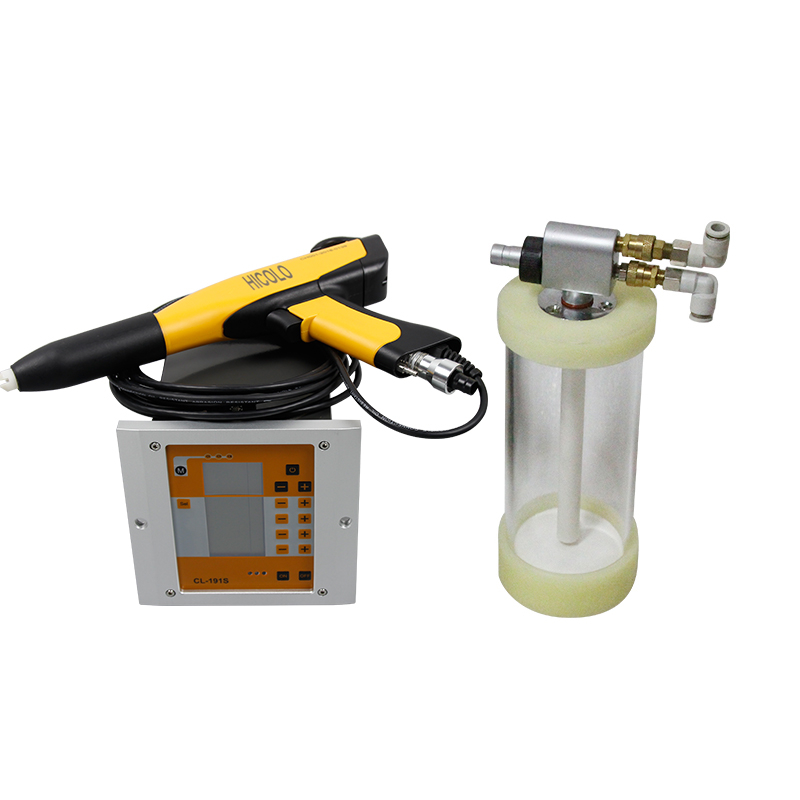

Powder Coating Spray Gun Equipment COLO-191ST-B

- Approx 2lbs capacity cup for powder coating
- Easy clean-up for fast powder change over
- Suitable for powder coating producer make sample testing or hobby coating or small business.
  • COLO-191ST-B

  • HICOLO

Availability:
Quantity:

Powder Coating Spray Gun Equipment COLO-191ST-B

COLO-191S is developed by COLO lastest technology, ensures smooth beautiful coating effect as well as great powder savings.This powder coating spray gun comes with 2lbs fluidizing powder cup, which is ideal for small scale production, laboratory application or powder manufacturer testing use.

powder coating spray gun



COLO-191S Powder Gun Controller Features

  • With 3 one-touch intelligent buttons convenient for users to coating different shapes, which standards for flat-part coating, corner coating and recoating.

  • Allows experienced users create and store a 20 personalized programs which are optimized for their parts and powders.

  • Thanks to the digital valve control, it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and good coating results.

powder coating gun control



COLO-08 Electrostatic Spray Gun Features

  • Long lastign 100kv spray gun maximizes the electrostatic charging capacity, always provides high transfer efficiency and saves materials.

  • Remote control of changing powder flow and application programs on the back cover, fast and easy.

  • Comes with full array of nozzle assortment to optimize your spray effect, including flat,  round spray nozzles with different size deflectors, and extension nozzles.

  • Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

colo-08-powder-gun


Electrical data
Power Range220V/110V
Frequency50HZ/60HZ
Temperature range in use-10 ℃+50 ℃
Powder Gun
Gun Weight500G
Rated output voltage24VDC
Input Voltage- 200kv
Maximum output current180Ua(max)
Maximum output voltage0-100KV (adjustable)
Maximum powder injection600g/min
Polaritynegative (-)
Pneumatic Data
Maximum input-air pressure10kg/cm
Optimum input-air pressure6kg/cm
Minimum input-air pressure4kg/cm
Maximum oil vapor content of compressed air1.4g/N m3
Maximum compressed-air consumption13.2 m3/h
