Manual Powder Coating Spray Booth COLO-S-2315
This Space-saving manual spray booth features easy and economical for powder application of small or big-sized workpieces. An integrated powder collection module includes 4 pcs of high precision cartridge filters creating clean and bright finishing environment.

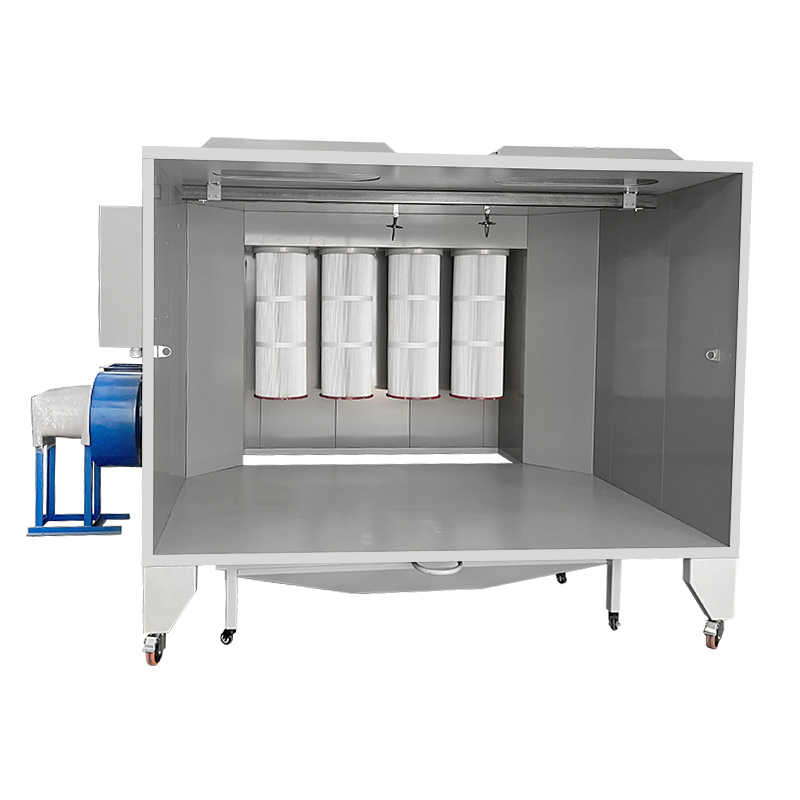

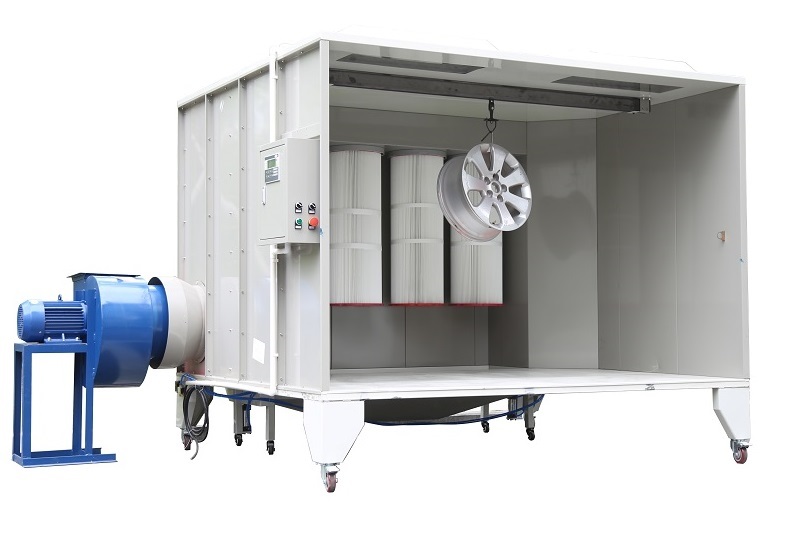

![Manual Powder Coating Spray Booth]()
COLO-2315 Powder Coating Spray Booth Features
Our spray booth is fully constructed with powder-coated steel exceptionally increases stability and durability.
![Powder Coating Booth Cartridge Filters]()
Cartridge Filters
Incorporates proven cartridge-filter technology capturing excess powders efficiently to keep environment clean.
![recovery hopper]()
Recovery Hopper
The filtered powder is discharged into a collecting hopper beneath the unit which can be moved away for easy and fully emptying.
![powder coating booth PLC]()
PLC Control
A user-friendly PLC panel integrates all functions, like turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop.
![powder coating booth fan]()
Fan Motor
A set of 4kw high-performance fan efficiently circulate air with less energy. Our rigid exhaust fan provides a substantial decrease in noise at your shop.
![]()
Pulse-jet System
The pneumatic controlled pulse-jetting system regularly cleans filter to prevents powder accumulation and extend filter life.
![powder coating booth fan filter]()

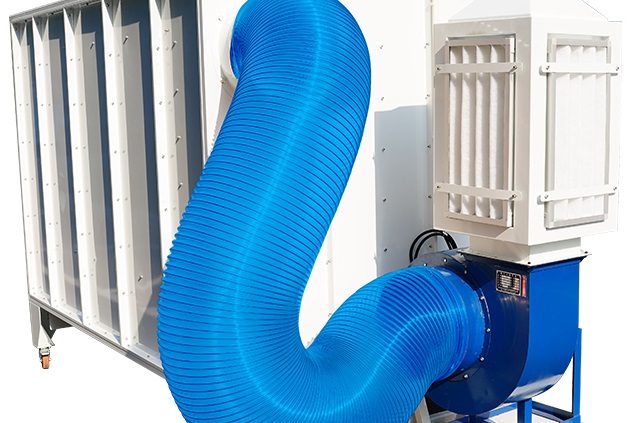

Fan Filter (optional)
A fan filter installed on the fan is optional for further collection of powder particules, suitable for workshop with high-class environment standard.
Manual Powder Coating Spray Booth Specifications
| Model | COLO-S-2315
|
| Operating Dimensions | Width2300 * Depth1500 * Heght1500mm |
| Overall dimensions | Width2550 * Depth2100 * Heght2240mm |
Weight
| 580kg
|
Power Supply
| 220V/380V, 3Phase, 50-60HZ
|
Fan Power
| 4kw
|
Filter Count
| 4 pcs, Quick-release Type
|
Filter Material
| Polyester
|
Filter Cleaning
| Pneumatic
|
Air Consumption
| 6600m^3/h
|
COLO-2315 Powder Coating Booth Applications
The COLO-2315 manual powder coating booth works with powder coating machines, curing ovens, ideal for batch production of various workparts, which is an efficient and easy setup for powder coating jobs
