Cyclone Powder Coating Booth & Automatic Spray System
The COLO automatic powder coating system applies anti-static PP spray booth with cyclone recovery, powder management center and precise automatic coating equipment, which tends to maximize powder recovery efficiency, and minimize the powder waste, saves production cost while ensures a dustfree workshop.

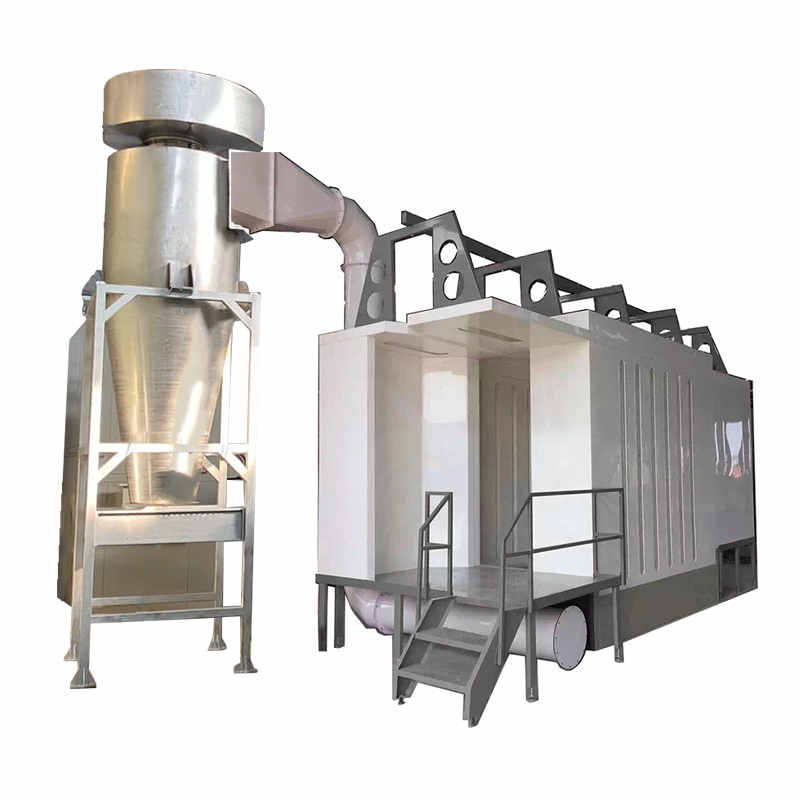

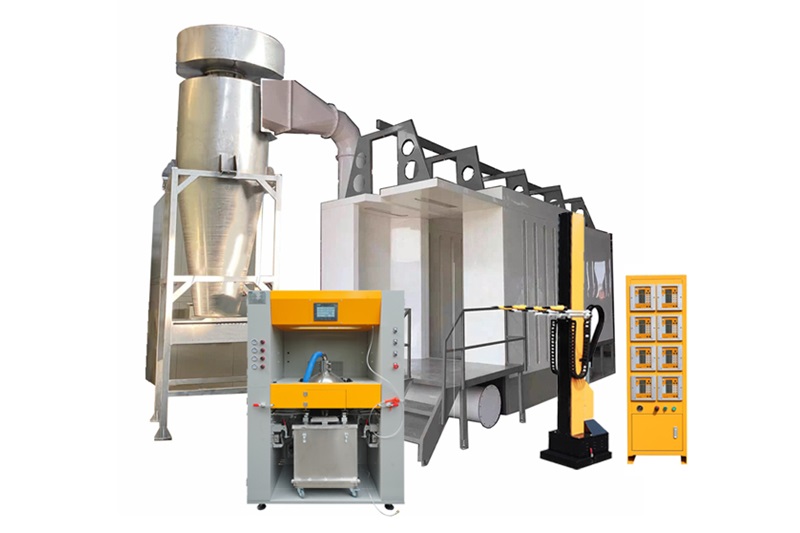

![cyclone powder coating booth system]()

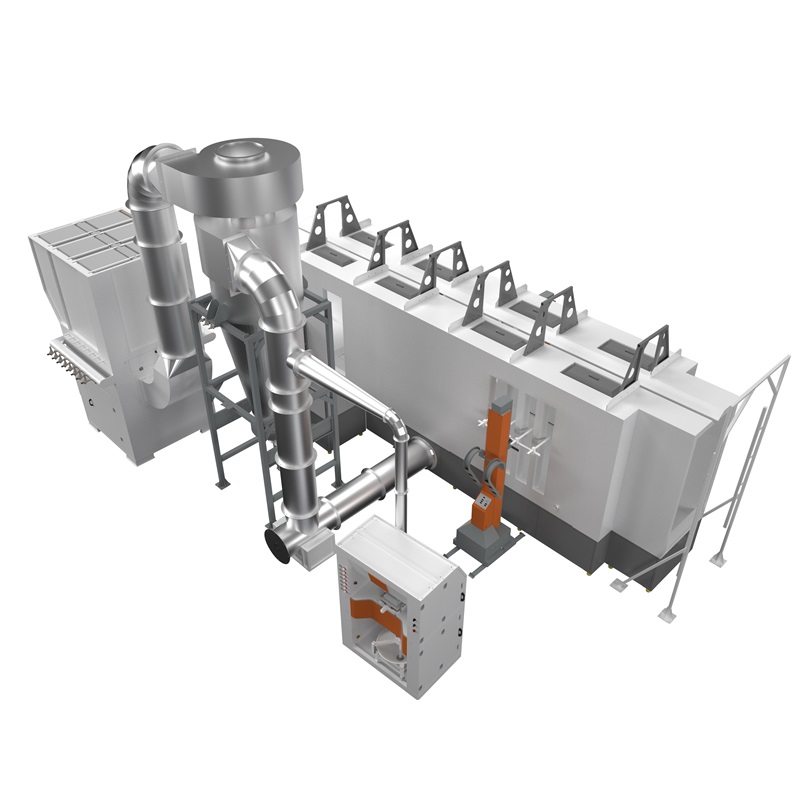

![cyclone powder coating booth]()
1. Applying of mono cyclone for spray booth achieves recycling efficiency up to 98%, a great saving of powders. a quick cleaning takes around 15 minutes.
2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
3. The booth floor is designed with air knives and mesh plates specially for self-cleaning., which remove the powder accumulated on the booth floor and quickly recycling it back to the powder feed container.
4. Booth material can be made anti-static engineering PP plastic, which is non-stick of powders, greatly reduces powder waste and maximizes cleaning efficiency during color change.

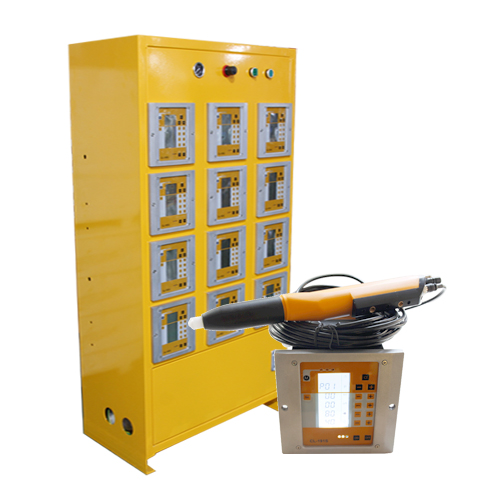

![Automatic Powder Coating Gun System]()
1. A central control cabinet combines all gun controller for integrated operation, the cabinet system enables to set parameters only at one host unit to control whole system.
2. COLO-191S powder coating unit applies latest DVC technology allows a flexible and accurate setting of all parameters, giving perfect finish with great powder savings.
3. Our 100kv electrostatic spray gun powerfully charge powders delivers high transfer efficiency, alomg with the use of state-of-art nozzles makes it easy to penetrate deep corners.
4. The quantity of the control units installed in the cabinet can be tailored as your production needs.

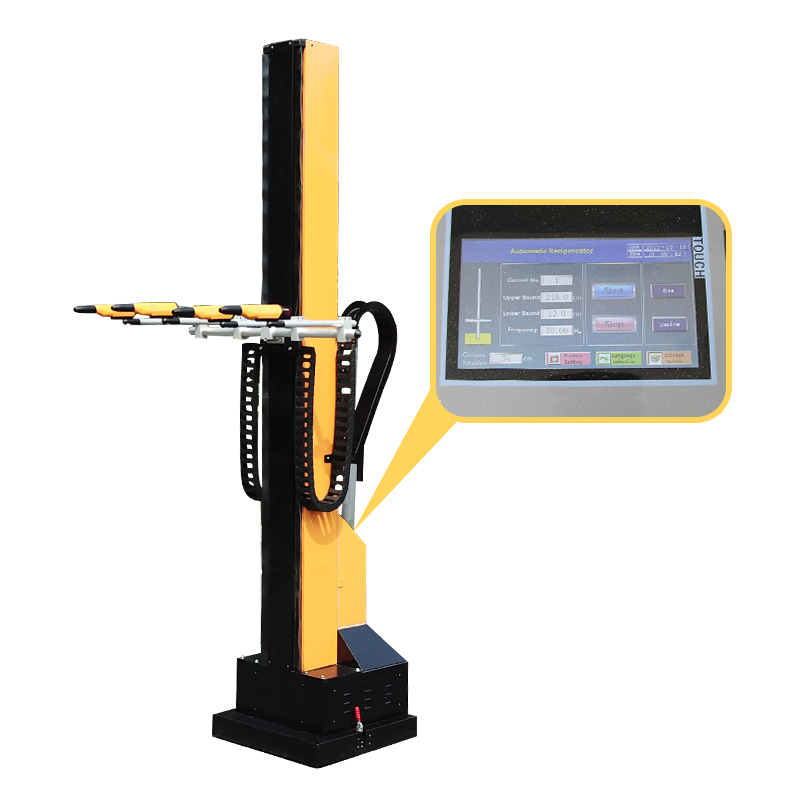

![Powder Coating Reicprocator]()
1. Linear rail guide mechanism, travel through a belt, a frequency adjustable motor controlled by PLC, giving more smooth, stable and precise motion
2. Heavy-loaded reciprocator with reliability to carry up to 24 pcs powder spray guns
3. Moving speed and stroke can be easily set at the PLC touching screen with 20 storable programs.
4. The slim column design allows for space-saving arrangement of the guns
5. The COLO advanced reciprocator Increases uniformity and quality consistency, reduces powder consumption.
![powder management center]()
1. Allows containing high volume of powders for daily countinuous production without frequnty interruption
2. Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
3. Effectively sieving of fresh powders and recovery powders, dissolving and loosening of powder accumulations for even powder flow.
4. A closed powder hopper with a sener will detect the powder position and alarm a signal when a lack of powder.
5. A user-friendly PLC touching screen panel makes it easy to handle the process.
Automatic Powder Coating Booth System Application
This automatic powder coating booth system is widely used for metal furniture industry, such as powder coating storage racks, chairs, beds, cabinets, etc. In multi-color application this system enhance cleaning efficiency, reduce downtime during color change.
