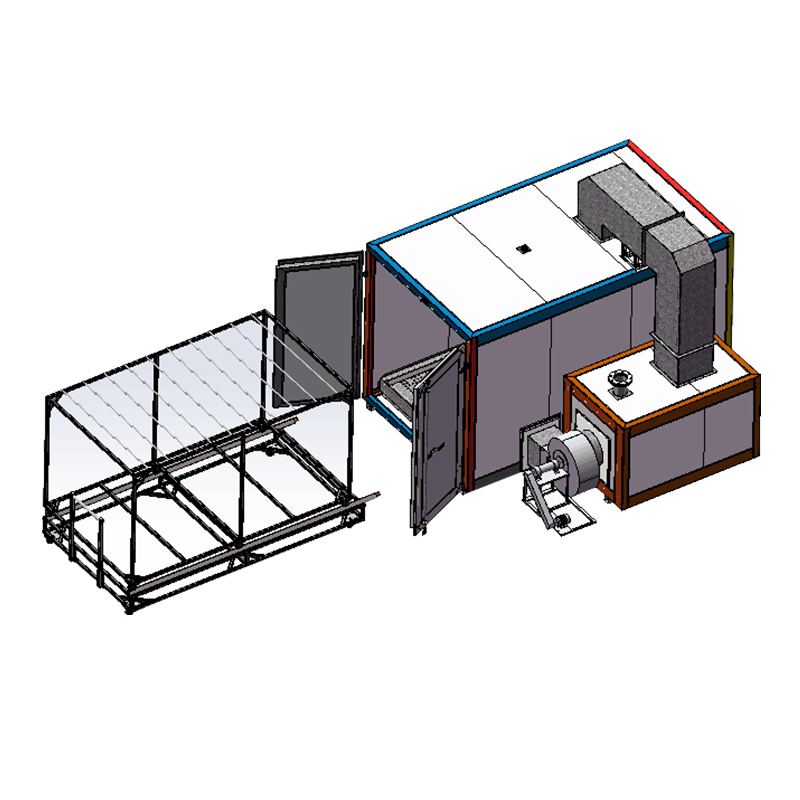

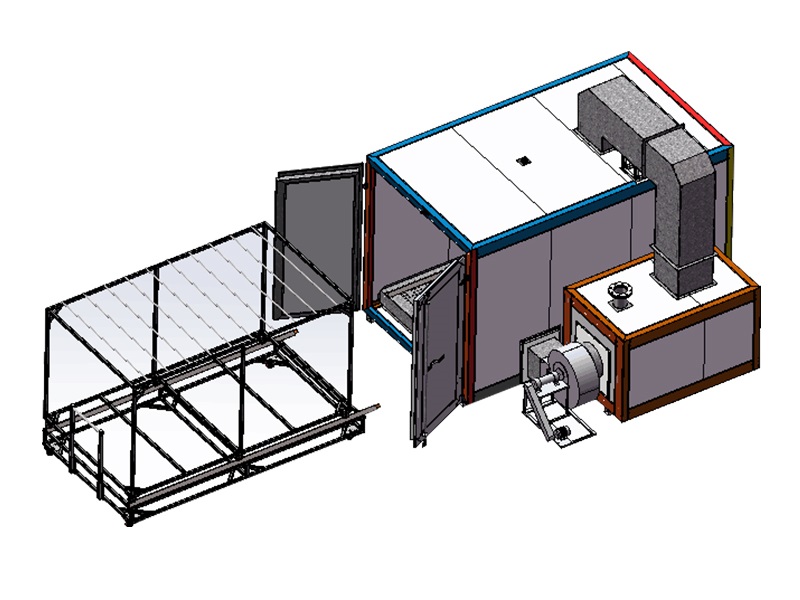

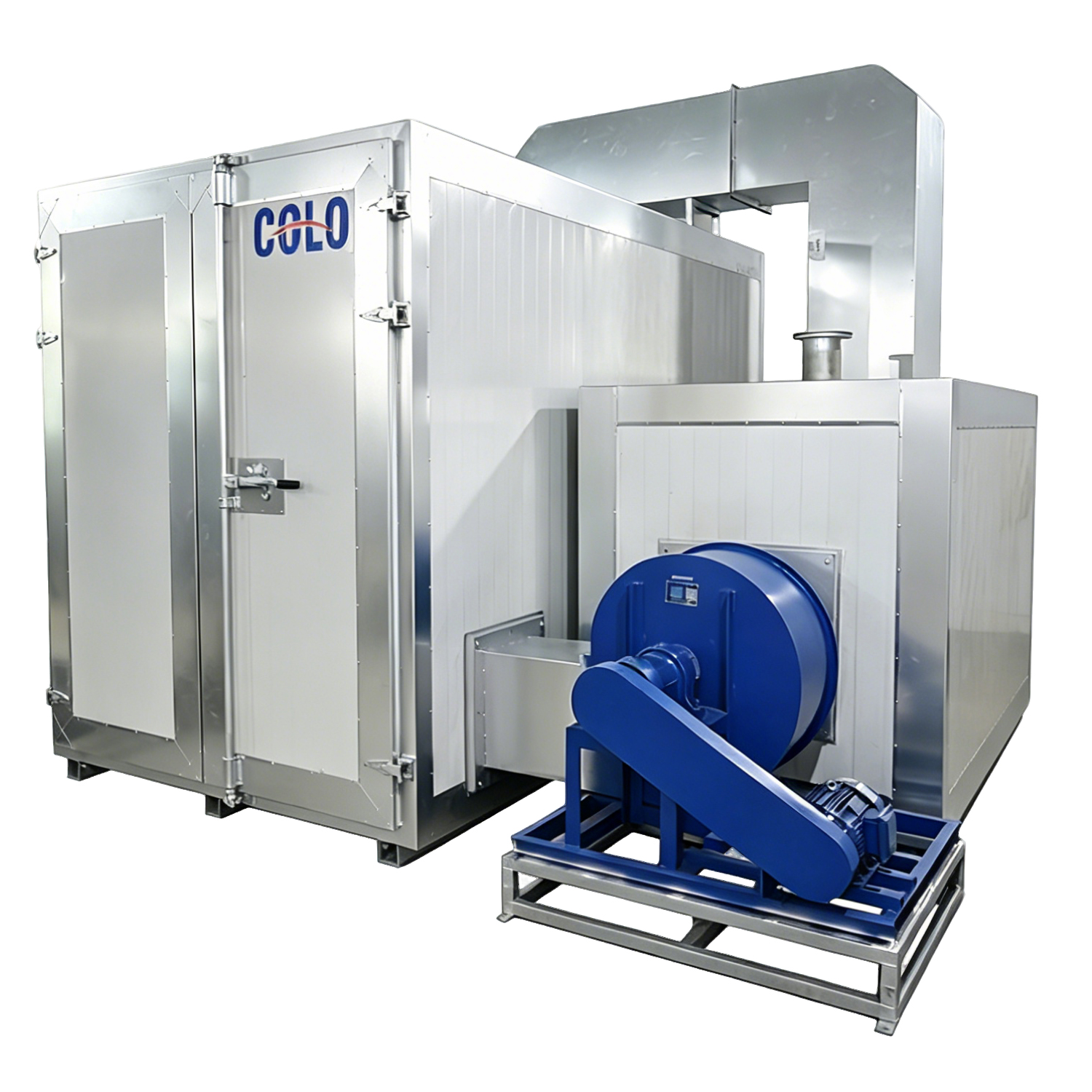

Built with a burning room and a heating chamber made of 100mm thickness isolation board, consists of circulation fan, gas/diesel burner, PLC control unit, trasport trolley, etc.

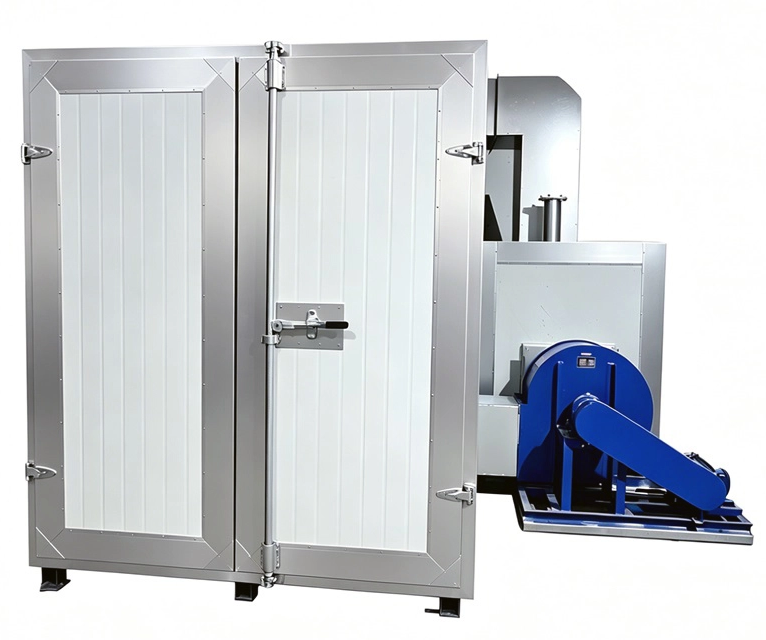

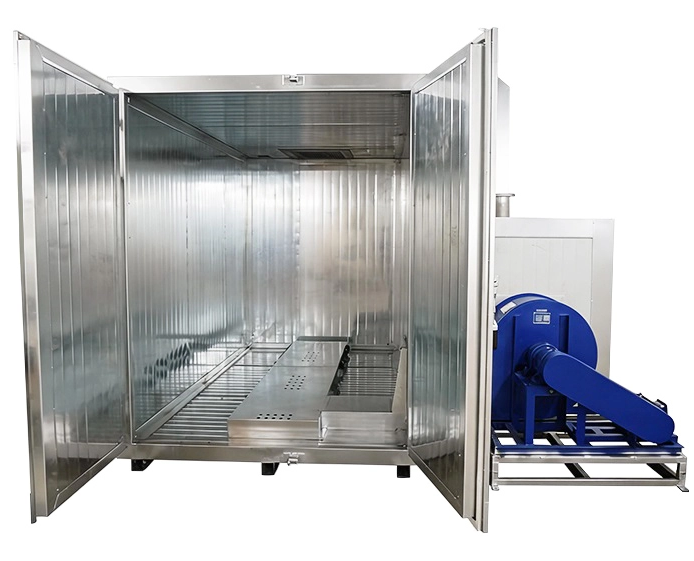

Our powder coating ovens can be powered by natural gas, LPG or diesel, which are recommended for bigger dimension plans. These ovens costs less energy expense comparing with electric curing ovens. COLO powder coating ovens are constructed from high quality components that ensures quick and uniform heating.
Features of Gas/Diesel Powder Coating Oven
1. It is easy to operate thanks to the PLC control unit with precise temperature regulation and timer.
3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.
4. 100 mm thickness rockwool board always keeps the chamber warm with minimum heat loss.
5. We can custom powder coating ovens with different sizes, heated by electric, gas or diesel.

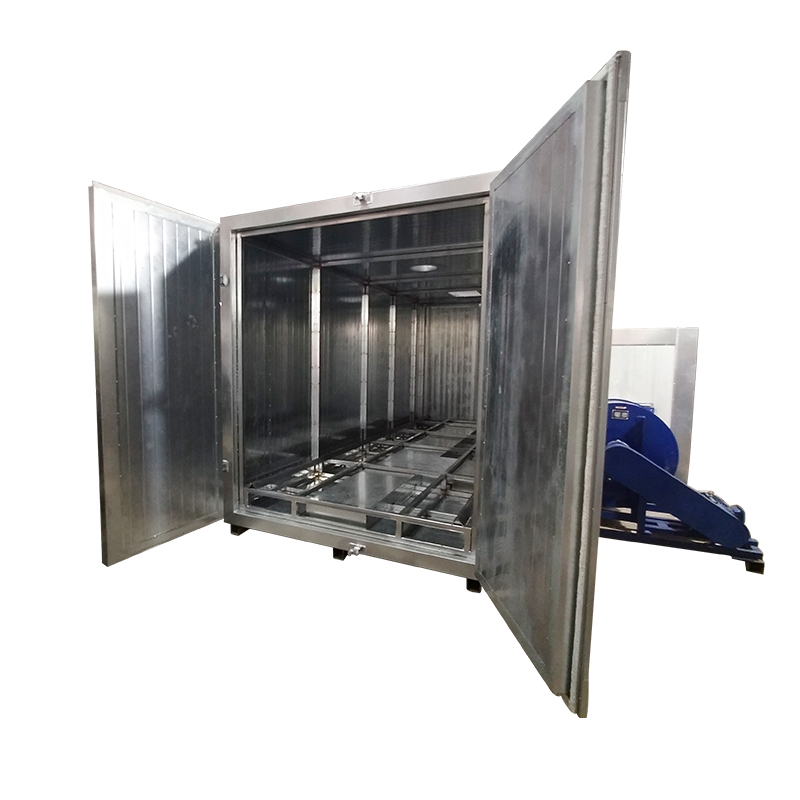

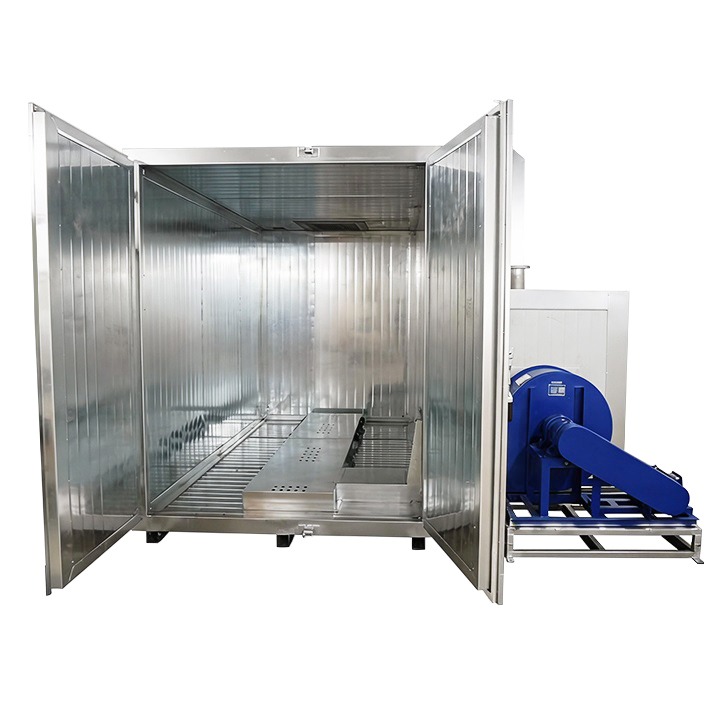

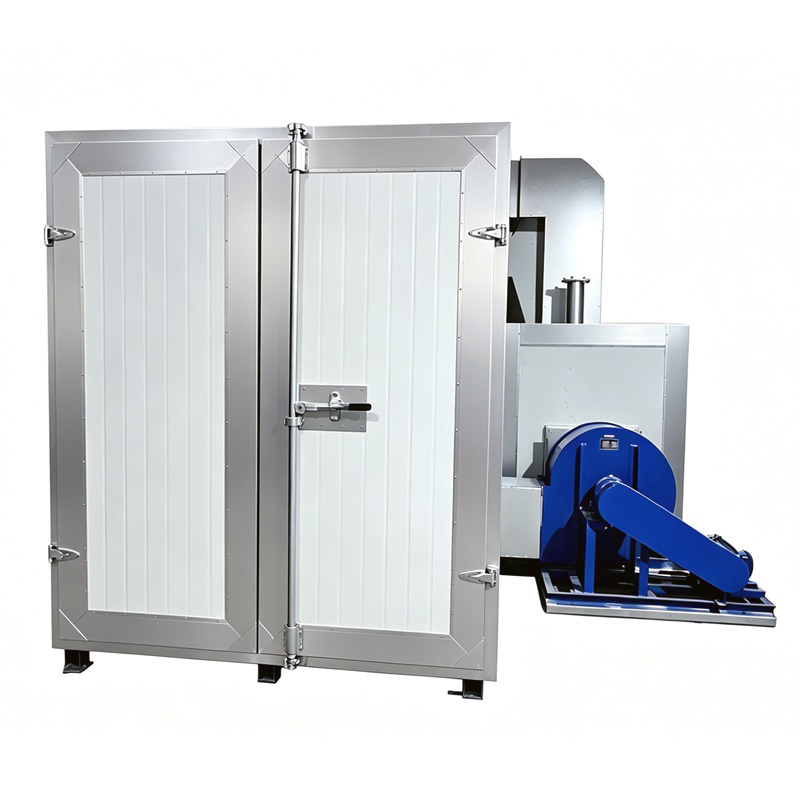

COLO-3210 Gas Powder Coating Oven Specifications
Model
COLO-3210
Worksize Dimensions
width2000 * height1900 * depth3100 mm
Overall Dimensions
width2200 * height2100 * depth3300 mm
Power Supply
Gas or LPG or Diesel
Voltage/Frequency
As required
Burner
Italy Riello, 10,0000cal
Warm-up Time
15-30 min. (180° C)
Temperature Stability
< ± 3-5°C
Temperature
Max.250° C
Ventilation Performance
1131-2565m3/h
Fan Motor Power
2.2kW
<template class="visibility">
Gas/Diesel Powered Powder Coating Oven COLO-3210
Our powder coating ovens can be powered by natural gas, LPG or diesel, which are recommended for bigger dimension plans. These ovens costs less energy expense comparing with electric curing ovens. COLO powder coating ovens are constructed from high quality components that ensures quick and uniform heating.
Features of Gas/Diesel Powder Coating Oven
1. It is easy to operate thanks to the PLC control unit with precise temperature regulation and timer.
3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.
4. 100 mm thickness rockwool board always keeps the chamber warm with minimum heat loss.
5. We can custom powder coating ovens with different sizes, heated by electric, gas or diesel.
COLO-3210 Gas Powder Coating Oven Specifications
Model
COLO-3210
Worksize Dimensions
width2000 * height1900 * depth3100 mm
Overall Dimensions
width2200 * height2100 * depth3300 mm
Power Supply
Gas or LPG or Diesel
Voltage/Frequency
As required
Burner
Italy Riello, 10,0000cal
Warm-up Time
15-30 min. (180° C)
Temperature Stability
< ± 3-5°C
Temperature
Max.250° C
Ventilation Performance
1131-2565m3/h
Fan Motor Power
2.2kW
</template>
PLC Controller
This oven is controlled by the PLC, all parameters could be set on the digital panel. Simple operation and accurate adjustment takes the oven more user-friendly and high-performance.

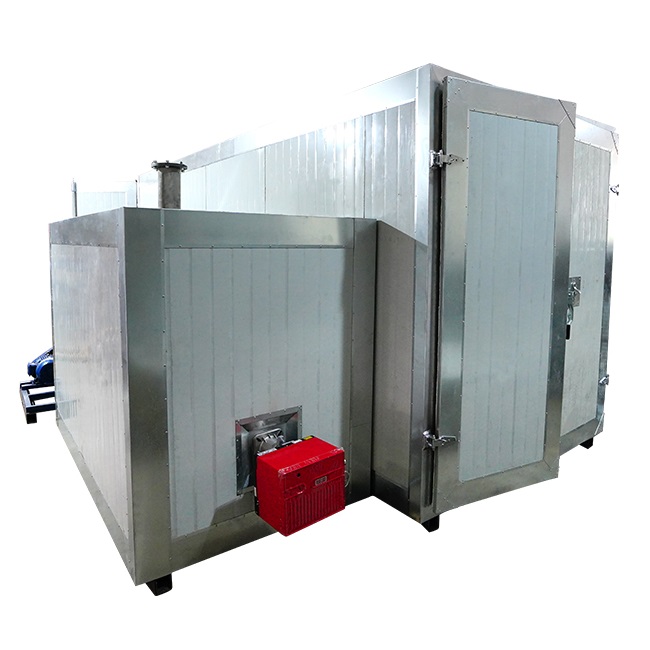

Gas/Diesel Burner
Compared with other burners, Italy imported Riello burner takes full utilization of fuels, less time is needed to get the curing temperature.

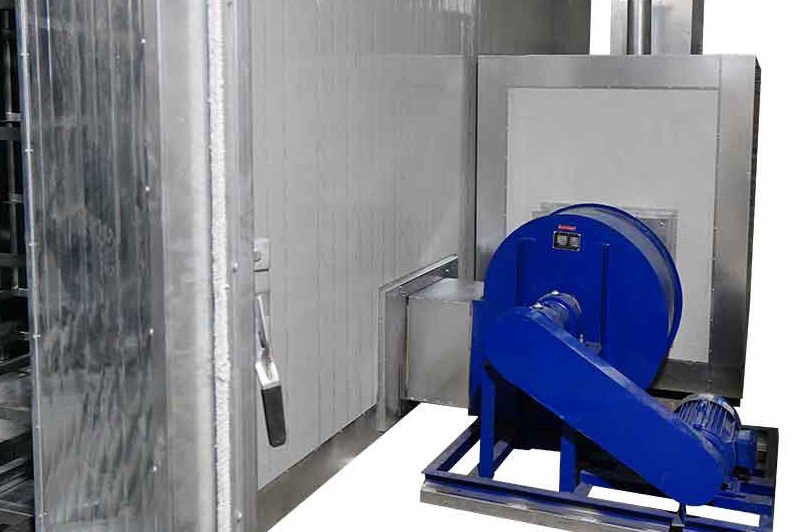

Circulation Fan
Circulation fan circles the hot air to warm the oven interior, minimize temperature difference and guarantee uniform-heated chamber. There is a isolation strip between fan and motor that tends to protect the motor from burning hot and extend its life.
Oven Wall Materials
Interlayer is rockwool insulation board, 100 mm thickness, density 120kgs/cbm. Together with 1mm heat-resistent galvanized innerwall and 0.7mm durable color steel outwall forms a sandwich structure which is anti-flame and heat-insulation.
Heating Exchanger
It is built inside the burning room. As burners fully burns the fuels at the same time warm-up the heat exchanger. The heat exchange is made of seamless 310S stainless steel pipe in 8x8 array, these pipes are in high temperature thus to heat the air.
