Wet Sandblasting Machine

Wet blasting, also known as vapor blasting or liquid blasting, is rapidly becoming the first choice for applications requiring the highest quality of surface finish. Water-borne media blasting deliver finer and cleaner surfaces.

  • CL-1212W
  • COLO
Quantity:

CL-1212W Wet Sandblasting Machine

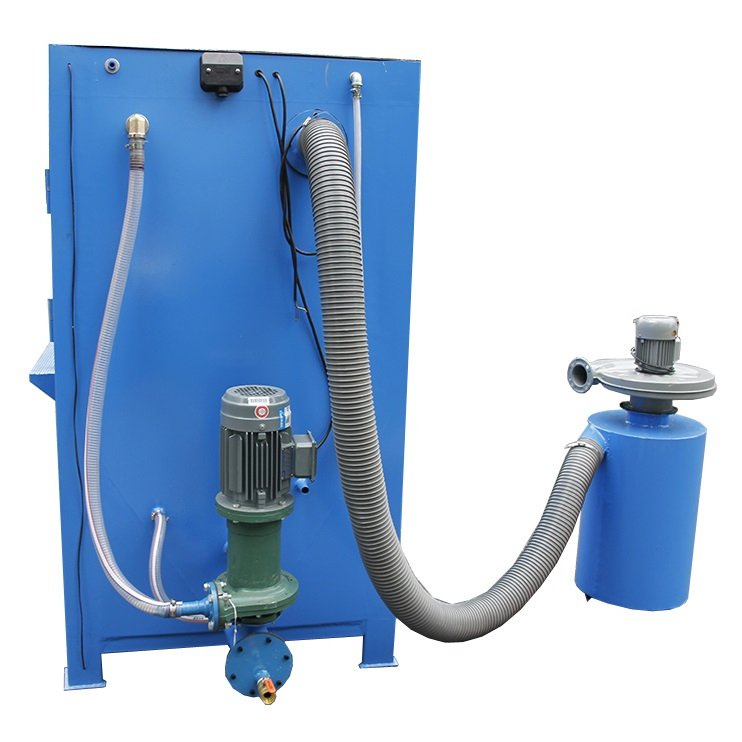

Wet blasting machine has a specially designed pump that agitates water and media into a slurry, and deliver the slurry to the blast nozzle is via a hoses located inside the machine. Compressed air is introduced at the blast nozzle to accelerate the slurry and provide the cleaning effect.


wet sandblast cabinetwet sandblasting machine

Why choose wet blasting machines?

The obvious advantage to wet blasting is that water-borne abrasive gives a finer and cleaner finish due to the flushing action of the water.  As there will be no media impregnated into the component, and no any dust created by the break-up of media. For delicate or precise products. water's buffering action offers higher quality finish.


Wet sandblasting machine features:

  • Contructed from 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.

  • Low voltage windscreen wiper and washer to maintain visibility of working chamber

  • Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process,

  • Reliable foot pedal controls the working of blast gun to increase operation safety.

  • A demister at the back of the machine for better view of blasting process.

_MG_2150

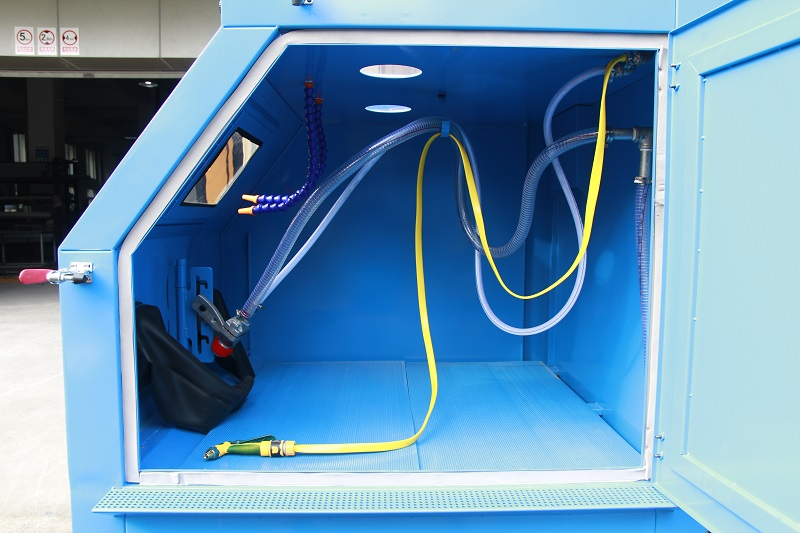

Wet Blasting Gun


_MG_4254

Washer and Wiper(optional)


wet blasting machine

Foot Padel Control


CL-1212W Wet Blasting Cabinet Specifications

Model CL-1212W
Outer size 1300*1600*2000mm
Working area 1200*1200*800mm
Motor  2.2Kw
Air requirement flow 0.5-1.1m^3/min
Light 2*18w saving lamps
Blast Gun 1 pc of wet blast gun with 1 boron cabide nozzle (8mm)
Air consumption for 1 gun 0.4-0.8Mbar
Volume of abrasive & water 25L
Suitable abrasive

Glass beads(for aluminum, stainless steel)

Brown Aluminum Oxide(stell or other)80#-320#

Feed abrasive 4-6kg
Abrasive : Water 1:3
Voltage 380V/220V 3 phase (customized)


Standard models of Wet Blasting Cabinet for Choice

Model

CL-1610W

(double gun)

CL-1010W CL-9080W
Working size 1600*1000*800mm 1000*1000*800mm 900*900*800mm
Weight 320kgs 300kgs 280kgs
Loading Capacity 100-140kgs 50-80kgs 30-50kgs
